UCK30L-ASSLKA (2002)
Toyota Tundra
Production
Aug 2002
-
Aug 2004
Engine
2UZFE
Transmission
4HC ATM
Displacement
2500cc
Power
168 HP (125 kW)
(0208-0408)2UZFE

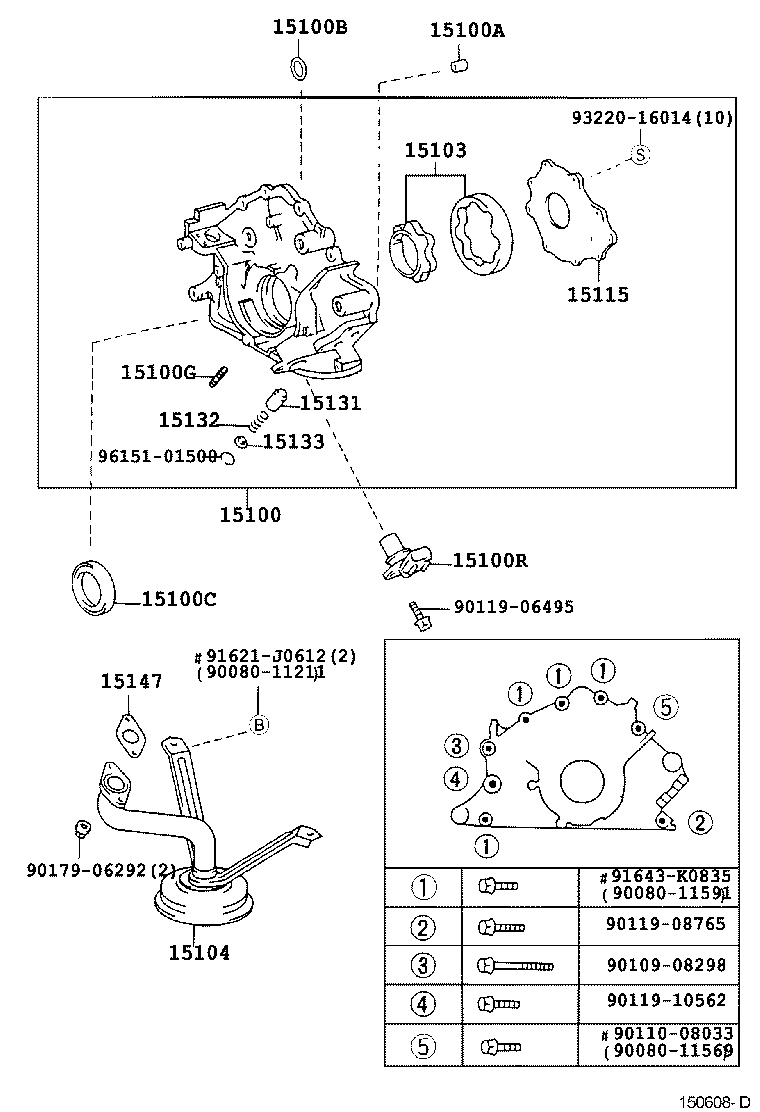

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 15100 - PUMP ASSY, OIL | ||||
| 15100-50050 |
2UZFE..UCK30,40 (J) |
1 | ||
| 15100-50050 |
2UZFE..UCK3#,4# (J) |
1 | ||
| 15100-0F010 |
2UZFE..UCK3#,4# (L) |
1 | ||
| 15100A - PIN, RING(FOR OIL PUMP SET) | ||||
| 90253-13017 |
2UZFE..UCK30,40 |
2 | ||
| 90253-13017 |
2UZFE..UCK3#,4# |
2 | ||
| 15100B - RING, O(FOR OIL PUMP) | ||||
| 96721-24025 |
2UZFE..UCK30,40 |
1 | ||
| 96721-24025 |
2UZFE..UCK3#,4# |
1 | ||
| 15100C - SEAL(FOR OIL PUMP) | ||||
| 90311-A0001 |
2UZFE..UCK3#,4# (L) |
1 | ||
| 90311-43006 |
2UZFE..UCK30,40 (J) |
1 | ||
| 90311-43006 |
2UZFE..UCK3#,4# (J) |
1 | ||
| 15100G - BOLT,STUD(FOR OIL PUMP) | ||||
| 16193-15010 |
2UZFE..UCK3#,4# |
2 | ||
| 16193-15010 |
2UZFE..UCK30,40 |
2 | ||
| 15100R - SENSOR, CRANK POSITION | ||||
| 90919-05035 |
2UZFE..UCK3#,4# |
1 | ||
| 90919-05035 |
2UZFE..UCK30,40 |
1 | ||
| 15103 - GEAR SET, OIL PUMP | ||||
| 15103-50020 |
2UZFE..UCK30,40 |
1 | ||
| 15103-0F010 |
2UZFE..UCK3#,4# |
1 | ||
| 15104 - STRAINER SUB-ASSY, OIL | ||||
| 15104-50170 |
2UZFE..UCK3#,4# |
1 | ||
| 15104-50170 |
2UZFE..UCK30,40 |
1 | ||
| 15115 - COVER, OIL PUMP | ||||
| 15115-0F010 |
2UZFE..UCK3#,4# |
1 | ||
| 15115-50050 |
2UZFE..UCK30,40 |
1 | ||
| 15131 - VALVE, OIL PUMP RELIEF | ||||
| 15131-24010 |
2UZFE..UCK30,40 |
1 | ||
| 15131-24010 |
2UZFE..UCK3#,4# (J) |
1 | ||
| 15131-0A040 |
2UZFE..UCK3#,4# (L) |
1 | ||
| 15132 - SPRING, OIL PUMP RELIEF VALVE | ||||
| 15132-0A020 |
2UZFE..UCK3#,4# (L) |
1 | ||
| 15132-62010 |
2UZFE..UCK3#,4# (J) |
1 | ||
| 15132-62010 |
2UZFE..UCK30,40 (J) |
1 | ||
| 15133 - PLUG, OIL PUMP RELIEF VALVE | ||||
| 15135-15010 |
2UZFE..UCK30,40 *113 |
1 | ||
| 15133-17010 |
2UZFE..UCK3#,4# *112 |
1 | ||
| 15135-15010 |
2UZFE..UCK3#,4# *113 |
1 | ||
| 15147 - GASKET, OIL STRAINER | ||||
| 15147-50011 |
2UZFE..UCK3#,4# |
1 | ||
| 15147-50011 |
2UZFE..UCK30,40 |
1 | ||
| Common parts | ||||
| 90080-11211 | ||||
| 90080-11569 | ||||
| 90080-11591 | ||||
| 90109-08298 | ||||
| 90110-08033 | ||||
| 90119-06495 | ||||
| 90119-08765 | ||||
| 90119-10562 | ||||
| 90179-06292 | ||||
| 91621-J0612 | ||||
| 91643-K0835 | ||||
| 93220-16014 | ||||
| 96151-01500 | ||||
