UCK30L-ASSLKA (2002)

Toyota Tundra

Production Aug 2002 - Aug 2004
Engine 2UZFE
Transmission 4HC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9902-0408)2UZFE

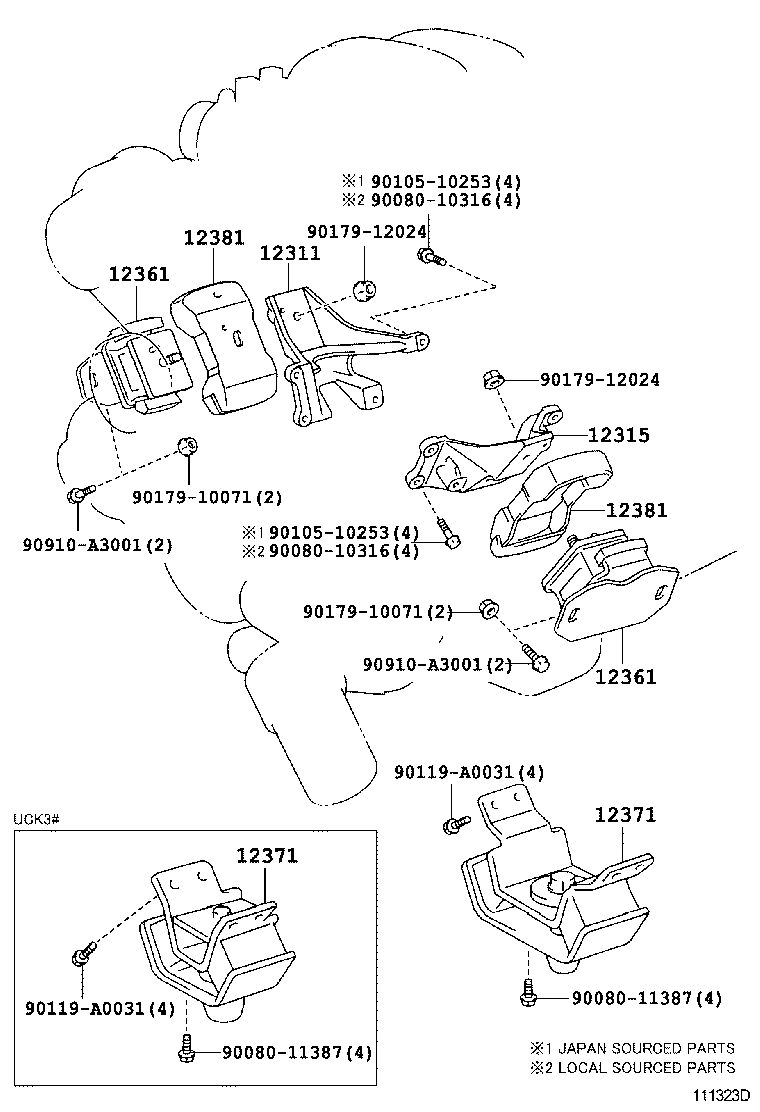

Click highlighted areas on diagram

diagram 12311 12315 12361 12361 12371 12371 12381 12381 9008010316 9008010316 9008011387 9008011387 9010510253 9010510253 90119A0031 90119A0031 9017910071 9017910071 9017912024 9017912024 90910A3001 90910A3001
Part # Description Qty Price
12311 - BRACKET, ENGINE MOUNTING, FRONT NO.1 RH
12311-0F010

2UZFE..UCK3#,4#

(L)

 1
12311-50120

2UZFE..UCK3#,4#

(J)

 1
12311-50120

2UZFE..UCK30,40

(J)

 1
12315 - BRACKET, ENGINE MOUNTING, FRONT NO.1 LH
12315-50090

2UZFE..UCK30,40

(J)

 1
12315-50090

2UZFE..UCK3#,4#

(J)

 1
12315-0F010

2UZFE..UCK3#,4#

(L)

 1
12361 - INSULATOR, ENGINE MOUNTING, FRONT
12361-50130

2UZFE..UCK30,40

 2
12361-50133

2UZFE..UCK3#,4#

 2
12361 - INSULATOR, ENGINE MOUNTING, FRONT
12361-50130

2UZFE..UCK30,40

 2
12361-50133

2UZFE..UCK3#,4#

 2
12371 - INSULATOR, ENGINE MOUNTING, REAR NO.1
12371-50090

2UZFE..UCK30

 1
12371-0F020

2UZFE..UCK3#

(L)

 1
12371-50090

2UZFE..UCK3#

(J)

 1
12371 - INSULATOR, ENGINE MOUNTING, REAR NO.1
12371-50090

2UZFE..UCK30

 1
12371-0F020

2UZFE..UCK3#

(L)

 1
12371-50090

2UZFE..UCK3#

(J)

 1
12381 - STABILIZER, ENGINE MOUNTING
12381-50110

2UZFE..UCK30,40

 2
12381-50110

2UZFE..UCK3#,4#

 2
12381 - STABILIZER, ENGINE MOUNTING
12381-50110

2UZFE..UCK30,40

 2
12381-50110

2UZFE..UCK3#,4#

 2
Common parts
90080-10316
90080-11387
90105-10253
90119-A0031
90179-10071
90179-12024
90910-A3001
