UCK30L-ASSLKA (2002)

Toyota Tundra

Production Aug 2002 - Aug 2004
Engine 2UZFE
Transmission 4HC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9902-0408)2UZFE

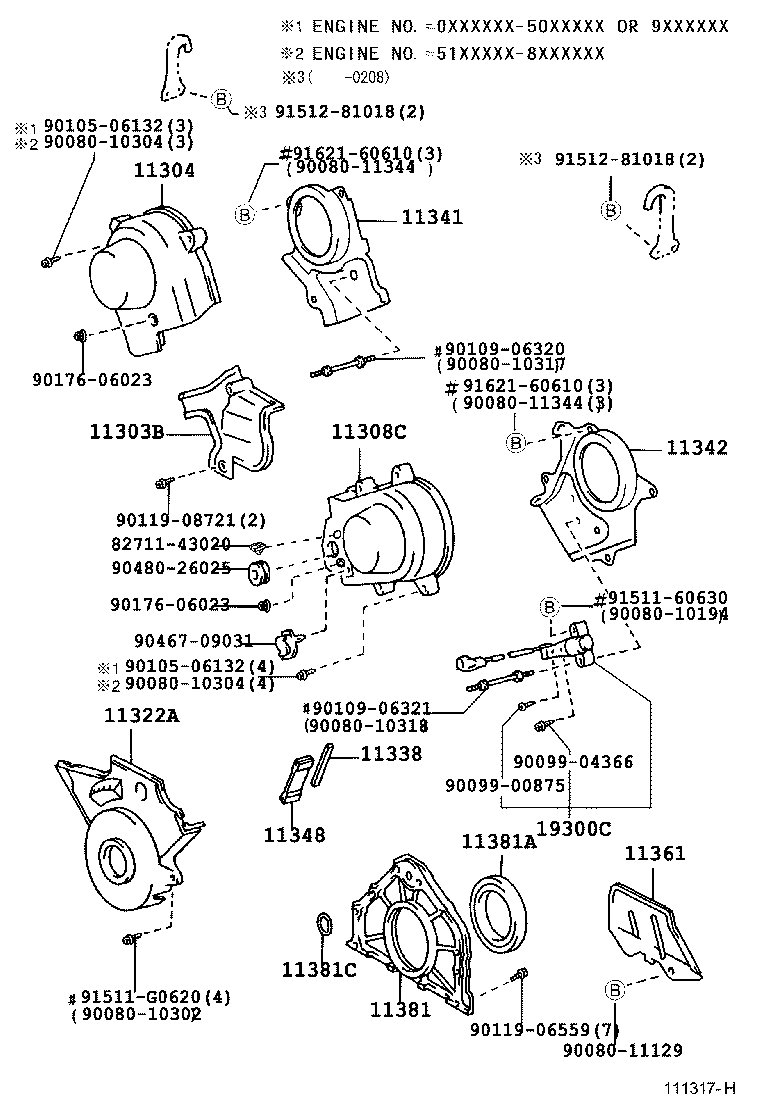

Click highlighted areas on diagram

diagram 11303B 11304 11308C 11322A 11338 11341 11342 11348 11361 11381 11381A 11381C 19300C 8271143020 9008010194 9008010302 9008010304 9008010304 9008010317 9008010318 9008011129 9008011344 9008011344 9009900875 9009904366 9010506132 9010506132 9010906320 9010906321 9011906559 9011908721 9017606023 9017606023 9046709031 9048026025 9151160630 91511G0620 9151281018 9151281018 9162160610 9162160610
Part # Description Qty Price
11303B - COVER SUB-ASSY, TIMING BELT, NO.2
11303-50030

2UZFE..UCK30,40

 1
11303-50030

2UZFE..UCK3#,4#

 1
11304 - COVER, TIMING CHAIN OR BELT, NO.2
11304-50020

2UZFE..UCK3#,4#

(J)

 1
11304-50020

2UZFE..UCK30,40

(J)

 1
11308C - COVER SUB-ASSY, TIMING BELT, NO.3 LH
11308-50030

2UZFE..UCK30,40

(J)

 1
11308-50030

2UZFE..UCK3#,4#

(J)

 1
11322A - COVER, TIMING BELT, NO.1
11302-AC010

2UZFE..UCK3#,4#

(L)

 1
11302-50040

2UZFE..UCK3#,4#

(J)

 1
11302-50040

2UZFE..UCK30,40

(J)

 1
11338 - GASKET, TIMING CHAIN COVER, NO.2
11338-50010

2UZFE..UCK30,40

(J)

 1
11338-AC010

2UZFE..UCK3#,4#

(L)

 1
11338-50010

2UZFE..UCK3#,4#

(J)

 1
11341 - PLATE, TIMING BELT, REAR RH
11341-50030

2UZFE..UCK3#,4#

 1
11341-50030

2UZFE..UCK30,40

 1
11342 - PLATE, TIMING BELT, REAR LH
11342-50030

2UZFE..UCK30,40

 1
11342-50030

2UZFE..UCK3#,4#

 1
11348 - SPACER, TIMING GEAR COVER
11348-50011

2UZFE..UCK30,40

(J)

 1
11348-50011

2UZFE..UCK3#,4#

(J)

 1
11348-AC010

2UZFE..UCK3#,4#

(L)

 1
11361 - COVER, FLYWHEEL HOUSING UNDER
11361-50030

2UZFE..UCK3#,4#

 1
11361-50030

2UZFE..UCK30,40

 1
11381 - RETAINER, ENGINE REAR OIL SEAL
11381-50021

2UZFE..UCK30,40

(J)

 1
11381-50021

2UZFE..UCK3#,4#

(J)

 1
11381-AC010

2UZFE..UCK3#,4#

(L)

 1
11381A - SEAL, ENGINE REAR OIL
90311-95012

2UZFE..UCK30,40

(J)

 1
90311-A0002

2UZFE..UCK3#,4#

(L)

 1
90311-95012

2UZFE..UCK3#,4#

(J)

 1
11381C - RING, O(FOR OIL SEAL RETAINER)
96721-24025

2UZFE..UCK3#,4#

 1
96721-24025

2UZFE..UCK30,40

 1
19300C - SENSOR ASSY, CAM POSITION
19300-50020

2UZFE..UCK30,40

 1
19300-50020

2UZFE..UCK3#,4#

 1
Common parts
82711-43020
90080-10194
90080-10302
90080-10304
90080-10317
90080-10318
90080-11129
90080-11344
90099-00875
90099-04366
90105-06132
90109-06320
90109-06321
90119-06559
90119-08721
90176-06023
90467-09031
90480-26025
91511-60630
91511-G0620
91512-81018
91621-60610
