UCK30L-ASSLKA (2002)
Toyota Tundra
(9902-0408)2UZFE

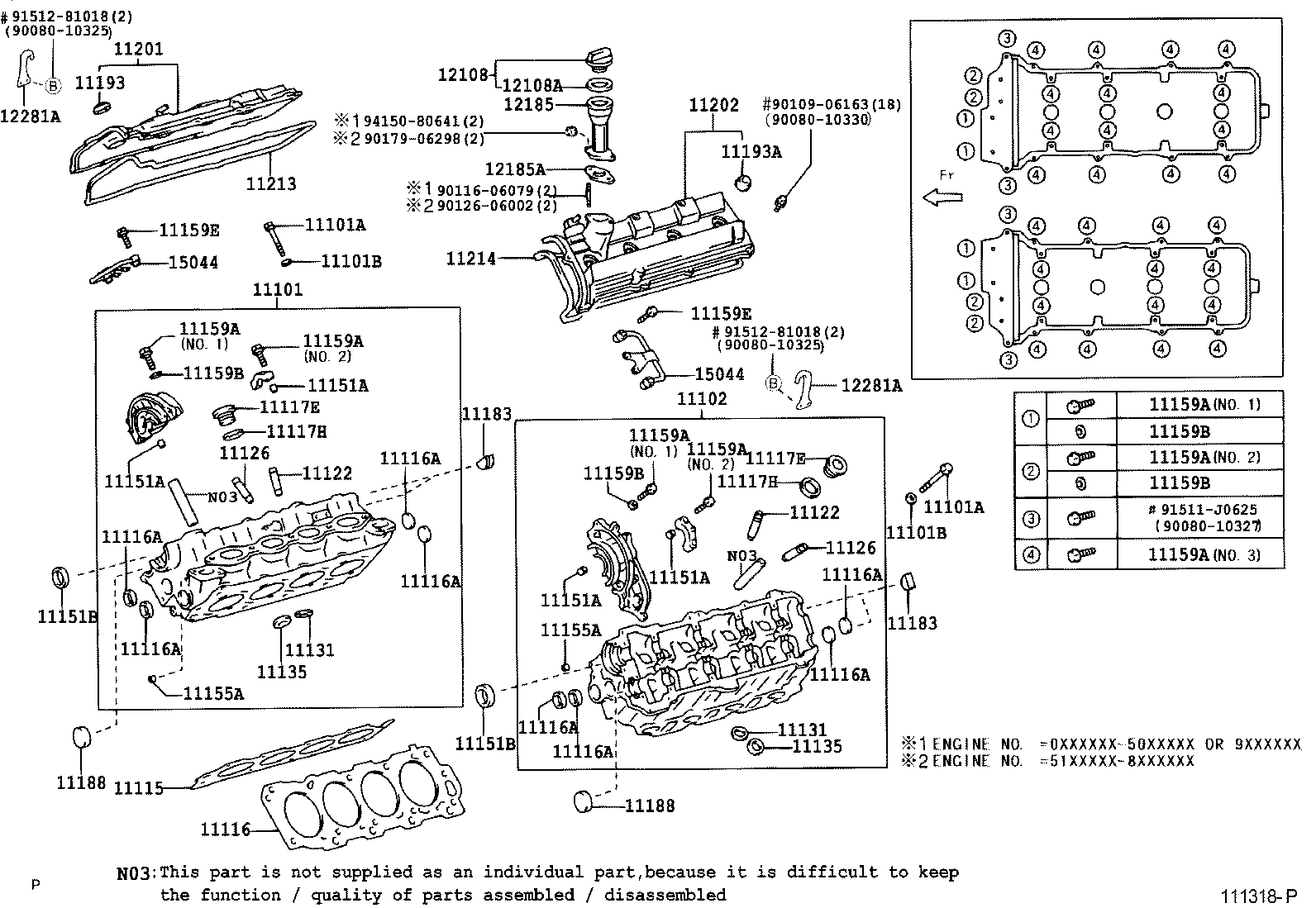

| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 11101 - HEAD SUB-ASSY, CYLINDER | ||||
| 11101-59165 |
2UZFE..UCK30,40 |
1 | ||
| 11101-59167 |
2UZFE..UCK3#,4# (J) |
1 | ||
| 11101-09160 |
2UZFE..UCK3#,4# (L) |
1 | ||
| 11101A - BOLT(FOR CYLINDER HEAD SET) | ||||
| 90910-02132 |
2UZFE..UCK30,40 |
20 | ||
| 90910-02132 |
2UZFE..UCK3#,4# |
20 | ||
| 11101A - BOLT(FOR CYLINDER HEAD SET) | ||||
| 90910-02132 |
2UZFE..UCK30,40 |
20 | ||
| 90910-02132 |
2UZFE..UCK3#,4# |
20 | ||
| 11101B - WASHER, PLATE(FOR CYLINDER HEAD SET) | ||||
| 90201-10133 |
2UZFE..UCK30,40 |
20 | ||
| 90201-10133 |
2UZFE..UCK3#,4# |
20 | ||
| 11101B - WASHER, PLATE(FOR CYLINDER HEAD SET) | ||||
| 90201-10133 |
2UZFE..UCK30,40 |
20 | ||
| 90201-10133 |
2UZFE..UCK3#,4# |
20 | ||
| 11102 - HEAD, CYLINDER, LH | ||||
| 11102-59025 |
2UZFE..UCK30,40 |
1 | ||
| 11102-09060 |
2UZFE..UCK3#,4# (L) |
1 | ||
| 11102-59027 |
2UZFE..UCK3#,4# (J) |
1 | ||
| 11115 - GASKET, CYLINDER HEAD | ||||
| 11115-50050 |
2UZFE..UCK30,40 |
1 | ||
| 11115-50080 |
2UZFE..UCK3#,4# |
1 | ||
| 11115-0F010 |
2UZFE..UCK3#,4# (L) |
1 | ||
| 11115-50050 |
2UZFE..UCK3#,4# (J) |
1 | ||
| 11116 - GASKET, CYLINDER HEAD, NO.2 | ||||
| 11116-50040 |
2UZFE..UCK3#,4# (J) |
1 | ||
| 11116-0F010 |
2UZFE..UCK3#,4# (L) |
1 | ||
| 11116-50070 |
2UZFE..UCK3#,4# |
1 | ||
| 11116-50040 |
2UZFE..UCK30,40 |
1 | ||
| 11116A - PLUG, TIGHT, NO.1 | ||||
| 96411-63000 |
2UZFE..UCK30,40 |
8 | ||
| 11116A - PLUG, TIGHT, NO.1 | ||||
| 96411-63000 |
2UZFE..UCK30,40 |
8 | ||
| 11116A - PLUG, TIGHT, NO.1 | ||||
| 96411-63000 |
2UZFE..UCK30,40 |
8 | ||
| 11116A - PLUG, TIGHT, NO.1 | ||||
| 96411-63000 |
2UZFE..UCK30,40 |
8 | ||
| 11116A - PLUG, TIGHT, NO.1 | ||||
| 96411-63000 |
2UZFE..UCK30,40 |
8 | ||
| 11116A - PLUG, TIGHT, NO.1 | ||||
| 96411-63000 |
2UZFE..UCK30,40 |
8 | ||
| 11116A - PLUG, TIGHT, NO.1 | ||||
| 96411-63000 |
2UZFE..UCK30,40 |
8 | ||
| 11116A - PLUG, TIGHT, NO.1 | ||||
| 96411-63000 |
2UZFE..UCK30,40 |
8 | ||
| 11117E - PLUG, W/HEAD STRAIGHT SCREW, NO.1 | ||||
| 90341-27006 |
2UZFE..UCK30,40 |
2 | ||
| 90341-27006 |
2UZFE..UCK3#,4# |
2 | ||
| 11117E - PLUG, W/HEAD STRAIGHT SCREW, NO.1 | ||||
| 90341-27006 |
2UZFE..UCK30,40 |
2 | ||
| 90341-27006 |
2UZFE..UCK3#,4# |
2 | ||
| 11117H - GASKET(FOR WATER HOLE) | ||||
| 90430-27005 |
2UZFE..UCK30,40 |
2 | ||
| 90430-27005 |
2UZFE..UCK3#,4# |
2 | ||
| 11117H - GASKET(FOR WATER HOLE) | ||||
| 90430-27005 |
2UZFE..UCK30,40 |
2 | ||
| 90430-27005 |
2UZFE..UCK3#,4# |
2 | ||
| 11122 - BUSH, INTAKE VALVE GUIDE | ||||
| 11122-20020 |
2UZFE..UCK30,40 STD |
16 | ||
| 11123-20020 |
2UZFE..UCK3#,4# O/S 0.05 |
16 | ||
| 11122-20020 |
2UZFE..UCK3#,4# STD |
16 | ||
| 11123-20020 |
2UZFE..UCK30,40 O/S 0.05 |
16 | ||
| 11122 - BUSH, INTAKE VALVE GUIDE | ||||
| 11122-20020 |
2UZFE..UCK30,40 STD |
16 | ||
| 11123-20020 |
2UZFE..UCK3#,4# O/S 0.05 |
16 | ||
| 11122-20020 |
2UZFE..UCK3#,4# STD |
16 | ||
| 11123-20020 |
2UZFE..UCK30,40 O/S 0.05 |
16 | ||
| 11126 - BUSH, EXHAUST VALVE GUIDE | ||||
| 11126-20020 |
2UZFE..UCK30,40 STD |
16 | ||
| 11126-20020 |
2UZFE..UCK3#,4# STD |
16 | ||
| 11127-20020 |
2UZFE..UCK30,40 O/S 0.05 |
16 | ||
| 11127-20020 |
2UZFE..UCK3#,4# O/S 0.05 |
16 | ||
| 11126 - BUSH, EXHAUST VALVE GUIDE | ||||
| 11126-20020 |
2UZFE..UCK30,40 STD |
16 | ||
| 11126-20020 |
2UZFE..UCK3#,4# STD |
16 | ||
| 11127-20020 |
2UZFE..UCK30,40 O/S 0.05 |
16 | ||
| 11127-20020 |
2UZFE..UCK3#,4# O/S 0.05 |
16 | ||
| 11131 - SEAT, INTAKE VALVE | ||||
| 11131-50040 |
2UZFE..UCK3#,4# STD,(J) |
16 | ||
| 11131-50030 |
2UZFE..UCK30,40 STD |
16 | ||
| 11131-0F010 |
2UZFE..UCK3#,4# STD,(L) |
16 | ||
| 11132-50030 |
2UZFE..UCK30,40 O/S 0.03 |
16 | ||
| 11132-50040 |
2UZFE..UCK3#,4# O/S 0.03,(J) |
16 | ||
| 11131 - SEAT, INTAKE VALVE | ||||
| 11131-50040 |
2UZFE..UCK3#,4# STD,(J) |
16 | ||
| 11131-50030 |
2UZFE..UCK30,40 STD |
16 | ||
| 11131-0F010 |
2UZFE..UCK3#,4# STD,(L) |
16 | ||
| 11132-50030 |
2UZFE..UCK30,40 O/S 0.03 |
16 | ||
| 11132-50040 |
2UZFE..UCK3#,4# O/S 0.03,(J) |
16 | ||
| 11135 - SEAT, EXHAUST VALVE | ||||
| 11135-50040 |
2UZFE..UCK30,40 STD,(J) |
16 | ||
| 11135-50030 |
2UZFE..UCK30,40 STD |
16 | ||
| 11136-50030 |
2UZFE..UCK30,40 O/S 0.03 |
16 | ||
| 11135-0F010 |
2UZFE..UCK30,40 STD,(L) |
16 | ||
| 11136-50040 |
2UZFE..UCK30,40 O/S 0.03,(J) |
16 | ||
| 11135 - SEAT, EXHAUST VALVE | ||||
| 11135-50040 |
2UZFE..UCK30,40 STD,(J) |
16 | ||
| 11135-50030 |
2UZFE..UCK30,40 STD |
16 | ||
| 11136-50030 |
2UZFE..UCK30,40 O/S 0.03 |
16 | ||
| 11135-0F010 |
2UZFE..UCK30,40 STD,(L) |
16 | ||
| 11136-50040 |
2UZFE..UCK30,40 O/S 0.03,(J) |
16 | ||
| 11151A - PIN, RING(FOR CAMSHAFT BEARING CAP SETTING) | ||||
| 90253-10006 |
2UZFE..UCK30,40 L=7,OD=10 |
36 | ||
| 90253-10006 |
2UZFE..UCK3#,4# L=7,OD=10 |
36 | ||
| 11151A - PIN, RING(FOR CAMSHAFT BEARING CAP SETTING) | ||||
| 90253-10006 |
2UZFE..UCK30,40 L=7,OD=10 |
36 | ||
| 90253-10006 |
2UZFE..UCK3#,4# L=7,OD=10 |
36 | ||
| 11151A - PIN, RING(FOR CAMSHAFT BEARING CAP SETTING) | ||||
| 90253-10006 |
2UZFE..UCK30,40 L=7,OD=10 |
36 | ||
| 90253-10006 |
2UZFE..UCK3#,4# L=7,OD=10 |
36 | ||
| 11151A - PIN, RING(FOR CAMSHAFT BEARING CAP SETTING) | ||||
| 90253-10006 |
2UZFE..UCK30,40 L=7,OD=10 |
36 | ||
| 90253-10006 |
2UZFE..UCK3#,4# L=7,OD=10 |
36 | ||
| 11151B - SEAL, OIL(FOR CAMSHAFT SETTING) | ||||
| 90311-38065 |
2UZFE..UCK30,40 |
2 | ||
| 90311-38065 |
2UZFE..UCK3#,4# |
2 | ||
| 11151B - SEAL, OIL(FOR CAMSHAFT SETTING) | ||||
| 90311-38065 |
2UZFE..UCK30,40 |
2 | ||
| 90311-38065 |
2UZFE..UCK3#,4# |
2 | ||
| 11155A - PIN, RING W/HEAD | ||||
| 90253-09001 |
2UZFE..UCK30,40 |
3 | ||
| 90253-09001 |
2UZFE..UCK3#,4# |
3 | ||
| 11155A - PIN, RING W/HEAD | ||||
| 90253-09001 |
2UZFE..UCK30,40 |
3 | ||
| 90253-09001 |
2UZFE..UCK3#,4# |
3 | ||
| 11159A - BOLT(FOR HEAD TO CAMSHAFT BEARING CAP) | ||||
| 90105-07004 |
2UZFE..UCK30,40 NO.2,(J) |
4 | ||
| 90105-07005 |
2UZFE..UCK3#,4# NO.1,(J) |
4 | ||
| 90080-10306 |
2UZFE..UCK3#,4# NO.1,(L) |
4 | ||
| 90105-07005 |
2UZFE..UCK30,40 NO.1,(J) |
4 | ||
| 90105-07004 |
2UZFE..UCK3#,4# NO.2,(J) |
4 | ||
| 90080-10305 |
2UZFE..UCK3#,4# NO.2,(L) |
4 | ||
| 90119-07009 |
2UZFE..UCK30,40 NO.3 |
28 | ||
| 90119-07009 |
2UZFE..UCK3#,4# NO.3 |
28 | ||
| 11159A - BOLT(FOR HEAD TO CAMSHAFT BEARING CAP) | ||||
| 90105-07004 |
2UZFE..UCK30,40 NO.2,(J) |
4 | ||
| 90105-07005 |
2UZFE..UCK3#,4# NO.1,(J) |
4 | ||
| 90080-10306 |
2UZFE..UCK3#,4# NO.1,(L) |
4 | ||
| 90105-07005 |
2UZFE..UCK30,40 NO.1,(J) |
4 | ||
| 90105-07004 |
2UZFE..UCK3#,4# NO.2,(J) |
4 | ||
| 90080-10305 |
2UZFE..UCK3#,4# NO.2,(L) |
4 | ||
| 90119-07009 |
2UZFE..UCK30,40 NO.3 |
28 | ||
| 90119-07009 |
2UZFE..UCK3#,4# NO.3 |
28 | ||
| 11159A - BOLT(FOR HEAD TO CAMSHAFT BEARING CAP) | ||||
| 90105-07004 |
2UZFE..UCK30,40 NO.2,(J) |
4 | ||
| 90105-07005 |
2UZFE..UCK3#,4# NO.1,(J) |
4 | ||
| 90080-10306 |
2UZFE..UCK3#,4# NO.1,(L) |
4 | ||
| 90105-07005 |
2UZFE..UCK30,40 NO.1,(J) |
4 | ||
| 90105-07004 |
2UZFE..UCK3#,4# NO.2,(J) |
4 | ||
| 90080-10305 |
2UZFE..UCK3#,4# NO.2,(L) |
4 | ||
| 90119-07009 |
2UZFE..UCK30,40 NO.3 |
28 | ||
| 90119-07009 |
2UZFE..UCK3#,4# NO.3 |
28 | ||
| 11159A - BOLT(FOR HEAD TO CAMSHAFT BEARING CAP) | ||||
| 90105-07004 |
2UZFE..UCK30,40 NO.2,(J) |
4 | ||
| 90105-07005 |
2UZFE..UCK3#,4# NO.1,(J) |
4 | ||
| 90080-10306 |
2UZFE..UCK3#,4# NO.1,(L) |
4 | ||
| 90105-07005 |
2UZFE..UCK30,40 NO.1,(J) |
4 | ||
| 90105-07004 |
2UZFE..UCK3#,4# NO.2,(J) |
4 | ||
| 90080-10305 |
2UZFE..UCK3#,4# NO.2,(L) |
4 | ||
| 90119-07009 |
2UZFE..UCK30,40 NO.3 |
28 | ||
| 90119-07009 |
2UZFE..UCK3#,4# NO.3 |
28 | ||
| 11159A - BOLT(FOR HEAD TO CAMSHAFT BEARING CAP) | ||||
| 90105-07004 |
2UZFE..UCK30,40 NO.2,(J) |
4 | ||
| 90105-07005 |
2UZFE..UCK3#,4# NO.1,(J) |
4 | ||
| 90080-10306 |
2UZFE..UCK3#,4# NO.1,(L) |
4 | ||
| 90105-07005 |
2UZFE..UCK30,40 NO.1,(J) |
4 | ||
| 90105-07004 |
2UZFE..UCK3#,4# NO.2,(J) |
4 | ||
| 90080-10305 |
2UZFE..UCK3#,4# NO.2,(L) |
4 | ||
| 90119-07009 |
2UZFE..UCK30,40 NO.3 |
28 | ||
| 90119-07009 |
2UZFE..UCK3#,4# NO.3 |
28 | ||
| 11159A - BOLT(FOR HEAD TO CAMSHAFT BEARING CAP) | ||||
| 90105-07004 |
2UZFE..UCK30,40 NO.2,(J) |
4 | ||
| 90105-07005 |
2UZFE..UCK3#,4# NO.1,(J) |
4 | ||
| 90080-10306 |
2UZFE..UCK3#,4# NO.1,(L) |
4 | ||
| 90105-07005 |
2UZFE..UCK30,40 NO.1,(J) |
4 | ||
| 90105-07004 |
2UZFE..UCK3#,4# NO.2,(J) |
4 | ||
| 90080-10305 |
2UZFE..UCK3#,4# NO.2,(L) |
4 | ||
| 90119-07009 |
2UZFE..UCK30,40 NO.3 |
28 | ||
| 90119-07009 |
2UZFE..UCK3#,4# NO.3 |
28 | ||
| 11159A - BOLT(FOR HEAD TO CAMSHAFT BEARING CAP) | ||||
| 90105-07004 |
2UZFE..UCK30,40 NO.2,(J) |
4 | ||
| 90105-07005 |
2UZFE..UCK3#,4# NO.1,(J) |
4 | ||
| 90080-10306 |
2UZFE..UCK3#,4# NO.1,(L) |
4 | ||
| 90105-07005 |
2UZFE..UCK30,40 NO.1,(J) |
4 | ||
| 90105-07004 |
2UZFE..UCK3#,4# NO.2,(J) |
4 | ||
| 90080-10305 |
2UZFE..UCK3#,4# NO.2,(L) |
4 | ||
| 90119-07009 |
2UZFE..UCK30,40 NO.3 |
28 | ||
| 90119-07009 |
2UZFE..UCK3#,4# NO.3 |
28 | ||
| 11159B - WASHER, SEAL(FOR HEAD TO CAMSHAFT BEARING CAP) | ||||
| 90210-07003 |
2UZFE..UCK30,40 |
8 | ||
| 90210-07003 |
2UZFE..UCK3#,4# |
8 | ||
| 11159B - WASHER, SEAL(FOR HEAD TO CAMSHAFT BEARING CAP) | ||||
| 90210-07003 |
2UZFE..UCK30,40 |
8 | ||
| 90210-07003 |
2UZFE..UCK3#,4# |
8 | ||
| 11159B - WASHER, SEAL(FOR HEAD TO CAMSHAFT BEARING CAP) | ||||
| 90210-07003 |
2UZFE..UCK30,40 |
8 | ||
| 90210-07003 |
2UZFE..UCK3#,4# |
8 | ||
| 11159B - WASHER, SEAL(FOR HEAD TO CAMSHAFT BEARING CAP) | ||||
| 90210-07003 |
2UZFE..UCK30,40 |
8 | ||
| 90210-07003 |
2UZFE..UCK3#,4# |
8 | ||
| 11159E - BOLT(FOR CAMSHAFT OIL FEED PIPE) | ||||
| 90119-07006 |
2UZFE..UCK30,40 |
4 | ||
| 90119-07012 |
2UZFE..UCK3#,4# (J) |
4 | ||
| 90080-11581 |
2UZFE..UCK3#,4# (L) |
4 | ||
| 11159E - BOLT(FOR CAMSHAFT OIL FEED PIPE) | ||||
| 90119-07006 |
2UZFE..UCK30,40 |
4 | ||
| 90119-07012 |
2UZFE..UCK3#,4# (J) |
4 | ||
| 90080-11581 |
2UZFE..UCK3#,4# (L) |
4 | ||
| 11183 - PLUG, SEMICIRCULAR | ||||
| 11183-50020 |
2UZFE..UCK3#,4# |
4 | ||
| 11183-50020 |
2UZFE..UCK30,40 |
4 | ||
| 11183 - PLUG, SEMICIRCULAR | ||||
| 11183-50020 |
2UZFE..UCK3#,4# |
4 | ||
| 11183-50020 |
2UZFE..UCK30,40 |
4 | ||
| 11188 - PLUG, CAMSHAFT HOUSING | ||||
| 11188-50010 |
2UZFE..UCK30,40 |
2 | ||
| 11188-50010 |
2UZFE..UCK3#,4# |
2 | ||
| 11188 - PLUG, CAMSHAFT HOUSING | ||||
| 11188-50010 |
2UZFE..UCK30,40 |
2 | ||
| 11188-50010 |
2UZFE..UCK3#,4# |
2 | ||
| 11193 - GASKET, SPARK PLUG TUBE | ||||
| 11193-16010 |
2UZFE..UCK30,40 |
4 | ||
| 11193-50010 |
2UZFE..UCK3#,4# |
4 | ||
| 11193A - GASKET, SPARK PLUG TUBE, LH | ||||
| 11193-16010 |
2UZFE..UCK30,40 |
4 | ||
| 11193-50010 |
2UZFE..UCK3#,4# |
4 | ||
| 11201 - COVER SUB-ASSY, CYLINDER HEAD | ||||
| 11201-50030 |
2UZFE..UCK30,40 |
1 | ||
| 11201-0F010 |
2UZFE..UCK3#,4# (L) |
1 | ||
| 11201-50031 |
2UZFE..UCK3#,4# (J) |
1 | ||
| 11202 - COVER SUB-ASSY, CYLINDER HEAD, LH | ||||
| 11202-50040 |
2UZFE..UCK30,40 |
1 | ||
| 11202-50041 |
2UZFE..UCK3#,4# (J) |
1 | ||
| 11202-0F010 |
2UZFE..UCK3#,4# (L) |
1 | ||
| 11213 - GASKET, CYLINDER HEAD COVER | ||||
| 11213-50030 |
2UZFE..UCK3#,4# (J) |
1 | ||
| 11213-50030 |
2UZFE..UCK30,40 (J) |
1 | ||
| 11213-0F010 |
2UZFE..UCK3#,4# (L) |
1 | ||
| 11213-50031 |
2UZFE..UCK3#,4# (J) |
1 | ||
| 11214 - GASKET, CYLINDER HEAD COVER, NO.2 | ||||
| 11214-50010 |
2UZFE..UCK30,40 (J) |
1 | ||
| 11214-50011 |
2UZFE..UCK3#,4# (J) |
1 | ||
| 11214-0F010 |
2UZFE..UCK3#,4# (L) |
1 | ||
| 11214-50010 |
2UZFE..UCK3#,4# (J) |
1 | ||
| 12108 - CAP SUB-ASSY, OIL FILLER | ||||
| 12180-50030 |
2UZFE..UCK30,40 |
1 | ||
| 12180-50031 |
2UZFE..UCK3#,4# (J) |
1 | ||
| 12180-0D011 |
2UZFE..UCK3#,4# (L) |
1 | ||
| 12108A - GASKET(FOR OIL FILLER CAP) | ||||
| 12195-50010 |
2UZFE..UCK30,40 (J) |
1 | ||
| 12195-50010 |
2UZFE..UCK3#,4# (J) |
1 | ||
| 90080-43032 |
2UZFE..UCK3#,4# (L) |
1 | ||
| 12185 - HOUSING, OIL FILLER CAP | ||||
| 12185-0F010 |
2UZFE..UCK3#,4# (L) |
1 | ||
| 12185-50020 |
2UZFE..UCK30,40 (J) |
1 | ||
| 12185-50020 |
2UZFE..UCK3#,4# (J) |
1 | ||
| 12185A - GASKET, OIL FILLER CAP HOUSING | ||||
| 12196-50010 |
2UZFE..UCK30,40 (J) |
1 | ||
| 12196-50010 |
2UZFE..UCK3#,4# (J) |
1 | ||
| 12196-0F010 |
2UZFE..UCK3#,4# (L) |
1 | ||
| 12281A - HANGER, ENGINE, NO.1 | ||||
| 12281-0F010 |
2UZFE..UCK3#,4# (L) |
2 | ||
| 12281-50050 |
2UZFE..UCK3#,4# (J) |
2 | ||
| 12281A - HANGER, ENGINE, NO.1 | ||||
| 12281-0F010 |
2UZFE..UCK3#,4# (L) |
2 | ||
| 12281-50050 |
2UZFE..UCK3#,4# (J) |
2 | ||
| 15044 - PIPE SUB-ASSY, CAMSHAFT OIL FEED | ||||
| 15044-50020 |
2UZFE..UCK3#,4# |
2 | ||
| 15044-50020 |
2UZFE..UCK30,40 |
2 | ||
| 15044 - PIPE SUB-ASSY, CAMSHAFT OIL FEED | ||||
| 15044-50020 |
2UZFE..UCK3#,4# |
2 | ||
| 15044-50020 |
2UZFE..UCK30,40 |
2 | ||
| Common parts | ||||
| 90080-10325 | ||||
| 90080-10327 | ||||
| 90080-10330 | ||||
| 90109-06163 | ||||
| 90116-06079 | ||||
| 90126-06002 | ||||
| 90179-06298 | ||||
| 91511-J0625 | ||||
| 91512-81018 | ||||
| 94150-80641 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
