UCK30L-ASBLKA (2004)
Toyota Tundra
(0408- )2UZFE..USA
12V 1.4KW,2.0KW

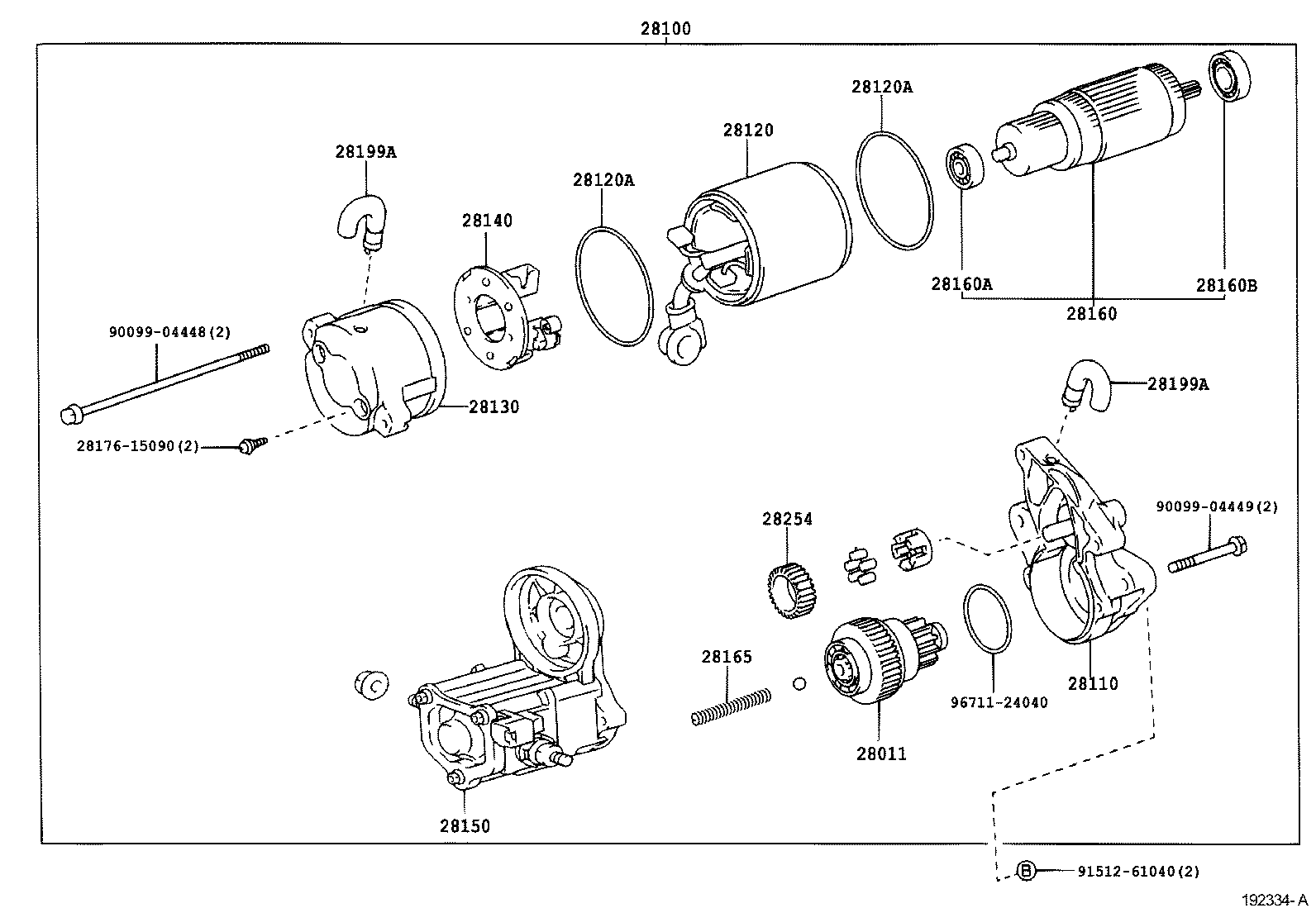

| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 28011 - CLUTCH SUB-ASSY, STARTER | ||||
| 28011-50050 |
2UZFE..UCK30,40..USA 12V 1.4KW |
1 | ||
| 28011-50060 |
2UZFE..UCK30,40 12V 2.0KW |
1 | ||
| 28011-50100 |
2UZFE..UCK3#,4# 12V 2.0KW |
1 | ||
| 28011-50060 |
2UZFE..UCK3#,4# 12V 2.0KW |
1 | ||
| 28011-50080 |
2UZFE..UCK3#,4#..USA 12V 1.4KW |
1 | ||
| 28011-50050 |
2UZFE..UCK3#,4#..USA 12V 1.4KW |
1 | ||
| 28100 - STARTER ASSY | ||||
| 28100-50070 |
2UZFE..UCK30,40 12V 2.0KW |
1 | ||
| 28100-50040 |
2UZFE..UCK30,40..USA 12V 1.4KW |
1 | ||
| 28100-50090 |
2UZFE..UCK3#,4#..USA 12V 1.4KW |
1 | ||
| 28100-50101 |
2UZFE..UCK3#,4# 12V 2.0KW |
1 | ||
| 28110 - HOUSING ASSY, STARTER DRIVE | ||||
| 28110-50040 |
2UZFE..UCK30,40..USA 12V 1.4KW |
1 | ||
| 28110-50070 |
2UZFE..UCK30,40 12V 2.0KW |
1 | ||
| 28120 - YOKE ASSY, STARTER | ||||
| 28120-50070 |
2UZFE..UCK30,40 12V 2.0KW |
1 | ||
| 28120-50040 |
2UZFE..UCK30,40..USA 12V 1.4KW |
1 | ||
| 28120-50070 |
2UZFE..UCK3#,4# 12V 2.0KW |
1 | ||
| 28120-50040 |
2UZFE..UCK3#,4#..USA 12V 1.4KW |
1 | ||
| 28120A - RING, O(FOR STARTER YOKE) | ||||
| 90099-14064 |
2UZFE,5VZFE..UCK30,40,VCK30,40 12V 1.4KW,1.8KW,2.0KW |
2 | ||
| 28120A - RING, O(FOR STARTER YOKE) | ||||
| 90099-14064 |
2UZFE,5VZFE..UCK30,40,VCK30,40 12V 1.4KW,1.8KW,2.0KW |
2 | ||
| 28130 - FRAME ASSY, STARTER COMMUTATOR END | ||||
| 28130-50040 |
2UZFE..UCK30,40..USA 12V 1.4KW |
1 | ||
| 28130-50070 |
2UZFE..UCK30,40 12V 2.0KW |
1 | ||
| 28140 - HOLDER ASSY, STARTER BRUSH | ||||
| 28140-76070 |
2UZFE..UCK3#,4#..USA 12V 1.4KW |
1 | ||
| 28140-54380 |
2UZFE..UCK30,40 12V 2.0KW |
1 | ||
| 28140-76070 |
2UZFE..UCK30,40..USA 12V 1.4KW |
1 | ||
| 28140-54380 |
2UZFE..UCK3#,4# 12V 2.0KW |
1 | ||
| 28150 - SWITCH ASSY, MAGNET STARTER | ||||
| 28150-50041 |
2UZFE..UCK30,40..USA 12V 1.4KW |
1 | ||
| 28150-50090 |
2UZFE..UCK3#,4#..USA 12V 1.4KW |
1 | ||
| 28150-50080 |
2UZFE..UCK3#,4#..USA 12V 1.4KW |
1 | ||
| 28150-50110 |
2UZFE..UCK3#,4# 12V 2.0KW |
1 | ||
| 28150-50100 |
2UZFE..UCK3#,4# 12V 2.0KW |
1 | ||
| 28150-50071 |
2UZFE..UCK30,40 12V 2.0KW |
1 | ||
| 28160 - ARMATURE ASSY, STARTER | ||||
| 28160-75120 |
1GRFE,2UZFE..GSK30,UCK3#,4# 12V 2.0KW |
1 | ||
| 28160-74070 |
2UZFE..UCK30,40..USA 12V 1.4KW |
1 | ||
| 28160-74070 |
2UZFE..UCK3#,4#..USA 12V 1.4KW |
1 | ||
| 28160-75120 |
2UZFE..UCK30,40 12V 2.0KW |
1 | ||
| 28160A - BEARING, STARTER ARMATURE | ||||
| 90099-10196 |
2UZFE..UCK30,40..USA 12V 1.4KW |
1 | ||
| 28165 - SPRING, STARTER MAGNET SWITCH RETURN | ||||
| 28165-76070 |
2UZFE,5VZFE..UCK30,40,VCK30,40 12V 1.4KW,1.8KW,2.0KW |
1 | ||
| 28165-76070 |
2UZFE..UCK3#,4#..USA |
1 | ||
| 28199A - PROTECTOR, DUST STARTER | ||||
| 28199-50040 |
2UZFE..UCK3#,4#..USA |
2 | ||
| 28199-50040 |
2UZFE..UCK30,40 12V 1.4KW,2.0KW |
2 | ||
| 28199A - PROTECTOR, DUST STARTER | ||||
| 28199-50040 |
2UZFE..UCK3#,4#..USA |
2 | ||
| 28199-50040 |
2UZFE..UCK30,40 12V 1.4KW,2.0KW |
2 | ||
| 28254 - PINION, STARTER IDLE GEAR | ||||
| 28254-74070 |
2UZFE..UCK30,40..USA 12V 1.4KW |
1 | ||
| Common parts | ||||
| 28176-15090 | ||||
| 90099-04448 | ||||
| 90099-04449 | ||||
| 91512-61040 | ||||
| 96711-24040 | ||||
