UCK30L-ARSSKA (1999)

Toyota Tundra

Production Feb 1999 - Aug 2004
Engine 2UZFE
Transmission 4HC ATM
Displacement 2500cc
Power 168 HP (125 kW)

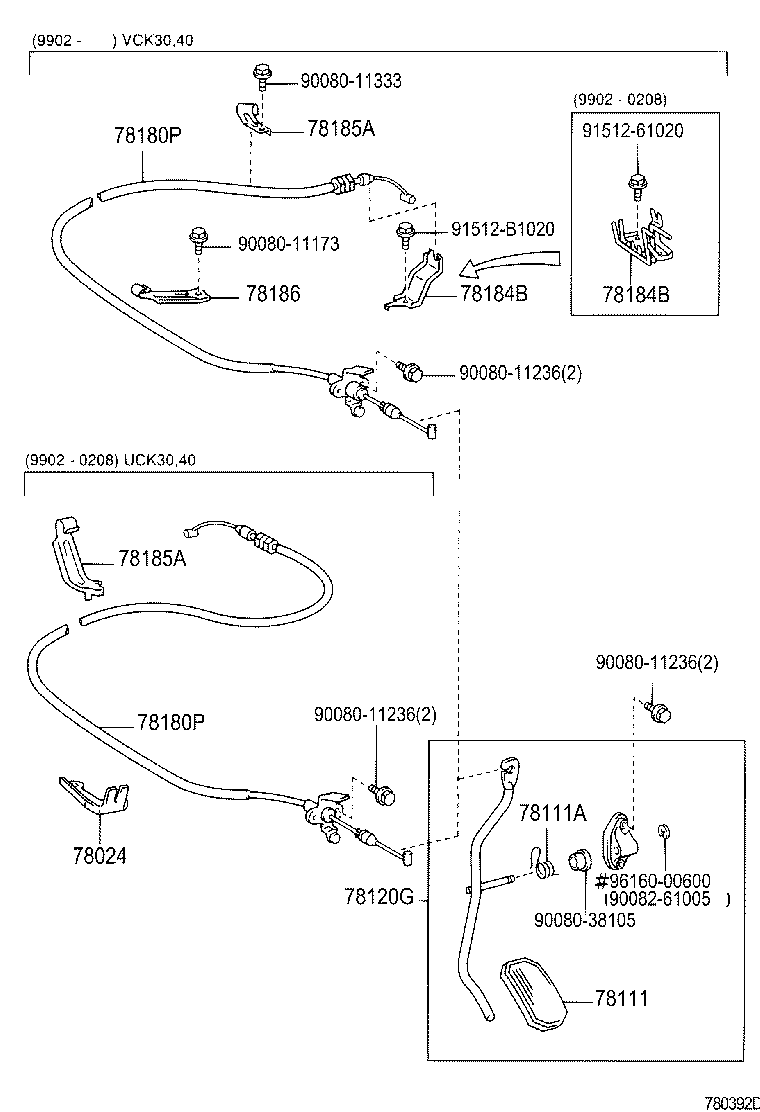

(9902-0208)UCK30,40 ; (9902- )VCK30,40

Click highlighted areas on diagram

diagram 78024 78111 78111A 78120G 78180P 78180P 78184B 78184B 78185A 78185A 78186 9008011173 9008011236 9008011236 9008011236 9008011333 9008038105 9008261005 9151261020 91512B1020 9616000600
Part # Description Qty Price
78024 - BRACKET SUB-ASSY, ACCELERATOR CONTROL CABLE
78184-34030

UCK30,40

 1
78111 - PEDAL, ACCELERATOR
78111-06010

UCK30,40,VCK30,40

 1
78111A - SPRING (FOR ACCELERATOR PEDAL)
90080-50240

UCK30,40

 1
78120G - ROD ASSY, ACCELERATOR PEDAL
78120-0C010

UCK30,40

 1
78120-34030

UCK30,40

 1
78120-0C050

UCK3#,4#

 1
78180P - CABLE ASSY, ACCELERATOR CONTROL
78180-0C010

UCK30,40

 1
78180P - CABLE ASSY, ACCELERATOR CONTROL
78180-0C010

UCK30,40

 1
78185A - CLAMP, ACCELERATOR CONTROL CABLE, NO.2
78185-0C010

UCK30,40

 1
78185A - CLAMP, ACCELERATOR CONTROL CABLE, NO.2
78185-0C010

UCK30,40

 1
Common parts
90080-11173
90080-11236
90080-11333
90080-38105
90082-61005
91512-61020
91512-B1020
96160-00600

(0208- )GSK30,UCK3#,4#..ATM

Click highlighted areas on diagram

diagram 78120G 9008011236 9008011236
Part # Description Qty Price
78120G - ROD ASSY, ACCELERATOR PEDAL
78120-0C010

UCK30,40

 1
78120-34030

UCK30,40

 1
78120-0C050

UCK3#,4#

 1
Common parts
90080-11236
