UCK30L-ARSSKA (1999)
Toyota Tundra
(9902-0208)2UZFE
12V 1.4KW,2.0KW

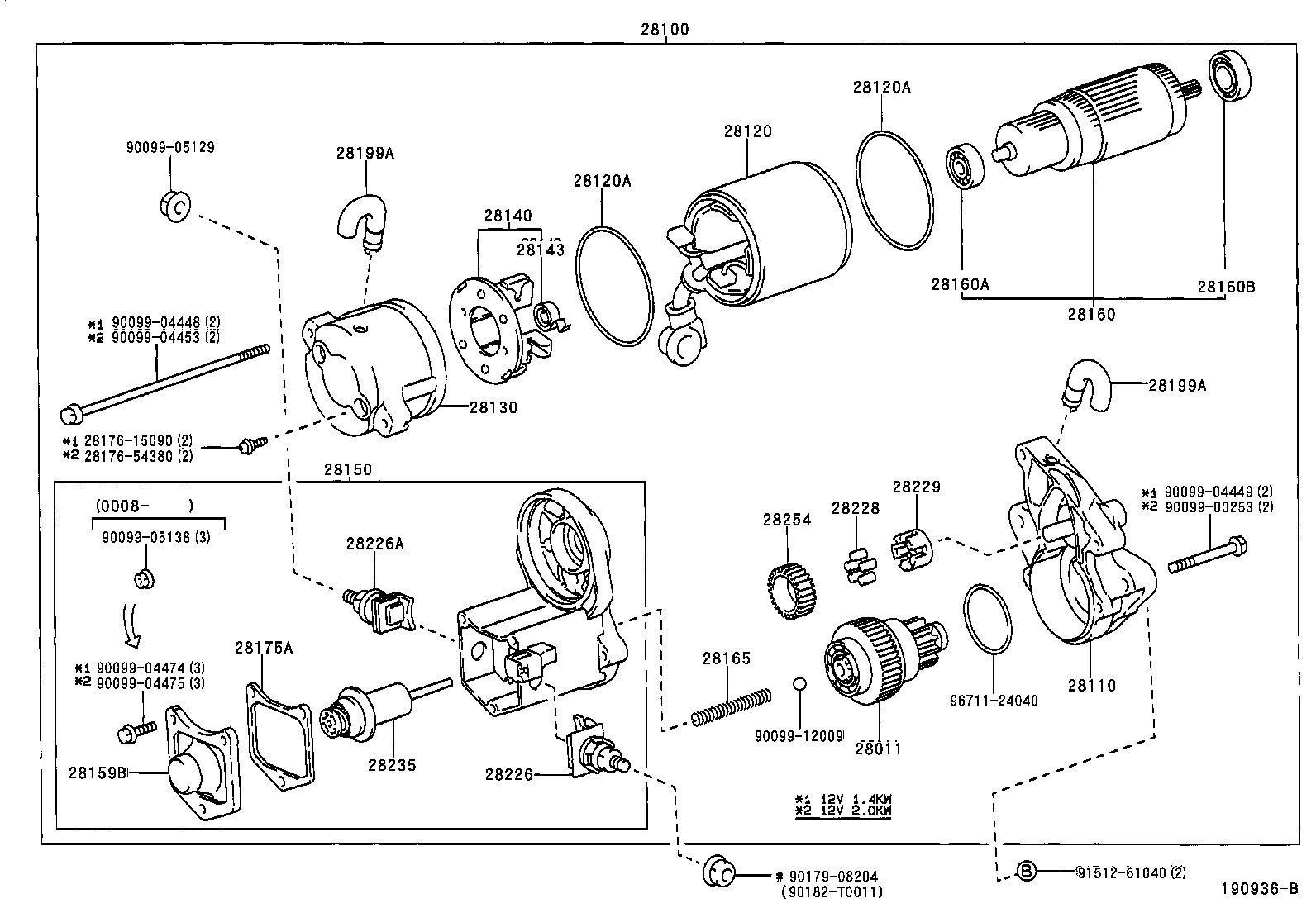

| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 28011 - CLUTCH SUB-ASSY, STARTER | ||||
| 28011-50060 |
2UZFE..UCK3#,4# 12V 2.0KW |
1 | ||
| 28011-50050 |
2UZFE..UCK30,40..USA 12V 1.4KW |
1 | ||
| 28011-50060 |
2UZFE..UCK3#,4# 12V 2.0KW |
1 | ||
| 28011-50060 |
2UZFE..UCK30,40 12V 2.0KW |
1 | ||
| 28011-50050 |
2UZFE..UCK3#,4#..USA 12V 1.4KW |
1 | ||
| 28100 - STARTER ASSY | ||||
| 28100-50070 |
2UZFE..UCK30,40 12V 2.0KW |
1 | ||
| 28100-50100 |
2UZFE..UCK3#,4# 12V 2.0KW |
1 | ||
| 28100-50090 |
2UZFE..UCK30,40..USA 12V 1.4KW |
1 | ||
| 28100-50040 |
2UZFE..UCK30,40..USA 12V 1.4KW |
1 | ||
| 28100-50101 |
2UZFE..UCK3#,4# 12V 2.0KW |
1 | ||
| 28100-50100 |
2UZFE..UCK30,40 12V 2.0KW |
1 | ||
| 28100-50090 |
2UZFE..UCK3#,4#..USA 12V 1.4KW |
1 | ||
| 28110 - HOUSING ASSY, STARTER DRIVE | ||||
| 28110-50040 |
2UZFE..UCK30,40..USA 12V 1.4KW |
1 | ||
| 28110-50070 |
2UZFE..UCK30,40 12V 2.0KW |
1 | ||
| 28120 - YOKE ASSY, STARTER | ||||
| 28120-50070 |
2UZFE..UCK3#,4# 12V 2.0KW |
1 | ||
| 28120-50070 |
2UZFE..UCK30,40 12V 2.0KW |
1 | ||
| 28120-50040 |
2UZFE..UCK3#,4#..USA 12V 1.4KW |
1 | ||
| 28120-50040 |
2UZFE..UCK30,40..USA 12V 1.4KW |
1 | ||
| 28120A - RING, O(FOR STARTER YOKE) | ||||
| 90099-14064 |
2UZFE,5VZFE..UCK30,40,VCK30,40 12V 1.4KW,1.8KW,2.0KW |
2 | ||
| 28120A - RING, O(FOR STARTER YOKE) | ||||
| 90099-14064 |
2UZFE,5VZFE..UCK30,40,VCK30,40 12V 1.4KW,1.8KW,2.0KW |
2 | ||
| 28130 - FRAME ASSY, STARTER COMMUTATOR END | ||||
| 28130-50040 |
2UZFE..UCK30,40..USA 12V 1.4KW |
1 | ||
| 28130-50070 |
2UZFE..UCK30,40 12V 2.0KW |
1 | ||
| 28140 - HOLDER ASSY, STARTER BRUSH | ||||
| 28140-54380 |
2UZFE..UCK3#,4# 12V 2.0KW |
1 | ||
| 28140-54380 |
2UZFE..UCK30,40 12V 2.0KW |
1 | ||
| 28140-76070 |
2UZFE..UCK30,40..USA 12V 1.4KW |
1 | ||
| 28140-54380 |
2UZFE..UCK3#,4# 12V 2.0KW |
1 | ||
| 28140-76070 |
2UZFE..UCK3#,4#..USA 12V 1.4KW |
1 | ||
| 28143 - SPRING, STARTER BRUSH | ||||
| 90099-17112 |
5VZFE..VCK30,40..5F;2UZFE,5VZFE..UCK30,40,VCK30,40..4HC..USA 12V 1.4KW |
4 | ||
| 28143-54380 |
2UZFE,5VZFE..UCK30,40,VCK30,40..4HC 12V 1.8KW,2.0KW |
4 | ||
| 28150 - SWITCH ASSY, MAGNET STARTER | ||||
| 28150-50041 |
2UZFE..UCK30,40..USA 12V 1.4KW |
1 | ||
| 28150-50080 |
2UZFE..UCK30,40..USA 12V 1.4KW |
1 | ||
| 28150-50100 |
2UZFE..UCK3#,4# 12V 2.0KW |
1 | ||
| 28150-50100 |
2UZFE..UCK30,40 12V 2.0KW |
1 | ||
| 28150-50080 |
2UZFE..UCK3#,4#..USA 12V 1.4KW |
1 | ||
| 28150-50071 |
2UZFE..UCK30,40 12V 2.0KW |
1 | ||
| 28150-50100 |
2UZFE..UCK3#,4# 12V 2.0KW |
1 | ||
| 28159B - COVER, MAGNET SWITCH | ||||
| 28159-55050 |
2UZFE..UCK30,40..USA 12V 1.4KW |
1 | ||
| 28159-54380 |
2UZFE,5VZFE..UCK30,40,VCK30,40..4HC 12V 1.8KW,2.0KW |
1 | ||
| 28159-50080 |
2UZFE..UCK30,40 12V 1.4KW,2.0KW |
1 | ||
| 28160 - ARMATURE ASSY, STARTER | ||||
| 28160-75120 |
2UZFE..UCK3#,4# 12V 2.0KW |
1 | ||
| 28160-74070 |
2UZFE..UCK30,40..USA 12V 1.4KW |
1 | ||
| 28160-75120 |
2UZFE..UCK30,40 12V 2.0KW |
1 | ||
| 28160-74070 |
2UZFE..UCK3#,4#..USA 12V 1.4KW |
1 | ||
| 28160A - BEARING, STARTER ARMATURE | ||||
| 90099-10208 |
2UZFE,5VZFE..UCK30,40,VCK30,40..4HC 12V 1.8KW,2.0KW |
1 | ||
| 90099-10196 |
2UZFE..UCK30,40..USA 12V 1.4KW |
1 | ||
| 28160B - BEARING, STARTER ARMATURE, NO.2 | ||||
| 90099-10197 |
2UZFE,5VZFE..UCK30,40,VCK30,40..4HC 12V 1.4KW,1.8KW,2.0KW |
1 | ||
| 28165 - SPRING, STARTER MAGNET SWITCH RETURN | ||||
| 28165-76070 |
2UZFE,5VZFE..UCK30,40,VCK30,40 12V 1.4KW,1.8KW,2.0KW |
1 | ||
| 28175A - GASKET, MAGNET SWITCH COVER | ||||
| 28175-54380 |
2UZFE,5VZFE..UCK30,40,VCK30,40..4HC 12V 1.8KW,2.0KW |
1 | ||
| 28175-55050 |
5VZFE..VCK30,40..5F;2UZFE,5VZFE..UCK30,40,VCK30,40..4HC..USA 12V 1.2KW,1.4KW |
1 | ||
| 28175-50080 |
2UZFE..UCK30,40 12V 1.4KW,2.0KW |
1 | ||
| 28199A - PROTECTOR, DUST STARTER | ||||
| 28199-50040 |
2UZFE..UCK30,40 12V 1.4KW,2.0KW |
2 | ||
| 28199A - PROTECTOR, DUST STARTER | ||||
| 28199-50040 |
2UZFE..UCK30,40 12V 1.4KW,2.0KW |
2 | ||
| 28226 - STARTER KIT, BATTERY TERMINAL | ||||
| 28226-50070 |
2UZFE..UCK30,40 12V 1.4KW,2.0KW |
1 | ||
| 28226-50052 |
2UZFE..UCK30,40..USA 12V 1.4KW |
1 | ||
| 28226-54412 |
2UZFE..UCK30,40 12V 2.0KW |
1 | ||
| 28226A - STARTER KIT, MOTOR TERMINAL | ||||
| 28226-50080 |
2UZFE..UCK30,40 12V 1.4KW,2.0KW |
1 | ||
| 28226-74070 |
5VZFE..VCK30,40..5F;2UZFE,5VZFE..UCK30,40,VCK30,40..4HC..USA 12V 1.2KW,1.4KW |
1 | ||
| 28226-72010 |
2UZFE,5VZFE..UCK30,40,VCK30,40..4HC 12V 1.8KW,2.0KW |
1 | ||
| 28228 - ROLLER, STARTER IDLE GEAR CLUTCH | ||||
| 28228-26040 |
2UZFE,5VZFE..UCK30,40,VCK30,40 |
5 | ||
| 28229 - RETAINER, STARTER IDLE GEAR | ||||
| 28229-74070 |
2UZFE,5VZFE..UCK30,40,VCK30,40..4HC 12V 1.4KW,1.8KW,2.0KW |
1 | ||
| 28235 - PLUNGER, MAGNET SWITCH | ||||
| 28235-55050 |
2UZFE..UCK30,40..USA 12V 1.4KW |
1 | ||
| 28235-54380 |
2UZFE,5VZFE..UCK30,40,VCK30,40..4HC 12V 1.8KW,2.0KW |
1 | ||
| 28254 - PINION, STARTER IDLE GEAR | ||||
| 28254-74070 |
2UZFE..UCK30,40..USA 12V 1.4KW |
1 | ||
| 28254-64130 |
2UZFE,5VZFE..UCK30,40,VCK30,40..4HC 12V 1.8KW,2.0KW |
1 | ||
| Common parts | ||||
| 28176-15090 | ||||
| 28176-54380 | ||||
| 90099-00253 | ||||
| 90099-04448 | ||||
| 90099-04449 | ||||
| 90099-04453 | ||||
| 90099-04474 | ||||
| 90099-04475 | ||||
| 90099-05129 | ||||
| 90099-05138 | ||||
| 90099-12009 | ||||
| 90179-08204 | ||||
| 90182-T0011 | ||||
| 91512-61040 | ||||
| 96711-24040 | ||||
(0208- )2UZFE
12V 1.4KW,2.0KW
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 28011 - CLUTCH SUB-ASSY, STARTER | ||||
| 28011-50060 |
2UZFE..UCK3#,4# 12V 2.0KW |
1 | ||
| 28011-50050 |
2UZFE..UCK30,40..USA 12V 1.4KW |
1 | ||
| 28011-50060 |
2UZFE..UCK3#,4# 12V 2.0KW |
1 | ||
| 28011-50060 |
2UZFE..UCK30,40 12V 2.0KW |
1 | ||
| 28011-50050 |
2UZFE..UCK3#,4#..USA 12V 1.4KW |
1 | ||
| 28100 - STARTER ASSY | ||||
| 28100-50070 |
2UZFE..UCK30,40 12V 2.0KW |
1 | ||
| 28100-50100 |
2UZFE..UCK3#,4# 12V 2.0KW |
1 | ||
| 28100-50090 |
2UZFE..UCK30,40..USA 12V 1.4KW |
1 | ||
| 28100-50040 |
2UZFE..UCK30,40..USA 12V 1.4KW |
1 | ||
| 28100-50101 |
2UZFE..UCK3#,4# 12V 2.0KW |
1 | ||
| 28100-50100 |
2UZFE..UCK30,40 12V 2.0KW |
1 | ||
| 28100-50090 |
2UZFE..UCK3#,4#..USA 12V 1.4KW |
1 | ||
| 28100 - STARTER ASSY | ||||
| 28100-50070 |
2UZFE..UCK30,40 12V 2.0KW |
1 | ||
| 28100-50100 |
2UZFE..UCK3#,4# 12V 2.0KW |
1 | ||
| 28100-50090 |
2UZFE..UCK30,40..USA 12V 1.4KW |
1 | ||
| 28100-50040 |
2UZFE..UCK30,40..USA 12V 1.4KW |
1 | ||
| 28100-50101 |
2UZFE..UCK3#,4# 12V 2.0KW |
1 | ||
| 28100-50100 |
2UZFE..UCK30,40 12V 2.0KW |
1 | ||
| 28100-50090 |
2UZFE..UCK3#,4#..USA 12V 1.4KW |
1 | ||
| 28120 - YOKE ASSY, STARTER | ||||
| 28120-50070 |
2UZFE..UCK3#,4# 12V 2.0KW |
1 | ||
| 28120-50070 |
2UZFE..UCK30,40 12V 2.0KW |
1 | ||
| 28120-50040 |
2UZFE..UCK3#,4#..USA 12V 1.4KW |
1 | ||
| 28120-50040 |
2UZFE..UCK30,40..USA 12V 1.4KW |
1 | ||
| 28140 - HOLDER ASSY, STARTER BRUSH | ||||
| 28140-54380 |
2UZFE..UCK3#,4# 12V 2.0KW |
1 | ||
| 28140-54380 |
2UZFE..UCK30,40 12V 2.0KW |
1 | ||
| 28140-76070 |
2UZFE..UCK30,40..USA 12V 1.4KW |
1 | ||
| 28140-54380 |
2UZFE..UCK3#,4# 12V 2.0KW |
1 | ||
| 28140-76070 |
2UZFE..UCK3#,4#..USA 12V 1.4KW |
1 | ||
| 28150 - SWITCH ASSY, MAGNET STARTER | ||||
| 28150-50041 |
2UZFE..UCK30,40..USA 12V 1.4KW |
1 | ||
| 28150-50080 |
2UZFE..UCK30,40..USA 12V 1.4KW |
1 | ||
| 28150-50100 |
2UZFE..UCK3#,4# 12V 2.0KW |
1 | ||
| 28150-50100 |
2UZFE..UCK30,40 12V 2.0KW |
1 | ||
| 28150-50080 |
2UZFE..UCK3#,4#..USA 12V 1.4KW |
1 | ||
| 28150-50071 |
2UZFE..UCK30,40 12V 2.0KW |
1 | ||
| 28150-50100 |
2UZFE..UCK3#,4# 12V 2.0KW |
1 | ||
| 28160 - ARMATURE ASSY, STARTER | ||||
| 28160-75120 |
2UZFE..UCK3#,4# 12V 2.0KW |
1 | ||
| 28160-74070 |
2UZFE..UCK30,40..USA 12V 1.4KW |
1 | ||
| 28160-75120 |
2UZFE..UCK30,40 12V 2.0KW |
1 | ||
| 28160-74070 |
2UZFE..UCK3#,4#..USA 12V 1.4KW |
1 | ||
| Common parts | ||||
| 90080-10205 | ||||
| 90179-08204 | ||||
| 90182-T0011 | ||||
| 91512-61040 | ||||
