GSK50L-TRADKA (2009)

Toyota Tundra

Production Apr 2009 - Aug 2013
Engine 1GRFE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

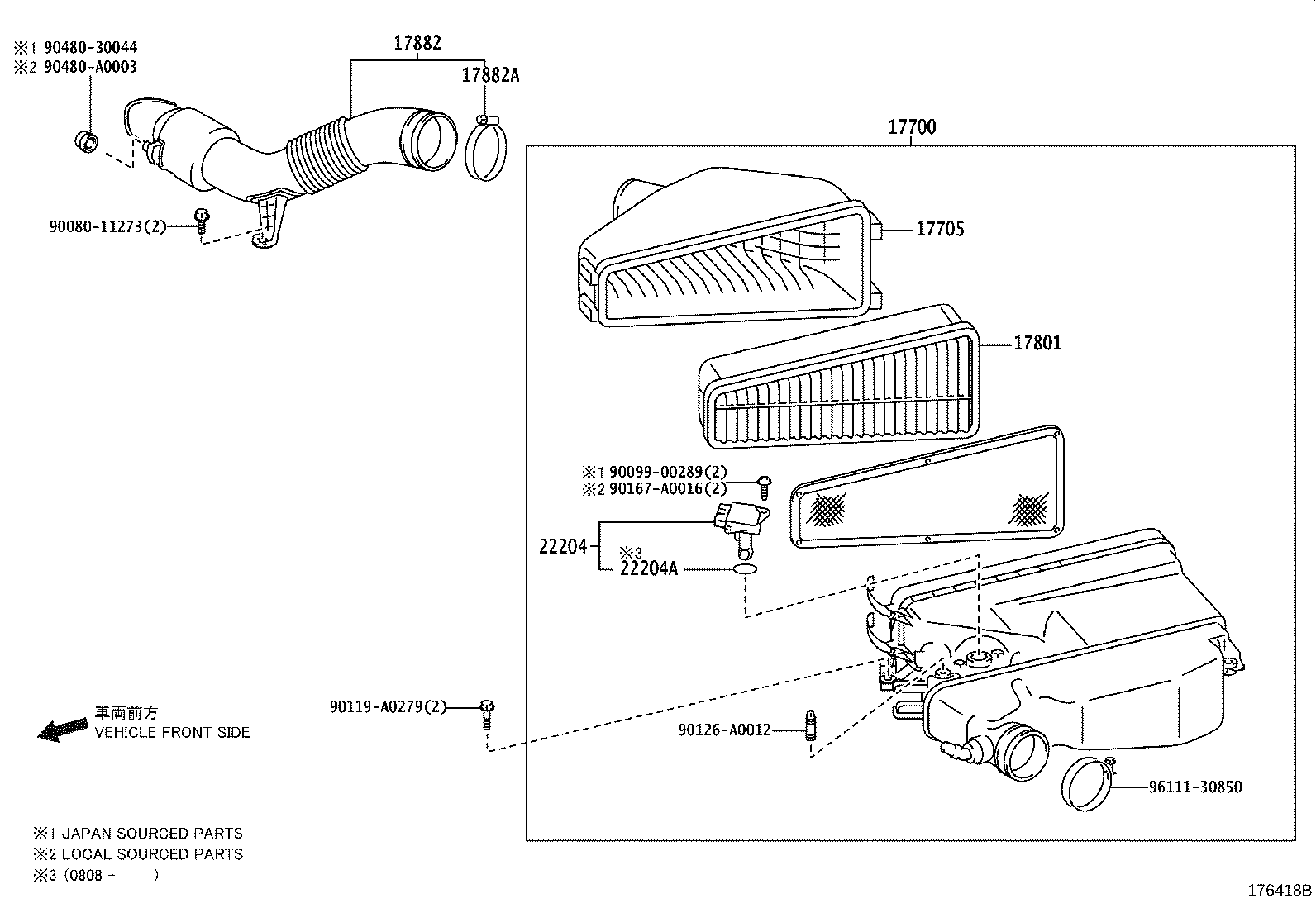

(0611-1010)1GRFE

Click highlighted areas on diagram

diagram 17700 17705 17801 17882 17882A 22204 22204A 9008011273 9009900289 90119A0279 90126A0012 90167A0016 9048030044 90480A0003 9611130850
Part # Description Qty Price
17700 - CLEANER ASSY, AIR
17700-0P012

1GRFE..GSK5#

 1
17700-0P013

1GRFE..GSK5#

 1
17705 - CAP SUB-ASSY, AIR CLEANER
17705-0P070

1GRFE..GSK5#

 1
17705-0P010

1GRFE..GSK5#

 1
17801 - ELEMENT SUB-ASSY, AIR CLEANER FILTER
17801-0P010

1GRFE..GSK5#

 1
17801-0S010

1GRFE..GSK5#

 1
17882 - HOSE, AIR CLEANER, NO.2
17882-0P030

1GRFE..GSK5#

 1
17882A - CLAMP(FOR AIR CLEANER HOSE, NO.2)
90460-A0001

1GRFE..GSK5#

 1
22204 - METER SUB-ASSY, INTAKE AIR FLOW
22204-22010

1GRFE..GSK5#

 1
22204-0V020

1GRFE..GSK5#

MARK 22204-0V020

 1
22204-0V010

1GRFE..GSK5#

MARK 22204-0V010

 1
22204-0T020

1GRFE..GSK5#

 1
22204-28010

1GRFE..GSK5#

MARK 22204-28010

 1
22204A - RING, O(FOR INTAKE AIR FLOW METER)
90099-14141

1GRFE..GSK5#

 1
Common parts
90080-11273
90099-00289
90119-A0279
90126-A0012
90167-A0016
90480-30044
90480-A0003
96111-30850

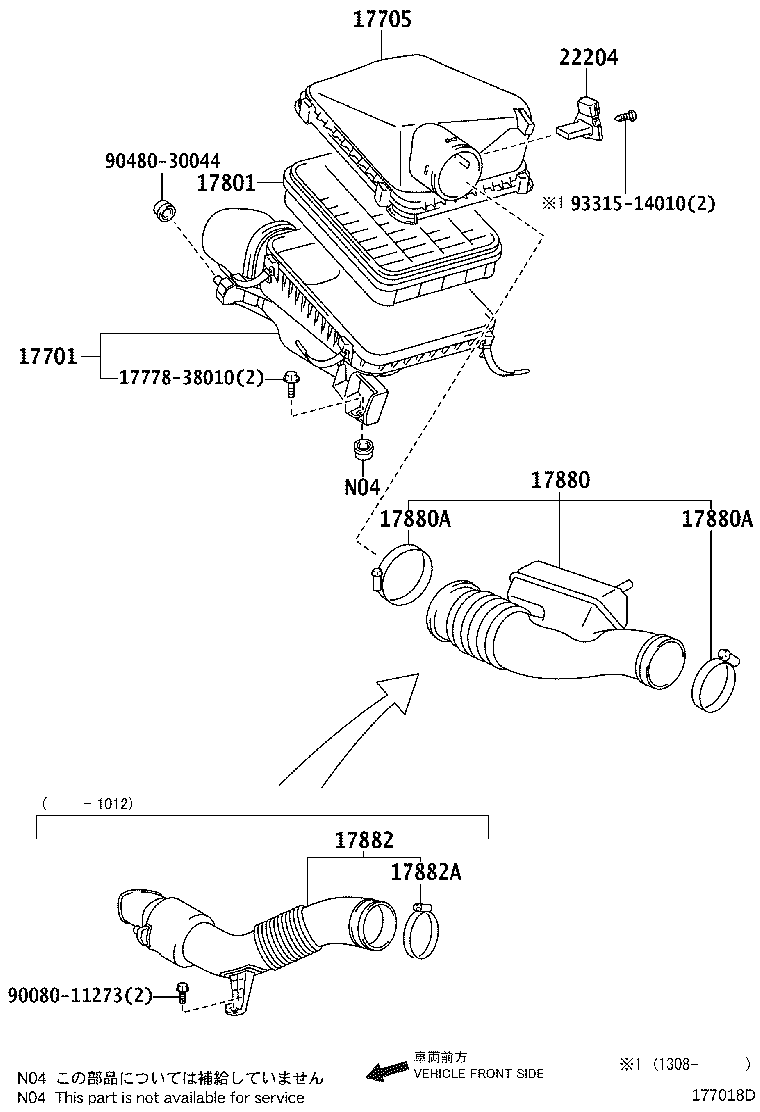

(1010- )1GRFE

Click highlighted areas on diagram

diagram 17701 17705 1777838010 17801 17880 17880A 17880A 17882 17882A 22204 9008011273 9048030044 9331514010
Part # Description Qty Price
17701 - CASE SUB-ASSY, AIR CLEANER
17701-0S010

1GRFE..GSK5#

 1
17705 - CAP SUB-ASSY, AIR CLEANER
17705-0P070

1GRFE..GSK5#

 1
17705-0P010

1GRFE..GSK5#

 1
17801 - ELEMENT SUB-ASSY, AIR CLEANER FILTER
17801-0P010

1GRFE..GSK5#

 1
17801-0S010

1GRFE..GSK5#

 1
17880 - HOSE ASSY, AIR CLEANER
17880-0P160

1GRFE..GSK5#

 1
17880A - CLAMP, HOSE
90460-A0001

1GRFE..GSK5#

 2
17880A - CLAMP, HOSE
90460-A0001

1GRFE..GSK5#

 2
17882 - HOSE, AIR CLEANER, NO.2
17882-0P030

1GRFE..GSK5#

 1
17882A - CLAMP(FOR AIR CLEANER HOSE, NO.2)
90460-A0001

1GRFE..GSK5#

 1
22204 - METER SUB-ASSY, INTAKE AIR FLOW
22204-22010

1GRFE..GSK5#

 1
22204-0V020

1GRFE..GSK5#

MARK 22204-0V020

 1
22204-0V010

1GRFE..GSK5#

MARK 22204-0V010

 1
22204-0T020

1GRFE..GSK5#

 1
22204-28010

1GRFE..GSK5#

MARK 22204-28010

 1
Common parts
17778-38010
90080-11273
90480-30044
93315-14010
