GSK30L-TRFDKA (2004)
Toyota Tundra
(0408- )6F

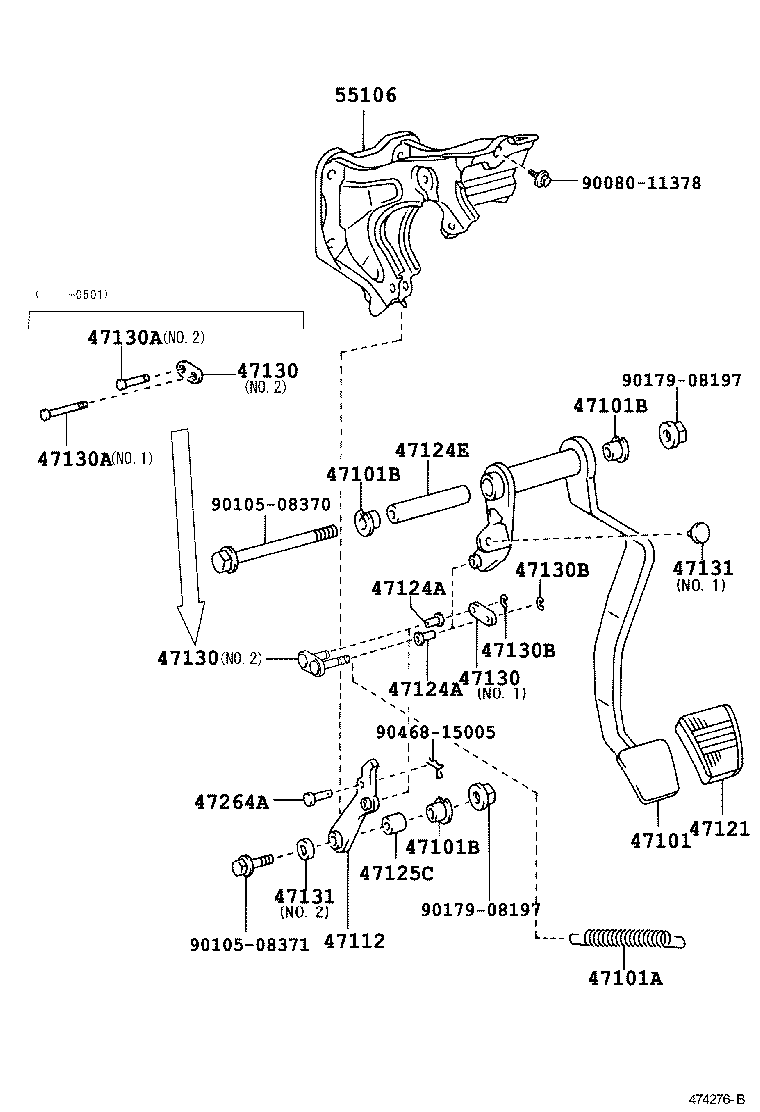

| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 47101 - PEDAL SUB-ASSY, BRAKE | ||||
| 47101-34051 |
GSK30..6F |
1 | ||
| 47101-34120 |
GSK30..6F W(VSC) |
1 | ||
| 47101A - SPRING(FOR BRAKE PEDAL RETURN) | ||||
| 90905-07023 |
GSK30,UCK3#,4# |
1 | ||
| 47101B - BUSH(FOR BRAKE PEDAL) | ||||
| 90386-14015 |
GSK30,UCK3#,4# |
3 | ||
| 90386-14015 |
GSK30,UCK3#,4# W(VSC) |
2 | ||
| 47101B - BUSH(FOR BRAKE PEDAL) | ||||
| 90386-14015 |
GSK30,UCK3#,4# |
3 | ||
| 90386-14015 |
GSK30,UCK3#,4# W(VSC) |
2 | ||
| 47101B - BUSH(FOR BRAKE PEDAL) | ||||
| 90386-14015 |
GSK30,UCK3#,4# |
3 | ||
| 90386-14015 |
GSK30,UCK3#,4# W(VSC) |
2 | ||
| 47112 - LEVER, BRAKE PEDAL | ||||
| 47112-34010 |
GSK30,UCK30,40 |
1 | ||
| 47121 - PAD, BRAKE PEDAL | ||||
| 31321-14020 |
GSK30..6F |
1 | ||
| 47124A - COLLAR(FOR BRAKE PEDAL SHAFT) | ||||
| 47144-34010 |
GSK30,UCK3#,4# |
2 | ||
| 47124A - COLLAR(FOR BRAKE PEDAL SHAFT) | ||||
| 47144-34010 |
GSK30,UCK3#,4# |
2 | ||
| 47124E - COLLAR, BRAKE PEDAL SHAFT, NO.2 | ||||
| 90387-08156 |
GSK30,UCK3#,4# |
1 | ||
| 47125C - COLLAR(FOR BRAKE PEDAL BRACKET) | ||||
| 90387-08157 |
GSK30,UCK3#,4# |
1 | ||
| 47130 - LINK ASSY, BRAKE PEDAL | ||||
| 47130-60011 |
GSK30,UCK3#,4# NO.1 |
1 | ||
| 4710A-34010 |
GSK30,UCK3#,4# NO.2 |
1 | ||
| 47130-60010 |
GSK30,UCK3#,4# |
2 | ||
| 47130 - LINK ASSY, BRAKE PEDAL | ||||
| 47130-60011 |
GSK30,UCK3#,4# NO.1 |
1 | ||
| 4710A-34010 |
GSK30,UCK3#,4# NO.2 |
1 | ||
| 47130-60010 |
GSK30,UCK3#,4# |
2 | ||
| 47130 - LINK ASSY, BRAKE PEDAL | ||||
| 47130-60011 |
GSK30,UCK3#,4# NO.1 |
1 | ||
| 4710A-34010 |
GSK30,UCK3#,4# NO.2 |
1 | ||
| 47130-60010 |
GSK30,UCK3#,4# |
2 | ||
| 47130A - PIN, BRAKE PEDAL LINK | ||||
| 90249-06172 |
GSK30,UCK3#,4# NO.2 |
1 | ||
| 90249-06171 |
GSK30,UCK3#,4# NO.1 |
1 | ||
| 47130A - PIN, BRAKE PEDAL LINK | ||||
| 90249-06172 |
GSK30,UCK3#,4# NO.2 |
1 | ||
| 90249-06171 |
GSK30,UCK3#,4# NO.1 |
1 | ||
| 47130B - RING E, BRAKE PEDAL LINK PIN | ||||
| 96160-00400 |
GSK30,UCK3#,4# |
2 | ||
| 47130B - RING E, BRAKE PEDAL LINK PIN | ||||
| 96160-00400 |
GSK30,UCK3#,4# |
2 | ||
| 47131 - CUSHION(FOR STOP LAMP SWITCH) | ||||
| 90541-06036 |
GSK30,UCK3#,4# NO.1 |
1 | ||
| 47131-34010 |
GSK30,UCK3#,4# NO.2 |
1 | ||
| 47131 - CUSHION(FOR STOP LAMP SWITCH) | ||||
| 90541-06036 |
GSK30,UCK3#,4# NO.1 |
1 | ||
| 47131-34010 |
GSK30,UCK3#,4# NO.2 |
1 | ||
| 47264A - PIN(FOR PUSH ROD) | ||||
| 90240-06023 |
GSK30,UCK30,40 |
1 | ||
| 90240-10037 |
GSK30,UCK30,40 W(VSC) |
1 | ||
| 55106 - SUPPORT SUB-ASSY, BRAKE PEDAL | ||||
| 55106-34060 |
GSK30,UCK30,40 W(VSC) |
1 | ||
| 55106-34020 |
GSK30,UCK30,40 |
1 | ||
| Common parts | ||||
| 90080-11378 | ||||
| 90105-08370 | ||||
| 90105-08371 | ||||
| 90179-08197 | ||||
| 90468-15005 | ||||

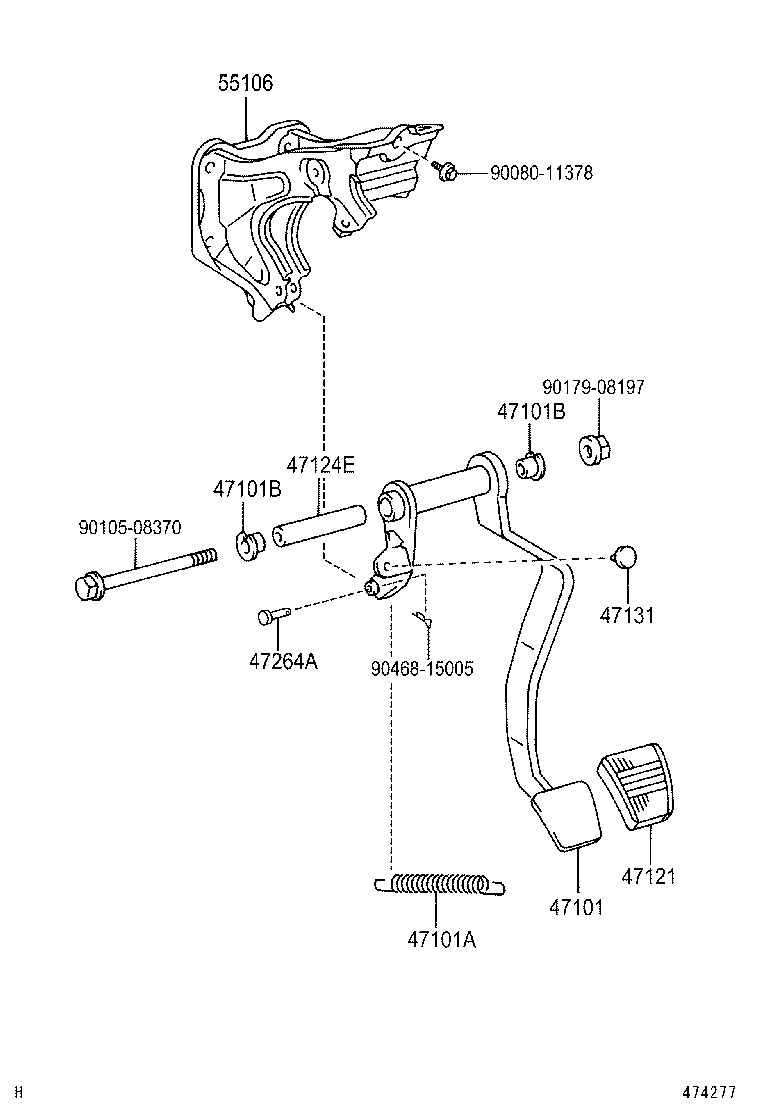

(0408- )6F
W(VSC)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 47101 - PEDAL SUB-ASSY, BRAKE | ||||
| 47101-34051 |
GSK30..6F |
1 | ||
| 47101-34120 |
GSK30..6F W(VSC) |
1 | ||
| 47101A - SPRING(FOR BRAKE PEDAL RETURN) | ||||
| 90905-07023 |
GSK30,UCK3#,4# |
1 | ||
| 47101B - BUSH(FOR BRAKE PEDAL) | ||||
| 90386-14015 |
GSK30,UCK3#,4# |
3 | ||
| 90386-14015 |
GSK30,UCK3#,4# W(VSC) |
2 | ||
| 47101B - BUSH(FOR BRAKE PEDAL) | ||||
| 90386-14015 |
GSK30,UCK3#,4# |
3 | ||
| 90386-14015 |
GSK30,UCK3#,4# W(VSC) |
2 | ||
| 47121 - PAD, BRAKE PEDAL | ||||
| 31321-14020 |
GSK30..6F |
1 | ||
| 47124E - COLLAR, BRAKE PEDAL SHAFT, NO.2 | ||||
| 90387-08156 |
GSK30,UCK3#,4# |
1 | ||
| 47131 - CUSHION(FOR STOP LAMP SWITCH) | ||||
| 90541-06036 |
GSK30,UCK3#,4# NO.1 |
1 | ||
| 47131-34010 |
GSK30,UCK3#,4# NO.2 |
1 | ||
| 47264A - PIN(FOR PUSH ROD) | ||||
| 90240-06023 |
GSK30,UCK30,40 |
1 | ||
| 90240-10037 |
GSK30,UCK30,40 W(VSC) |
1 | ||
| 55106 - SUPPORT SUB-ASSY, BRAKE PEDAL | ||||
| 55106-34060 |
GSK30,UCK30,40 W(VSC) |
1 | ||
| 55106-34020 |
GSK30,UCK30,40 |
1 | ||
| Common parts | ||||
| 90080-11378 | ||||
| 90105-08370 | ||||
| 90179-08197 | ||||
| 90468-15005 | ||||
