EL53L-AEMRKA (1994)
Toyota Tercel
Production
Sep 1994
-
Jul 1999
Engine
5EFE
Transmission
5F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(9409- )

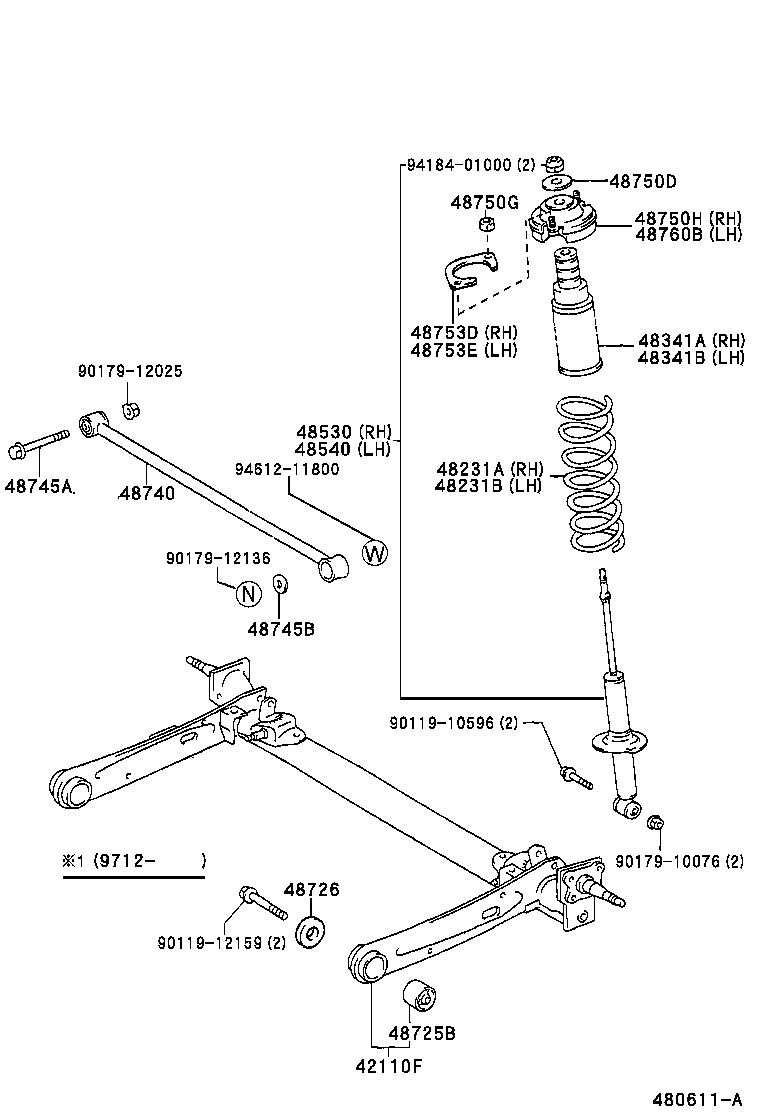

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 42110F - BEAM ASSY, REAR AXLE | ||||
| 42110-16180 |
EL53 W(ABS) |
1 | ||
| 42110-16181 |
EL53 W(ABS) |
1 | ||
| 42110-16170 |
EL53 |
1 | ||
| 42110-16160 |
EL53 |
1 | ||
| 42110-16191 |
EL53 W(ABS) |
1 | ||
| 48231A - SPRING, COIL, REAR RH | ||||
| 48231-16890 |
EL53 |
1 | ||
| 48231-16800 |
EL53 |
1 | ||
| 48231B - SPRING, COIL, REAR LH | ||||
| 48231-16800 |
EL53 |
1 | ||
| 48231-16890 |
EL53 |
1 | ||
| 48341A - BUMPER, REAR SPRING, NO.1 RH | ||||
| 48341-10140 |
EL53 |
1 | ||
| 48341B - BUMPER, REAR SPRING, NO.1 LH | ||||
| 48341-10140 |
EL53 |
1 | ||
| 48530 - ABSORBER ASSY, SHOCK, REAR RH | ||||
| 48530-19575 |
EL53..USA COLD SPEC |
1 | ||
| 48530-19565 |
EL53..USA |
1 | ||
| 48530-19565 |
EL53 |
1 | ||
| 48530-80002 |
EL53..USA W(13 INCHES DISC WHEEL) |
1 | ||
| 48530-19885 |
EL53 W(14 INCHES DISC WHEEL) |
1 | ||
| 48530-80012 |
EL53..USA W(13 INCHES DISC WHEEL) |
1 | ||
| 48540 - ABSORBER ASSY, SHOCK, REAR LH | ||||
| 48530-19565 |
EL53..USA |
1 | ||
| 48530-19575 |
EL53..USA COLD SPEC |
1 | ||
| 48530-19565 |
EL53 |
1 | ||
| 48530-80012 |
EL53..USA W(13 INCHES DISC WHEEL) |
1 | ||
| 48530-80002 |
EL53..USA W(13 INCHES DISC WHEEL) |
1 | ||
| 48530-19885 |
EL53 W(14 INCHES DISC WHEEL) |
1 | ||
| 48725B - BUSH, REAR SUSPENSION ARM, NO.1 | ||||
| 48725-16150 |
EL53 |
2 | ||
| 48725-10040 |
EL53 |
1 | ||
| 48726 - SEAT, REAR SUSPENSION ARM | ||||
| 48726-16010 |
EL53 |
2 | ||
| 48740 - ROD ASSY, REAR LATERAL CONTROL | ||||
| 48740-16080 |
EL53 |
1 | ||
| 48745A - BOLT, HEXAGON(FOR LATERAL CONTROL ROD) | ||||
| 90105-12070 |
EL53 |
1 | ||
| 48745B - WASHER, LATERAL CONTROL ROD CUSHION | ||||
| 90201-12037 |
EL53 |
1 | ||
| 48750D - RETAINER(FOR REAR SUPPORT TO REAR SHOCK ABSORBER) | ||||
| 90948-02082 |
EL53 |
2 | ||
| 48597-10010 |
EL53 |
2 | ||
| 48750G - NUT(FOR REAR SUSPENSION SUPPORT) | ||||
| 90179-08090 |
EL53 |
4 | ||
| 90179-08206 |
EL53 |
4 | ||
| 48750H - SUPPORT ASSY, REAR SUSPENSION, RH | ||||
| 48750-16100 |
EL53 |
1 | ||
| 48753D - COVER, REAR SUSPENSION SUPOPORT, NO.2 RH | ||||
| 48753-16020 |
EL53 |
1 | ||
| 48753E - COVER, REAR SUSPENSION SUPOPORT, NO.2 LH | ||||
| 48753-16020 |
EL53 |
1 | ||
| 48760B - SUPPORT ASSY REAR SUSPENSION, LH | ||||
| 48750-16100 |
EL53 |
1 | ||
| Common parts | ||||
| 90119-10596 | ||||
| 90119-12159 | ||||
| 90179-10076 | ||||
| 90179-12025 | ||||
| 90179-12136 | ||||
| 94184-01000 | ||||
| 94612-11800 | ||||
