EL53L-AEMRKA (1994)

Toyota Tercel

Production Sep 1994 - Jul 1999
Engine 5EFE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

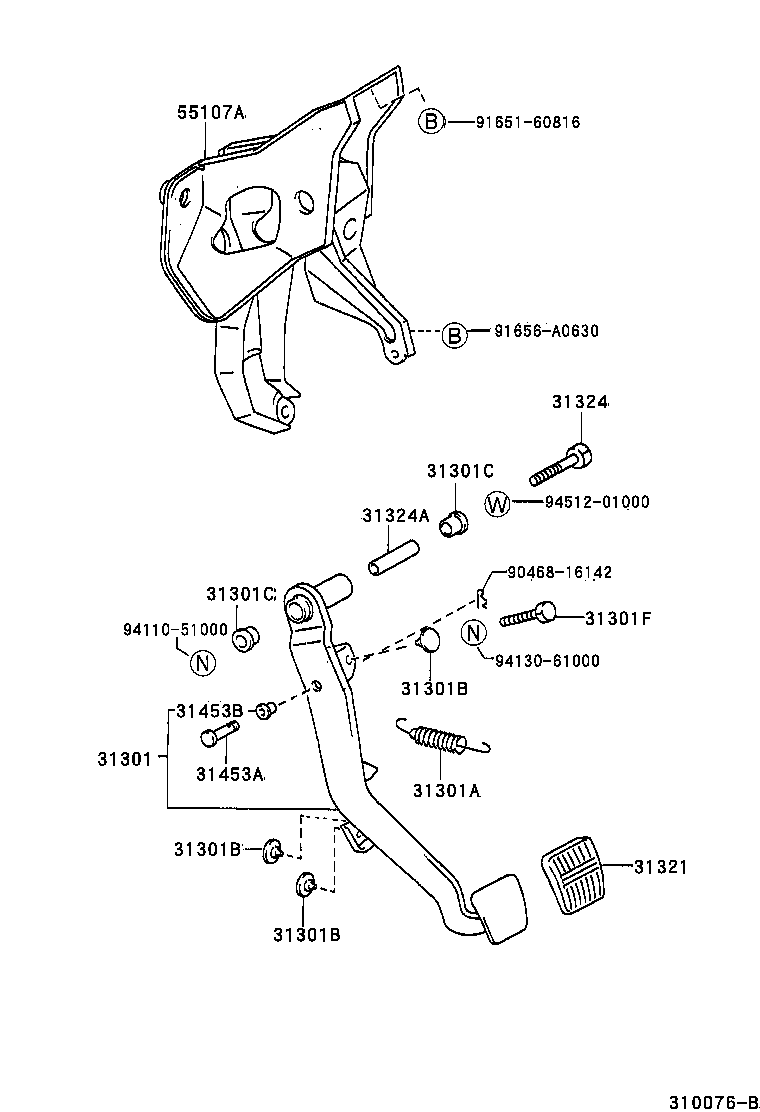

ILLUST NO. 1 OF 2(9409- )MTM

Click highlighted areas on diagram

diagram 31301 31301A 31301B 31301B 31301B 31301C 31301C 31301F 31321 31324 31324A 31453A 31453B 55107A 9046816142 9165160816 91656A0630 9411051000 9413061000 9451201000
Part # Description Qty Price
31301 - PEDAL SUB-ASSY, CLUTCH
31301-16100

EL53..MTM

 1
31301A - SPRING(FOR CLUTCH PEDAL)
90507-14036

EL53..MTM

 1
31301B - CUSHION, NO.1(FOR CLUTCH PEDAL)
90541-06036

EL53..MTM

 3
31301B - CUSHION, NO.1(FOR CLUTCH PEDAL)
90541-06036

EL53..MTM

 3
31301B - CUSHION, NO.1(FOR CLUTCH PEDAL)
90541-06036

EL53..MTM

 3
31301C - BUSH(FOR CLUTCH PEDAL)
90386-13015

EL53..MTM

 2
31301C - BUSH(FOR CLUTCH PEDAL)
90386-13015

EL53..MTM

 2
31301F - BOLT(FOR CLUTCH PEDAL STOPPER)
90101-10369

EL53..MTM

 1
31321 - PAD, CLUTCH PEDAL
31321-14020

EL53..MTM

 1
31324 - SHAFT, CLUTCH PEDAL
90101-10015

EL53..MTM

 1
31324A - COLLAR, CLUTCH PEDAL SHAFT
90387-10003

EL53..MTM

 1
31453A - PIN, W/HOLE(FOR CLUTCH MASTER CYLINDER PUSH ROD CLEVIS)
90249-08243

EL53..MTM

L=30

 1
31453B - BUSH(FOR CLUTCH MASTER CYLINDER PUSH ROD CLEVIS)
90386-08002

EL53..MTM

 1
55107A - SUPPORT SUB-ASSY, CLUTCH PEDAL
55107-16080

EL53..MTM

 1
Common parts
90468-16142
91651-60816
91656-A0630
94110-51000
94130-61000
94512-01000

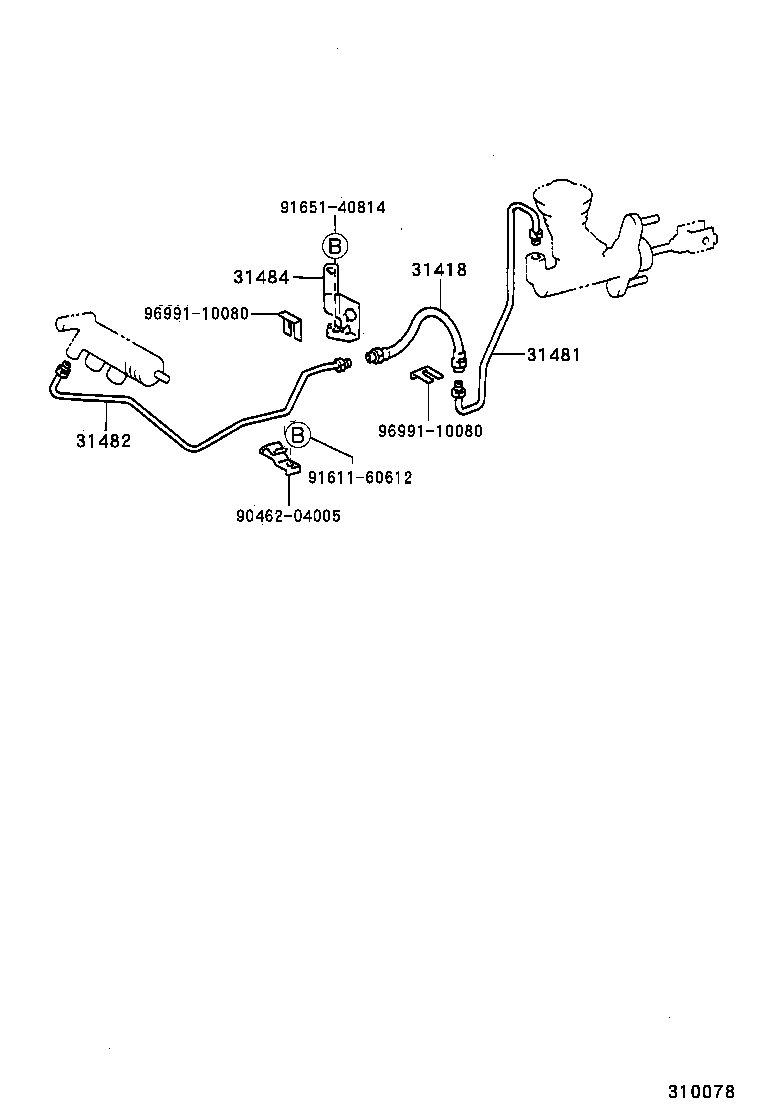

ILLUST NO. 2 OF 2(9409- )MTM

Click highlighted areas on diagram

diagram 31418 31481 31482 31484 9046204005 9161160612 9165140814 9699110080 9699110080
Part # Description Qty Price
31418 - HOSE, CLUTCH
90931-01073

EL53..MTM

 1
90931-01073

EL53..5F

 1
90931-01105

EL53..5F

 1
31481 - TUBE, CLUTCH MASTER CYLINDER TO FLEXIBLE HOSE
31481-16040

EL53..MTM

 1
31482 - TUBE, CLUTCH RELEASE CYLINDER TO FLEXIBLE HOSE
31482-10020

EL53..MTM

 1
31484 - BRACKET, FLEXIBLE HOSE(FOR CLUTCH)
31484-10040

EL53..MTM

 1
Common parts
90462-04005
91611-60612
91651-40814
96991-10080
