EL53L-ADPRKK (1994)
Toyota Tercel
Production
Sep 1994
-
Jul 1999
Engine
5EFE
Transmission
4FC ATM
Displacement
2500cc
Power
168 HP (125 kW)
(9409- )

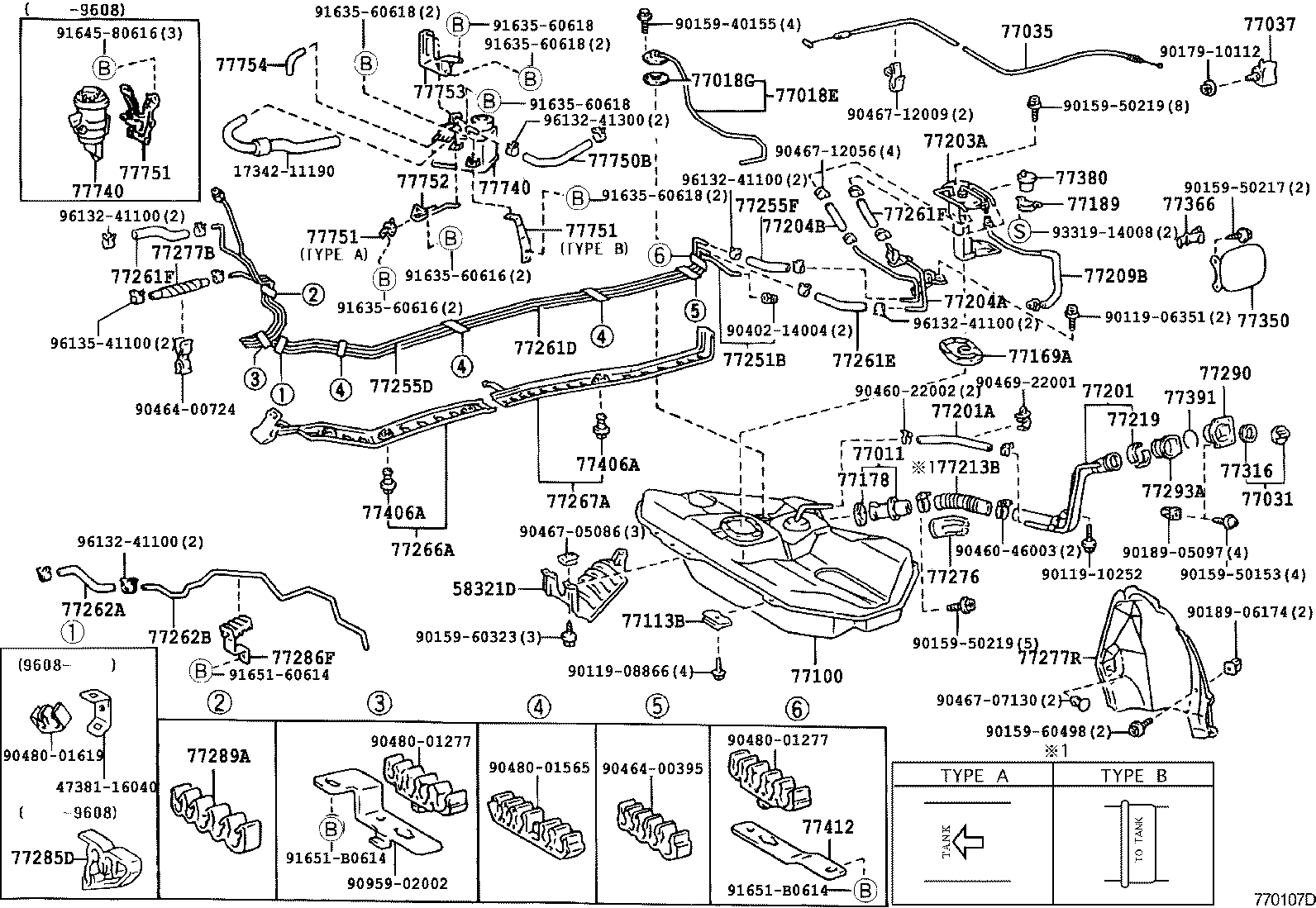

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 58321D - INSULATOR, REAR FLOOR HEAT, NO.1 | ||||
| 58321-10020 |
EL53 |
1 | ||
| 77011 - PIPE SUB-ASSY, FUEL TANK FILLER, LOWER | ||||
| 77011-10060 |
EL53 |
1 | ||
| 77011-16100 |
EL53 |
1 | ||
| 77018E - TUBE SUB-ASSY, FUEL TANK EVAPORATION VENT | ||||
| 77018-16060 |
EL53 |
1 | ||
| 77018G - GASKET, FUEL TANK EVAP/VENT TUBE | ||||
| 77179-26010 |
EL53 |
1 | ||
| 77031 - CAP ASSY, FUEL TANK | ||||
| 77310-48020 |
EL53 |
1 | ||
| 77310-12140 |
EL53 |
1 | ||
| 77035 - CABLE SUB-ASSY, FUEL LID LOCK CONTROL | ||||
| 77035-16220 |
EL53..DX |
1 | ||
| 77037 - LOCK SUB-ASSY, FUEL FILLER OPENING LID | ||||
| 77037-16040 |
EL53..DX |
1 | ||
| 77100 - TANK ASSY, FUEL | ||||
| 77001-16260 |
EL53 |
1 | ||
| 77001-16220 |
EL53 |
1 | ||
| 77001-10360 |
EL53 |
1 | ||
| 77113B - PLATE, FUEL TANK SIDE | ||||
| 77113-10020 |
EL53 |
4 | ||
| 77113-10020 |
EL53 |
4 | ||
| 77169A - GASKET, FUEL SUCTION TUBE SET | ||||
| 77169-20050 |
EL53 |
1 | ||
| 77169-16030 |
EL53 |
1 | ||
| 77178 - GASKET, FUEL TANK FILLER PIPE, LOWER | ||||
| 77178-20030 |
EL53 |
1 | ||
| 77178-20030 |
EL53 |
1 | ||
| 77189 - RETAINER, FUEL CHECK VALVE | ||||
| 77189-18010 |
EL53 |
1 | ||
| 77201 - PIPE SUB-ASSY, FUEL TANK INLET | ||||
| 77201-16270 |
EL53 |
1 | ||
| 77201-16171 |
EL53 |
1 | ||
| 77201A - HOSE, FUEL, NO.1(FOR FUEL TANK INLET PIPE) | ||||
| 77259-16070 |
EL53 L=280 |
2 | ||
| 77259-16070 |
EL53 L=280 |
1 | ||
| 95311-13028 |
EL53 L=280 |
2 | ||
| 77203A - TUBE SUB-ASSY, FUEL SUCTION | ||||
| 23206-11140 |
EL53 |
1 | ||
| 23206-11430 |
EL53 |
1 | ||
| 77203-16060 |
EL53 |
2 | ||
| 77203-16060 |
EL53 |
1 | ||
| 77204A - TUBE, FUEL TANK RETURN | ||||
| 23204-11140 |
EL53 |
1 | ||
| 77204B - HOSE, FUEL(FOR FUEL RETURN) | ||||
| 95334-06010 |
EL53 |
1 | ||
| 77209B - TUBE SUB-ASSY, FUEL PUMP | ||||
| 23091-11090 |
EL53 |
1 | ||
| 77209-16020 |
EL53 |
1 | ||
| 77213B - HOSE, FUEL TANK TO FILLER PIPE | ||||
| 77213-16050 |
EL53 L=395 |
1 | ||
| 77213-16120 |
EL53 TYPE B:REFER TO ILLUSTRATION |
1 | ||
| 77213-16090 |
EL53 TYPE A:REFER TO ILLUSTRATION |
1 | ||
| 77219 - COVER, FUEL TANK FILLER PIPE | ||||
| 77219-32030 |
EL53 |
2 | ||
| 77251B - TUBE, FUEL MAIN | ||||
| 77251-16240 |
EL53 |
1 | ||
| 77255D - TUBE, FUEL RETURN | ||||
| 77255-16180 |
EL53 |
1 | ||
| 77255F - HOSE, FUEL, NO.2 (FOR FUEL RETURN TUBE) | ||||
| 95333-06020 |
EL53 L=130 |
1 | ||
| 77261D - TUBE, FUEL TANK TO CANISTER | ||||
| 77261-16150 |
EL53 |
1 | ||
| 77261E - HOSE, FUEL, NO.1 (FOR FUEL TANK TO CANISTER TUBE) | ||||
| 95337-06014 |
EL53 L=140 |
1 | ||
| 77419-10010 |
EL53 L=140 |
1 | ||
| 77261F - HOSE, FUEL, NO.2 (FOR FUEL TANK TO CANISTER TUBE) | ||||
| 77249-10070 |
EL53 L=110 |
1 | ||
| 95337-06008 |
EL53 L=80 |
1 | ||
| 95333-06010 |
EL53 *H,L=80 |
1 | ||
| 77261F - HOSE, FUEL, NO.2 (FOR FUEL TANK TO CANISTER TUBE) | ||||
| 77249-10070 |
EL53 L=110 |
1 | ||
| 95337-06008 |
EL53 L=80 |
1 | ||
| 95333-06010 |
EL53 *H,L=80 |
1 | ||
| 77262A - HOSE, FUEL, NO.1(FOR FUEL TANK TO CANISTER CENTER TUBE) | ||||
| 77249-16030 |
EL53 |
1 | ||
| 77262B - TUBE, FUEL TANK TO CANISTER, NO.2 | ||||
| 77262-16040 |
EL53 |
1 | ||
| 77266A - PROTECTOR, FUEL TUBE, NO.1 | ||||
| 77266-10030 |
EL53 |
1 | ||
| 77267A - PROTECTOR, FUEL TUBE, NO.2 | ||||
| 77267-16020 |
EL53 |
1 | ||
| 77276 - PROTECTOR, FUEL HOSE | ||||
| 77276-10020 |
EL53 |
1 | ||
| 77277B - HOSE, FUEL, NO.2(FOR RETURN TUBE, NO.1) | ||||
| 23271-11230 |
EL53 *H,L=360 |
1 | ||
| 77277R - PROTECTOR, FUEL TANK FILLER PIPE | ||||
| 77277-16120 |
EL53 |
1 | ||
| 77285D - CLAMP, FUEL TUBE, NO.1 | ||||
| 77285-10010 |
EL53 |
1 | ||
| 77286F - CLAMP, FUEL TUBE, NO.2 | ||||
| 47371-10040 |
EL53 |
1 | ||
| 77286-16070 |
EL53 |
1 | ||
| 77289A - CLAMP, FUEL TUBE W/GROMMET, NO.3 | ||||
| 77289-10030 |
EL53 |
2 | ||
| 77290 - SHIELD ASSY, FUEL TANK FILLER PIPE | ||||
| 77290-16110 |
EL53 |
1 | ||
| 77290-16120 |
EL53..DX W(BACK DOOR OPENER) |
1 | ||
| 77293A - SHIELD, FUEL TANK FILLER PIPE, NO.3 | ||||
| 77293-16100 |
EL53 |
1 | ||
| 77293-16110 |
EL53..DX W(BACK DOOR OPENER) |
1 | ||
| 77316 - GASKET, FUEL TANK CAP | ||||
| 77316-16010 |
EL53 |
1 | ||
| 77350 - LID ASSY, FUEL FILLER OPENING | ||||
| 77350-16210 |
EL53..DX W(BACK DOOR OPENER) |
1 | ||
| 77350-16200 |
EL53 |
1 | ||
| 77366 - SPRING, FUEL FILLER OPENING LID HINGE | ||||
| 77360-16010 |
EL53 |
1 | ||
| 77380 - VALVE ASSY, FUEL CUT OFF | ||||
| 77380-26010 |
EL53 |
1 | ||
| 77380-26010 |
EL53 |
1 | ||
| 77391 - RING, FUEL INLET BOX | ||||
| 77391-14020 |
EL53 |
1 | ||
| 77406A - CLIP(FOR FUEL TUBE PROTECTOR) | ||||
| 90467-16023 |
EL53 |
4 | ||
| 77406A - CLIP(FOR FUEL TUBE PROTECTOR) | ||||
| 90467-16023 |
EL53 |
4 | ||
| 77412 - SUPPORT, FUEL TUBE GROMMET, NO.2 | ||||
| 77412-10010 |
EL53 |
1 | ||
| 77740 - CANISTER ASSY, CHARCOAL | ||||
| 77740-16260 |
EL53 |
1 | ||
| 77740-16261 |
EL53 |
1 | ||
| 77740-16220 |
EL53 |
1 | ||
| 77740 - CANISTER ASSY, CHARCOAL | ||||
| 77740-16260 |
EL53 |
1 | ||
| 77740-16261 |
EL53 |
1 | ||
| 77740-16220 |
EL53 |
1 | ||
| 77750B - HOSE, FUEL, NO.2 (FOR CHARCOAL CANISTER) | ||||
| 23829-11010 |
EL53 L=339 |
1 | ||
| 77751 - BRACKET, CHARCOAL CANISTER BASE | ||||
| 77751-16180 |
EL53 TYPE B:REFER TO ILLUSTRATION |
1 | ||
| 77751-16140 |
EL53 |
1 | ||
| 77751-16170 |
EL53 TYPE A:REFER TO ILLUSTRATION |
1 | ||
| 77751 - BRACKET, CHARCOAL CANISTER BASE | ||||
| 77751-16180 |
EL53 TYPE B:REFER TO ILLUSTRATION |
1 | ||
| 77751-16140 |
EL53 |
1 | ||
| 77751-16170 |
EL53 TYPE A:REFER TO ILLUSTRATION |
1 | ||
| 77751 - BRACKET, CHARCOAL CANISTER BASE | ||||
| 77751-16180 |
EL53 TYPE B:REFER TO ILLUSTRATION |
1 | ||
| 77751-16140 |
EL53 |
1 | ||
| 77751-16170 |
EL53 TYPE A:REFER TO ILLUSTRATION |
1 | ||
| 77752 - BRACKET, CHARCOAL CANISTER SUPPORT | ||||
| 77752-16030 |
EL53 |
1 | ||
| 77753 - BRACKET, CHARCOAL CANISTER, NO.3 | ||||
| 77753-16030 |
EL53 |
1 | ||
| 77754 - HOSE, CHARCOAL CANISTER OUTLET, NO.1 | ||||
| 77754-16071 |
EL53 |
1 | ||
| 77754-16070 |
EL53 |
1 | ||
| Common parts | ||||
| 17342-11190 | ||||
| 47381-16040 | ||||
| 90119-06351 | ||||
| 90119-08866 | ||||
| 90119-10252 | ||||
| 90159-40155 | ||||
| 90159-50153 | ||||
| 90159-50217 | ||||
| 90159-50219 | ||||
| 90159-60323 | ||||
| 90159-60498 | ||||
| 90179-10112 | ||||
| 90189-05097 | ||||
| 90189-06174 | ||||
| 90402-14004 | ||||
| 90460-22002 | ||||
| 90460-46003 | ||||
| 90464-00395 | ||||
| 90464-00724 | ||||
| 90467-05086 | ||||
| 90467-07130 | ||||
| 90467-12009 | ||||
| 90467-12056 | ||||
| 90469-22001 | ||||
| 90480-01277 | ||||
| 90480-01565 | ||||
| 90480-01619 | ||||
| 90959-02002 | ||||
| 91635-60616 | ||||
| 91635-60618 | ||||
| 91645-80616 | ||||
| 91651-60614 | ||||
| 91651-B0614 | ||||
| 93319-14008 | ||||
| 96132-41100 | ||||
| 96132-41300 | ||||
| 96135-41100 | ||||
