EL53L-ADPRKK (1994)
Toyota Tercel

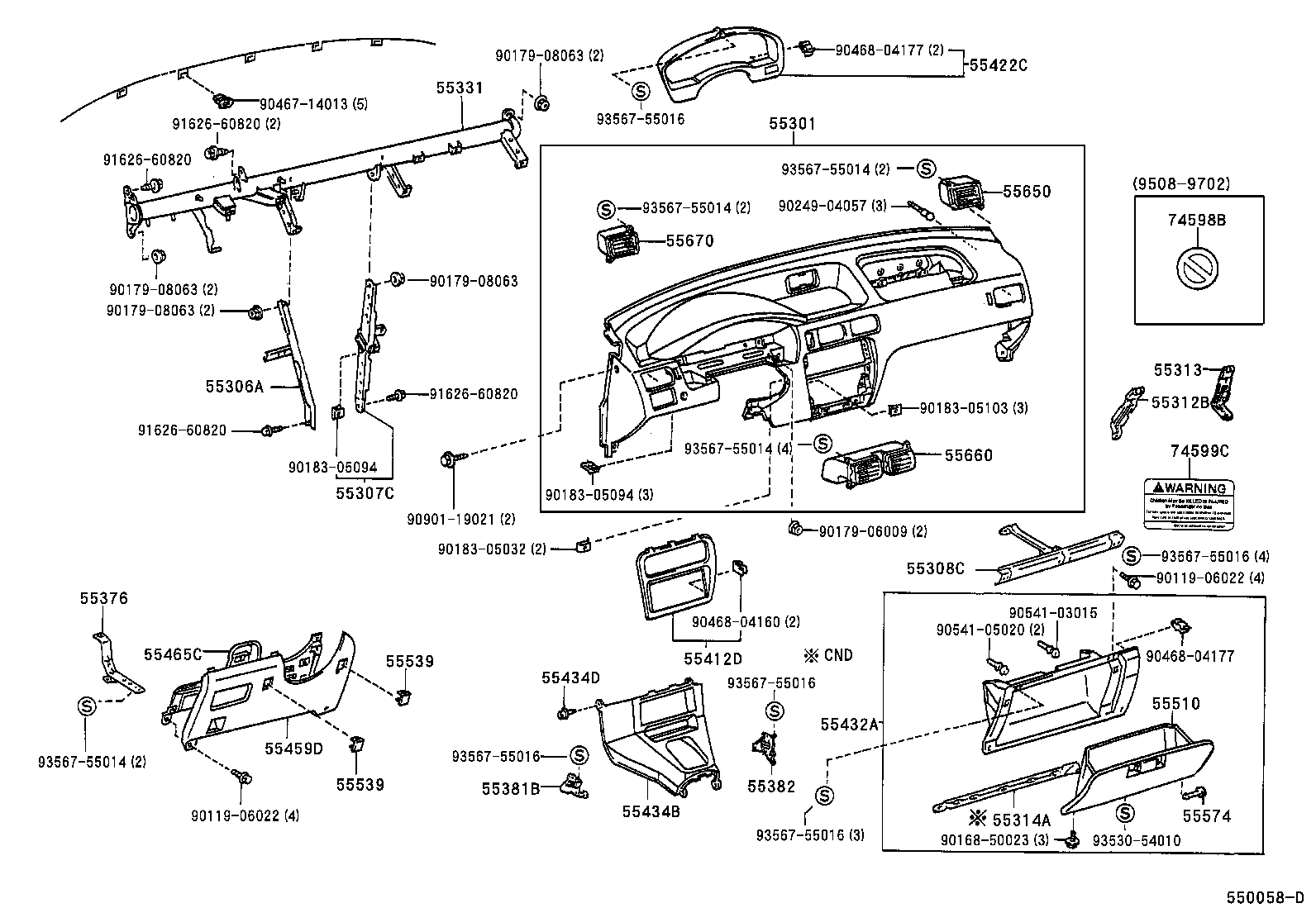

ILLUST NO. 1 OF 2(9409- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55301 - PANEL SUB-ASSY, INSTRUMENT | ||||
| 55301-16180B1 |
EL53..CND SHADOW GRAY,TRIM1# |
1 | ||
| 55301-16091E1 |
EL53 OAK,TRIM4# |
1 | ||
| 55301-16180E0 |
EL53..CND OAK,TRIM4# |
1 | ||
| 55301-16090B0 |
EL53 BLUISH GRAY,TRIM1# |
1 | ||
| 55301-16091B3 |
EL53 SHADOW GRAY,TRIM1# |
1 | ||
| 55301-16090E0 |
EL53 OAK,TRIM4# |
1 | ||
| 55301-16170E0 |
EL53 W(*80,DRIVER SIDE & PASSENGER SIDE),OAK,TRIM4# |
1 | ||
| 55301-16170B1 |
EL53 W(*80,DRIVER SIDE & PASSENGER SIDE),SHADOW GRAY,TRIM1# |
1 | ||
| 55306A - BRACE SUB-ASSY, INSTRUMENT PANEL, NO.1 | ||||
| 55306-16130 |
EL53 |
1 | ||
| 55306-16100 |
EL53 |
1 | ||
| 55306-16120 |
EL53 |
1 | ||
| 55307C - BRACE SUB-ASSY, INSTRUMENT PANEL, NO.2 | ||||
| 55307-16100 |
EL53 |
1 | ||
| 55308C - BRACKET SUB-ASSY, INSTRUMENT PANEL, CENTER | ||||
| 55308-16070 |
EL53 |
1 | ||
| 55314A - PANEL, INSTRUMENT, LOWER CENTER | ||||
| 55314-16020 |
EL53..CND |
1 | ||
| 55331 - REINFORCEMENT, INSTRUMENT PANEL | ||||
| 55330-16220 |
EL53 |
1 | ||
| 55330-16140 |
EL53 |
1 | ||
| 55376 - BRACKET, INSTRUMENT PANEL MOUNTING, NO.1 | ||||
| 55376-16050 |
EL53 |
1 | ||
| 55381B - BRACKET, FINISH PANEL MOUNTING, NO.1 | ||||
| 55381-16040 |
EL53 |
1 | ||
| 55382 - BRACKET, FINISH PANEL MOUNTING, NO.2 | ||||
| 55382-16040 |
EL53 |
1 | ||
| 55412D - PANEL, INSTRUMENT CLUSTER FINISH, CENTER | ||||
| 55412-16130B1 |
EL53 SHADOW GRAY,TRIM1# |
1 | ||
| 55412-16110 |
EL53 |
1 | ||
| 55412-16130E1 |
EL53 OAK,TRIM4# |
1 | ||
| 55422C - PANEL, INSTRUMENT CLUSTER FINISH, CENTER UPPER | ||||
| 55422-16070 |
EL53 |
1 | ||
| 55422-16110B0 |
EL53 SHADOW GRAY,TRIM1# |
1 | ||
| 55422-16110E0 |
EL53 OAK,TRIM4# |
1 | ||
| 55432A - PANEL, INSTRUMENT PANEL FINISH, LOWER RH | ||||
| 55045-16070B1 |
EL53..CND SHADOW GRAY,TRIM1# |
1 | ||
| 55045-16070E0 |
EL53..DX..CND OAK,TRIM4# |
1 | ||
| 55045-16070B0 |
EL53..CND BLUISH GRAY,TRIM1# |
1 | ||
| 55434B - PANEL, INSTRUMENT PANEL FINISH, LOWER CENTER | ||||
| 55434-16060E0 |
EL53..DX OAK,TRIM4# |
1 | ||
| 55434-16060B1 |
EL53 SHADOW GRAY,TRIM1# |
1 | ||
| 55434-16060B0 |
EL53 BLUISH GRAY,TRIM1# |
1 | ||
| 55434D - CLIP, INSTRUMENT PANEL FINISH, LOWER CENTER | ||||
| 90467-07071E0 |
EL53..DX OAK,TRIM4# |
2 | ||
| 90467-07071B3 |
EL53 GRAY,TRIM1# |
2 | ||
| 90467-07071B4 |
EL53 SHADOW GRAY,TRIM1# |
2 | ||
| 55459D - COVER, INSTRUMENT, LOWER LH | ||||
| 55459-16060B1 |
EL53 SHADOW GRAY,TRIM1# |
1 | ||
| 55459-16040B0 |
EL53 BLUISH GRAY,TRIM1# |
1 | ||
| 55459-16040E0 |
EL53..DX OAK,TRIM4# |
1 | ||
| 55459-16060E1 |
EL53 OAK,TRIM4# |
1 | ||
| 55459-16040B1 |
EL53 SHADOW GRAY,TRIM1# |
1 | ||
| 55510 - DOOR ASSY, GLOVE COMPARTMENT | ||||
| 55550-16130E0 |
EL53..DX..CND OAK,TRIM4# |
1 | ||
| 55550-16130B0 |
EL53..CND BLUISH GRAY,TRIM1# |
1 | ||
| 55550-16130B1 |
EL53..CND SHADOW GRAY,TRIM1# |
1 | ||
| 55539 - COVER, SPARE SWITCH HOLE | ||||
| 55539-20080B1 |
EL53 GRAY,TRIM1# |
2 | ||
| 55539-20080E0 |
EL53..DX OAK,TRIM4# |
2 | ||
| 55539-12130B1 |
EL53 SHADOW GRAY,TRIM1# |
2 | ||
| 55539-12130E3 |
EL53..DX OAK,TRIM4# |
2 | ||
| 55539-12130B0 |
EL53 BLUISH GRAY,TRIM1# |
2 | ||
| 55539 - COVER, SPARE SWITCH HOLE | ||||
| 55539-20080B1 |
EL53 GRAY,TRIM1# |
2 | ||
| 55539-20080E0 |
EL53..DX OAK,TRIM4# |
2 | ||
| 55539-12130B1 |
EL53 SHADOW GRAY,TRIM1# |
2 | ||
| 55539-12130E3 |
EL53..DX OAK,TRIM4# |
2 | ||
| 55539-12130B0 |
EL53 BLUISH GRAY,TRIM1# |
2 | ||
| 55574 - SHAFT, GLOVE COMPARTMENT DOOR HINGE | ||||
| 55574-10010 |
EL53 |
2 | ||
| 55650 - REGISTER ASSY, INSTRUMENT PANEL, NO.1 | ||||
| 55650-16100B1 |
EL53 SHADOW GRAY,TRIM1# |
1 | ||
| 55650-16080B0 |
EL53 BLUISH GRAY,TRIM1# |
1 | ||
| 55650-16080E0 |
EL53..DX OAK,TRIM4# |
1 | ||
| 55650-16100E0 |
EL53 OAK,TRIM4# |
1 | ||
| 55650-16080B2 |
EL53 GRAY,TRIM1# |
1 | ||
| 55660 - REGISTER ASSY, INSTRUMENT PANEL, NO.2 | ||||
| 55660-16050E0 |
EL53..DX OAK,TRIM4# |
1 | ||
| 55660-16050B2 |
EL53 GRAY,TRIM1# |
1 | ||
| 55660-16050B0 |
EL53 BLUISH GRAY,TRIM1# |
1 | ||
| 55660-16070E0 |
EL53 OAK,TRIM4# |
1 | ||
| 55660-16070B1 |
EL53 SHADOW GRAY,TRIM1# |
1 | ||
| 55670 - REGISTER ASSY, INSTRUMENT PANEL, NO.3 | ||||
| 55670-16050B0 |
EL53 BLUISH GRAY,TRIM1# |
1 | ||
| 55670-16050E0 |
EL53..DX OAK,TRIM4# |
1 | ||
| 55670-16070E0 |
EL53 OAK,TRIM4# |
1 | ||
| 55670-16070B1 |
EL53 SHADOW GRAY,TRIM1# |
1 | ||
| 55670-16050B2 |
EL53 GRAY,TRIM1# |
1 | ||
| Common parts | ||||
| 90119-06022 | ||||
| 90168-50023 | ||||
| 90179-06009 | ||||
| 90179-08063 | ||||
| 90183-05032 | ||||
| 90183-05094 | ||||
| 90183-05103 | ||||
| 90249-04057 | ||||
| 90467-14013 | ||||
| 90468-04160 | ||||
| 90468-04177 | ||||
| 90541-03015 | ||||
| 90541-05020 | ||||
| 90901-19021 | ||||
| 91626-60820 | ||||
| 93530-54010 | ||||
| 93567-55014 | ||||
| 93567-55016 | ||||

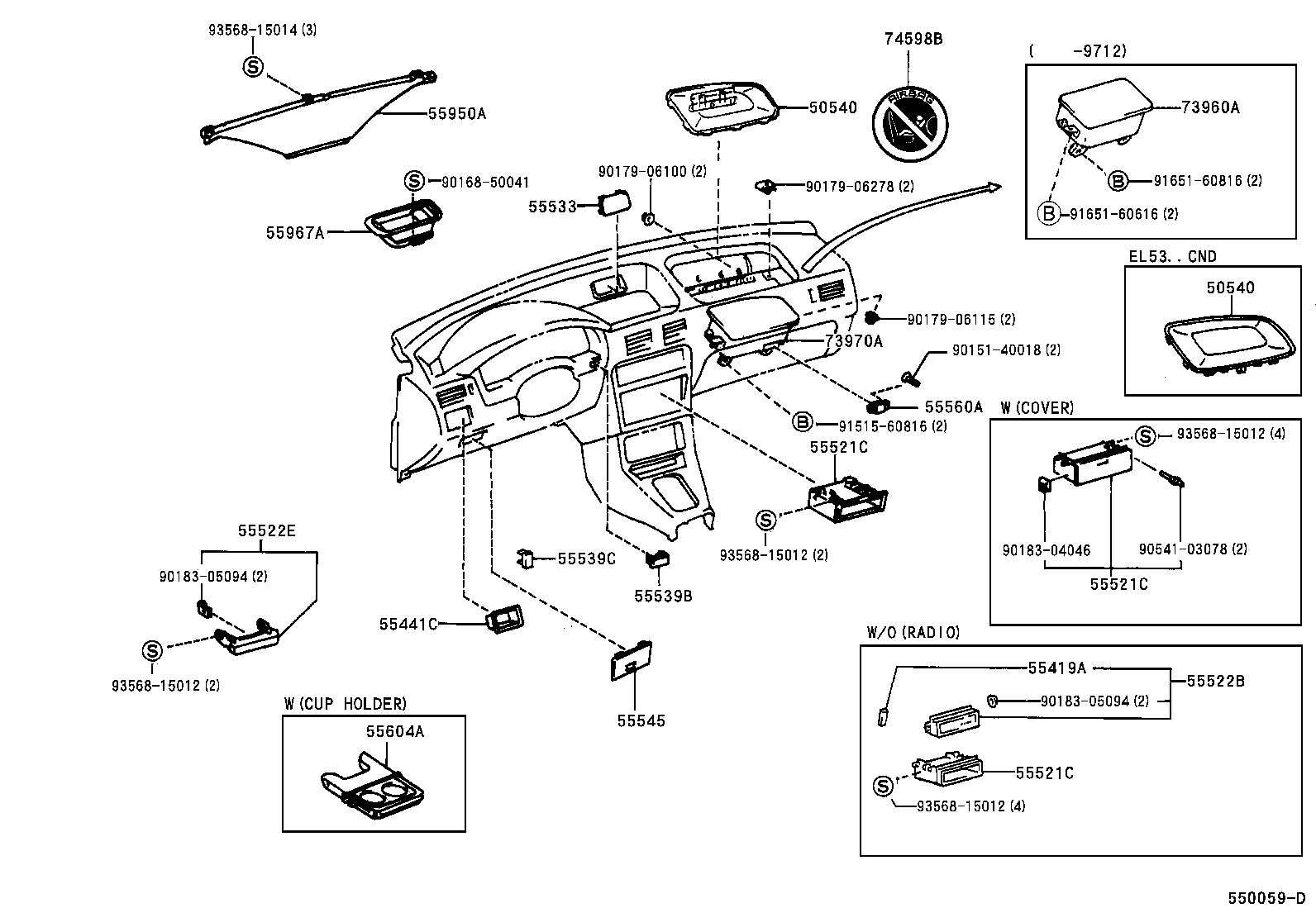

ILLUST NO. 2 OF 2(9409- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 50540 - DO0R ASSY, AIR BAG PASSENGER | ||||
| 55431-16010B0 |
EL53..CND BLUISH GRAY,TRIM1# |
1 | ||
| 55431-16010B1 |
EL53..CND SHADOW GRAY,TRIM1# |
1 | ||
| 55431-16010E0 |
EL53..DX..CND OAK,TRIM4# |
1 | ||
| 50540 - DO0R ASSY, AIR BAG PASSENGER | ||||
| 55431-16010B0 |
EL53..CND BLUISH GRAY,TRIM1# |
1 | ||
| 55431-16010B1 |
EL53..CND SHADOW GRAY,TRIM1# |
1 | ||
| 55431-16010E0 |
EL53..DX..CND OAK,TRIM4# |
1 | ||
| 55419A - CUSHION, INSTRUMENT CLUSTER FINISH PANEL | ||||
| 55419-14020 |
EL53 |
2 | ||
| 55441C - BOX, INSTRUMENT PANEL COIN | ||||
| 55441-16110B0 |
EL53 BLUISH GRAY,TRIM1# |
1 | ||
| 55441-16110B1 |
EL53 SHADOW GRAY,TRIM1# |
1 | ||
| 55441-16110E0 |
EL53..DX OAK,TRIM4# |
1 | ||
| 55521C - COVER, STEREO OPENING | ||||
| 55520-14050 |
EL53..DX;EL53..STD..CND W(RADIO) |
1 | ||
| 55521-16030 |
EL53 |
1 | ||
| 55521C - COVER, STEREO OPENING | ||||
| 55520-14050 |
EL53..DX;EL53..STD..CND W(RADIO) |
1 | ||
| 55521-16030 |
EL53 |
1 | ||
| 55521C - COVER, STEREO OPENING | ||||
| 55520-14050 |
EL53..DX;EL53..STD..CND W(RADIO) |
1 | ||
| 55521-16030 |
EL53 |
1 | ||
| 55522B - COVER, RADIO TUNER OPENING | ||||
| 55522-20070 |
EL53 |
1 | ||
| 55533 - COVER, AUTO CLOCK HOLE | ||||
| 55533-16050E0 |
EL53..DX OAK,TRIM4# |
1 | ||
| 55533-16050B0 |
EL53 BLUISH GRAY,TRIM1# |
1 | ||
| 55533-16050B1 |
EL53 SHADOW GRAY,TRIM1# |
1 | ||
| 55539C - COVER, SPARE SWITCH HOLE | ||||
| 55539-32010E4 |
EL53 OAK,TRIM4# |
1 | ||
| 55545 - COVER, FUSE BOX OPENING | ||||
| 55545-16180B0 |
EL53 BLUISH GRAY,TRIM1# |
1 | ||
| 55545-16180E0 |
EL53 OAK,TRIM4# |
1 | ||
| 55545-16220E0 |
EL53 OAK,TRIM4# |
2 | ||
| 55545-16240E0 |
EL53 OAK,TRIM4# |
1 | ||
| 55545-16240B0 |
EL53 SHADOW GRAY,TRIM1# |
1 | ||
| 55545-16220B0 |
EL53 SHADOW GRAY,TRIM1# |
2 | ||
| 55560A - LOCK ASSY, GLOVE COMPARTMENT DOOR | ||||
| 55560-16060E0 |
EL53..DX OAK,TRIM4# |
1 | ||
| 55560-16060B0 |
EL53 BLUISH GRAY,TRIM1# |
1 | ||
| 55560-16060B1 |
EL53 SHADOW GRAY,TRIM1# |
1 | ||
| 55604A - HOLDER SUB-ASSY, INSTRUMENT PANEL CUP | ||||
| 55604-16040 |
EL53..DX |
1 | ||
| 55604-16050E0 |
EL53 OAK,TRIM4# |
1 | ||
| 55604-16041C0 |
EL53 BLACK,TRIM1# |
1 | ||
| 55604-16041 |
EL53..DX |
1 | ||
| 55950A - NOZZLE ASSY, DEFROSTER | ||||
| 55950-16070 |
EL53 |
1 | ||
| 55967A - NOZZLE, DEFROSTER, LOWER | ||||
| 55967-16040 |
EL53 |
1 | ||
| 73970A - AIR BAG ASSY, INSTRUMENT PANEL PASSENGER | ||||
| 73970-16040E0 |
EL53 OAK,TRIM4# |
1 | ||
| 73970-16040B0 |
EL53 SHADOW GRAY,TRIM1# |
1 | ||
| Common parts | ||||
| 90151-40018 | ||||
| 90168-50041 | ||||
| 90179-06100 | ||||
| 90179-06115 | ||||
| 90179-06278 | ||||
| 90183-04046 | ||||
| 90183-05094 | ||||
| 90541-03078 | ||||
| 91515-60816 | ||||
| 91651-60616 | ||||
| 91651-60816 | ||||
| 93568-15012 | ||||
| 93568-15014 | ||||
