EL53L-ADPRKA (1994)

Toyota Tercel

Production Sep 1994 - Dec 1997
Engine 5EFE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9409-9712)

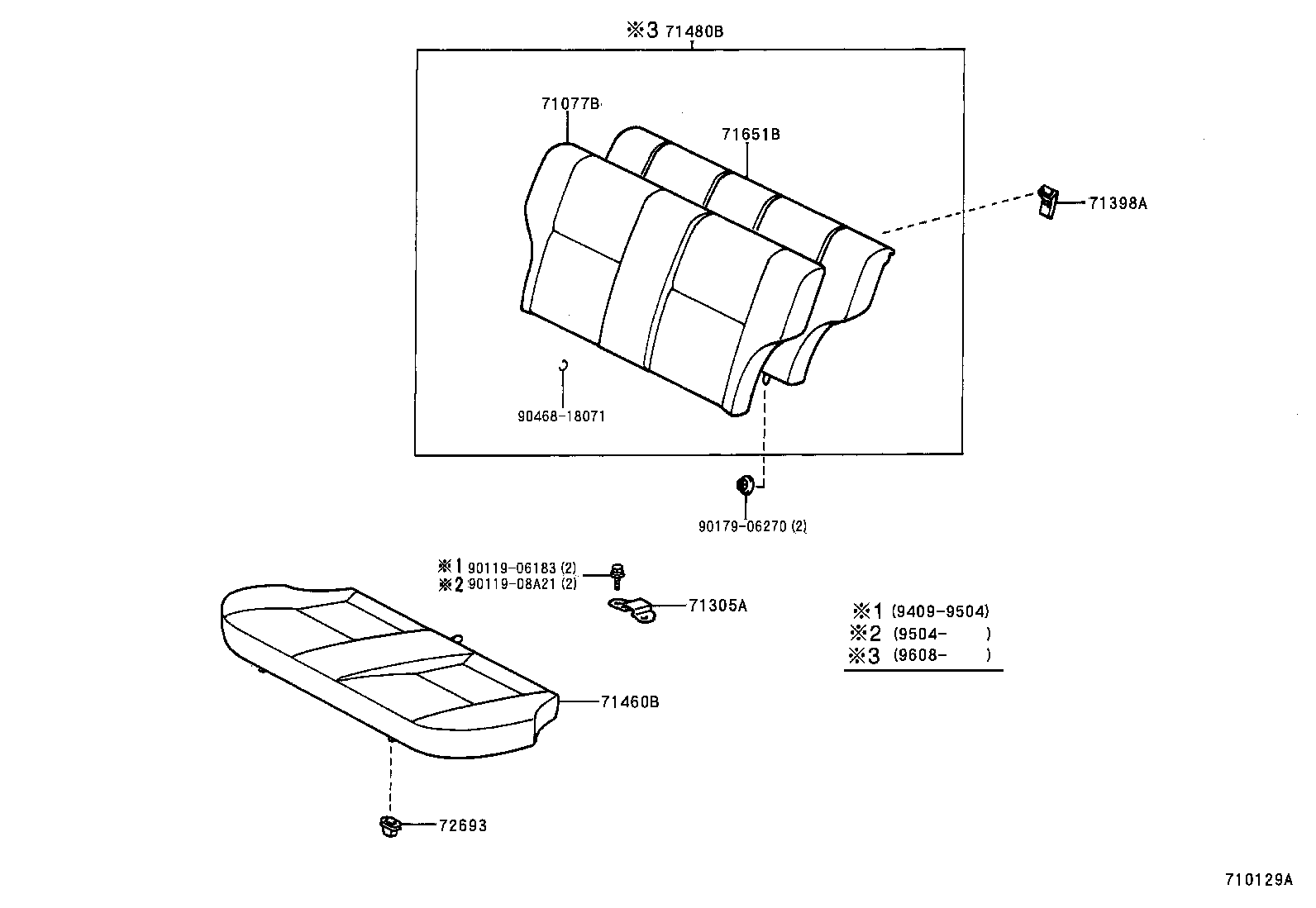

Click highlighted areas on diagram

diagram 71077B 71305A 71398A 71460B 71480B 71651B 72693 9011906183 9011908A21 9017906270 9046818071
Part # Description Qty Price
71077B - COVER, REAR SEAT BACK (FOR BENCH TYPE)
71077-1G740B0

EL53..DX

BLUISH GRAY,TRIM1#

 1
71077-1S050B0

EL53

BLUISH GRAY,TRIM1#

 1
71077-1G740E0

EL53..DX

OAK,TRIM4#

 1
71077-1S050E0

EL53

OAK,TRIM4#

 1
71305A - HINGE SUB-ASSY, REAR SEAT BACK, CENTER
71305-16080

EL53..DX

SPLIT SEAT

 1
71343-16070

EL53

 1
71305-16070

EL53..DX

SPLIT SEAT

 1
71343-16090

EL53..2DS

 1
71398A - HOLDER, REAR SEAT BACK
71398-32010

EL53

 2
71460B - CUSHION ASSY, REAR SEAT (FOR BENCH TYPE)
71460-1G030E0

EL53..2DS..DX

OAK,TRIM4#

 1
71460-1G250E0

EL53..2DS

OAK,TRIM4#

 1
71460-1G030B0

EL53..2DS..DX;EL53..STD..CND

BLUISH GRAY,TRIM1#

 1
71460-1G250B0

EL53..2DS

BLUISH GRAY,TRIM1#

 1
71460-1G030B0

EL53..2DS

BLUISH GRAY,TRIM1#

 1
71480B - BACK ASSY, REAR SEAT (FOR BENCH TYPE)
71480-1S130E0

EL53

***,OAK,TRIM4#

 1
71480-1S130B0

EL53

***,BLUISH GRAY,TRIM1#

 1
71651B - PAD, REAR SEAT BACK(FOR BENCH TYPE)
71507-16060

EL53

 1
72693 - HOOK, REAR SEAT CUSHION LOCK
72693-20040

EL53

 2
Common parts
90119-06183
90119-08A21
90179-06270
90468-18071

(9409-9712)

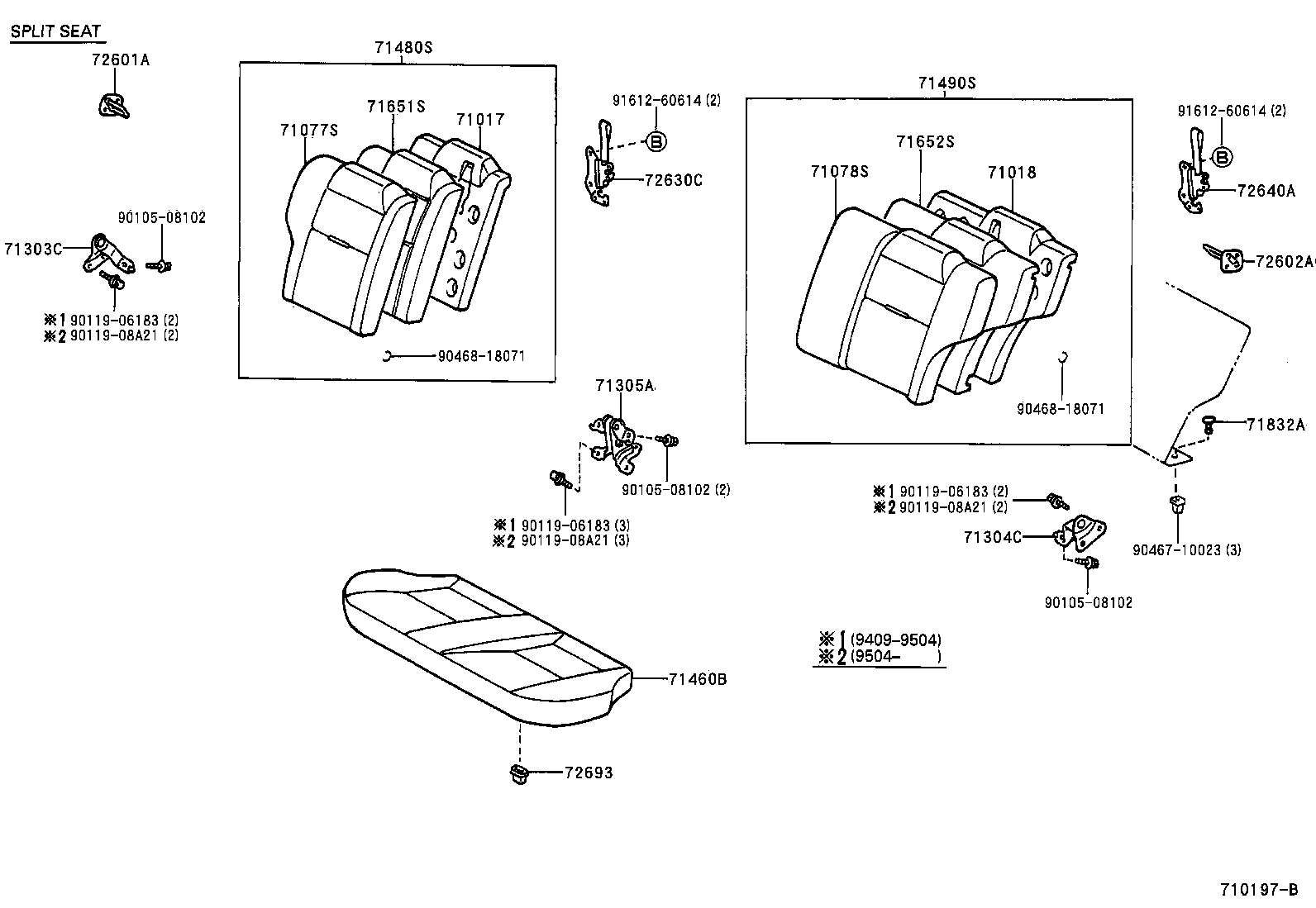

Click highlighted areas on diagram

diagram 71017 71018 71077S 71078S 71303C 71304C 71305A 71460B 71480S 71490S 71651S 71652S 71832A 72601A 72602A 72630C 72640A 72693 9010508102 9010508102 9010508102 9011906183 9011906183 9011906183 9011908A21 9011908A21 9011908A21 9046710023 9046818071 9046818071 9161260614 9161260614
Part # Description Qty Price
71017 - FRAME SUB-ASSY, REAR SEAT BACK, RH
71017-16210

EL53..DX

 1
71018 - FRAME SUB-ASSY, REAR SEAT BACK, LH
71018-16120

EL53..DX

 1
71077S - COVER, REAR SEAT BACK, RH (FOR SEPARATE TYPE)
71077-1G750B0

EL53..DX

BLUISH GRAY,TRIM1#

 1
71077-1S060E0

EL53

OAK,TRIM4#

 1
71077-1G750E0

EL53..DX

OAK,TRIM4#

 1
71077-1S060B0

EL53

BLUISH GRAY,TRIM1#

 1
71078S - COVER, REAR SEAT BACK, LH(FOR SEPARATE TYPE)
71078-1G060B0

EL53..DX

BLUISH GRAY,TRIM1#

 1
71078-1G110B0

EL53

BLUISH GRAY,TRIM1#

 1
71078-1G110E0

EL53

OAK,TRIM4#

 1
71078-1G060E0

EL53..DX

OAK,TRIM4#

 1
71303C - HINGE SUB-ASSY, REAR SEAT BACK, RH
71303-16070

EL53..DX

 1
71303-16050

EL53..DX

 1
71304C - HINGE SUB-ASSY, REAR SEAT BACK, LH
71304-16010

EL53..DX

 1
71304-16050

EL53..DX

 1
71305A - HINGE SUB-ASSY, REAR SEAT BACK, CENTER
71305-16080

EL53..DX

SPLIT SEAT

 1
71343-16070

EL53

 1
71305-16070

EL53..DX

SPLIT SEAT

 1
71343-16090

EL53..2DS

 1
71460B - CUSHION ASSY, REAR SEAT (FOR BENCH TYPE)
71460-1G030E0

EL53..2DS..DX

OAK,TRIM4#

 1
71460-1G250E0

EL53..2DS

OAK,TRIM4#

 1
71460-1G030B0

EL53..2DS..DX;EL53..STD..CND

BLUISH GRAY,TRIM1#

 1
71460-1G250B0

EL53..2DS

BLUISH GRAY,TRIM1#

 1
71460-1G030B0

EL53..2DS

BLUISH GRAY,TRIM1#

 1
71480S - BACK ASSY, REAR SEAT, RH (FOR SEPARATE TYPE)
71480-1S140B0

EL53

***,BLUISH GRAY,TRIM1#

 1
71480-1S140E0

EL53

***,OAK,TRIM4#

 1
71490S - BACK ASSY, REAR SEAT, LH (FOR SEPARATE TYPE)
71490-1G140E0

EL53

***,OAK,TRIM4#

 1
71490-1G140B0

EL53

***,BLUISH GRAY,TRIM1#

 1
71651S - PAD, REAR SEAT BACK, RH(FOR SEPARATE TYPE)
71651-16350

EL53..DX

 1
71652S - PAD, REAR SEAT BACK, LH(FOR SEPARATE TYPE)
71652-16160

EL53..DX

 1
72601A - STRIKER SUB-ASSY, REAR SEAT BACK LOOK, RH
72601-16080

EL53..DX

 1
72602A - STRIKER SUB-ASSY, REAR SEAT BACK LOCK, LH
72601-16080

EL53..DX

 1
72630C - LOCK ASSY, REAR SEAT BACK, RH
72630-16170B0

EL53..DX

GRAY,TRIM1#

 1
72630-16170E0

EL53..DX

OAK,TRIM4#

 1
72640A - LOCK ASSY, REAR SEAT BACK, LH
72630-16170B0

EL53..DX

GRAY,TRIM1#

 1
72630-16170E0

EL53..DX

OAK,TRIM4#

 1
72693 - HOOK, REAR SEAT CUSHION LOCK
72693-20040

EL53

 2
Common parts
90105-08102
90119-06183
90119-08A21
90467-10023
90468-18071
91612-60614
