EL53L-ADMRKK (1994)
Toyota Tercel
(9409- )MTM
C141,C151
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 31105A - PLUG, TIGHT(FOR FRONT TRANSAXLE CASE) | ||||
| 90331-08002 |
EL53..MTM |
1 | ||
| 31105D - SEAL, OIL, NO.1(FOR FRONT TRANSAXLE CASE) | ||||
| 90311-25016 |
EL53..MTM |
1 | ||
| 31105H - SEAL, OIL, NO.2(FOR TRANSAXLE CASE) | ||||
| 90311-34016 |
EL53..MTM |
1 | ||
| 31115C - CASE, FRONT TRANSAXLE(MTM) | ||||
| 31115-16051 |
EL53..5F |
1 | ||
| 31115-16050 |
EL53..MTM |
1 | ||
| 33449 - MAGNET, TRANSMISSION | ||||
| 33449-12020 |
EL53..MTM |
1 | ||
| 41221 - GEAR, FRONT DIFFERENTIAL RING | ||||
| 41221-10201 |
EL53..5F |
1 | ||
| 41222B - BOLT (FOR FRONT DIFFERENTIAL RING GEAR SET) | ||||
| 90105-12100 |
EL53..MTM |
6 | ||
| 41311 - CASE, FRONT DIFFERENTIAL | ||||
| 41301-10060 |
EL53..MTM |
1 | ||
| 41311E - BEARING, TAPERED ROLLER (FOR FRONT DIFFERENTIAL CASE FR | ||||
| 90366-38004 |
EL53..MTM |
1 | ||
| 41311F - BEARING, TAPERED ROLLER (FOR FRONT DIFFERENTIAL CASE RE | ||||
| 90368-38010 |
EL53..4F,4FC,5F |
1 | ||
| 41311G - WASHER, PLATE (FOR FRONT DIFFERENTIAL CASE FRONT) | ||||
| 90201-41012 |
EL53..3FC,4F,5F T=2.10 |
1 | ||
| 90560-41002 |
EL53..5F T=1.2 |
1 | ||
| 41311H - WASHER, PLATE (FOR FRONT DIFFERENTIAL CASE REAR) | ||||
| 90201-41052 |
EL53..MTM T=2.40,MARK G |
1 | ||
| 90201-41047 |
EL53..MTM T=2.15,MARK B |
1 | ||
| 90201-41053 |
EL53..MTM T=2.45,MARK H |
1 | ||
| 90201-41051 |
EL53..MTM T=2.35,MARK F |
1 | ||
| 90201-41058 |
EL53..MTM T=2.70,MARK N |
1 | ||
| 90201-41049 |
EL53..MTM T=2.25,MARK D |
1 | ||
| 90201-41059 |
EL53..MTM T=2.75,MARK P |
1 | ||
| 90201-41056 |
EL53..MTM T=2.60,MARK L |
1 | ||
| 90201-41048 |
EL53..MTM T=2.20,MARK C |
1 | ||
| 90201-41057 |
EL53..MTM T=2.65,MARK M |
1 | ||
| 90201-41060 |
EL53..MTM T=2.80,MARK Q |
1 | ||
| 90201-41062 |
EL53..MTM T=2.90,MARK S |
1 | ||
| 90201-41063 |
EL53..MTM T=2.95,MARK T |
1 | ||
| 90201-41064 |
EL53..MTM T=3.00,MARK U |
1 | ||
| 90201-41054 |
EL53..MTM T=2.50,MARK J |
1 | ||
| 90201-41055 |
EL53..MTM T=2.55,MARK K |
1 | ||
| 90201-41046 |
EL53..MTM T=2.10,MARK A |
1 | ||
| 90201-41061 |
EL53..MTM T=2.85,MARK R |
1 | ||
| 90201-41050 |
EL53..MTM T=2.30,MARK E |
1 | ||
| 41331F - GEAR, FRONT DIFFERENTIAL SIDE | ||||
| 41331-10042 |
EL53..MTM |
2 | ||
| 41331F - GEAR, FRONT DIFFERENTIAL SIDE | ||||
| 41331-10042 |
EL53..MTM |
2 | ||
| 41341F - PINION, FRONT DIFFERENTIAL | ||||
| 41341-10030 |
EL53..MTM |
2 | ||
| 41341F - PINION, FRONT DIFFERENTIAL | ||||
| 41341-10030 |
EL53..MTM |
2 | ||
| 41342A - PIN, STRAIGHT (FOR FRONT DIFFERENTIAL PINION SHAFT) | ||||
| 90250-04053 |
EL53..MTM |
1 | ||
| 41342F - SHAFT, FRONT DIFFERENTIAL PINION, NO.1 | ||||
| 41342-10041 |
EL53..MTM |
1 | ||
| 41351F - WASHER, FRONT DIFFERENTIAL PINION THRUST | ||||
| 41351-10030 |
EL53..MTM |
2 | ||
| 41351F - WASHER, FRONT DIFFERENTIAL PINION THRUST | ||||
| 41351-10030 |
EL53..MTM |
2 | ||
| 41361F - WASHER, FRONT DIFFERENTIAL SIDE GEAR THRUST, NO.1 | ||||
| 41361-10110 |
EL53..MTM T=1.70 |
2 | ||
| 41361-10120 |
EL53..MTM T=1.75 |
2 | ||
| 41361-10090 |
EL53..MTM T=1.60 |
2 | ||
| 41361-10080 |
EL53..MTM T=1.55 |
2 | ||
| 41361-10070 |
EL53..MTM T=1.50 |
2 | ||
| 41361-10100 |
EL53..MTM T=1.65 |
2 | ||
| 41361F - WASHER, FRONT DIFFERENTIAL SIDE GEAR THRUST, NO.1 | ||||
| 41361-10110 |
EL53..MTM T=1.70 |
2 | ||
| 41361-10120 |
EL53..MTM T=1.75 |
2 | ||
| 41361-10090 |
EL53..MTM T=1.60 |
2 | ||
| 41361-10080 |
EL53..MTM T=1.55 |
2 | ||
| 41361-10070 |
EL53..MTM T=1.50 |
2 | ||
| 41361-10100 |
EL53..MTM T=1.65 |
2 | ||

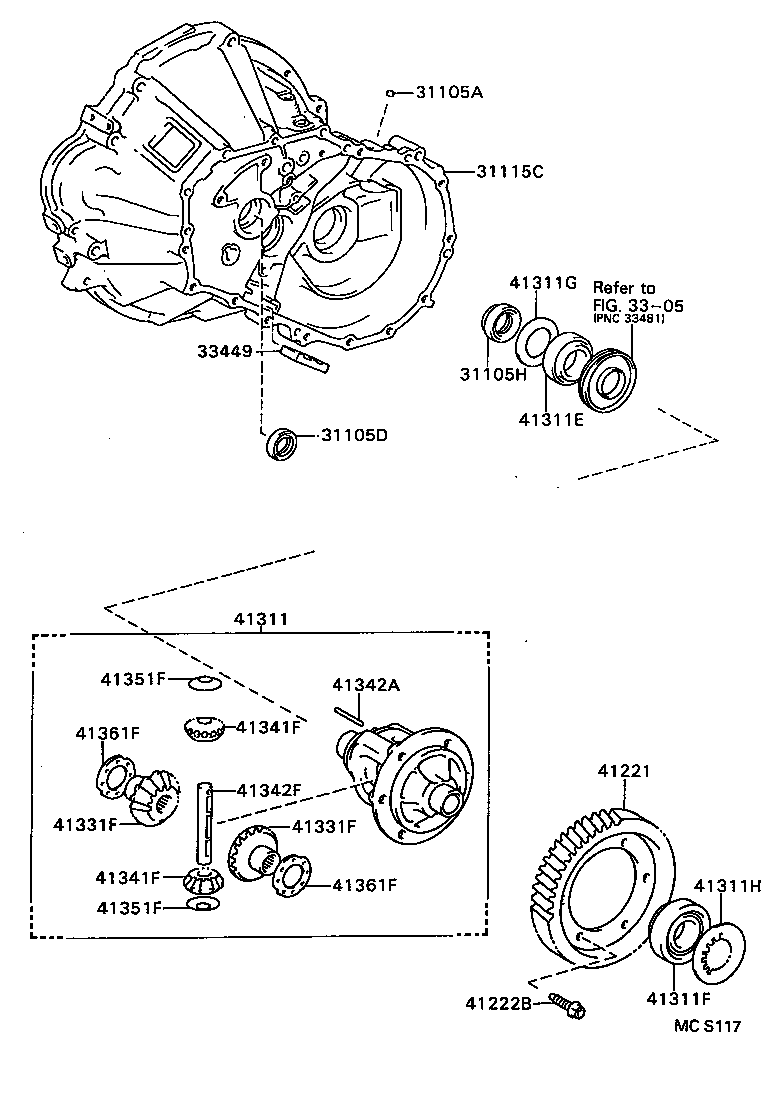

| Linked diagrams | ||||
| 3305 | ||||
