EL53L-ADKBKK (1994)

Toyota Tercel

Production Sep 1994 - Aug 1996
Engine 5EFE
Transmission 4F MTM
Displacement 2500cc
Power 168 HP (125 kW)

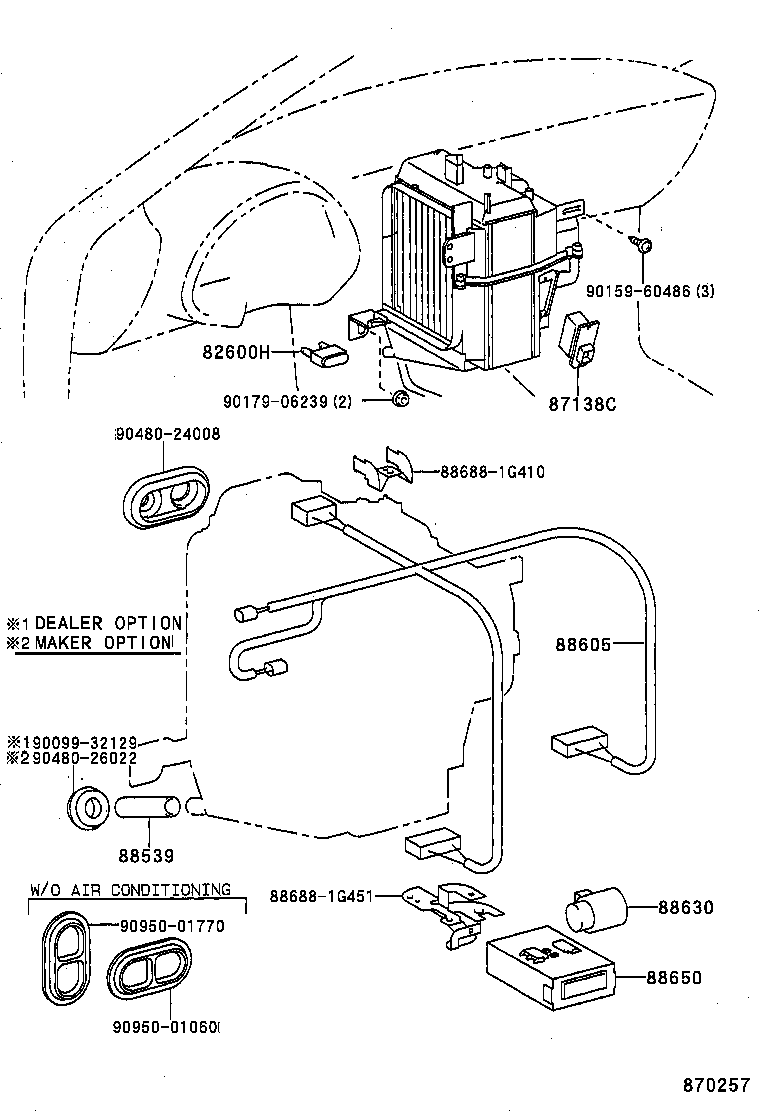

ILLUST NO. 1 OF 3(9409- )

Click highlighted areas on diagram

diagram 82600H 87138C 88539 88605 88630 88650 886881G410 886881G451 9009932129 9015960486 9017906239 9048024008 9048026022 9095001060 9095001770
Part # Description Qty Price
82600H - FUSE, FUSE BLOCK
90982-09009

EL53

10A,MINI FUSE,RED

 1
88539 - HOSE, COOLER UNIT DRAIN, NO.1
88539-16040

EL53

 1
88605 - HARNESS SUB-ASSY, COOLER WIRING, NO.1
88605-1S060

EL53

W(POWER STEERING)

 1
88605-1S070

EL53

 1
88630 - RELAY ASSY, COOLER
88630-95702

EL53

 1
88650 - AMPLIFIER ASSY, COOLER STABILIZER
88650-16560

EL53

 1
88650-16620

EL53

W(POWER STEERING)

 1
Common parts
88688-1G410
88688-1G451
90099-32129
90159-60486
90179-06239
90480-24008
90480-26022
90950-01060
90950-01770

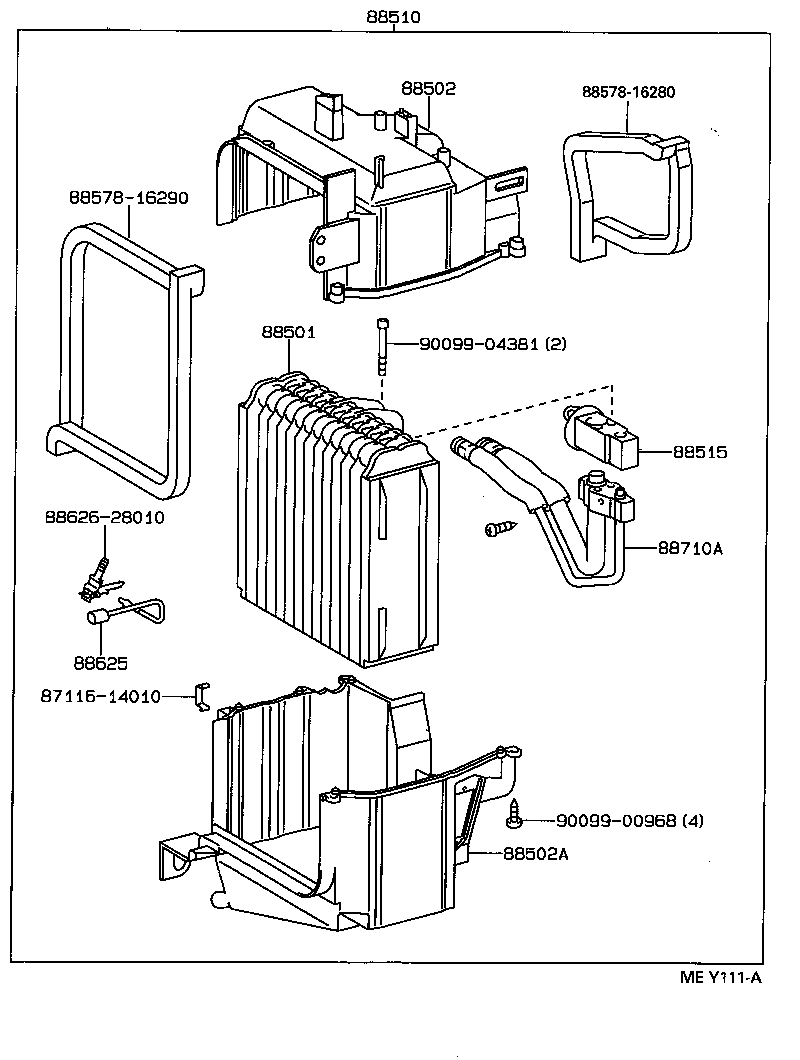

ILLUST NO. 2 OF 3(9409- )

Click highlighted areas on diagram

diagram 8711614010 88501 88502 88502A 88510 88515 8857816280 8857816290 88625 8862628010 88710A 9009900968 9009904381
Part # Description Qty Price
88501 - EVAPORATOR SUB-ASSY, COOLER, NO.1
88501-16120

EL53

 1
88501-16121

EL53

 1
88502 - CASE SUB-ASSY, COOLING UNIT
88502-16190

EL53

 1
88502A - CASE SUB-ASSY, COOLING UNIT
88502-16200

EL53

 1
88510 - UNIT ASSY, COOLER
88510-16640

EL53

 1
88515 - VALVE, COOLER EXPANSION
88515-20100

EL53

 1
88625 - THERMISTOR, COOLER, NO.1
88625-12230

EL53

 1
88710A - TUBE ASSY, AIR CONDITIONER
88710-16260

EL53

 1
Common parts
87116-14010
88578-16280
88578-16290
88626-28010
90099-00968
90099-04381

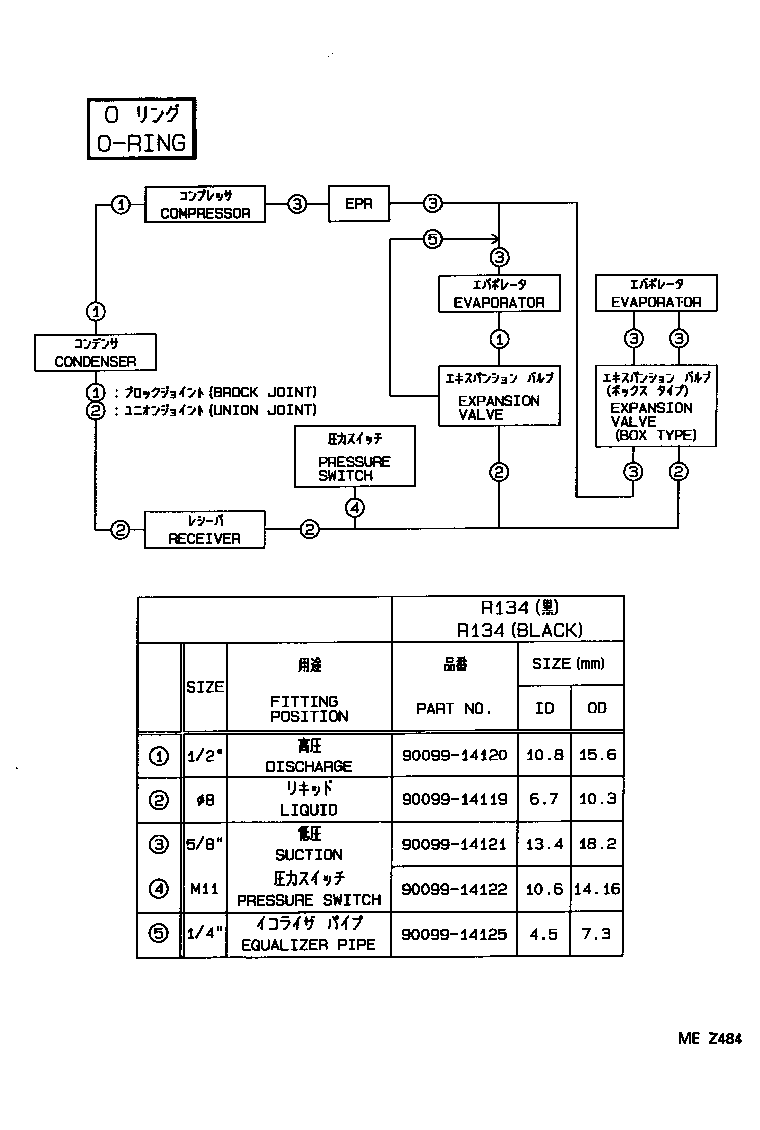

ILLUST NO. 3 OF 3(9409- )

Click highlighted areas on diagram

diagram 9009914119 9009914120 9009914121 9009914122 9009914125
Part # Description Qty Price
Common parts
90099-14119
90099-14120
90099-14121
90099-14122
90099-14125
