EL53L-ADKBKK (1994)
Toyota Tercel
Production
Sep 1994
-
Aug 1996
Engine
5EFE
Transmission
4F MTM
Displacement
2500cc
Power
168 HP (125 kW)
ILLUST NO. 2 OF 2(9409- )
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 43211K - BOLT (FOR STEERING KNUCKLE RH) | ||||
| 90105-15001 |
EL53 OD=15.0 |
2 | ||
| 90105-15005 |
EL53 OD=13.3 |
1 | ||
| 90105-15006 |
EL53 OD=12.4 |
1 | ||
| 90105-15004 |
EL53 OD=13.9 |
1 | ||
| 43212D - BOLT (FOR STEERING KNUCKLE LH) | ||||
| 90105-15004 |
EL53 OD=13.9 |
1 | ||
| 90105-15001 |
EL53 OD=15.0 |
2 | ||
| 90105-15006 |
EL53 OD=12.4 |
1 | ||
| 90105-15005 |
EL53 OD=13.3 |
1 | ||
| Common parts | ||||
| 94622-41400 | ||||

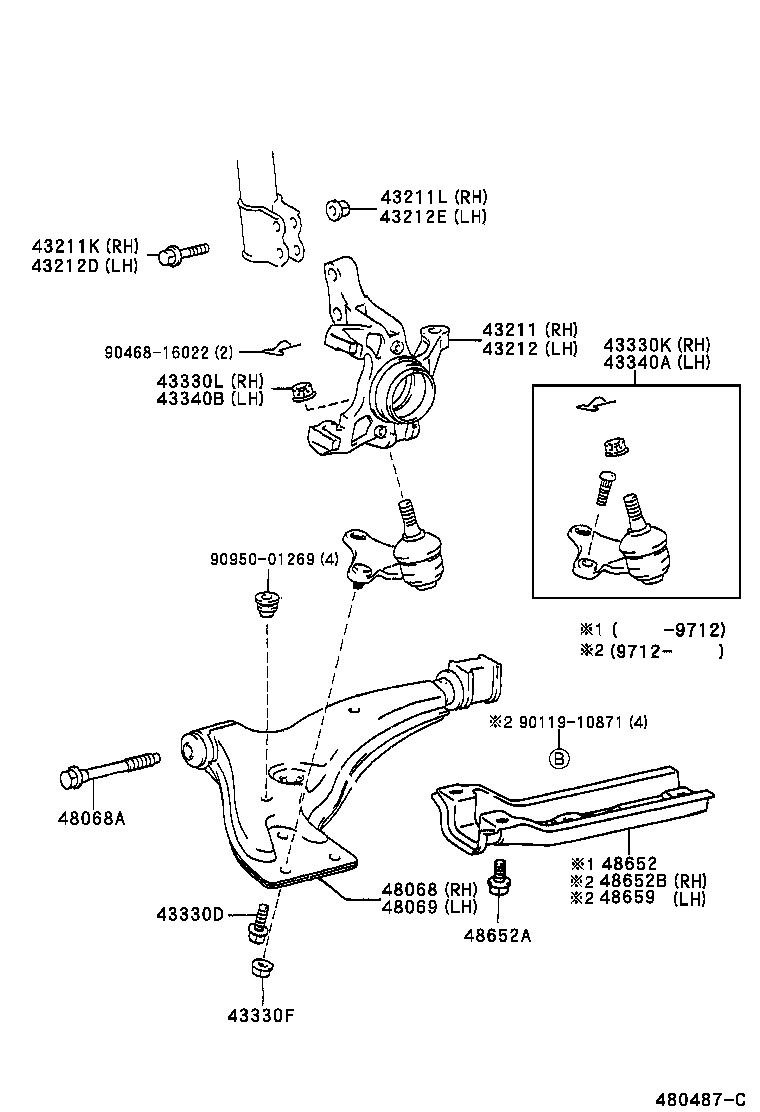

ILLUST NO. 1 OF 2(9409- )
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 43211 - KNUCKLE, STEERING, RH | ||||
| 43211-16050 |
EL53 W(ABS) |
1 | ||
| 43211-16040 |
EL53 |
1 | ||
| 43211K - BOLT (FOR STEERING KNUCKLE RH) | ||||
| 90105-15001 |
EL53 OD=15.0 |
2 | ||
| 90105-15005 |
EL53 OD=13.3 |
1 | ||
| 90105-15006 |
EL53 OD=12.4 |
1 | ||
| 90105-15004 |
EL53 OD=13.9 |
1 | ||
| 43211L - NUT (FOR STEERING KNUCKLE RH) | ||||
| 90179-15007 |
EL53 |
2 | ||
| 90179-15001 |
EL53 |
2 | ||
| 43212 - KNUCKLE, STEERING, LH | ||||
| 43212-16050 |
EL53 W(ABS) |
1 | ||
| 43212-16040 |
EL53 |
1 | ||
| 43212D - BOLT (FOR STEERING KNUCKLE LH) | ||||
| 90105-15004 |
EL53 OD=13.9 |
1 | ||
| 90105-15001 |
EL53 OD=15.0 |
2 | ||
| 90105-15006 |
EL53 OD=12.4 |
1 | ||
| 90105-15005 |
EL53 OD=13.3 |
1 | ||
| 43212E - NUT (FOR STEERING KNUCKLE LH) | ||||
| 90179-15007 |
EL53 |
2 | ||
| 90179-15001 |
EL53 |
2 | ||
| 43330D - BOLT (FOR FRONT LOWER BALL JOINT) | ||||
| 90119-10785 |
EL53 |
2 | ||
| 43330F - NUT (FOR FRONT LOWER BALL JOINT SETTING) | ||||
| 90179-10211 |
EL53 |
4 | ||
| 43330K - JOINT ASSY, LOWER BALL, FRONT RH | ||||
| 43330-19085 |
EL53 |
1 | ||
| 43330L - NUT, CASTLE (FOR FRONT LOWER BALL JOINT RH) | ||||
| 90171-12007 |
EL53 |
1 | ||
| 43340A - JOINT ASSY, LOWER BALL, FRONT LH | ||||
| 43340-19025 |
EL53 |
1 | ||
| 43340B - NUT, CASTLE (FOR FRONT LOWER BALL JOINT LH) | ||||
| 90171-12007 |
EL53 |
1 | ||
| 48068 - ARM SUB-ASSY, FRONT SUSPENSION, LOWER NO.1 RH | ||||
| 48068-16120 |
EL53 |
1 | ||
| 48068A - BOLT(FOR FRONT SUSPENSION LOWER ARM) | ||||
| 90119-12099 |
EL53 |
2 | ||
| 48069 - ARM SUB-ASSY, FRONT SUSPENSION, LOWER NO.1 LH | ||||
| 48069-16120 |
EL53 |
1 | ||
| 48652 - BRACKET, FRONT LOWER ARM | ||||
| 48652-10020 |
EL53 |
2 | ||
| 48652A - BOLT(FOR FRONT LOWER ARM BRACKET) | ||||
| 90901-19018 |
EL53 |
4 | ||
| Common parts | ||||
| 90119-10871 | ||||
| 90468-16022 | ||||
| 90950-01269 | ||||
