EL53L-ADKBKA (1994)

Toyota Tercel

Production Sep 1994 - Aug 1996
Engine 5EFE
Transmission 4F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9409- )

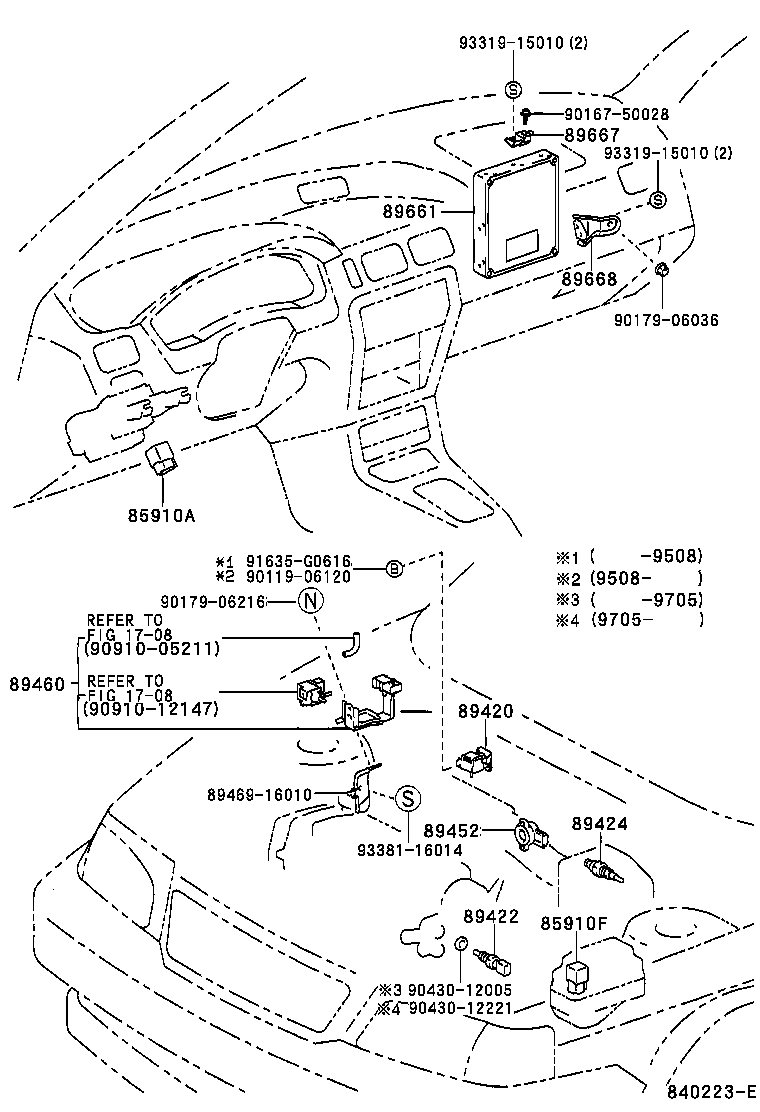

Click highlighted areas on diagram

diagram 1708 1708 85910A 85910F 89420 89422 89424 89452 89460 8946916010 89661 89667 89668 9011906120 9016750028 9017906036 9017906216 9043012005 9043012221 91635G0616 9331915010 9331915010 9338116014
Part # Description Qty Price
85910A - RELAY ASSY, CIRCUIT OPENING (FOR EFI)
90987-02009

EL53

 1
85910F - RELAY, COMPUTER (FOR EFI)
90987-02009

EL53

 1
89420 - SENSOR ASSY, VACUUM
89420-16060

EL53

 1
89422 - SENSOR, WATER TEMPERATURE (FOR E.F.I.)
89422-20010

EL53

 1
89424 - SENSOR, INLET AIR TEMPERATURE (FOR E.F.I.)
89424-12010

EL53

 1
89452 - SENSOR, THROTTLE POSITION (FOR E.F.I.)
89452-22090

EL53

 1
89661 - COMPUTER, ENGINE CONTROL
89661-16340

EL53..MTM

 1
89661-16342

EL53..MTM

 1
89661-16341

EL53..MTM

 1
89667 - BRACKET, ENGINE CONTROL COMPUTER
89667-16060

EL53

 1
89668 - BRACKET, ENGINE CONTROL COMPUTER, NO.2
89668-16050

EL53

 1
Common parts
89469-16010
90119-06120
90167-50028
90179-06036
90179-06216
90430-12005
90430-12221
91635-G0616
93319-15010
93381-16014
Linked diagrams
1708
