EL53L-ADKBKA (1994)

Toyota Tercel

Production Sep 1994 - Aug 1996
Engine 5EFE
Transmission 4F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9409- )

Click highlighted areas on diagram

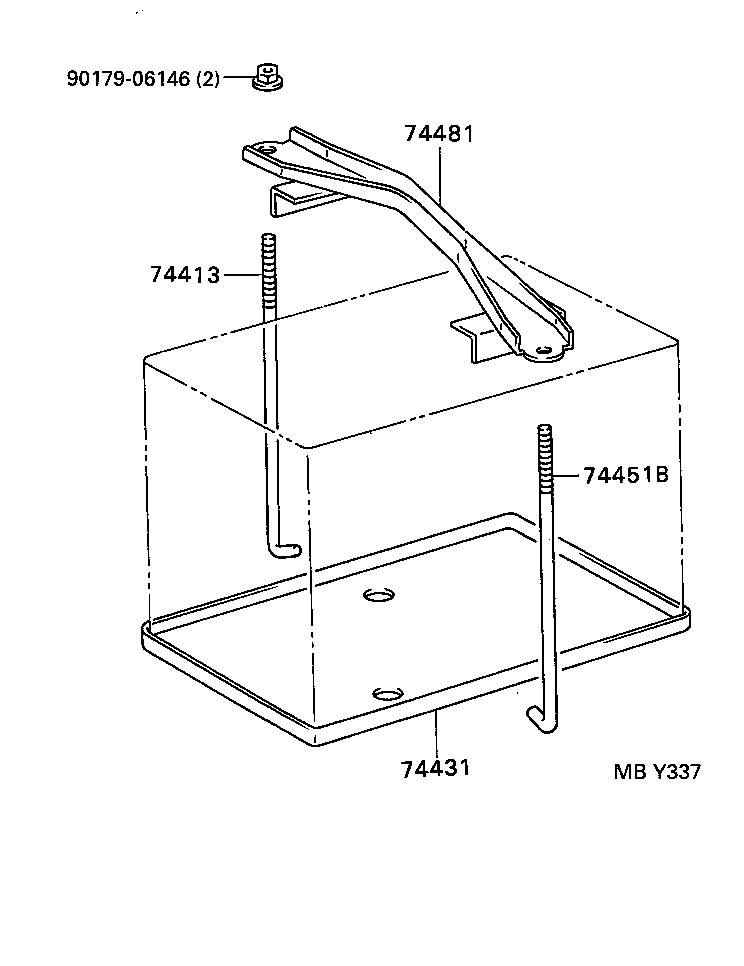

diagram 74413 74431 74451B 74481 9017906146
Part # Description Qty Price
74413 - BOLT, BATTERY CLAMP
74451-16030

EL53

 1
74431 - TRAY, BATTERY
74431-20040

EL53..USA

W(BATTERY=32C24R)

 1
74431-12010

EL53

 1
74451B - BOLT, BATTERY CLAMP
74451-16040

EL53

 1
74481 - CLAMP, BATTERY HOLD DOWN
74404-16110

EL53

 1
74404-16120

EL53..USA

W(BATTERY=32C24R)

 1
Common parts
90179-06146
