EL53L-ADKBKA (1994)
Toyota Tercel
Production
Sep 1994
-
Aug 1996
Engine
5EFE
Transmission
4F MTM
Displacement
2500cc
Power
168 HP (125 kW)

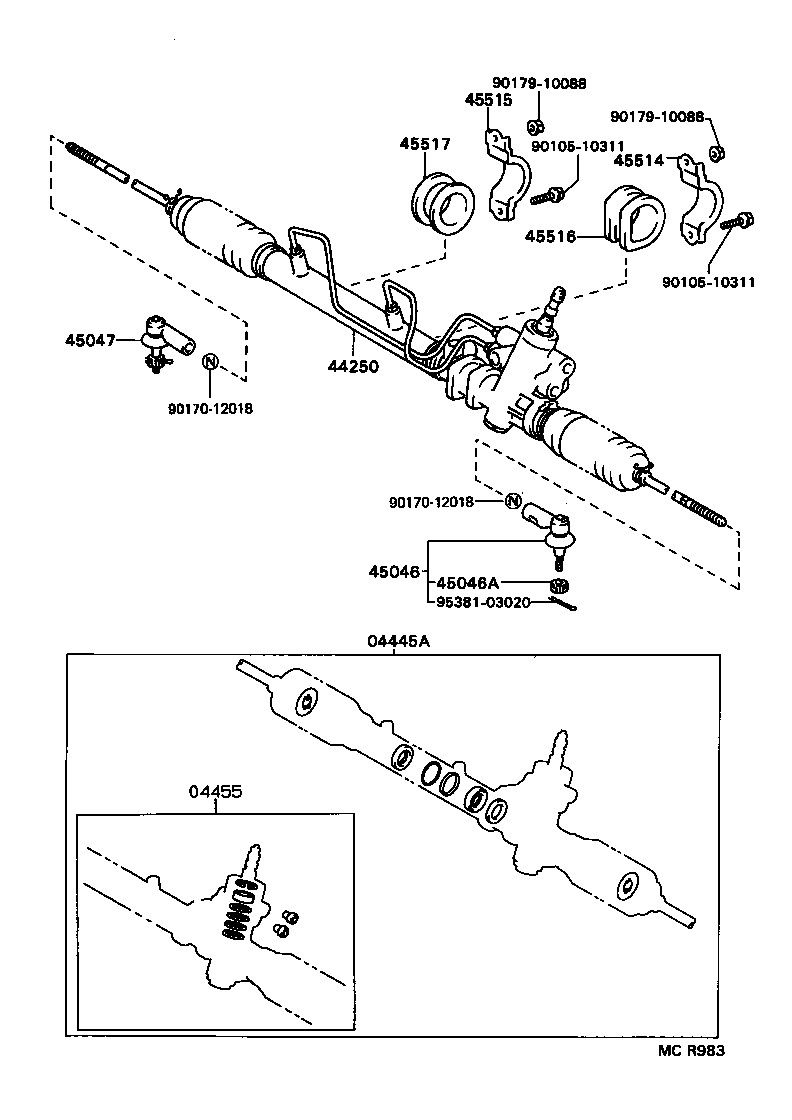

ILLUST NO. 1 OF 2(9409- )
Click highlighted areas on diagram
POWER STEERING
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04445A - GASKET KIT, POWER STEERING GEAR(FOR RACK & PINION) | ||||
| 04445-16080 |
EL53 |
1 | ||
| 04455 - GASKET KIT, POWER STEERING CONTROL VALVE OVERHOLE | ||||
| 04455-16080 |
EL53 |
1 | ||
| 44250 - GEAR ASSY, POWER STEERING(FOR RACK & PINION) | ||||
| 44250-16240 |
EL53 |
1 | ||
| 45046 - END SUB-ASSY, TIE ROD, RH | ||||
| 45046-19206 |
EL53 |
1 | ||
| 45046A - NUT, CASTLE(FOR TIE ROD END) | ||||
| 90171-12028 |
EL53 |
2 | ||
| 45047 - END SUB-ASSY, TIE ROD, LH | ||||
| 45046-19206 |
EL53 |
1 | ||
| 45514 - BRACKET, STEERING RACK HOUSING, NO.1 | ||||
| 45514-16050 |
EL53 W(MANUAL STEERING) |
1 | ||
| 45514-16060 |
EL53 W(POWER STEERING) |
1 | ||
| 45515 - BRACKET, STEERING RACK HOUSING, NO.2 | ||||
| 45514-16060 |
EL53 W(POWER STEERING) |
1 | ||
| 45515-10050 |
EL53 W(MANUAL STEERING) |
1 | ||
| 45516 - GROMMET, STEERING RACK HOUSING, NO.1 | ||||
| 45516-16060 |
EL53 W(POWER STEERING) |
1 | ||
| 45516-16050 |
EL53 |
1 | ||
| 45517 - GROMMET, STEERING RACK HOUSING, NO.2 | ||||
| 45517-10080 |
EL53 |
1 | ||
| 45517-10070 |
EL53 W(POWER STEERING) |
1 | ||
| Common parts | ||||
| 90105-10311 | ||||
| 90170-12018 | ||||
| 90179-10088 | ||||
| 95381-03020 | ||||

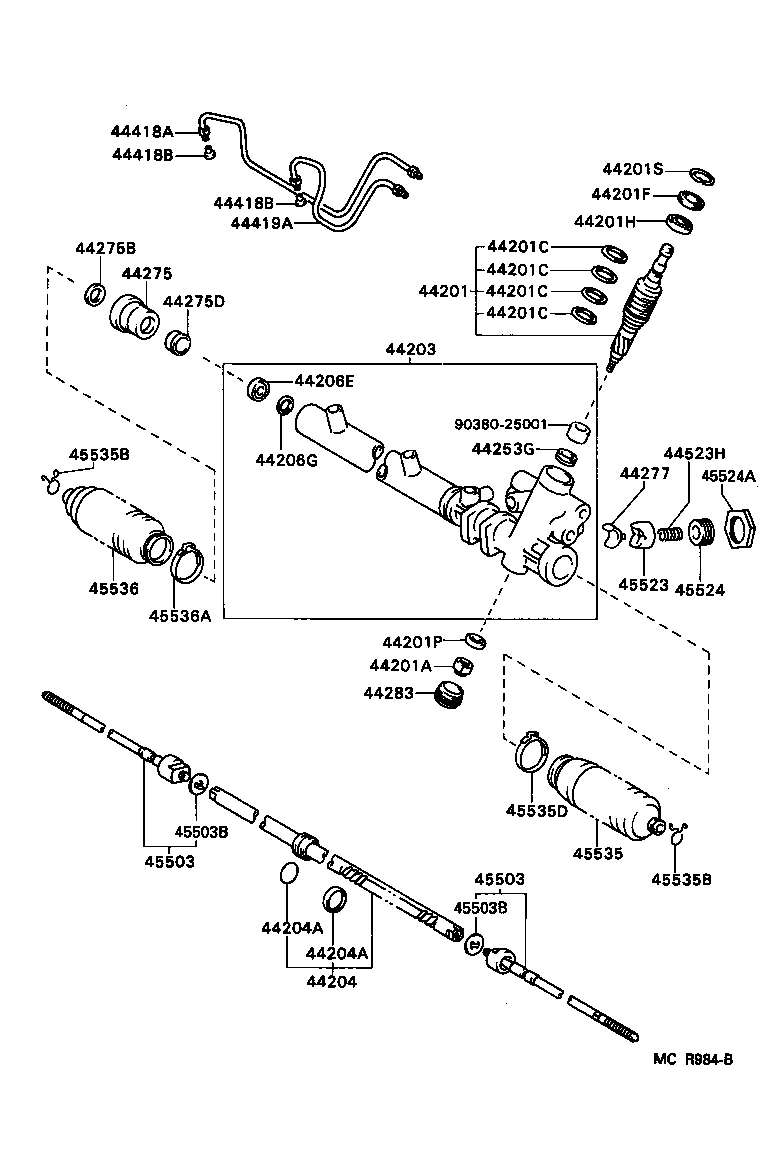

ILLUST NO. 2 OF 2(9409- )
Click highlighted areas on diagram
POWER STEERING
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 44201 - VALVE SUB-ASSY, POWER STEERING CONTROL | ||||
| 44201-16070 |
EL53 |
1 | ||
| 44201-16200 |
EL53 |
1 | ||
| 44201A - NUT, LOCK(FOR POWER STEERING CONTROL VALVE) | ||||
| 94184-61200 |
EL53 |
1 | ||
| 44201C - RING(FOR POWER STEERING CONTROL VALVE) | ||||
| 90562-33007 |
EL53 |
4 | ||
| 44201C - RING(FOR POWER STEERING CONTROL VALVE) | ||||
| 90562-33007 |
EL53 |
4 | ||
| 44201C - RING(FOR POWER STEERING CONTROL VALVE) | ||||
| 90562-33007 |
EL53 |
4 | ||
| 44201C - RING(FOR POWER STEERING CONTROL VALVE) | ||||
| 90562-33007 |
EL53 |
4 | ||
| 44201F - SEAL, OIL(FOR POWER STEERING CONTROL VALVE) | ||||
| 90311-19011 |
EL53 |
1 | ||
| 44201H - BEARING(FOR POWER STEERING CONTROL VALVE UPPER) | ||||
| 90363-19005 |
EL53 |
1 | ||
| 44201P - BEARING(FOR POWER STEERING CONTROL VALVE LOWER) | ||||
| 90363-12012 |
EL53 |
1 | ||
| 44201S - RING, SNAP(FOR POWER STEERING CONTROL VALVE) | ||||
| 90521-41005 |
EL53 |
1 | ||
| 44203 - HOUSING SUB-ASSY, POWER STEERING RACK | ||||
| 44203-10050 |
EL53 |
1 | ||
| 44204 - RACK SUB-ASSY, POWER STEERING | ||||
| 44204-10050 |
EL53 |
1 | ||
| 44204-16050 |
EL53 |
1 | ||
| 44204A - RING(FOR RACK STEERING PISTON) | ||||
| 90301-31005 |
EL53 INNER |
1 | ||
| 90562-35002 |
EL53 OUTER |
1 | ||
| 44204A - RING(FOR RACK STEERING PISTON) | ||||
| 90301-31005 |
EL53 INNER |
1 | ||
| 90562-35002 |
EL53 OUTER |
1 | ||
| 44206E - SEAL, OIL, NO.1(FOR POWER STEERING CYLINDER TUBE) | ||||
| 90310-22003 |
EL53 |
1 | ||
| 44206G - SPACER, NO.1(FOR POWER STEERING CYLINDER TUBE) | ||||
| 90560-22001 |
EL53 |
1 | ||
| 44253G - SEAL, OIL, NO.2(FOR POWER STEERING RACK HOUSING) | ||||
| 90311-25017 |
EL53 |
1 | ||
| 44275 - STOPPER, CYLINDER END | ||||
| 44275-16030 |
EL53 |
1 | ||
| 44275B - SEAL, OIL(FOR CYLINDER END STOPPER) | ||||
| 90310-22003 |
EL53 |
1 | ||
| 44275D - BUSH(FOR CYLINDER END STOPPER) | ||||
| 90386-22001 |
EL53 |
1 | ||
| 44277 - SEAT, RACK GUIDE | ||||
| 44277-16040 |
EL53 |
1 | ||
| 44283 - CAP, RACK HOUSING | ||||
| 44283-16020 |
EL53 |
1 | ||
| 44418A - TUBE, STEERING RIGHT TURN PRESSURE | ||||
| 44418-10030 |
EL53 |
1 | ||
| 44418B - SEAT, UNION(FOR STEERING TURN PRESSURE TUBE) | ||||
| 90410-04002 |
EL53 |
2 | ||
| 44418B - SEAT, UNION(FOR STEERING TURN PRESSURE TUBE) | ||||
| 90410-04002 |
EL53 |
2 | ||
| 44419A - TUBE, STEERING LEFT TURN PRESSURE | ||||
| 44419-10030 |
EL53 |
1 | ||
| 44523H - SPRING(FOR POWER STEERING RACK GUIDE) | ||||
| 90501-26063 |
EL53 |
1 | ||
| 45503 - END SUB-ASSY, STEERING RACK | ||||
| 45503-19195 |
EL53 |
2 | ||
| 45503 - END SUB-ASSY, STEERING RACK | ||||
| 45503-19195 |
EL53 |
2 | ||
| 45503B - WASHER, CLAW(FOR STEERING RACK END) | ||||
| 90214-12002 |
EL53 |
2 | ||
| 45503B - WASHER, CLAW(FOR STEERING RACK END) | ||||
| 90214-12002 |
EL53 |
2 | ||
| 45523 - GUIDE, RACK(FOR STEERING GEAR) | ||||
| 45523-10041 |
EL53 |
1 | ||
| 45523-10040 |
EL53 |
1 | ||
| 45523-10080 |
EL53 W(POWER STEERING) |
1 | ||
| 45524 - CAP, STEERING RACK GUIDE SPRING | ||||
| 45524-10040 |
EL53 W(POWER STEERING) |
1 | ||
| 45524-16040 |
EL53 |
1 | ||
| 45524A - NUT(FOR STEERING RACK GUIDE SPRING CAP) | ||||
| 90179-33003 |
EL53 W(POWER STEERING) |
1 | ||
| 45535 - BOOT, STEERING RACK, NO.1 | ||||
| 45535-16010 |
EL53 W(POWER STEERING) |
1 | ||
| 45535B - CLIP(FOR STEERING RACK BOOT) | ||||
| 90467-18003 |
EL53 |
2 | ||
| 45535B - CLIP(FOR STEERING RACK BOOT) | ||||
| 90467-18003 |
EL53 |
2 | ||
| 45535D - CLAMP(FOR STEERING RACK BOOT NO.1) | ||||
| 90461-10273 |
EL53..3FC..STD;EL53..4F,4FC,5F W(MANUAL STEERING) |
1 | ||
| 90460-56002 |
EL53 |
1 | ||
| 45536 - BOOT, STEERING RACK, NO.2 | ||||
| 45536-10060 |
EL53..3FC..STD;EL53..4F,4FC,5F W(MANUAL STEERING) |
1 | ||
| 45535-16010 |
EL53 |
1 | ||
| 45536A - CLAMP(FOR STEERING RACK BOOT NO.2) | ||||
| 90461-10646 |
EL53 W(MANUAL STEERING) |
1 | ||
| 90460-56002 |
EL53 W(POWER STEERING) |
1 | ||
| Common parts | ||||
| 90380-25001 | ||||

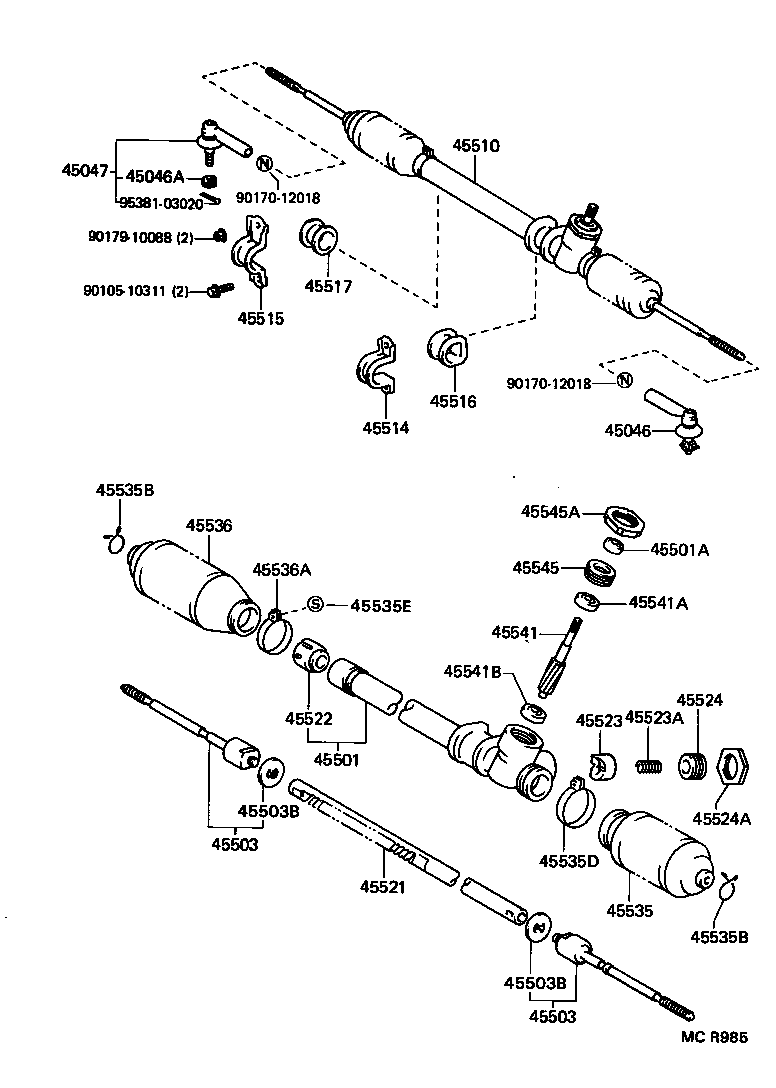

(9409- )
Click highlighted areas on diagram
MANUAL STEERING
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 45046 - END SUB-ASSY, TIE ROD, RH | ||||
| 45046-19206 |
EL53 |
1 | ||
| 45046A - NUT, CASTLE(FOR TIE ROD END) | ||||
| 90171-12028 |
EL53 |
2 | ||
| 45047 - END SUB-ASSY, TIE ROD, LH | ||||
| 45046-19206 |
EL53 |
1 | ||
| 45501 - HOUSING SUB-ASSY, STEERING RACK | ||||
| 45501-10120 |
EL53 |
1 | ||
| 45501A - SEAL, TYPE T OIL(FOR STEERING RACK HOUSING) | ||||
| 90311-15002 |
EL53 |
1 | ||
| 45503 - END SUB-ASSY, STEERING RACK | ||||
| 45503-19195 |
EL53 |
2 | ||
| 45503 - END SUB-ASSY, STEERING RACK | ||||
| 45503-19195 |
EL53 |
2 | ||
| 45503B - WASHER, CLAW(FOR STEERING RACK END) | ||||
| 90214-12002 |
EL53 |
2 | ||
| 45503B - WASHER, CLAW(FOR STEERING RACK END) | ||||
| 90214-12002 |
EL53 |
2 | ||
| 45510 - GEAR ASSY, STEERING | ||||
| 45510-16170 |
EL53 |
1 | ||
| 45514 - BRACKET, STEERING RACK HOUSING, NO.1 | ||||
| 45514-16050 |
EL53 W(MANUAL STEERING) |
1 | ||
| 45514-16060 |
EL53 W(POWER STEERING) |
1 | ||
| 45515 - BRACKET, STEERING RACK HOUSING, NO.2 | ||||
| 45514-16060 |
EL53 W(POWER STEERING) |
1 | ||
| 45515-10050 |
EL53 W(MANUAL STEERING) |
1 | ||
| 45516 - GROMMET, STEERING RACK HOUSING, NO.1 | ||||
| 45516-16060 |
EL53 W(POWER STEERING) |
1 | ||
| 45516-16050 |
EL53 |
1 | ||
| 45517 - GROMMET, STEERING RACK HOUSING, NO.2 | ||||
| 45517-10080 |
EL53 |
1 | ||
| 45517-10070 |
EL53 W(POWER STEERING) |
1 | ||
| 45521 - RACK, STEERING | ||||
| 45521-16210 |
EL53 |
1 | ||
| 45522 - BUSH, STEERING RACK | ||||
| 45522-10050 |
EL53 |
1 | ||
| 45523 - GUIDE, RACK(FOR STEERING GEAR) | ||||
| 45523-10041 |
EL53 |
1 | ||
| 45523-10040 |
EL53 |
1 | ||
| 45523-10080 |
EL53 W(POWER STEERING) |
1 | ||
| 45523A - SPRING(FOR STEERING GEAR RACK GUIDE) | ||||
| 90501-26042 |
EL53 |
1 | ||
| 45524 - CAP, STEERING RACK GUIDE SPRING | ||||
| 45524-10040 |
EL53 W(POWER STEERING) |
1 | ||
| 45524-16040 |
EL53 |
1 | ||
| 45524A - NUT(FOR STEERING RACK GUIDE SPRING CAP) | ||||
| 90179-33003 |
EL53 W(POWER STEERING) |
1 | ||
| 45535 - BOOT, STEERING RACK, NO.1 | ||||
| 45535-16010 |
EL53 W(POWER STEERING) |
1 | ||
| 45535B - CLIP(FOR STEERING RACK BOOT) | ||||
| 90467-18003 |
EL53 |
2 | ||
| 45535B - CLIP(FOR STEERING RACK BOOT) | ||||
| 90467-18003 |
EL53 |
2 | ||
| 45535D - CLAMP(FOR STEERING RACK BOOT NO.1) | ||||
| 90461-10273 |
EL53..3FC..STD;EL53..4F,4FC,5F W(MANUAL STEERING) |
1 | ||
| 90460-56002 |
EL53 |
1 | ||
| 45535E - SCREW(FOR STEERING RACK BOOT CLAMP) | ||||
| 93269-63020 |
EL53 |
2 | ||
| 45536 - BOOT, STEERING RACK, NO.2 | ||||
| 45536-10060 |
EL53..3FC..STD;EL53..4F,4FC,5F W(MANUAL STEERING) |
1 | ||
| 45535-16010 |
EL53 |
1 | ||
| 45536A - CLAMP(FOR STEERING RACK BOOT NO.2) | ||||
| 90461-10646 |
EL53 W(MANUAL STEERING) |
1 | ||
| 90460-56002 |
EL53 W(POWER STEERING) |
1 | ||
| 45541 - PINION, STEERING | ||||
| 45541-16100 |
EL53 |
1 | ||
| 45541A - BEARING, RADIAL BALL(FOR STEERING PINION UPPER) | ||||
| 90363-15015 |
EL53 |
1 | ||
| 45541B - BEARING, RADIAL BALL(FOR STEERING PINION LOWER) | ||||
| 90363-13004 |
EL53 |
1 | ||
| 45545 - SCREW, PINION BEARING ADJUSTING | ||||
| 45545-10020 |
EL53 |
1 | ||
| 45545A - NUT(FOR PINION BEARING ADJUSTING SCREW) | ||||
| 90179-38001 |
EL53 |
1 | ||
| Common parts | ||||
| 90105-10311 | ||||
| 90170-12018 | ||||
| 90179-10088 | ||||
| 95381-03020 | ||||
