EL53L-ADKBKA (1994)

Toyota Tercel

Production Sep 1994 - Aug 1996
Engine 5EFE
Transmission 4F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9409- )MTM

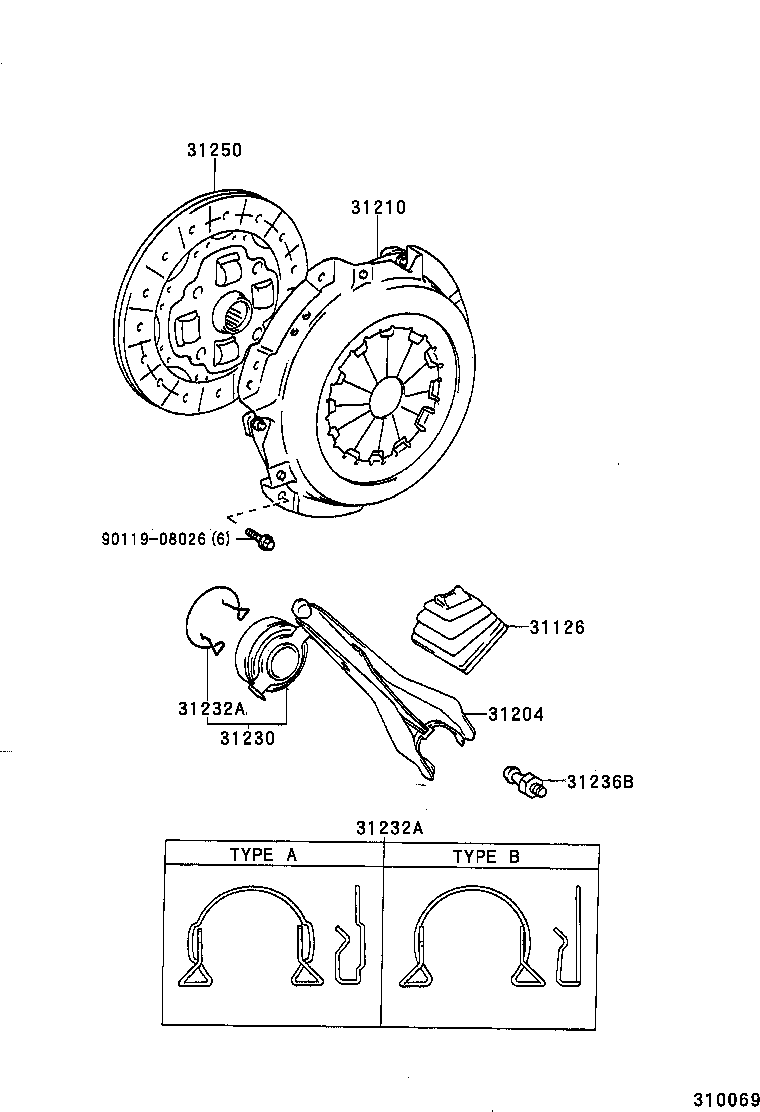

Click highlighted areas on diagram

diagram 31126 31204 31210 31230 31232A 31232A 31236B 31250 9011908026
Part # Description Qty Price
31126 - BOOT, CLUTCH RELEASE FORK
31126-12051

EL53..MTM

 1
31204 - FORK SUB-ASSY, CLUTCH RELEASE
31204-12050

EL53..MTM

 1
31210 - COVER ASSY, CLUTCH
31210-12210

EL53..MTM

 1
31230 - BEARING ASSY, CLUTCH RELEASE
31230-12140

EL53..MTM

 1
31232A - CLIP, RELEASE BEARING HUB
31232-12040

EL53..MTM

TYPE B:REFER TO ILLUSTRATION

 1
31232-16031

EL53..MTM

TYPE A:REFER TO ILLUSTRATION

 1
31232A - CLIP, RELEASE BEARING HUB
31232-12040

EL53..MTM

TYPE B:REFER TO ILLUSTRATION

 1
31232-16031

EL53..MTM

TYPE A:REFER TO ILLUSTRATION

 1
31236B - SUPPORT, RELEASE FORK
31236-12011

EL53..MTM

 1
31250 - DISC ASSY, CLUTCH
31250-12290

EL53..MTM

 1
Common parts
90119-08026
