EL53L-ADHBKK (1994)

Toyota Tercel

Production Sep 1994 - Aug 1996
Engine 5EFE
Transmission 3FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9409- )2DS

Click highlighted areas on diagram

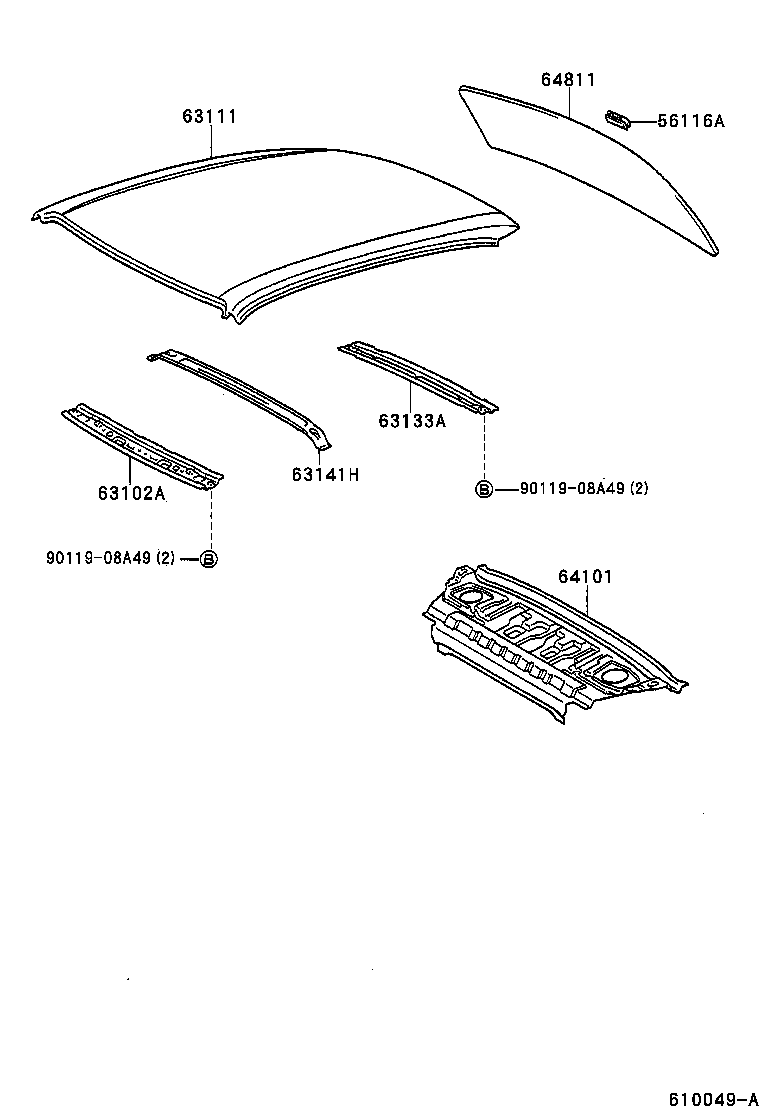

diagram 56116A 63102A 63111 63133A 63141H 64101 64811 9011908A49 9011908A49
Part # Description Qty Price
56116A - SPACER, WINDSHIELD GLASS
56116-16050

EL53

 2
63102A - PANEL SUB-ASSY, WINDSHIELD HEADER
63132-16080

EL53

 1
63111 - PANEL, ROOF
63111-16270

EL53

 1
63133A - FRAME, BACK WINDOW, UPPER
63133-16060

EL53

 1
64101 - PANEL SUB-ASSY, UPPER BACK
64101-16200

EL53

 1
64811 - GLASS, BACK WINDOW
64811-16450

EL53..CND

*EHT,T=3.5,CLEAR

 1
Common parts
90119-08A49
