EL53L-ADHBKA (1994)

Toyota Tercel

Production Sep 1994 - Aug 1996
Engine 5EFE
Transmission 3FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9409- )

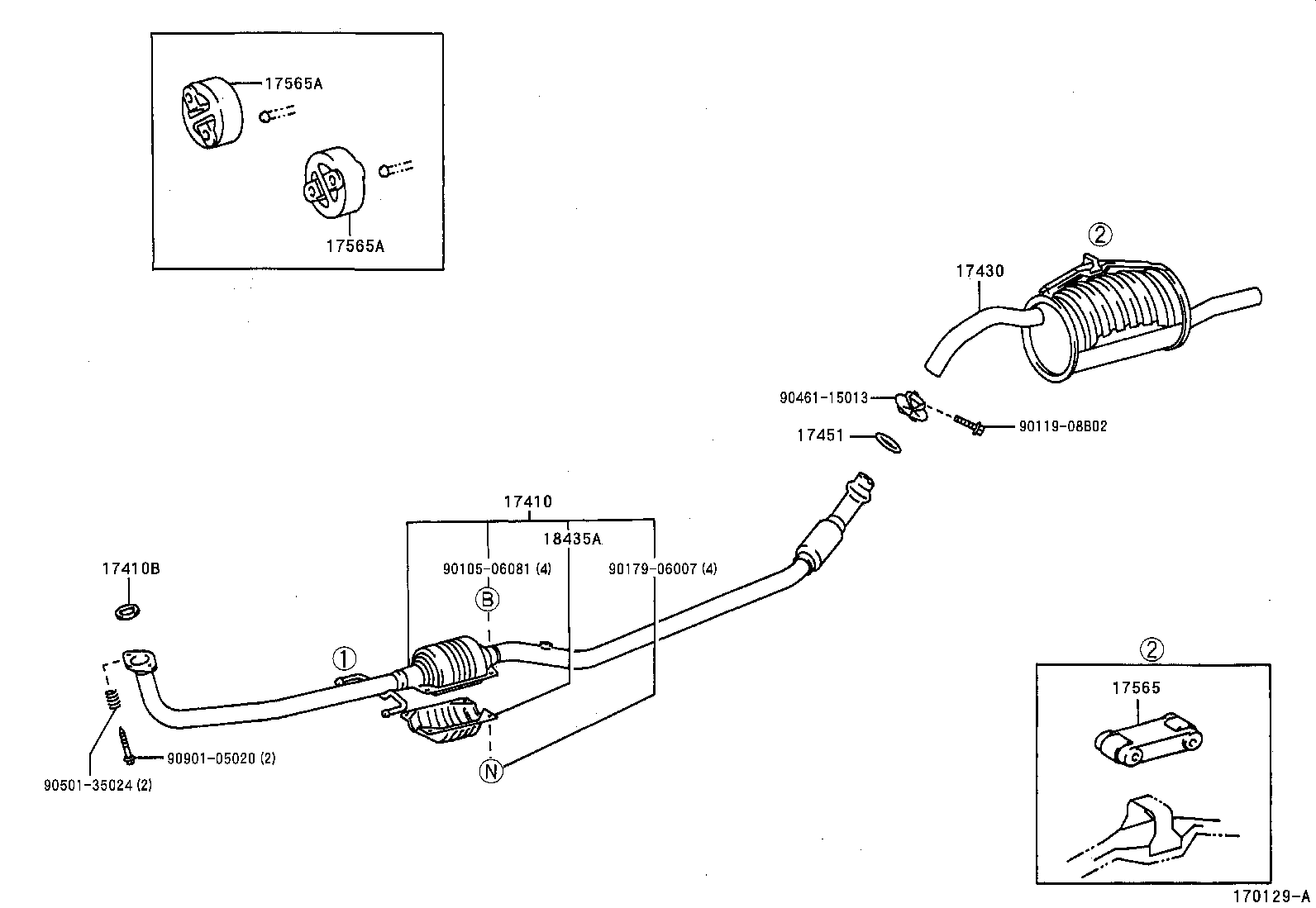

Click highlighted areas on diagram

diagram 17410 17410B 17430 17451 17565 17565A 17565A 18435A 9010506081 9011908B02 9017906007 9046115013 9050135024 9090105020
Part # Description Qty Price
17410 - PIPE ASSY, EXHAUST, FRONT
17410-11690

5EFE..EL53..3FC,4F,5F

 1
17410B - GASKET, EXHAUST PIPE
90917-06080

5EFE..EL53

 1
17430 - PIPE ASSY, EXHAUST, TAIL
17430-11710

5EFE..EL53

 1
17451 - GASKET, EXHAUST PIPE
90917-06082

5EFE..EL53

 1
17565 - SUPPORT, EXHAUST PIPE, NO.5
17566-11150

5EFE..EL53

 1
17565A - SUPPORT, EXHAUST PIPE, NO.4
17565-11160

5EFE..EL53

 2
17565A - SUPPORT, EXHAUST PIPE, NO.4
17565-11160

5EFE..EL53

 2
18435A - PROTECTOR, MONOLITHIC CONVERTER
18435-11020

5EFE..EL53

 1
Common parts
90105-06081
90119-08B02
90179-06007
90461-15013
90501-35024
90901-05020
