EL31L-ZHMRSA (1986)
Toyota Tercel
(8608- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|

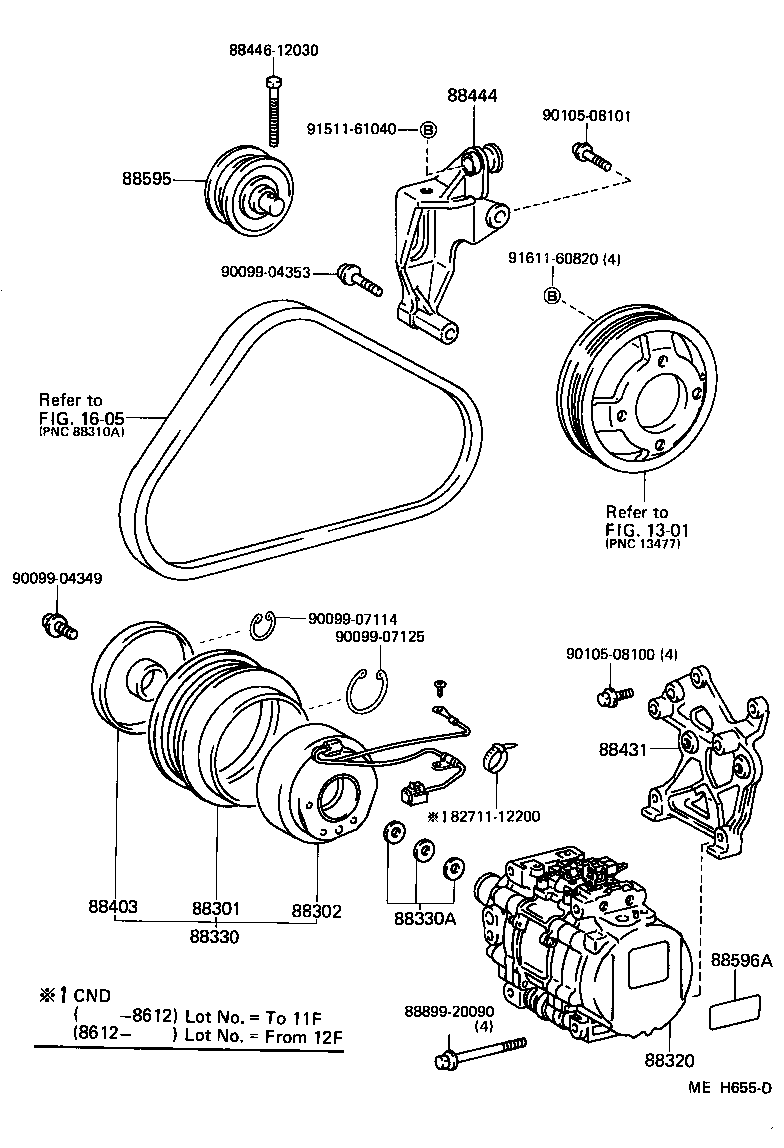

| 88301 - ROTOR SUB-ASSY, MAGNET CLUTCH | ||||
| 88412-16010 |
EL31..(3FC,5F)..USA |
1 | ||
| 88412-16030 |
EL31..TER..USA |
1 | ||
| 88412-16050 |
EL31..TER..USA |
1 | ||
| 88412-16050 |
EL31..TER..USA W/SUB CONDENSER |
1 | ||
| 88412-16030 |
EL31..(3FC,5F)..USA |
1 | ||
| 88302 - STATOR SUB-ASSY, MAGNET CLUTCH | ||||
| 88411-16021 |
EL31..TER..USA W/SUB CONDENSER |
1 | ||
| 88411-16021 |
EL31..TER..USA |
1 | ||
| 88411-16020 |
EL31..(3FC,5F)..USA |
1 | ||
| 88411-16020 |
EL31..TER..USA |
1 | ||
| 88320 - COMPRESSOR ASSY, COOLER | ||||
| 88320-16060 |
EL31..(3FC,5F)..USA W/PS |
1 | ||
| 88320-16050 |
EL31..(3FC,5F)..USA |
1 | ||
| 88320-16061 |
EL31..(3FC,5F)..USA W/PS |
1 | ||
| 88320-16061 |
EL31..TER..USA W/PS |
1 | ||
| 88320-16051 |
EL31..TER..USA |
1 | ||
| 88320-16110 |
EL31..TER..USA |
1 | ||
| 88320-12670 |
EL31..TER..USA W/PS |
1 | ||
| 88320-16051 |
EL31..(3FC,5F)..USA |
1 | ||
| 88330 - CLUTCH ASSY, MAGNET | ||||
| 88410-16021 |
EL31..TER..USA |
1 | ||
| 88410-16050 |
EL31..TER..USA |
1 | ||
| 88410-16020 |
EL31..(3FC,5F)..USA |
1 | ||
| 88410-16021 |
EL31..(3FC,5F)..USA |
1 | ||
| 88330A - WASHER (FOR MAGNET CLUTCH) | ||||
| 88335-14020 |
EL31..(3FC,5F)..USA |
1 | ||
| 88335-14020 |
EL31..TER..USA |
1 | ||
| 88403 - HUB SUB-ASSY, MAGNET CLUTCH | ||||
| 88403-16010 |
EL31..(3FC,5F)..USA |
1 | ||
| 88403-16010 |
EL31..TER..USA |
1 | ||
| 88403-16011 |
EL31..TER..USA W/SUB CONDENSER |
1 | ||
| 88403-16011 |
EL31..TER..USA |
1 | ||
| 88431 - BRACKET, COMPRESSOR MOUNTING, NO.1 | ||||
| 88431-16040 |
EL31..(3FC,5F)..USA |
1 | ||
| 88431-16040 |
EL31..TER..USA |
1 | ||
| 88444 - BRACKET, IDLE PULLEY | ||||
| 88444-16030 |
EL31..TER..USA |
1 | ||
| 88444-16030 |
EL31..(3FC,5F)..USA |
1 | ||
| 88595 - PULLEY, COOLER COMPRESSOR IDLE | ||||
| 88440-12170 |
EL31..(3FC,5F)..USA |
1 | ||
| 88440-12170 |
EL31..TER..USA |
1 | ||
| 88596A - PLATE, CAUTION | ||||
| 88356-12010 |
EL31..(3FC,5F)..USA |
1 | ||
| 88356-12010 |
EL31..TER..USA |
1 | ||
| Common parts | ||||
| 82711-12200 | ||||
| 88446-12030 | ||||
| 88899-20090 | ||||
| 90099-04349 | ||||
| 90099-04353 | ||||
| 90099-07114 | ||||
| 90099-07125 | ||||
| 90105-08100 | ||||
| 90105-08101 | ||||
| 91511-61040 | ||||
| 91611-60820 | ||||
| Linked diagrams | ||||
| 1301 | ||||
| 1605 | ||||
(8608- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|

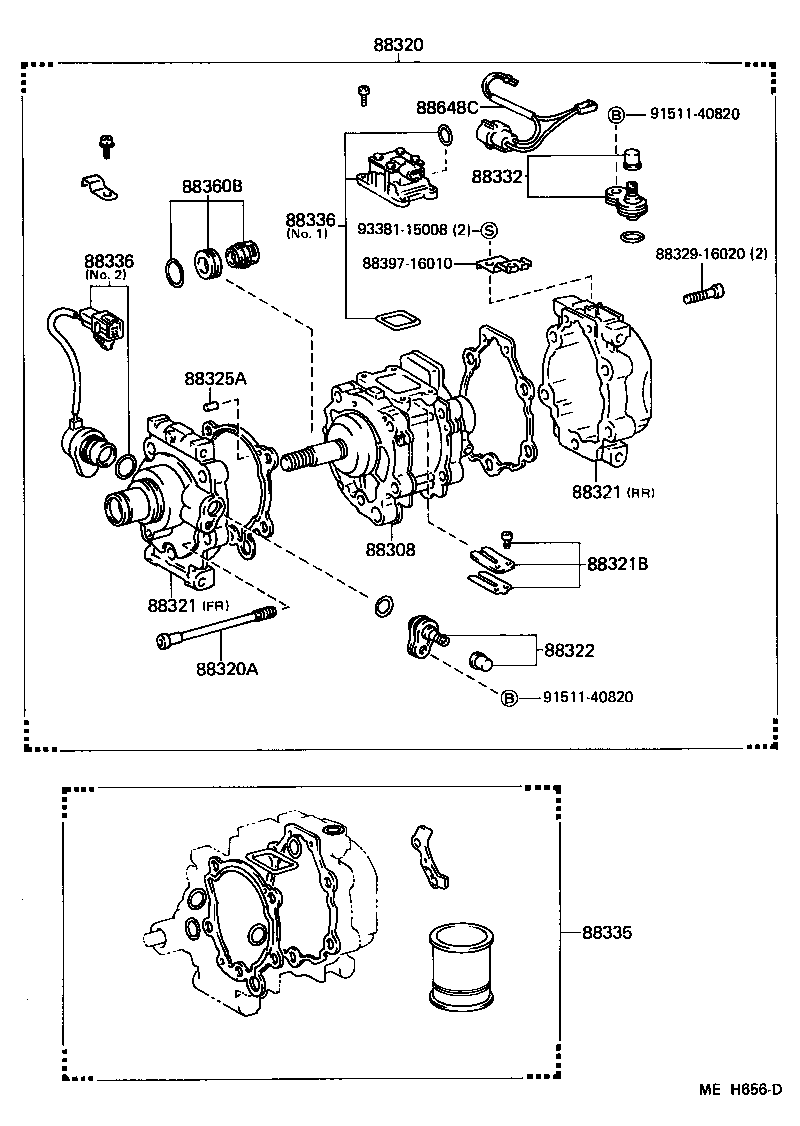

| 88308 - PUMP ASSY, COOLER COMPRESSOR | ||||
| 88309-16020 |
EL31..TER..USA |
1 | ||
| 88309-16020 |
EL31..(3FC,5F)..USA |
1 | ||
| 88309-16010 |
EL31..(3FC,5F)..USA |
1 | ||
| 88309-16030 |
EL31..TER..USA |
1 | ||
| 88320 - COMPRESSOR ASSY, COOLER | ||||
| 88320-16060 |
EL31..(3FC,5F)..USA W/PS |
1 | ||
| 88320-16050 |
EL31..(3FC,5F)..USA |
1 | ||
| 88320-16061 |
EL31..(3FC,5F)..USA W/PS |
1 | ||
| 88320-16061 |
EL31..TER..USA W/PS |
1 | ||
| 88320-16051 |
EL31..TER..USA |
1 | ||
| 88320-16110 |
EL31..TER..USA |
1 | ||
| 88320-12670 |
EL31..TER..USA W/PS |
1 | ||
| 88320-16051 |
EL31..(3FC,5F)..USA |
1 | ||
| 88320A - BOLT, THROUGH | ||||
| 88329-16010 |
EL31..(3FC,5F)..USA |
5 | ||
| 88329-16010 |
EL31..TER..USA |
5 | ||
| 88321 - HEAD, COOLER COMPRESSOR CYLINDER | ||||
| 88321-16010 |
EL31..(3FC,5F)..USA FR |
1 | ||
| 88321-16020 |
EL31..(3FC,5F)..USA FR,W/PS |
1 | ||
| 88322-16010 |
EL31..(3FC,5F)..USA RR |
1 | ||
| 88321-16040 |
EL31..(3FC,5F)..USA FR,W/PS |
1 | ||
| 88321-16030 |
EL31..(3FC,5F)..USA FR |
1 | ||
| 88322-16020 |
EL31..TER..USA RR |
1 | ||
| 88322-16020 |
EL31..(3FC,5F)..USA RR |
1 | ||
| 88321-16040 |
EL31..TER..USA FR,W/PS |
1 | ||
| 88321-16030 |
EL31..TER..USA FR |
1 | ||
| 88322-12030 |
EL31..TER..USA RR |
1 | ||
| 88321 - HEAD, COOLER COMPRESSOR CYLINDER | ||||
| 88321-16010 |
EL31..(3FC,5F)..USA FR |
1 | ||
| 88321-16020 |
EL31..(3FC,5F)..USA FR,W/PS |
1 | ||
| 88322-16010 |
EL31..(3FC,5F)..USA RR |
1 | ||
| 88321-16040 |
EL31..(3FC,5F)..USA FR,W/PS |
1 | ||
| 88321-16030 |
EL31..(3FC,5F)..USA FR |
1 | ||
| 88322-16020 |
EL31..TER..USA RR |
1 | ||
| 88322-16020 |
EL31..(3FC,5F)..USA RR |
1 | ||
| 88321-16040 |
EL31..TER..USA FR,W/PS |
1 | ||
| 88321-16030 |
EL31..TER..USA FR |
1 | ||
| 88322-12030 |
EL31..TER..USA RR |
1 | ||
| 88321B - REED SUB-ASSY, VALVE | ||||
| 88307-16010 |
EL31..TER..USA |
1 | ||
| 88307-16010 |
EL31..(3FC,5F)..USA |
1 | ||
| 88322 - VALVE, COOLER COMPRESSOR SUCTION SERVICE | ||||
| 88371-16050 |
EL31..TER..USA |
1 | ||
| 88371-16050 |
EL31..(3FC,5F)..USA |
1 | ||
| 88325A - PIN, CYLINDER BLOCK | ||||
| 88328-10010 |
EL31..(3FC,5F)..USA |
2 | ||
| 88328-10010 |
EL31..TER..USA |
2 | ||
| 88332 - VALVE, COOLER COMPRESSOR DISCHARGE SERVICE | ||||
| 88372-16030 |
EL31..(3FC,5F)..USA |
1 | ||
| 88372-16040 |
EL31..TER..USA |
1 | ||
| 88335 - GASKET KIT, OVERHAUL | ||||
| 88335-16010 |
EL31..(3FC,5F)..USA |
1 | ||
| 88335-16020 |
EL31..(3FC,5F)..USA W/PS |
1 | ||
| 88335-16030 |
EL31..(3FC,5F)..USA |
1 | ||
| 88335-16030 |
EL31..TER..USA |
1 | ||
| 88335-16040 |
EL31..TER..USA W/PS |
1 | ||
| 88335-16050 |
EL31..TER..USA |
1 | ||
| 88335-16040 |
EL31..(3FC,5F)..USA W/PS |
1 | ||
| 88336 - SENSOR, COMPRESSOR | ||||
| 88336-16010 |
EL31..(3FC,5F)..USA NO.1 |
1 | ||
| 88336-16020 |
EL31..(3FC,5F)..USA NO.2,W/PS |
1 | ||
| 88336-16020 |
EL31..TER..USA NO.2,W/PS |
1 | ||
| 88336-16010 |
EL31..TER..USA NO.1 |
1 | ||
| 88336 - SENSOR, COMPRESSOR | ||||
| 88336-16010 |
EL31..(3FC,5F)..USA NO.1 |
1 | ||
| 88336-16020 |
EL31..(3FC,5F)..USA NO.2,W/PS |
1 | ||
| 88336-16020 |
EL31..TER..USA NO.2,W/PS |
1 | ||
| 88336-16010 |
EL31..TER..USA NO.1 |
1 | ||
| 88360B - SEAL, SHAFT | ||||
| 88360-16010 |
EL31..TER..USA |
1 | ||
| 88360-16010 |
EL31..(3FC,5F)..USA |
1 | ||
| 88648C - WIRE SUB-ASSY, SENSOR | ||||
| 88648-16130 |
EL31..(3FC,5F)..USA |
1 | ||
| 88648-16130 |
EL31..TER..USA |
1 | ||
| 88648-16140 |
EL31..(3FC,5F)..USA W/PS |
1 | ||
| 88648-16140 |
EL31..TER..USA W/PS |
1 | ||
| Common parts | ||||
| 88329-16020 | ||||
| 88397-16010 | ||||
| 91511-40820 | ||||
| 93381-15008 | ||||
