EL31L-ZHMRSA (1986)
Toyota Tercel
Production
Aug 1986
-
Aug 1988
Engine
3E
Transmission
5F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(8608- )

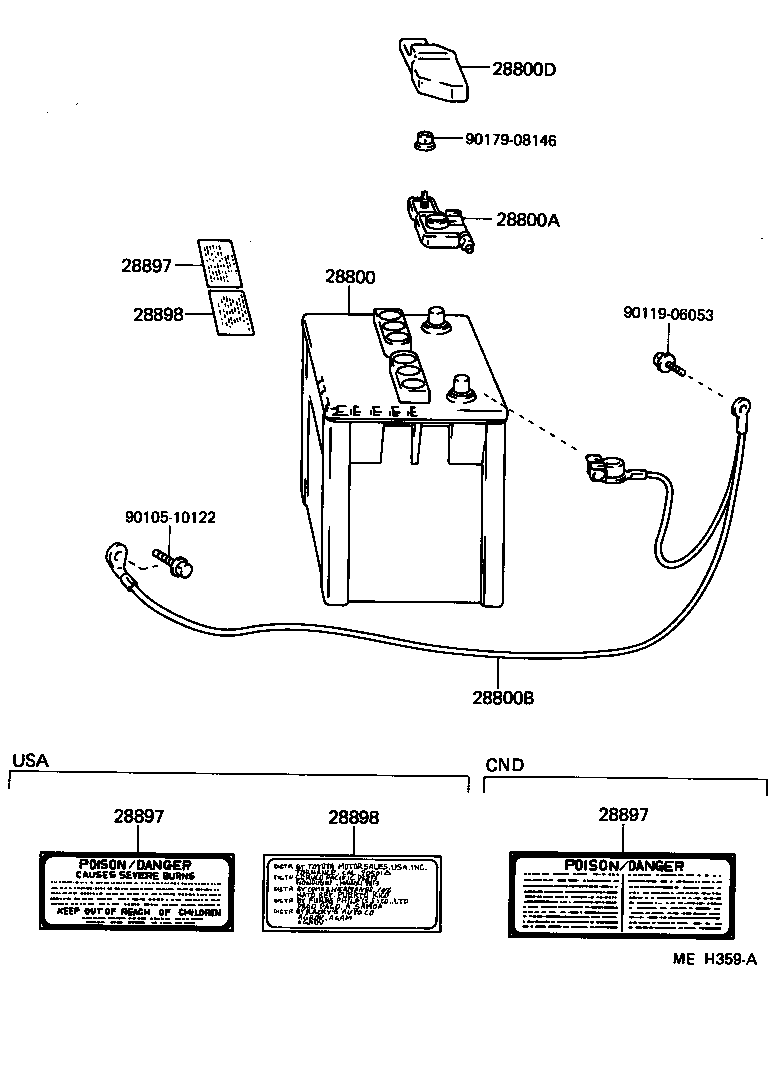

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 28800 - BATTERY | ||||
| 28800-31200 |
3E..EL31..MTM..USA 50D20L,50D20L-MF |
1 | ||
| 28800-15050 |
3E..EL31..USA 55D23L,55D23L-MF |
1 | ||
| 28800-31031 |
3E..EL31..USA 32C24L,32C24L |
1 | ||
| 28800A - TERMINAL, BATTERY POSITIVE | ||||
| 90982-05032 |
3E..EL31 |
1 | ||
| 28800B - CABLE, BATTERY TO GROUND | ||||
| 82123-16060 |
3E..EL31 |
1 | ||
| 28800D - COVER, CONNECTOR(FOR BATTERY TERMINAL) | ||||
| 82821-16020 |
3E..EL31 |
1 | ||
| 28897 - PLATE, BATTERY CAUTION | ||||
| 28897-26010 |
3E..EL31..USA W/32C24L BATTERY |
1 | ||
| 28897 - PLATE, BATTERY CAUTION | ||||
| 28897-26010 |
3E..EL31..USA W/32C24L BATTERY |
1 | ||
| 28897 - PLATE, BATTERY CAUTION | ||||
| 28897-26010 |
3E..EL31..USA W/32C24L BATTERY |
1 | ||
| 28898 - PLATE, BATTERY | ||||
| 28898-26010 |
3E..EL31..USA |
1 | ||
| 28898 - PLATE, BATTERY | ||||
| 28898-26010 |
3E..EL31..USA |
1 | ||
| Common parts | ||||
| 90105-10122 | ||||
| 90119-06053 | ||||
| 90179-08146 | ||||
