EL31L-ZHMRSA (1986)

Toyota Tercel

Production Aug 1986 - Aug 1988
Engine 3E
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

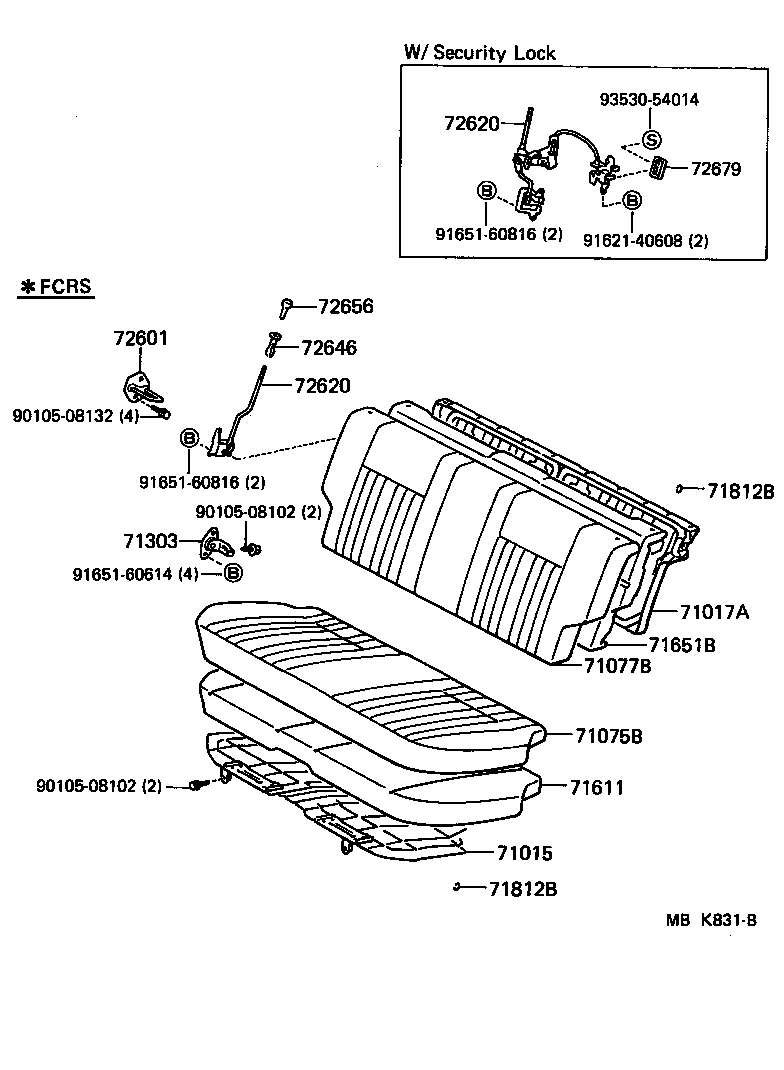

(8608- )3DS,5DS

Click highlighted areas on diagram

diagram 71015 71017A 71075B 71077B 71303 71611 71651B 71812B 71812B 72601 72620 72620 72646 72656 72679 9010508102 9010508102 9010508132 9162140608 9165160614 9165160816 9165160816 9353054014
Part # Description Qty Price
71015 - FRAME SUB-ASSY, REAR SEAT CUSHION
71015-16070

EL31..3DS,5DS

*FCRS

 1
71017A - FRAME SUB-ASSY, REAR SEAT BACK
71017-16120

EL31..3DS,5DS

 1
71075B - COVER, REAR SEAT CUSHION (FOR BENCH TYPE)
71065-1621003

EL31..3DS,5DS

PF,GRAY,GRAY,TRIM2#

 1
71065-1633005

EL31..3DS,5DS

FB,BEIGE,BEIGE,TRIM4#

 1
71065-1633004

EL31..3DS,5DS

FB,BLUE,BLUE,TRIM8#

 1
71065-1626003

EL31..3DS,5DS

SEMI-FB,GRAY,GRAY,TRIM2#

 1
71065-1621004

EL31..3DS,5DS

PF,BLUE,BLUE,TRIM8#

 1
71065-1626005

EL31..3DS,5DS

SEMI-FB,BEIGE,BEIGE,TRIM4#

 1
71065-1621005

EL31..3DS,5DS

PF,BEIGE,BEIGE,TRIM4#

 1
71065-1626004

EL31..3DS,5DS

SEMI-FB,BLUE,BLUE,TRIM8#

 1
71065-1633003

EL31..3DS,5DS

FB,GRAY,GRAY,TRIM2#

 1
71077B - COVER, REAR SEAT BACK (FOR BENCH TYPE)
71077-1G04003

EL31..3DS,5DS

PF,GRAY,GRAY,TRIM2#

 1
71077-1G04004

EL31..3DS,5DS

PF,BLUE,BLUE,TRIM8#

 1
71077-1G04005

EL31..3DS,5DS

PF,BEIGE,BEIGE,TRIM4#

 1
71077-1G16004

EL31..3DS,5DS

FB,BLUE,BLUE,TRIM8#

 1
71077-1G16005

EL31..3DS,5DS

FB,BEIGE,BEIGE,TRIM4#

 1
71077-1G16003

EL31..3DS,5DS

FB,GRAY,GRAY,TRIM2#

 1
71077-1G22003

EL31..3DS,5DS

SEMI-FB,GRAY,GRAY,TRIM2#

 1
71077-1G22004

EL31..3DS,5DS

SEMI-FB,BLUE,BLUE,TRIM8#

 1
71077-1G22005

EL31..3DS,5DS

SEMI-FB,BEIGE,BEIGE,TRIM4#

 1
71303 - HINGE SUB-ASSY, REAR SEAT BACK
71303-16040

EL31..3DS,5DS

 2
71611 - PAD, REAR SEAT CUSHION
71611-16190

EL31..3DS,5DS

 1
71651B - PAD, REAR SEAT BACK(FOR BENCH TYPE)
71651-16210

EL31..3DS,5DS

 1
71812B - CLIP(FOR REAR SEAT CUSHION COVER)
90468-18071

EL31

 1
71812B - CLIP(FOR REAR SEAT CUSHION COVER)
90468-18071

EL31

 1
72601 - STRIKER SUB-ASSY, REAR SEAT LOCK
72601-16070

EL31..3DS,5DS

 2
72620 - LOCK ASSY, REAR SEAT BACK
72630-16150

EL31..3DS,5DS

RH

 1
72640-16110

EL31..3DS,5DS

LH

 1
72630-16160

EL31..3DS,5DS

RH,W/SECURITY LOCK

 1
72640-16120

EL31..3DS,5DS

LH,W/SECURITY LOCK

 1
72620 - LOCK ASSY, REAR SEAT BACK
72630-16150

EL31..3DS,5DS

RH

 1
72640-16110

EL31..3DS,5DS

LH

 1
72630-16160

EL31..3DS,5DS

RH,W/SECURITY LOCK

 1
72640-16120

EL31..3DS,5DS

LH,W/SECURITY LOCK

 1
72646 - GROMMET, REAR SEAT BACK STOP BUTTON
72646-1601004

EL31..3DS,5DS

BLUE,BLUE,TRIM8#

 2
72646-1601005

EL31..3DS,5DS

BEIGE,DARK BEIGE,TRIM4#

 2
72646-1601001

EL31..3DS,5DS

BLACK,BLACK,TRIM2#

 2
72656 - BUTTON, REAR SEAT BACK STOP RELEASE
72658-2301001

EL31..3DS,5DS

BLACK,BLACK,TRIM2#

 2
72658-2301015

EL31..3DS,5DS

BEIGE,DARK BEIGE,TRIM4#

 2
72658-2301004

EL31..3DS,5DS

BLUE,BLUE,TRIM8#

 2
72679 - BEZEL, REAR SEAT BACK LOCK CONTROL
72679-1601015

EL31..3DS,5DS

BEIGE,DARK BEIGE,TRIM4#

 2
72679-1601004

EL31..3DS,5DS

BLUE,DEEP BLUE,TRIM8#

 2
72679-1601001

EL31..3DS,5DS

BLACK,BLACK,TRIM2#

 2
Common parts
90105-08102
90105-08132
91621-40608
91651-60614
91651-60816
93530-54014

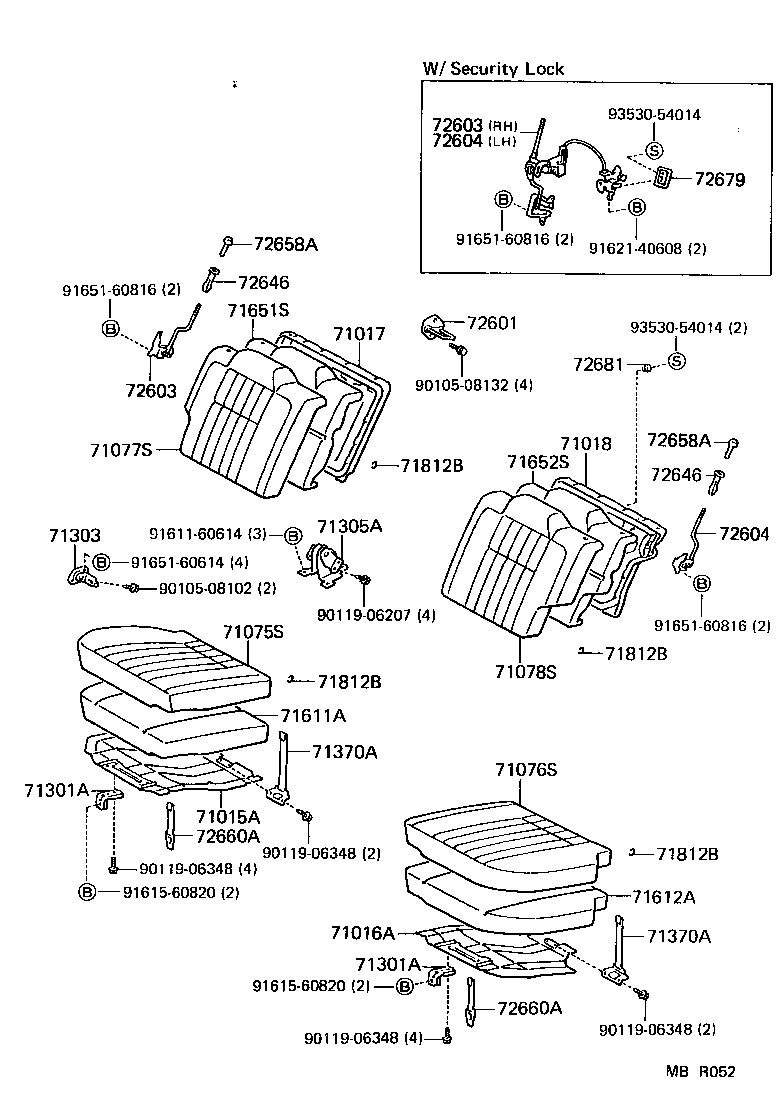

(8808-8908)3DS,5DS..DX ; (8908- )3DS,5DS..STD

Click highlighted areas on diagram

diagram 71015A 71016A 71017 71018 71075S 71076S 71077S 71078S 71301A 71301A 71303 71305A 71370A 71370A 71611A 71612A 71651S 71652S 71812B 71812B 71812B 71812B 72601 72603 72603 72604 72604 72646 72646 72658A 72658A 72660A 72660A 72679 72681 9010508102 9010508132 9011906207 9011906348 9011906348 9011906348 9011906348 9161160614 9161560820 9161560820 9162140608 9165160614 9165160816 9165160816 9165160816 9353054014 9353054014
Part # Description Qty Price
Common parts
90105-08102
90105-08132
90119-06207
90119-06348
91611-60614
91615-60820
91621-40608
91651-60614
91651-60816
93530-54014
