EL31L-ZHMRSA (1986)

Toyota Tercel

Production Aug 1986 - Aug 1988
Engine 3E
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8608- )

Click highlighted areas on diagram

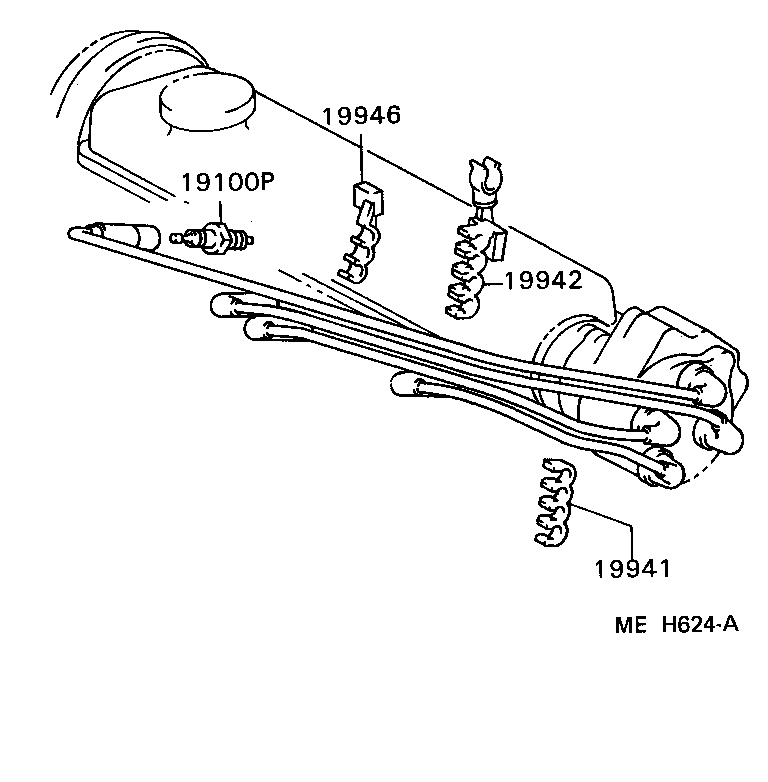

diagram 19100P 19941 19942 19946
Part # Description Qty Price
19100P - PLUG, SPARK
90919-01091

3E..EL31

W16EXR-U11,W16EXR-U11(DENSO)

 4
90919-01091

3E..EL31..USA

W16EXR-U11,W16EXR-U11(DENSO)

 4
19941 - CLAMP, RESISTIVE CORD, NO.1
90464-00358

3E..EL31

 1
19942 - CLAMP, RESISTIVE CORD, NO.2
90929-01181

3E..EL31

 1
19946 - CLAMP, RESISTIVE CORD, NO.3
90464-00404

3E..EL31

 1
