EL31L-ZHMRSA (1986)

Toyota Tercel

Production Aug 1986 - Aug 1988
Engine 3E
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8608- )

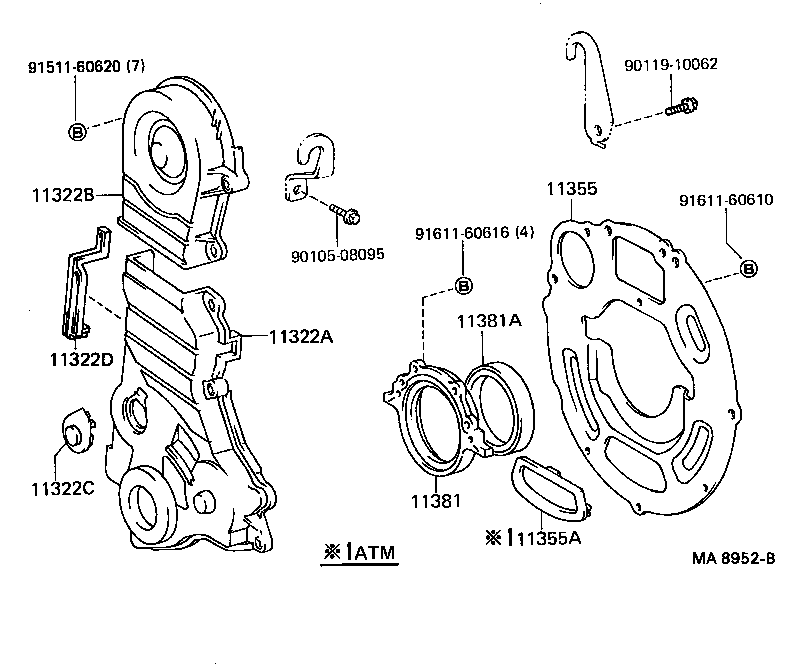

Click highlighted areas on diagram

diagram 11322A 11322B 11322C 11322D 11355 11355A 11381 11381A 9010508095 9011910062 9151160620 9161160610 9161160616
Part # Description Qty Price
11322A - COVER, TIMING BELT, NO.1
11302-11030

3E..EL31

 1
11302-11031

3E..EL31

 1
11322B - COVER, TIMING BELT, NO.2
11303-11010

3E..EL31

 1
11322C - COVER, TIMING BELT, NO.3
11323-10011

3E..EL31

 1
11322D - GASKET, TIMING BELT COVER, NO.1
11328-11020

3E..EL31

 1
11355 - PLATE, REAR END
11355-10011

3E..EL31..MTM

 1
11355-10010

3E..EL31..MTM

 1
11381 - RETAINER, ENGINE REAR OIL SEAL
11381-10020

3E..EL31

 1
11381A - SEAL, ENGINE REAR OIL
90311-80007

3E..EL31

 1
Common parts
90105-08095
90119-10062
91511-60620
91611-60610
91611-60616
