EL31L-ZHMRSA (1988)

Toyota Tercel

Production Aug 1988 - Aug 1989
Engine 3E
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8808- )3DS,5DS

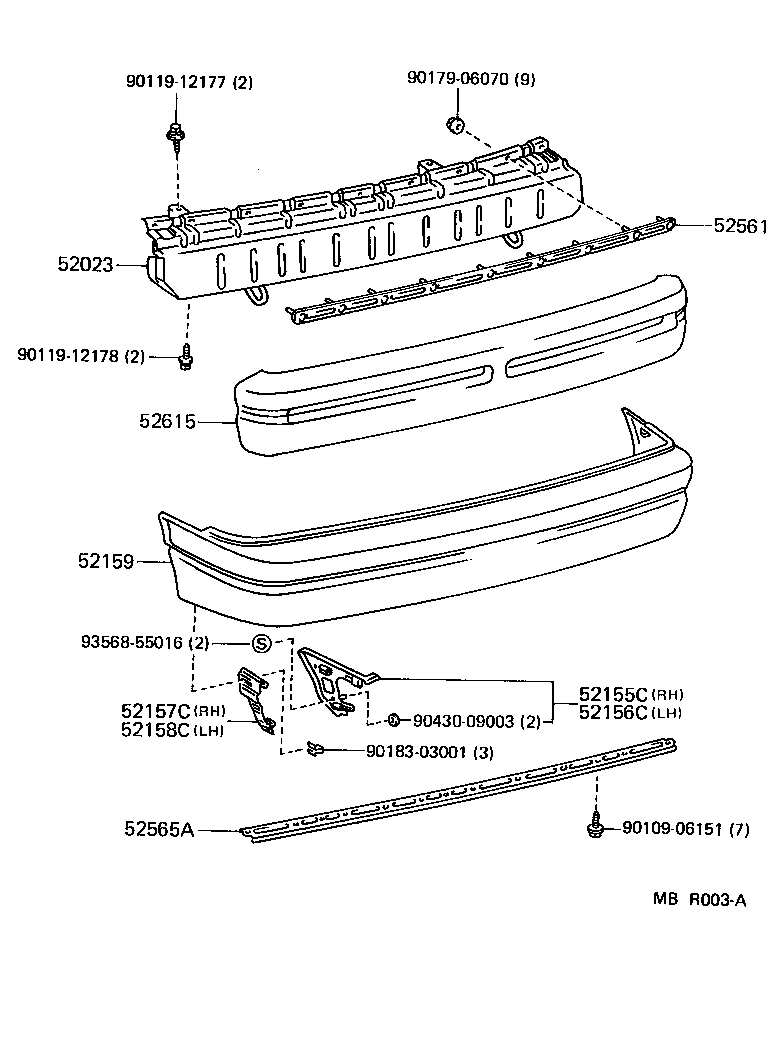

Click highlighted areas on diagram

diagram 52023 52155C 52156C 52157C 52158C 52159 52561 52565A 52615 9010906151 9011912177 9011912178 9017906070 9018303001 9043009003 9356855016
Part # Description Qty Price
52023 - REINFORCEMENT SUB-ASSY, REAR BUMPER
52023-16040

EL31..3DS,5DS

 1
52155C - SUPPORT, REAR BUMPER SIDE, NO.1 RH
52155-16091

EL31..3DS,5DS

 1
52156C - SUPPORT, REAR BUMPER SIDE, NO.1 LH
52156-16091

EL31..3DS,5DS

 1
52157C - SUPPORT, REAR BUMPER SIDE, NO.2 RH
52157-16071

EL31..3DS,5DS

 1
52158C - SUPPORT, REAR BUMPER SIDE, NO.2 LH
52158-16071

EL31..3DS,5DS

 1
52159 - COVER, REAR BUMPER
52159-16220

EL31..3DS,5DS

 1
52561 - RETAINER, REAR BUMPER, UPPER CENTER
52561-12050

EL31

 1
52565A - RETAINER, REAR BUMPER, LOWER
52565-12030

EL31

 1
52615 - ABSORBER, REAR BUMPER ENERGY
52615-16050

EL31..3DS,5DS

 1
Common parts
90109-06151
90119-12177
90119-12178
90179-06070
90183-03001
90430-09003
93568-55016
