EL31L-ZHMRSA (1988)
Toyota Tercel
Production
Aug 1988
-
Aug 1989
Engine
3E
Transmission
5F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(8808- )3E

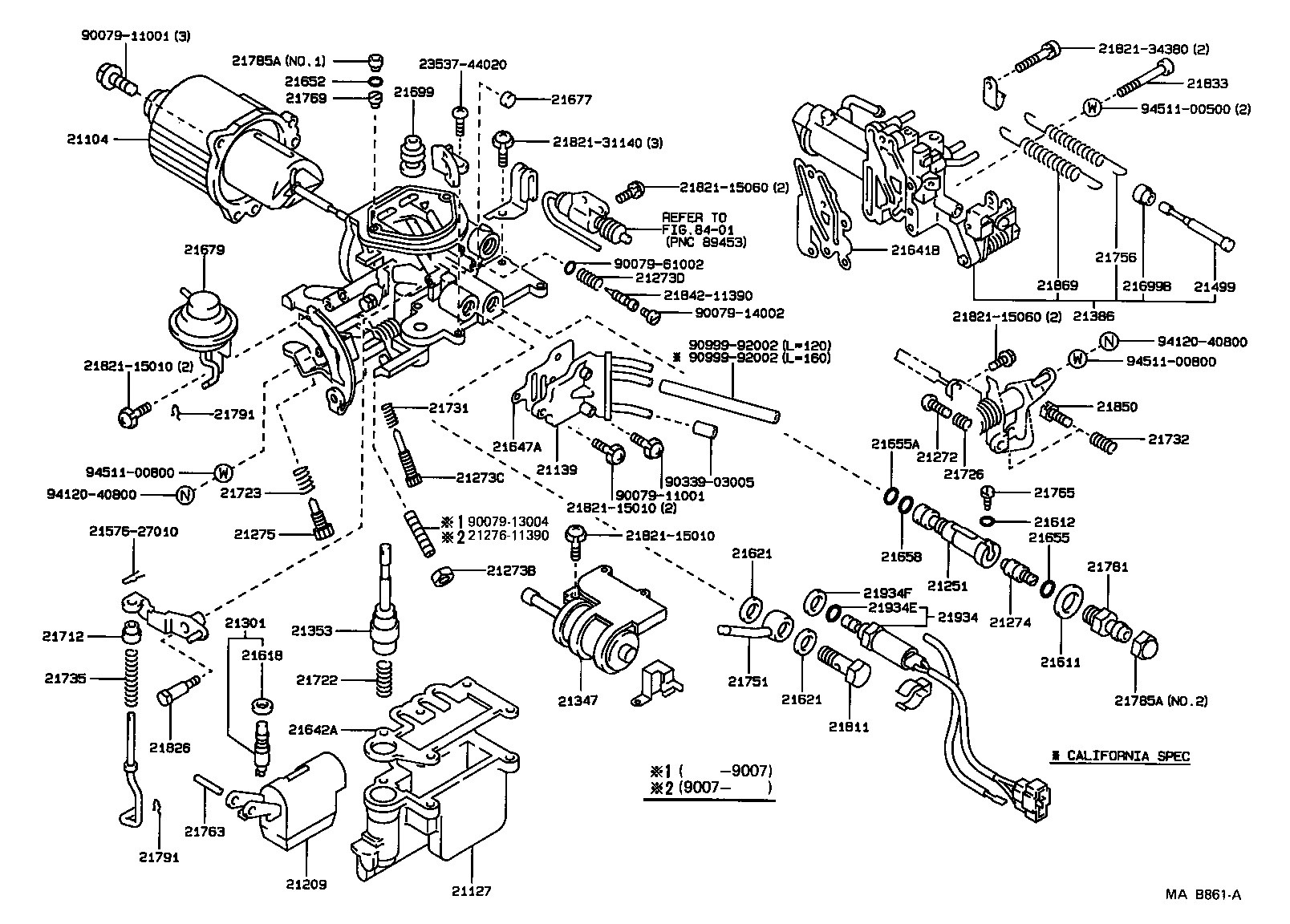

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 21104 - CHAMBER SUB-ASSY, SUCTION | ||||
| 21014-11391 |
3E..EL31 |
1 | ||
| 21127 - BOWL, FLOAT | ||||
| 21127-11390 |
3E..EL31 |
1 | ||
| 21139 - ADAPTER(FOR CARBURETOR CONNECTING PIPE) | ||||
| 21139-11390 |
3E..EL31 |
1 | ||
| 21209 - FLOAT SUB-ASSY | ||||
| 21209-11090 |
3E..EL31 |
1 | ||
| 21251 - JET, 1ST MAIN | ||||
| 21251-11340 |
3E..EL31 |
1 | ||
| 21272 - SCREW, 1ST IDLE ADJUSTING | ||||
| 21276-11090 |
3E..EL31 |
1 | ||
| 21273B - NUT | ||||
| 90079-30001 |
3E..EL31 |
1 | ||
| 21273C - SCREW, THROTTLE ADJUST | ||||
| 21273-11230 |
3E..EL31 |
1 | ||
| 21273D - SPRING, IDLE ADJUSTING | ||||
| 21723-11230 |
3E..EL31 |
1 | ||
| 21274 - SCREW, 1ST THROTTLE ADJUSTING | ||||
| 21275-11390 |
3E..EL31 |
1 | ||
| 21275 - SCREW, ADJUSTING | ||||
| 21844-33010 |
3E..EL31 |
1 | ||
| 21301 - VALVE SUB-ASSY, NEEDLE | ||||
| 21301-11140 |
3E..EL31 |
1 | ||
| 21347 - VALVE, SOLENOID | ||||
| 21347-11230 |
3E..EL31 |
1 | ||
| 21353 - PLUNGER, PUMP | ||||
| 21353-11391 |
3E..EL31 |
1 | ||
| 21386 - COMPENSATOR | ||||
| 21386-11390 |
3E..EL31..MTM |
1 | ||
| 21499 - ROD, PUSH(FOR CARBURETOR) | ||||
| 21499-11090 |
3E..EL31 |
1 | ||
| 21611 - GASKET, MAIN JET | ||||
| 21611-15250 |
3E..EL31 |
1 | ||
| 21612 - GASKET, POWER VALVE | ||||
| 21612-15250 |
3E..EL31 |
1 | ||
| 21618 - GASKET, NEEDLE VALVE SEAT | ||||
| 21618-14010 |
3E..EL31 |
1 | ||
| 21621 - GASKET, UNION NIPPLE | ||||
| 21633-24030 |
3E..EL31 |
2 | ||
| 21621 - GASKET, UNION NIPPLE | ||||
| 21633-24030 |
3E..EL31 |
2 | ||
| 21641B - GASKET, COMPENSATOR | ||||
| 21641-11340 |
3E..EL31 |
1 | ||
| 21642A - GASKET, FLOAT BOWL | ||||
| 21642-15390 |
3E..EL31 |
1 | ||
| 21647A - GASKET, ADAPTER | ||||
| 21647-11090 |
3E..EL31 |
1 | ||
| 21652 - RING, O(FOR SUCTION CHANBER ADJUSTING) | ||||
| 21652-15250 |
3E..EL31 |
1 | ||
| 21655 - RING, O(FOR LIFTER ROD) | ||||
| 21655-60010 |
3E..EL31 |
1 | ||
| 21655A - RING, O(FOR SLOW JET) | ||||
| 21655-15250 |
3E..EL31 |
1 | ||
| 21658 - RING, O(FOR MAIN GUIDE UPPER) | ||||
| 21658-15250 |
3E..EL31 |
1 | ||
| 21677 - PLUG | ||||
| 21677-11400 |
3E..EL31 |
1 | ||
| 21679 - POSITIONER | ||||
| 21679-11390 |
3E..EL31 |
1 | ||
| 21699 - BOOT(FOR PUMP PLUNGER) | ||||
| 21699-28150 |
3E..EL31 |
1 | ||
| 21699B - BOOT(FOR COMPENSATOR) | ||||
| 21699-11090 |
3E..EL31 |
1 | ||
| 21712 - BUSH, SLIDING ROD | ||||
| 21712-38010 |
3E..EL31 |
1 | ||
| 21722 - SPRING, PUMP DAMPING | ||||
| 21722-22010 |
3E..EL31 |
1 | ||
| 21723 - SPRING, IDLE ADJUSTING | ||||
| 21724-11340 |
3E..EL31 |
1 | ||
| 21726 - SPRING, 1ST IDLE ADJUSTING | ||||
| 21723-60010 |
3E..EL31 |
1 | ||
| 21731 - SPRING, DASH POT OR POSITIONER ADJUSTING | ||||
| 21723-21030 |
3E..EL31 |
1 | ||
| 21732 - SPRING, THROTTLE ADJUSTING | ||||
| 21726-15251 |
3E..EL31 |
1 | ||
| 21735 - SPRING, PUMP ARM | ||||
| 21735-11340 |
3E..EL31 |
1 | ||
| 21751 - UNION, NIPPLE | ||||
| 21894-11230 |
3E..EL31 |
1 | ||
| 21756 - SPRING, BACK(FOR THROTTLE SHAFT) | ||||
| 21756-15250 |
3E..EL31 |
1 | ||
| 21763 - PIN, FLOAT LEVER | ||||
| 21763-38010 |
3E..EL31 |
1 | ||
| 21765 - PIN(FOR PUMP PLUNGER) | ||||
| 21765-15250 |
3E..EL31 |
1 | ||
| 21769 - PIN(FOR SUCTION CHANBER ADJUSTING) | ||||
| 21769-15250 |
3E..EL31 |
1 | ||
| 21781 - PLUG, MAIN PASSAGE(FOR CARBURETOR JET) | ||||
| 21781-11391 |
3E..EL31 |
1 | ||
| 21785A - PLUG, PLATE(FOR SUCTION CHANBER ADJUSTING) | ||||
| 21785-11090 |
3E..EL31 NO.1 |
1 | ||
| 21785-13210 |
3E..EL31 NO.2 |
1 | ||
| 21785A - PLUG, PLATE(FOR SUCTION CHANBER ADJUSTING) | ||||
| 21785-11090 |
3E..EL31 NO.1 |
1 | ||
| 21785-13210 |
3E..EL31 NO.2 |
1 | ||
| 21791 - RING, SNAP, NO.1(FOR CARBURETOR LINK) | ||||
| 21791-60010 |
3E..EL31 |
2 | ||
| 21791 - RING, SNAP, NO.1(FOR CARBURETOR LINK) | ||||
| 21791-60010 |
3E..EL31 |
2 | ||
| 21811 - BOLT, UNION NIPPLE | ||||
| 21811-11060 |
3E..EL31 |
1 | ||
| 21826 - SCREW, PUMP ARM SET | ||||
| 21826-24470 |
3E..EL31 |
1 | ||
| 21833 - SCREW, SET, NO.1(FOR CARBURETOR BODY SET) | ||||
| 21833-31012 |
3E..EL31 |
1 | ||
| 21850 - SCREW, THROTTLE SWITCH ADJUSTING | ||||
| 21272-11230 |
3E..EL31 |
1 | ||
| 21869 - SPRING(FOR MAIN JET) | ||||
| 21869-11540 |
3E..EL31 |
1 | ||
| 21934 - SOLENOID, THROTTLE VALVE | ||||
| 21062-11422 |
3E..EL31..MTM |
1 | ||
| 21934E - RING, O(FOR SOLENOID VALVE) | ||||
| 21656-15250 |
3E..EL31 |
1 | ||
| 21934F - GASKET | ||||
| 21633-15250 |
3E..EL31 |
1 | ||
| Common parts | ||||
| 21276-11390 | ||||
| 21576-27010 | ||||
| 21821-15010 | ||||
| 21821-15060 | ||||
| 21821-31140 | ||||
| 21821-34380 | ||||
| 21842-11390 | ||||
| 23537-44020 | ||||
| 90079-11001 | ||||
| 90079-13004 | ||||
| 90079-14002 | ||||
| 90079-61002 | ||||
| 90339-03005 | ||||
| 90999-92002 | ||||
| 94120-40800 | ||||
| 94511-00500 | ||||
| 94511-00800 | ||||
| Linked diagrams | ||||
| 8401 | ||||
