EL31L-ZHMDSK (1988)

Toyota Tercel

Production Aug 1988 - Aug 1989
Engine 3E
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8808- )

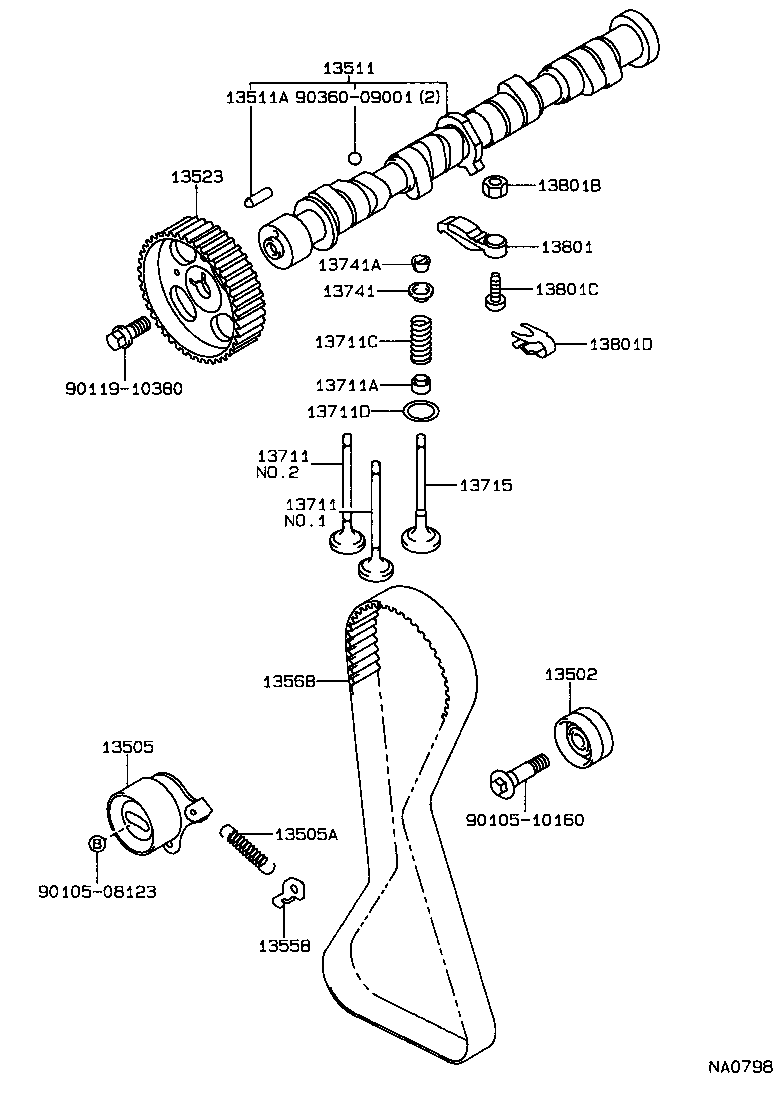

Click highlighted areas on diagram

diagram 13502 13505 13505A 13511 13511A 13523 13558 13568 13711 13711 13711A 13711C 13711D 13715 13741 13741A 13801 13801B 13801C 13801D 9010508123 9010510160 9011910380 9036009001
Part # Description Qty Price
13502 - IDLER SUB-ASSY, TIMING BELT, NO.2
13503-11010

3E#..EL31

 1
13505 - IDLER SUB-ASSY, TIMING BELT, NO.1
13505-11010

3E#..EL31

 1
13505A - SPRING, TENSION(FOR IDLER)
90506-18059

3E..EL31

 1
13511 - CAMSHAFT
13501-10010

3E#..EL31

 1
13511A - PIN, STRAIGHT(FOR CAMSHAFT KNOCK)
90250-05121

3E#..EL31

L=15,OD=5

 1
13523 - GEAR OR SPROCKET, CAMSHAFT TIMING
13523-11010

3E#..EL31

 1
13558 - BRACKET, SPRING(FOR IDLER)
13558-11010

3E#..EL31

 1
13568 - BELT, TIMING
13568-11031

3E..EL31..5DS..DX

 1
13711 - VALVE, INTAKE
13712-11020

3E#..EL31

NO.2

 4
13711-10020

3E#..EL31

NO.1

 4
13711 - VALVE, INTAKE
13712-11020

3E#..EL31

NO.2

 4
13711-10020

3E#..EL31

NO.1

 4
13711A - SEAL OR RING, O(FOR VALVE STEM OIL)
90913-02071

3E#..EL31

 12
13711C - SPRING, COMPRESSION(FOR OUTER)
90501-35011

3E#..EL31

 12
13711D - WASHER, PLATE(FOR VALVE SPRING SEAT)
90201-19008

3E#..EL31

 12
13715 - VALVE, EXHAUST
13715-10030

3E#..EL31

 4
13741 - RETAINER, VALVE SPRING
13741-10020

3E#..EL31

 12
13741A - LOCK, VALVE SPRING RETAINER
90913-03021

3E#..EL31

 24
13801 - ARM SUB-ASSY, VALVE ROCKER, NO.1
13811-10021

3E#..EL31

 12
13801B - NUT, HEXAGON(FOR VALVE ADJUSTING)
90170-07004

3E#..EL31

 12
13801C - SCREW, VALVE ADJUSTING
13788-10013

3E#..EL31

 12
13801D - SPRING, COMPRESSION(FOR ROCKER ARM)
13935-10010

3E#..EL31

 12
Common parts
90105-08123
90105-10160
90119-10380
90360-09001
