EL31L-ZHMDSK (1986)

Toyota Tercel

Production Aug 1986 - Aug 1988
Engine 3E
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8608- )

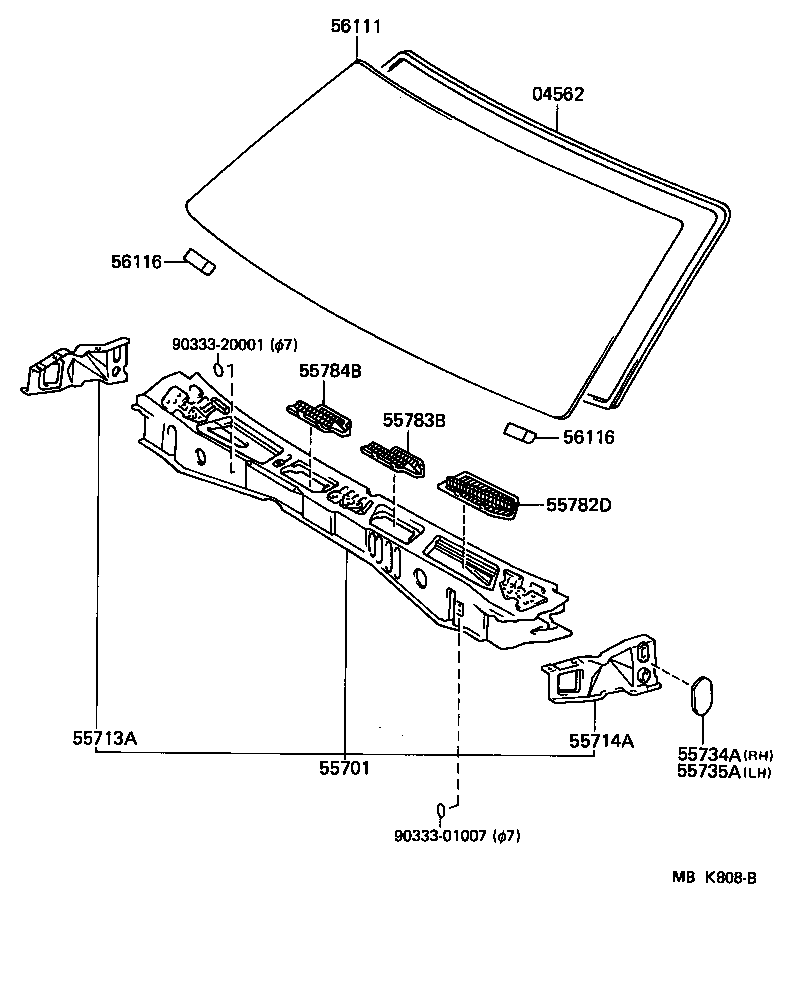

Click highlighted areas on diagram

diagram 04562 55701 55713A 55714A 55734A 55735A 55782D 55783B 55784B 56111 56116 56116 9033301007 9033320001
Part # Description Qty Price
04562 - DAM KIT, WINDSHIELD GLASS
04562-30040

EL31

 1
55701 - PANEL SUB-ASSY, COWL
55700-16110

EL31..MTM

 1
55713A - PANEL, COWL TOP SIDE, RH
55713-16030

EL31

 1
55714A - PANEL, COWL TOP SIDE, LH
55714-16030

EL31

 1
55734A - PLATE, WATER GUARD, RH
55734-16030

EL31

 1
55735A - PLATE, WATER GUARD, LH
55734-16030

EL31

 1
55782D - LOUVER, COWL TOP VENTILATOR, LH
55782-16020

EL31..CND

 1
55783B - LOUVER, COWL TOP VENTILATOR, CENTER NO.1
55783-16050

EL31..CND

 1
55784B - LOUVER, COWL TOP VENTILATOR, CENTER NO.2
55784-16030

EL31..CND

 1
56111 - GLASS, WINDSHIELD
56111-16160

EL31..(3DS,5DS)..DX

*TL,T=5.3,*TL,T=5.3

 1
56116 - SPACER, WINDSHIELD GLASS
56116-24010

EL31

 2
56116 - SPACER, WINDSHIELD GLASS
56116-24010

EL31

 2
Common parts
90333-01007
90333-20001
