EL31L-ZHMDSK (1986)

Toyota Tercel

Production Aug 1986 - Aug 1988
Engine 3E
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8608- )MTM

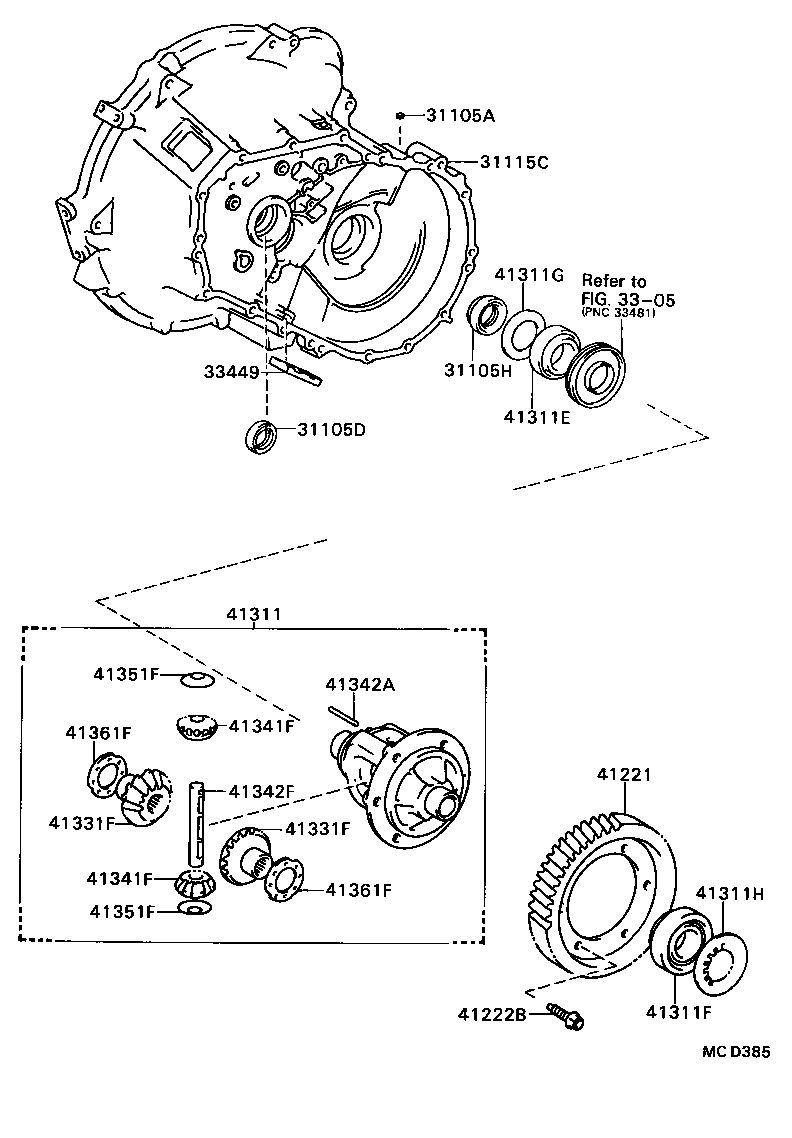

Click highlighted areas on diagram

diagram 31105A 31105D 31105H 31115C 3305 33449 41221 41222B 41311 41311E 41311F 41311G 41311H 41331F 41331F 41341F 41341F 41342A 41342F 41351F 41351F 41361F 41361F
Part # Description Qty Price
31105A - PLUG, TIGHT(FOR FRONT TRANSAXLE CASE)
90331-08002

EL31..MTM

 1
31105D - SEAL, OIL, NO.1(FOR FRONT TRANSAXLE CASE)
90311-25011

EL31..MTM

 1
90311-25016

EL31..MTM

 1
31105H - SEAL, OIL, NO.2(FOR TRANSAXLE CASE)
90311-34007

EL31..MTM

 1
31115C - CASE, FRONT TRANSAXLE(MTM)
31115-10011

EL31..MTM

 1
31115-10010

EL31..MTM

 1
31115-12060

EL31..MTM

 1
33449 - MAGNET, TRANSMISSION
33449-12010

EL31..MTM

 1
41221 - GEAR, FRONT DIFFERENTIAL RING
41221-10201

EL31..TER..MTM

*AXC=-522

 1
41221-10201

EL31..5F

*AXC=-522

 1
41222B - BOLT (FOR FRONT DIFFERENTIAL RING GEAR SET)
90105-12100

EL31..MTM

 6
41311 - CASE, FRONT DIFFERENTIAL
41301-10060

EL31..MTM

 1
41311E - BEARING, TAPERED ROLLER (FOR FRONT DIFFERENTIAL CASE FR
90368-38006

EL31

 1
90366-38004

EL31..MTM

 1
41311F - BEARING, TAPERED ROLLER (FOR FRONT DIFFERENTIAL CASE RE
90368-38010

EL31..MTM

 1
41311G - WASHER, PLATE (FOR FRONT DIFFERENTIAL CASE FRONT)
90201-41045

EL31..MTM

T=2.10

 1
41311H - WASHER, PLATE (FOR FRONT DIFFERENTIAL CASE REAR)
90201-41049

EL31..MTM

T=2.25,MARK D,T=2.25

 1
90201-41048

EL31..MTM

T=2.20,MARK C,T=2.20

 1
90201-41046

EL31..MTM

T=2.10,MARK A,T=2.10

 1
90201-41047

EL31..MTM

T=2.15,MARK B,T=2.15

 1
90201-41050

EL31..MTM

T=2.30,MARK E,T=2.30

 1
90201-41055

EL31..MTM

T=2.55,MARK K,T=2.55

 1
90201-41053

EL31..MTM

T=2.45,MARK H,T=2.45

 1
90201-41052

EL31..MTM

T=2.40,MARK G,T=2.40

 1
90201-41062

EL31..MTM

T=2.90,MARK S,T=2.90

 1
90201-41051

EL31..MTM

T=2.35,MARK F,T=2.35

 1
90201-41058

EL31..MTM

T=2.70,MARK N,T=2.70

 1
90201-41057

EL31..MTM

T=2.65,MARK M,T=2.65

 1
90201-41056

EL31..MTM

T=2.60,MARK L,T=2.60

 1
90201-41059

EL31..MTM

T=2.75,MARK P,T=2.75

 1
90201-41064

EL31..MTM

T=3.00,MARK U,T=3.00

 1
90201-41061

EL31..MTM

T=2.85,MARK R,T=2.85

 1
90201-41054

EL31..MTM

T=2.50,MARK J,T=2.50

 1
90201-41060

EL31..MTM

T=2.80,MARK Q,T=2.80

 1
90201-41063

EL31..MTM

T=2.95,MARK T,T=2.95

 1
41331F - GEAR, FRONT DIFFERENTIAL SIDE
41331-10042

EL31..MTM

 2
41331F - GEAR, FRONT DIFFERENTIAL SIDE
41331-10042

EL31..MTM

 2
41341F - PINION, FRONT DIFFERENTIAL
41341-10030

EL31..MTM

 2
41341F - PINION, FRONT DIFFERENTIAL
41341-10030

EL31..MTM

 2
41342A - PIN, STRAIGHT (FOR FRONT DIFFERENTIAL PINION SHAFT)
90250-04053

EL31..MTM

 1
41342F - SHAFT, FRONT DIFFERENTIAL PINION, NO.1
41342-10040

EL31..MTM

 1
41351F - WASHER, FRONT DIFFERENTIAL PINION THRUST
41351-10030

EL31..MTM

 2
41351F - WASHER, FRONT DIFFERENTIAL PINION THRUST
41351-10030

EL31..MTM

 2
41361F - WASHER, FRONT DIFFERENTIAL SIDE GEAR THRUST, NO.1
41361-10110

EL31..MTM

T=1.70,T=1.70

 2
41361-10090

EL31..MTM

T=1.60,T=1.60

 2
41361-10080

EL31..MTM

T=1.55,T=1.55

 2
41361-10070

EL31..MTM

T=1.50,T=1.50

 2
41361-10100

EL31..MTM

T=1.65,T=1.65

 2
41361-10120

EL31..MTM

T=1.75,T=1.75

 2
41361F - WASHER, FRONT DIFFERENTIAL SIDE GEAR THRUST, NO.1
41361-10110

EL31..MTM

T=1.70,T=1.70

 2
41361-10090

EL31..MTM

T=1.60,T=1.60

 2
41361-10080

EL31..MTM

T=1.55,T=1.55

 2
41361-10070

EL31..MTM

T=1.50,T=1.50

 2
41361-10100

EL31..MTM

T=1.65,T=1.65

 2
41361-10120

EL31..MTM

T=1.75,T=1.75

 2
Linked diagrams
3305
