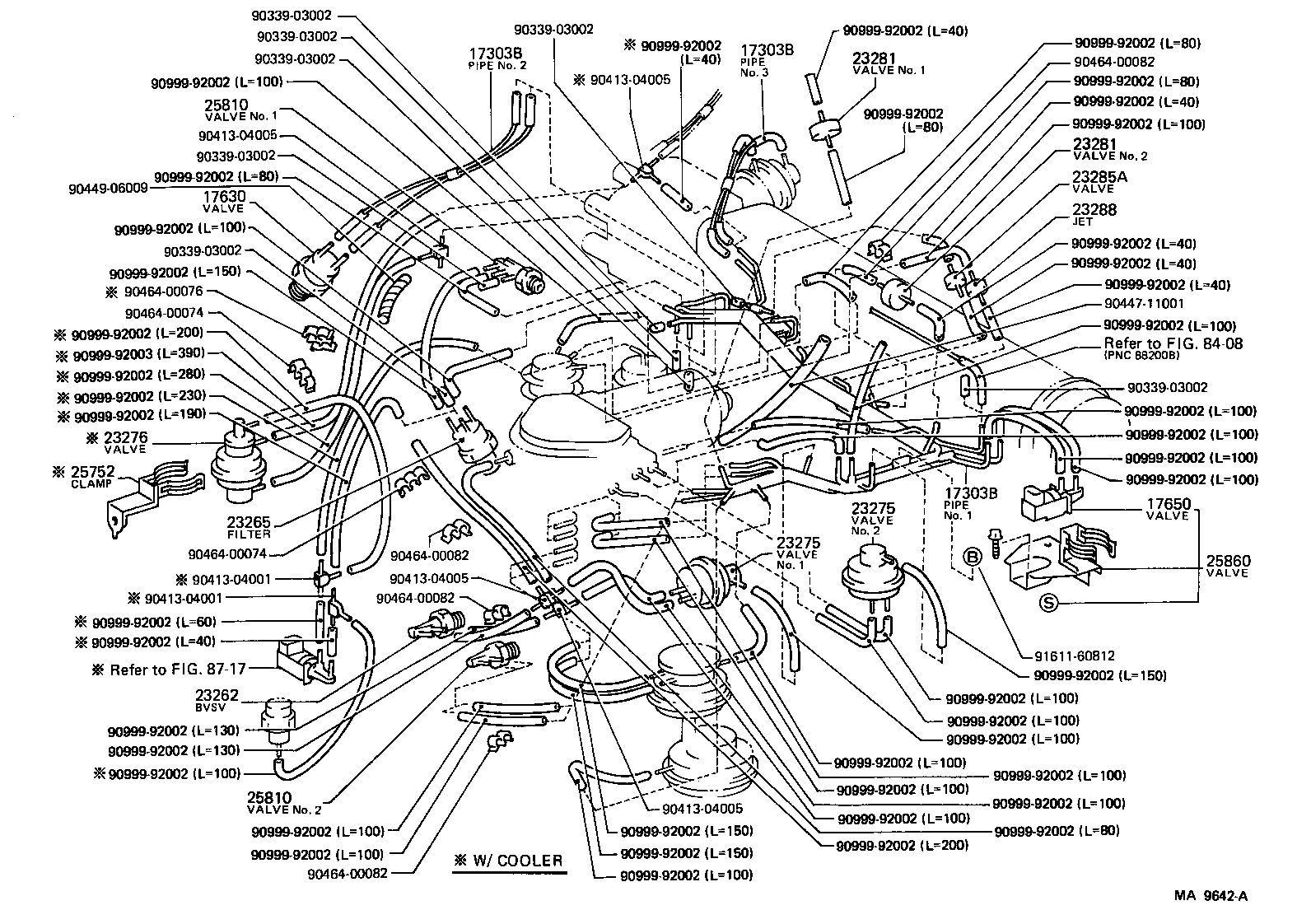

EL31L-ZHMDSK (1986)
Toyota Tercel
(8608-8701)3E..DX,STD..CND
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 17303B - PIPE SUB-ASSY, AIR, NO.1 | ||||
| 17303-11190 |
3E..EL31..(DX,STD)..CND W/POWER STEERING |
1 | ||
| 17303-11200 |
3E..EL31..(DX,STD)..CND NO.3 |
1 | ||
| 17303-11250 |
3E..EL31 NO.3 |
1 | ||
| 17303-11130 |
3E..EL31..(DX,STD)..CND NO.1 |
1 | ||
| 17303-11180 |
3E..EL31 NO.2 |
1 | ||
| 17303-11190 |
3E..EL31..TER W/POWER STEERING |
1 | ||
| 17303-11200 |
3E..EL31 NO.4 |
1 | ||
| 17303-11110 |
3E..EL31 NO.1 |
1 | ||
| 17303-11250 |
3E..EL31..(DX,STD)..CND NO.2 |
1 | ||
| 17303B - PIPE SUB-ASSY, AIR, NO.1 | ||||
| 17303-11190 |
3E..EL31..(DX,STD)..CND W/POWER STEERING |
1 | ||
| 17303-11200 |
3E..EL31..(DX,STD)..CND NO.3 |
1 | ||
| 17303-11250 |
3E..EL31 NO.3 |
1 | ||
| 17303-11130 |
3E..EL31..(DX,STD)..CND NO.1 |
1 | ||
| 17303-11180 |
3E..EL31 NO.2 |
1 | ||
| 17303-11190 |
3E..EL31..TER W/POWER STEERING |
1 | ||
| 17303-11200 |
3E..EL31 NO.4 |
1 | ||
| 17303-11110 |
3E..EL31 NO.1 |
1 | ||
| 17303-11250 |
3E..EL31..(DX,STD)..CND NO.2 |
1 | ||
| 17303B - PIPE SUB-ASSY, AIR, NO.1 | ||||
| 17303-11190 |
3E..EL31..(DX,STD)..CND W/POWER STEERING |
1 | ||
| 17303-11200 |
3E..EL31..(DX,STD)..CND NO.3 |
1 | ||
| 17303-11250 |
3E..EL31 NO.3 |
1 | ||
| 17303-11130 |
3E..EL31..(DX,STD)..CND NO.1 |
1 | ||
| 17303-11180 |
3E..EL31 NO.2 |
1 | ||
| 17303-11190 |
3E..EL31..TER W/POWER STEERING |
1 | ||
| 17303-11200 |
3E..EL31 NO.4 |
1 | ||
| 17303-11110 |
3E..EL31 NO.1 |
1 | ||
| 17303-11250 |
3E..EL31..(DX,STD)..CND NO.2 |
1 | ||
| 17630 - VALVE ASSY, AIR CONTROL | ||||
| 17630-15021 |
3E..EL31..TER W/POWER STEERING |
1 | ||
| 17630-15021 |
3E..EL31..(DX,STD)..CND W/POWER STEERING |
1 | ||
| 17650 - VALVE ASSY, VACUUM SWITCHING | ||||
| 90910-12045 |
3E..EL31 NO.1(DENSO) |
1 | ||
| 90910-12034 |
3E..EL31 NO.3(AISIN) |
1 | ||
| 90910-12047 |
3E..EL31 NO.1(AISIN) |
1 | ||
| 90910-12049 |
3E..EL31..(DX,STD)..CND |
1 | ||
| 90910-12046 |
3E..EL31 NO.2(DENSO) |
1 | ||
| 90910-12048 |
3E..EL31 NO.2(AISIN) |
1 | ||
| 23262 - VALVE, BIMETAL VACUUM SWITCHING, NO.1 | ||||
| 90925-05051 |
3E..EL31..(DX,STD)..CND |
1 | ||
| 90925-05063 |
3E..EL31..MTM |
1 | ||
| 23265 - FILTER, GAS, NO.1 | ||||
| 90917-11024 |
3E..EL31 DENSO |
1 | ||
| 90917-11027 |
3E..EL31 AISIN |
1 | ||
| 23275 - VALVE, VACUUM CONTROL, NO.1 | ||||
| 90925-03176 |
3E..EL31..(DX,STD)..CND NO.1 |
1 | ||
| 90925-03066 |
3E..EL31..MTM..(DX,STD)..CND NO.2 |
1 | ||
| 90925-03066 |
3E..EL31..MTM |
1 | ||
| 23275 - VALVE, VACUUM CONTROL, NO.1 | ||||
| 90925-03176 |
3E..EL31..(DX,STD)..CND NO.1 |
1 | ||
| 90925-03066 |
3E..EL31..MTM..(DX,STD)..CND NO.2 |
1 | ||
| 90925-03066 |
3E..EL31..MTM |
1 | ||
| 23276 - VALVE, VACUUM CONTROL, NO.2 | ||||
| 90925-03178 |
3E..EL31..MTM..CND W/COOLER |
1 | ||
| 90925-03178 |
3E..EL31..MTM..(DX,STD)..CND W/COOLER |
1 | ||
| 23281 - VALVE, VACUUM TRANSMITTING, NO.1 | ||||
| 90925-01015 |
3E..EL31 NO.1 |
1 | ||
| 90925-01041 |
3E..EL31..MTM NO.2 |
1 | ||
| 90925-01091 |
3E..EL31..(DX,STD)..CND NO.1 |
1 | ||
| 23281 - VALVE, VACUUM TRANSMITTING, NO.1 | ||||
| 90925-01015 |
3E..EL31 NO.1 |
1 | ||
| 90925-01041 |
3E..EL31..MTM NO.2 |
1 | ||
| 90925-01091 |
3E..EL31..(DX,STD)..CND NO.1 |
1 | ||
| 23285A - VALVE, CHECK, NO.1 | ||||
| 90917-10049 |
3E..EL31 |
2 | ||
| 23288 - JET, NO.1 | ||||
| 90925-04026 |
3E..EL31..MTM NO.2 |
1 | ||
| 90925-04032 |
3E..EL31..(2DS,5DS)..5F NO.3 |
1 | ||
| 90925-04007 |
3E..EL31..(DX,STD)..CND |
1 | ||
| 25752 - CLAMP, VACUUM CONTROL VALVE, NO.2 | ||||
| 25751-11030 |
3E..EL31..(DX,STD)..CND W/COOLER |
1 | ||
| 25751-11030 |
3E..EL31 |
1 | ||
| 25810 - VALVE ASSY, BIMETAL | ||||
| 25810-11010 |
3E..EL31 NO.1 |
1 | ||
| 25810-11040 |
3E..EL31..(DX,STD)..CND NO.2 |
1 | ||
| 25810-11030 |
3E..EL31 NO.2 |
1 | ||
| 25810 - VALVE ASSY, BIMETAL | ||||
| 25810-11010 |
3E..EL31 NO.1 |
1 | ||
| 25810-11040 |
3E..EL31..(DX,STD)..CND NO.2 |
1 | ||
| 25810-11030 |
3E..EL31 NO.2 |
1 | ||
| 25860 - VALVE ASSY, VACUUM SWITCHING, NO.1 | ||||
| 25860-11070 |
3E..EL31 |
1 | ||
| 25860-11020 |
3E..EL31..(DX,STD)..CND |
1 | ||
| Common parts | ||||
| 90339-03002 | ||||
| 90413-04001 | ||||
| 90413-04005 | ||||
| 90447-11001 | ||||
| 90449-06009 | ||||
| 90464-00074 | ||||
| 90464-00076 | ||||
| 90464-00082 | ||||
| 90999-92002 | ||||
| 91611-60812 | ||||
| Linked diagrams | ||||
| 8408 | ||||
| 8717 | ||||
(8608- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90999-92002 | ||||
| 90999-92003 | ||||
| 90999-92004 | ||||
| 90999-92006 | ||||
| 90999-92007 | ||||
| 90999-92008 | ||||

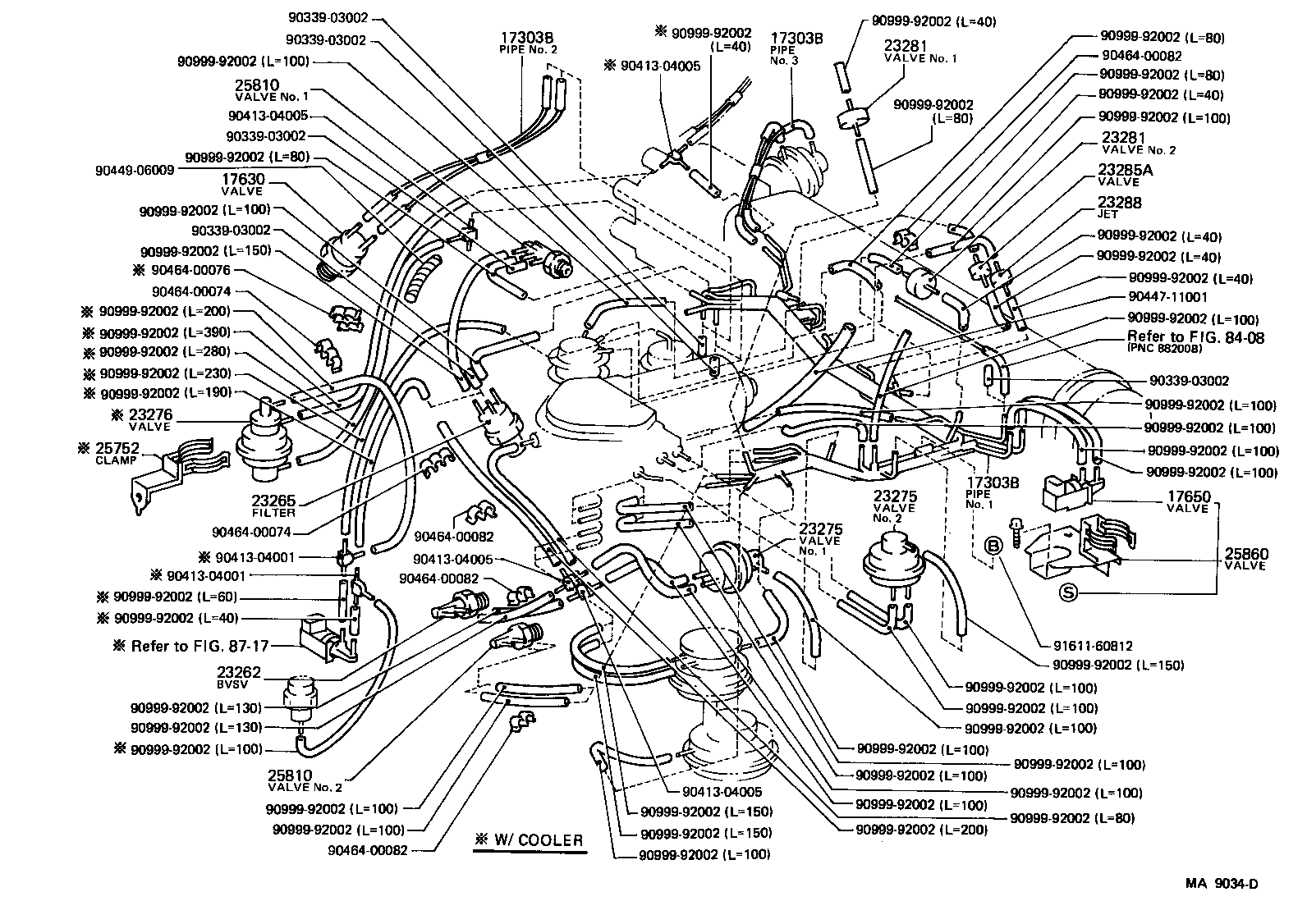

(8701-8708)3E..DX,STD..CND
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 17303B - PIPE SUB-ASSY, AIR, NO.1 | ||||
| 17303-11190 |
3E..EL31..(DX,STD)..CND W/POWER STEERING |
1 | ||
| 17303-11200 |
3E..EL31..(DX,STD)..CND NO.3 |
1 | ||
| 17303-11250 |
3E..EL31 NO.3 |
1 | ||
| 17303-11130 |
3E..EL31..(DX,STD)..CND NO.1 |
1 | ||
| 17303-11180 |
3E..EL31 NO.2 |
1 | ||
| 17303-11190 |
3E..EL31..TER W/POWER STEERING |
1 | ||
| 17303-11200 |
3E..EL31 NO.4 |
1 | ||
| 17303-11110 |
3E..EL31 NO.1 |
1 | ||
| 17303-11250 |
3E..EL31..(DX,STD)..CND NO.2 |
1 | ||
| 17303B - PIPE SUB-ASSY, AIR, NO.1 | ||||
| 17303-11190 |
3E..EL31..(DX,STD)..CND W/POWER STEERING |
1 | ||
| 17303-11200 |
3E..EL31..(DX,STD)..CND NO.3 |
1 | ||
| 17303-11250 |
3E..EL31 NO.3 |
1 | ||
| 17303-11130 |
3E..EL31..(DX,STD)..CND NO.1 |
1 | ||
| 17303-11180 |
3E..EL31 NO.2 |
1 | ||
| 17303-11190 |
3E..EL31..TER W/POWER STEERING |
1 | ||
| 17303-11200 |
3E..EL31 NO.4 |
1 | ||
| 17303-11110 |
3E..EL31 NO.1 |
1 | ||
| 17303-11250 |
3E..EL31..(DX,STD)..CND NO.2 |
1 | ||
| 17303B - PIPE SUB-ASSY, AIR, NO.1 | ||||
| 17303-11190 |
3E..EL31..(DX,STD)..CND W/POWER STEERING |
1 | ||
| 17303-11200 |
3E..EL31..(DX,STD)..CND NO.3 |
1 | ||
| 17303-11250 |
3E..EL31 NO.3 |
1 | ||
| 17303-11130 |
3E..EL31..(DX,STD)..CND NO.1 |
1 | ||
| 17303-11180 |
3E..EL31 NO.2 |
1 | ||
| 17303-11190 |
3E..EL31..TER W/POWER STEERING |
1 | ||
| 17303-11200 |
3E..EL31 NO.4 |
1 | ||
| 17303-11110 |
3E..EL31 NO.1 |
1 | ||
| 17303-11250 |
3E..EL31..(DX,STD)..CND NO.2 |
1 | ||
| 17630 - VALVE ASSY, AIR CONTROL | ||||
| 17630-15021 |
3E..EL31..TER W/POWER STEERING |
1 | ||
| 17630-15021 |
3E..EL31..(DX,STD)..CND W/POWER STEERING |
1 | ||
| 17650 - VALVE ASSY, VACUUM SWITCHING | ||||
| 90910-12045 |
3E..EL31 NO.1(DENSO) |
1 | ||
| 90910-12034 |
3E..EL31 NO.3(AISIN) |
1 | ||
| 90910-12047 |
3E..EL31 NO.1(AISIN) |
1 | ||
| 90910-12049 |
3E..EL31..(DX,STD)..CND |
1 | ||
| 90910-12046 |
3E..EL31 NO.2(DENSO) |
1 | ||
| 90910-12048 |
3E..EL31 NO.2(AISIN) |
1 | ||
| 23262 - VALVE, BIMETAL VACUUM SWITCHING, NO.1 | ||||
| 90925-05051 |
3E..EL31..(DX,STD)..CND |
1 | ||
| 90925-05063 |
3E..EL31..MTM |
1 | ||
| 23265 - FILTER, GAS, NO.1 | ||||
| 90917-11024 |
3E..EL31 DENSO |
1 | ||
| 90917-11027 |
3E..EL31 AISIN |
1 | ||
| 23275 - VALVE, VACUUM CONTROL, NO.1 | ||||
| 90925-03176 |
3E..EL31..(DX,STD)..CND NO.1 |
1 | ||
| 90925-03066 |
3E..EL31..MTM..(DX,STD)..CND NO.2 |
1 | ||
| 90925-03066 |
3E..EL31..MTM |
1 | ||
| 23275 - VALVE, VACUUM CONTROL, NO.1 | ||||
| 90925-03176 |
3E..EL31..(DX,STD)..CND NO.1 |
1 | ||
| 90925-03066 |
3E..EL31..MTM..(DX,STD)..CND NO.2 |
1 | ||
| 90925-03066 |
3E..EL31..MTM |
1 | ||
| 23276 - VALVE, VACUUM CONTROL, NO.2 | ||||
| 90925-03178 |
3E..EL31..MTM..CND W/COOLER |
1 | ||
| 90925-03178 |
3E..EL31..MTM..(DX,STD)..CND W/COOLER |
1 | ||
| 23281 - VALVE, VACUUM TRANSMITTING, NO.1 | ||||
| 90925-01015 |
3E..EL31 NO.1 |
1 | ||
| 90925-01041 |
3E..EL31..MTM NO.2 |
1 | ||
| 90925-01091 |
3E..EL31..(DX,STD)..CND NO.1 |
1 | ||
| 23281 - VALVE, VACUUM TRANSMITTING, NO.1 | ||||
| 90925-01015 |
3E..EL31 NO.1 |
1 | ||
| 90925-01041 |
3E..EL31..MTM NO.2 |
1 | ||
| 90925-01091 |
3E..EL31..(DX,STD)..CND NO.1 |
1 | ||
| 23285A - VALVE, CHECK, NO.1 | ||||
| 90917-10049 |
3E..EL31 |
2 | ||
| 23288 - JET, NO.1 | ||||
| 90925-04026 |
3E..EL31..MTM NO.2 |
1 | ||
| 90925-04032 |
3E..EL31..(2DS,5DS)..5F NO.3 |
1 | ||
| 90925-04007 |
3E..EL31..(DX,STD)..CND |
1 | ||
| 25752 - CLAMP, VACUUM CONTROL VALVE, NO.2 | ||||
| 25751-11030 |
3E..EL31..(DX,STD)..CND W/COOLER |
1 | ||
| 25751-11030 |
3E..EL31 |
1 | ||
| 25810 - VALVE ASSY, BIMETAL | ||||
| 25810-11010 |
3E..EL31 NO.1 |
1 | ||
| 25810-11040 |
3E..EL31..(DX,STD)..CND NO.2 |
1 | ||
| 25810-11030 |
3E..EL31 NO.2 |
1 | ||
| 25810 - VALVE ASSY, BIMETAL | ||||
| 25810-11010 |
3E..EL31 NO.1 |
1 | ||
| 25810-11040 |
3E..EL31..(DX,STD)..CND NO.2 |
1 | ||
| 25810-11030 |
3E..EL31 NO.2 |
1 | ||
| 25860 - VALVE ASSY, VACUUM SWITCHING, NO.1 | ||||
| 25860-11070 |
3E..EL31 |
1 | ||
| 25860-11020 |
3E..EL31..(DX,STD)..CND |
1 | ||
| Common parts | ||||
| 90339-03002 | ||||
| 90413-04001 | ||||
| 90413-04005 | ||||
| 90447-11001 | ||||
| 90449-06009 | ||||
| 90464-00074 | ||||
| 90464-00076 | ||||
| 90464-00082 | ||||
| 90999-92002 | ||||
| 90999-92003 | ||||
| 91611-60812 | ||||
| Linked diagrams | ||||
| 8408 | ||||
| 8717 | ||||
(8808-8904)3E..3FC ; (8808-8912)3E..MTM
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 17342-11080 | ||||
| 25792-11010 | ||||
| 90339-03002 | ||||
| 90413-04001 | ||||
| 90413-06002 | ||||
| 90413-07003 | ||||
| 90445-11059 | ||||
| 90445-11079 | ||||
| 90447-11002 | ||||
| 90464-00074 | ||||
| 90464-00076 | ||||
| 90464-00082 | ||||
| 90464-00141 | ||||
| 90999-92002 | ||||
| 91611-60812 | ||||
| 91651-40614 | ||||
| Linked diagrams | ||||
| 8408 | ||||
| 8717 | ||||
(8808-8904)3E..3FC ; (8808-8912)3E..MTM
CALIFORNIA SPEC
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 17342-11080 | ||||
| 90339-03002 | ||||
| 90412-06070 | ||||
| 90413-04001 | ||||
| 90413-04005 | ||||
| 90413-04006 | ||||
| 90413-06002 | ||||
| 90445-11059 | ||||
| 90445-11079 | ||||
| 90447-11002 | ||||
| 90464-00074 | ||||
| 90464-00076 | ||||
| 90464-00082 | ||||
| 90464-00141 | ||||
| 90999-92002 | ||||
| 91611-60812 | ||||
| Linked diagrams | ||||
| 8408 | ||||
| 8717 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
