EL31L-ZHMDSA (1988)
Toyota Tercel

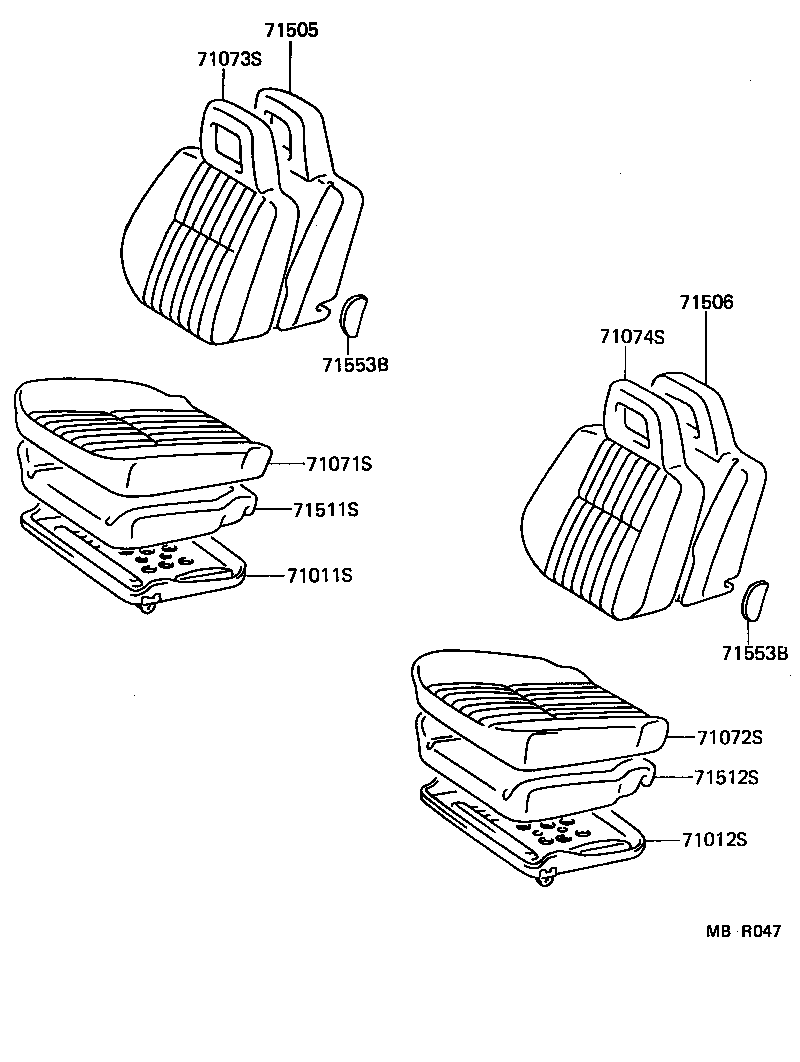

ILLUST NO. 1 OF 2(8808- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71011S - FRAME SUB-ASSY, FRONT SEAT CUSHION, RH | ||||
| 71011-12190 |
EL31 |
1 | ||
| 71012S - FRAME SUB-ASSY, FRONT SEAT CUSHION, LH | ||||
| 71011-12190 |
EL31 |
1 | ||
| 71071S - COVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71071-1663103 |
EL31..DX GRAY,TRIM2# |
1 | ||
| 71071-1663104 |
EL31..DX BLUE,TRIM8# |
1 | ||
| 71071-1663106 |
EL31..DX BROWN,TRIM4# |
1 | ||
| 71072S - COVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE) | ||||
| 71071-1663103 |
EL31..DX GRAY,TRIM2# |
1 | ||
| 71071-1663106 |
EL31..DX BROWN,TRIM4# |
1 | ||
| 71071-1663104 |
EL31..DX BLUE,TRIM8# |
1 | ||
| 71073S - COVER, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71073-1671103 |
EL31..DX GRAY,TRIM2# |
1 | ||
| 71073-1671104 |
EL31..DX BLUE,TRIM8# |
1 | ||
| 71073-1671106 |
EL31..DX BROWN,TRIM4# |
1 | ||
| 71074S - COVER, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71074-1658104 |
EL31..DX BLUE,TRIM8# |
1 | ||
| 71074-1658103 |
EL31..DX GRAY,TRIM2# |
1 | ||
| 71074-1658106 |
EL31..DX BROWN,TRIM4# |
1 | ||
| 71505 - PAD SUB-ASSY, FRONT SEAT BACK W/FRAME, RH | ||||
| 71505-16010 |
EL31..DX,STD |
1 | ||
| 71506 - PAD SUB-ASSY, FRONT SEAT BACK W/FRAME, LH | ||||
| 71505-16010 |
EL31..DX,STD |
1 | ||
| 71511S - PAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71511-16060 |
EL31 |
1 | ||
| 71512S - PAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE) | ||||
| 71511-16060 |
EL31 |
1 | ||
| 71553B - PAD, FRONT SEAT BACK, B | ||||
| 71563-16040 |
EL31 |
4 | ||
| 71553B - PAD, FRONT SEAT BACK, B | ||||
| 71563-16040 |
EL31 |
4 | ||

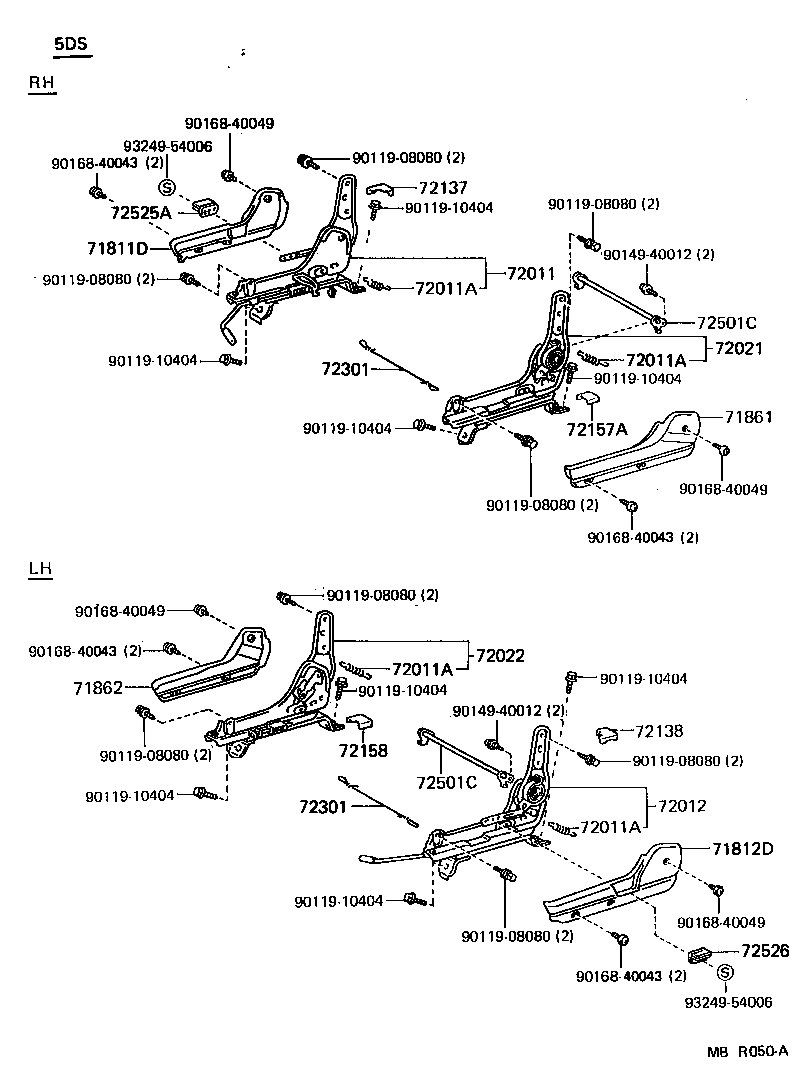

ILLUST NO. 2 OF 2(8808- )5DS
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71811D - SHIELD, FRONT SEAT CUSHION, RH | ||||
| 71811-1606001 |
EL31..5DS BLACK,TRIM2# |
1 | ||
| 71811-1606004 |
EL31..5DS BLUE,TRIM8# |
1 | ||
| 71811-1606006 |
EL31..5DS LIGHT BROWN,TRIM4# |
1 | ||
| 71812D - SHIELD, FRONT SEAT CUSHION, LH | ||||
| 71812-1604006 |
EL31..DX,STD LIGHT BROWN,TRIM4# |
1 | ||
| 71812-1604001 |
EL31 BLACK,TRIM2# |
1 | ||
| 71812-1604004 |
EL31..DX,STD BLUE,TRIM8# |
1 | ||
| 71861 - SHIELD, FRONT SEAT CUSHION, INNER RH | ||||
| 71861-1604001 |
EL31 BLACK,TRIM2# |
1 | ||
| 71861-1604004 |
EL31..DX,STD BLUE,TRIM8# |
1 | ||
| 71861-1604006 |
EL31..DX,STD LIGHT BROWN,TRIM4# |
1 | ||
| 71862 - SHIELD, FRONT SEAT CUSHION, INNER LH | ||||
| 71862-1603001 |
EL31 BLACK,TRIM2# |
1 | ||
| 71862-1603006 |
EL31..DX,STD LIGHT BROWN,TRIM4# |
1 | ||
| 71862-1603004 |
EL31..DX,STD BLUE,TRIM8# |
1 | ||
| 72011 - ADJUSTER SUB-ASSY, FRONT SEAT, OUTER RH | ||||
| 72011-16010 |
EL31..5DS |
1 | ||
| 72011A - SPRING, TENSION (FOR FRONT SEAT ADJUSTER OUTER) | ||||
| 90506-14039 |
EL31 |
2 | ||
| 72011A - SPRING, TENSION (FOR FRONT SEAT ADJUSTER OUTER) | ||||
| 90506-14039 |
EL31 |
2 | ||
| 72011A - SPRING, TENSION (FOR FRONT SEAT ADJUSTER OUTER) | ||||
| 90506-14039 |
EL31 |
2 | ||
| 72011A - SPRING, TENSION (FOR FRONT SEAT ADJUSTER OUTER) | ||||
| 90506-14039 |
EL31 |
2 | ||
| 72012 - ADJUSTER SUB-ASSY, FRONT SEAT, OUTER LH | ||||
| 72012-16110 |
EL31 |
1 | ||
| 72021 - ADJUSTER SUB-ASSY, FRONT SEAT, INNER RH | ||||
| 72021-16090 |
EL31..5DS;EL31..BASE |
1 | ||
| 72022 - ADJUSTER SUB-ASSY, FRONT SEAT, INNER LH | ||||
| 72022-16110 |
EL31 |
1 | ||
| 72137 - COVER, SEAT TRACK, OUTER RH | ||||
| 72137-16020 |
EL31 |
1 | ||
| 72138 - COVER, SEAT TRACK, OUTER LH | ||||
| 72138-16020 |
EL31 |
1 | ||
| 72301 - WIRE SUB-ASSY, SEAT TRACK EQUALIZING | ||||
| 72301-16060 |
EL31 |
2 | ||
| 72301 - WIRE SUB-ASSY, SEAT TRACK EQUALIZING | ||||
| 72301-16060 |
EL31 |
2 | ||
| 72501C - PIPE SUB-ASSY, RECLINING CONNECTING | ||||
| 72501-12030 |
EL31 |
2 | ||
| 72501C - PIPE SUB-ASSY, RECLINING CONNECTING | ||||
| 72501-12030 |
EL31 |
2 | ||
| 72525A - HANDLE, RECLINING ADJUSTER RELEASE, RH | ||||
| 72525-1209036 |
EL31..DX,STD LIGHT BROWN,TRIM4# |
1 | ||
| 72525-1209024 |
EL31..DX,STD DEEP BLUE,TRIM8# |
1 | ||
| 72525-1209011 |
EL31 BLACK,TRIM2# |
1 | ||
| 72526 - HANDLE, RECLINING ADJUSTER RELEASE, LH | ||||
| 72526-1203036 |
EL31..DX,STD LIGHT BROWN,TRIM4# |
1 | ||
| 72526-1203011 |
EL31 BLACK,TRIM2# |
1 | ||
| 72526-1203024 |
EL31..DX,STD DEEP BLUE,TRIM8# |
1 | ||
| Common parts | ||||
| 90119-08080 | ||||
| 90119-10404 | ||||
| 90149-40012 | ||||
| 90168-40043 | ||||
| 90168-40049 | ||||
| 93249-54006 | ||||
