EL31L-ZHMDSA (1988)

Toyota Tercel

Production Aug 1988 - Aug 1989
Engine 3E
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8808- )

Click highlighted areas on diagram

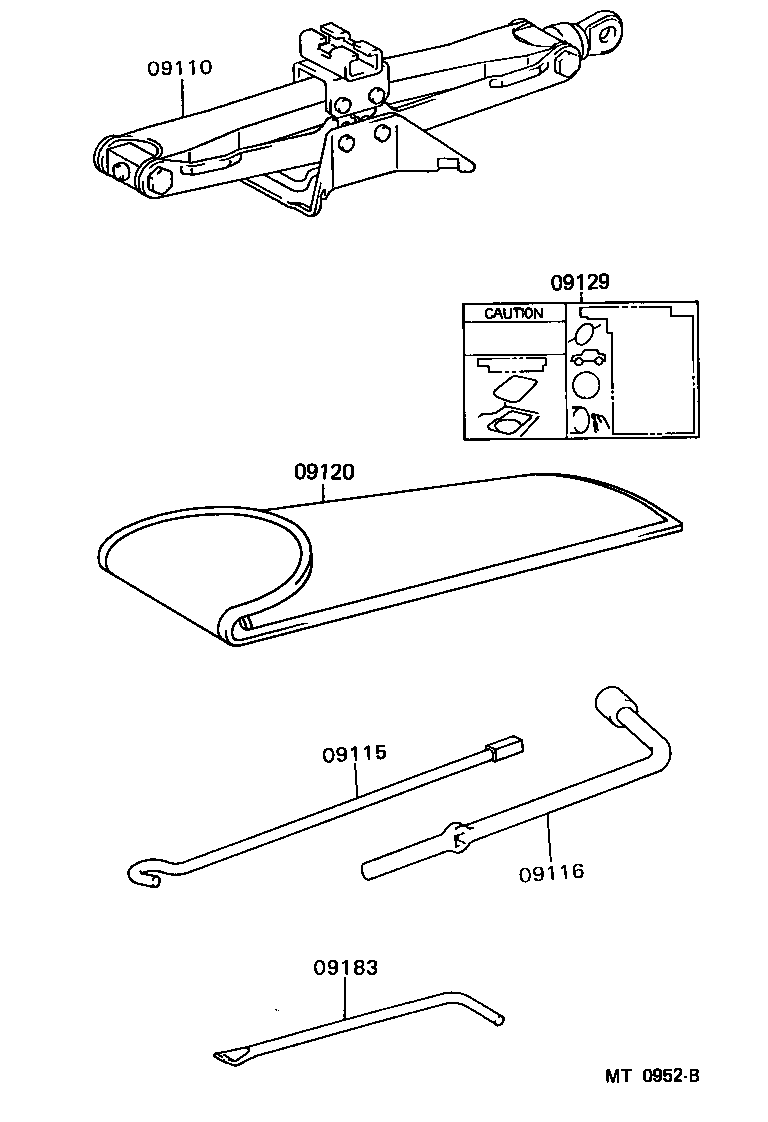

diagram 09110 09115 09116 09120 09129 09183
Part # Description Qty Price
09110 - JACK ASSY
09111-12100

EL31

 1
09115 - ROD SUB-ASSY, JACK HANDLE
09115-16030

EL31

 1
09116 - LEVER, JACK HANDLE
09116-16010

EL31

 1
09120 - BAG, TOOL
09120-12030

EL31

 1
09129 - LABEL, JACK CAUTION
09129-16010

EL31..(3DS,5DS)..USA

 1
09183 - WRENCH, WHEEL CAP
09183-00010

EL31

 1
