Toyota Tercel EL31 STEERING COLUMN & SHAFT

Manufacturers Home
Toyota
US
TERCEL
EL31L-ZHMDSA (1986)
4501 - STEERING COLUMN & SHAFT

EL31L-ZHMDSA (1986)

Toyota Tercel

Production Aug 1986 - Aug 1988

Engine 3E

Transmission 5F MTM

Displacement 2500cc

Power 168 HP (125 kW)

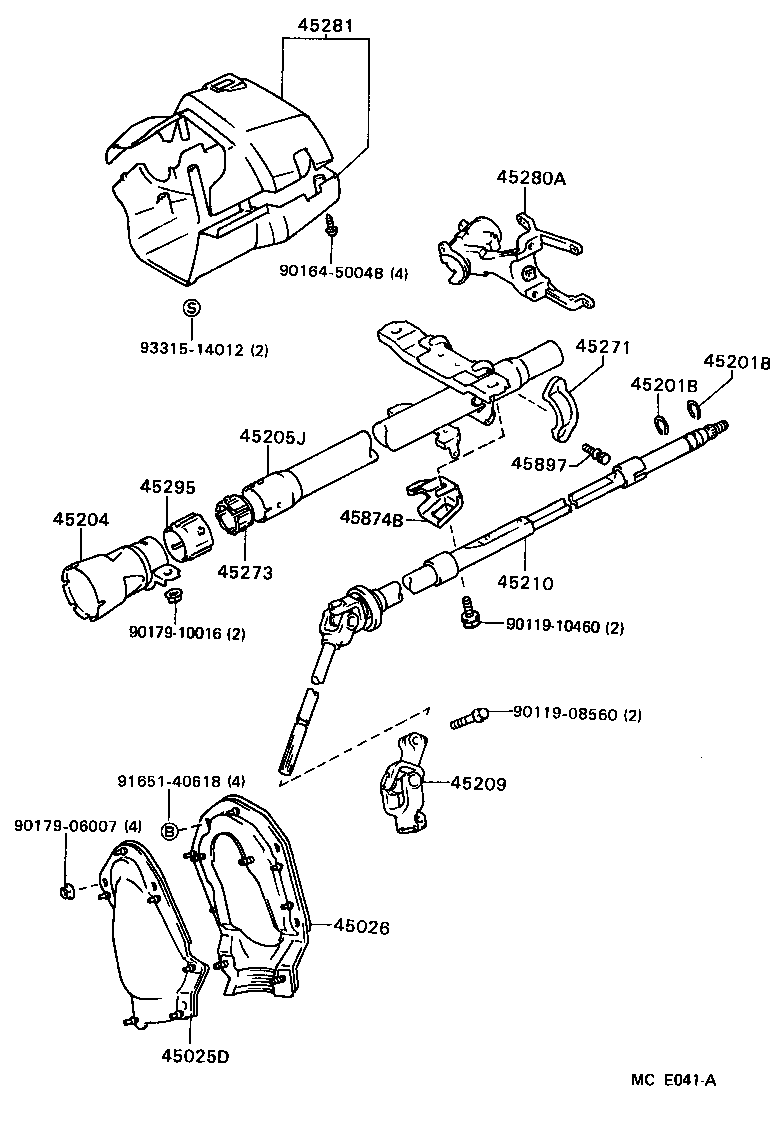

(8608- )

Click highlighted areas on diagram

Part #	Description	Period	Qty
45025D - COVER SUB-ASSY, STEERING COLUMN HOLE, NO.1
45025-16100	EL31..TER W/POWER STEERING	08/1987 - 08/1988	1
45025-16100	EL31..3FC,5F;EL31..4F..STD..CND W/POWER STEERING	08/1986 - 08/1987	1
45025-16080	EL31	08/1986 - 08/1988	1
45026 - COVER SUB-ASSY, STEERING COLUMN HOLE, NO.2
45026-16040	EL31..3FC,5F;EL31..4F..STD..CND W/POWER STEERING	08/1986 - 08/1987	1
45026-16020	EL31	08/1986 - 08/1988	1
45026-16040	EL31..TER W/POWER STEERING	08/1987 - 08/1988	1
45201B - RING, SHAFT SNAP(FOR STEERING MAIN SHAFT)
90520-17196	EL31 T=1.35-1.45,T=1.4	08/1986 - 08/1988	2
90520-17042	EL31 T=1.20,T=1.2	08/1986 - 08/1988	2
45201B - RING, SHAFT SNAP(FOR STEERING MAIN SHAFT)
90520-17196	EL31 T=1.35-1.45,T=1.4	08/1986 - 08/1988	2
90520-17042	EL31 T=1.20,T=1.2	08/1986 - 08/1988	2
45204 - TUBE ASSY, STEERING COLUMN, LOWER
45204-16020	EL31 W/*TIS	08/1986 - 08/1988	1
45204-16030	EL31..3FC,5F;EL31..4F..STD..CND W/*TIS & POWER STEERING	08/1986 - 08/1987	1
45204-16011	EL31	08/1986 - 08/1988	1
45204-16030	EL31..TER W/*TIS & POWER STEERING	08/1987 - 08/1988	1
45205J - TUBE SUB-ASSY, STEERING COLUMN, UPPER
45205-16050	EL31	08/1986 - 08/1988	1
45205-16060	EL31 W/*TIS	08/1986 - 08/1988	1
45209 - YOKE SUB-ASSY, STEERING SLIDING
45209-16020	EL31..TER W/POWER STEERING	08/1987 - 08/1988	1
45209-10020	EL31	08/1986 - 05/1988	1
45209-16030	EL31	05/1988 - 08/1988	1
45209-16020	EL31..3FC,5F;EL31..4F..STD..CND W/POWER STEERING	08/1986 - 08/1987	1
45210 - SHAFT ASSY, STEERING MAIN
45210-16110	EL31..3FC,5F;EL31..4F..STD..CND W/POWER STEERING	08/1986 - 08/1987	1
45210-16091	EL31	05/1988 - 08/1988	1
45210-16110	EL31..TER W/POWER STEERING	08/1987 - 08/1988	1
45210-16090	EL31	08/1986 - 05/1988	1
45271 - CLAMP, STEERING COLUMN, UPPER
45271-16020	EL31	08/1986 - 08/1988	1
45273 - BUSH, STEERING MAIN SHAFT
45273-16010	EL31	08/1986 - 08/1988	1
45280A - BRACKET ASSY, STEERING COLUMN, UPPER
45280-16050	EL31	08/1986 - 08/1988	1
45281 - HOUSING, STEERING COLUMN
45286-1690801	EL31 BLACK,W/*TIS,NEW BLACK,TRIM2#	08/1986 - 08/1988	1
45286-1690604	EL31 BLUE,BLUE,TRIM8#	08/1986 - 08/1987	1
45286-1690805	EL31..TER BEIGE,W/*TIS,DARK BEIGE,TRIM4#	08/1987 - 08/1988	1
45286-1690804	EL31..TER BLUE,W/*TIS,BLUE,TRIM8#	08/1987 - 08/1988	1
45286-1690604	EL31..TER BLUE,BLUE,TRIM8#	08/1987 - 08/1988	1
45286-1690605	EL31 BEIGE,DARK BEIGE,TRIM4#	08/1986 - 08/1987	1
45286-1690805	EL31 BEIGE,W/*TIS,DARK BEIGE,TRIM4#	08/1986 - 08/1987	1
45286-1690804	EL31 BLUE,W/*TIS,BLUE,TRIM8#	08/1986 - 08/1987	1
45286-1690601	EL31 BLACK,NEW BLACK,TRIM2#	08/1986 - 08/1988	1
45286-1690605	EL31..TER BEIGE,DARK BEIGE,TRIM4#	08/1987 - 08/1988	1
45295 - BUSH, STEERING COLUMN TUBE
45295-16010	EL31	08/1986 - 08/1988	1
45874B - PROTECTOR, STEERING COLUMN, NO.1
45874-16020	EL31	08/1986 - 08/1988	1
45897 - BOLT, STEERING LOCK SET
45897-12020	EL31	08/1986 - 08/1988	1
Common parts
90119-08560
90119-10460
90164-50048
90179-06007
90179-10016
91651-40618
93315-14012

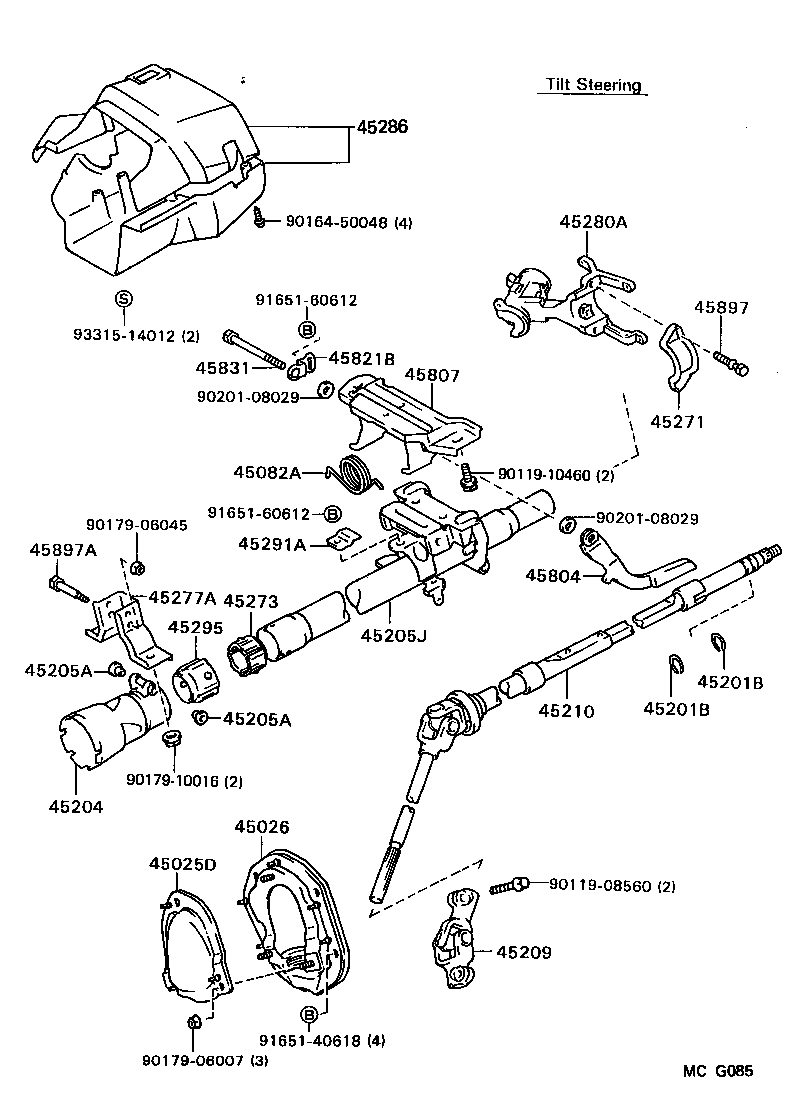

(8608- )

Click highlighted areas on diagram

Part #	Description	Period	Qty
45025D - COVER SUB-ASSY, STEERING COLUMN HOLE, NO.1
45025-16100	EL31..TER W/POWER STEERING	08/1987 - 08/1988	1
45025-16100	EL31..3FC,5F;EL31..4F..STD..CND W/POWER STEERING	08/1986 - 08/1987	1
45025-16080	EL31	08/1986 - 08/1988	1
45026 - COVER SUB-ASSY, STEERING COLUMN HOLE, NO.2
45026-16040	EL31..3FC,5F;EL31..4F..STD..CND W/POWER STEERING	08/1986 - 08/1987	1
45026-16020	EL31	08/1986 - 08/1988	1
45026-16040	EL31..TER W/POWER STEERING	08/1987 - 08/1988	1
45082A - SPRING, TORSION(FOR TILT STEERING RETURN)
90508-32029	EL31	08/1986 - 08/1988	1
45201B - RING, SHAFT SNAP(FOR STEERING MAIN SHAFT)
90520-17196	EL31 T=1.35-1.45,T=1.4	08/1986 - 08/1988	2
90520-17042	EL31 T=1.20,T=1.2	08/1986 - 08/1988	2
45201B - RING, SHAFT SNAP(FOR STEERING MAIN SHAFT)
90520-17196	EL31 T=1.35-1.45,T=1.4	08/1986 - 08/1988	2
90520-17042	EL31 T=1.20,T=1.2	08/1986 - 08/1988	2
45204 - TUBE ASSY, STEERING COLUMN, LOWER
45204-16020	EL31 W/*TIS	08/1986 - 08/1988	1
45204-16030	EL31..3FC,5F;EL31..4F..STD..CND W/*TIS & POWER STEERING	08/1986 - 08/1987	1
45204-16011	EL31	08/1986 - 08/1988	1
45204-16030	EL31..TER W/*TIS & POWER STEERING	08/1987 - 08/1988	1
45205A - BUSH(FOR STEERING COLUMN TUBE)
90386-08034	EL31	08/1986 - 08/1988	2
45205A - BUSH(FOR STEERING COLUMN TUBE)
90386-08034	EL31	08/1986 - 08/1988	2
45205J - TUBE SUB-ASSY, STEERING COLUMN, UPPER
45205-16050	EL31	08/1986 - 08/1988	1
45205-16060	EL31 W/*TIS	08/1986 - 08/1988	1
45209 - YOKE SUB-ASSY, STEERING SLIDING
45209-16020	EL31..TER W/POWER STEERING	08/1987 - 08/1988	1
45209-10020	EL31	08/1986 - 05/1988	1
45209-16030	EL31	05/1988 - 08/1988	1
45209-16020	EL31..3FC,5F;EL31..4F..STD..CND W/POWER STEERING	08/1986 - 08/1987	1
45210 - SHAFT ASSY, STEERING MAIN
45210-16110	EL31..3FC,5F;EL31..4F..STD..CND W/POWER STEERING	08/1986 - 08/1987	1
45210-16091	EL31	05/1988 - 08/1988	1
45210-16110	EL31..TER W/POWER STEERING	08/1987 - 08/1988	1
45210-16090	EL31	08/1986 - 05/1988	1
45271 - CLAMP, STEERING COLUMN, UPPER
45271-16020	EL31	08/1986 - 08/1988	1
45273 - BUSH, STEERING MAIN SHAFT
45273-16010	EL31	08/1986 - 08/1988	1
45277A - SUPPORT, TILT STEERING
45277-16020	EL31	08/1986 - 08/1988	1
45280A - BRACKET ASSY, STEERING COLUMN, UPPER
45280-16050	EL31	08/1986 - 08/1988	1
45281 - HOUSING, STEERING COLUMN
45286-1690801	EL31 BLACK,W/*TIS,NEW BLACK,TRIM2#	08/1986 - 08/1988	1
45286-1690604	EL31 BLUE,BLUE,TRIM8#	08/1986 - 08/1987	1
45286-1690805	EL31..TER BEIGE,W/*TIS,DARK BEIGE,TRIM4#	08/1987 - 08/1988	1
45286-1690804	EL31..TER BLUE,W/*TIS,BLUE,TRIM8#	08/1987 - 08/1988	1
45286-1690604	EL31..TER BLUE,BLUE,TRIM8#	08/1987 - 08/1988	1
45286-1690605	EL31 BEIGE,DARK BEIGE,TRIM4#	08/1986 - 08/1987	1
45286-1690805	EL31 BEIGE,W/*TIS,DARK BEIGE,TRIM4#	08/1986 - 08/1987	1
45286-1690804	EL31 BLUE,W/*TIS,BLUE,TRIM8#	08/1986 - 08/1987	1
45286-1690601	EL31 BLACK,NEW BLACK,TRIM2#	08/1986 - 08/1988	1
45286-1690605	EL31..TER BEIGE,DARK BEIGE,TRIM4#	08/1987 - 08/1988	1
45291A - SUPPORT, STEERING COLUMN TUBE
45291-16010	EL31	08/1986 - 08/1988	1
45295 - BUSH, STEERING COLUMN TUBE
45295-16010	EL31	08/1986 - 08/1988	1
45804 - LEVER SUB-ASSY, STEERING TILT
45804-16030	EL31	08/1986 - 08/1988	1
45807 - BRACKET SUB-ASSY, STEERING COLUMN UPPER SUPPORT
45807-16030	EL31	08/1986 - 08/1988	1
45821B - REINFORCE, TILT STEERING SUPPORT, NO.1
45821-16010	EL31	08/1986 - 08/1988	1
45831 - BOLT, TILT LEVER LOCK, NO.1
45831-16020	EL31	08/1986 - 08/1988	1
45897 - BOLT, STEERING LOCK SET
45897-12020	EL31	08/1986 - 08/1988	1
45897A - BOLT, TILT STEERING PAWL SET
45897-16010	EL31	08/1986 - 08/1988	1
Common parts
90119-08560
90119-10460
90164-50048
90179-06007
90179-06045
90179-10016
90201-08029
91651-40618
91651-60612
93315-14012

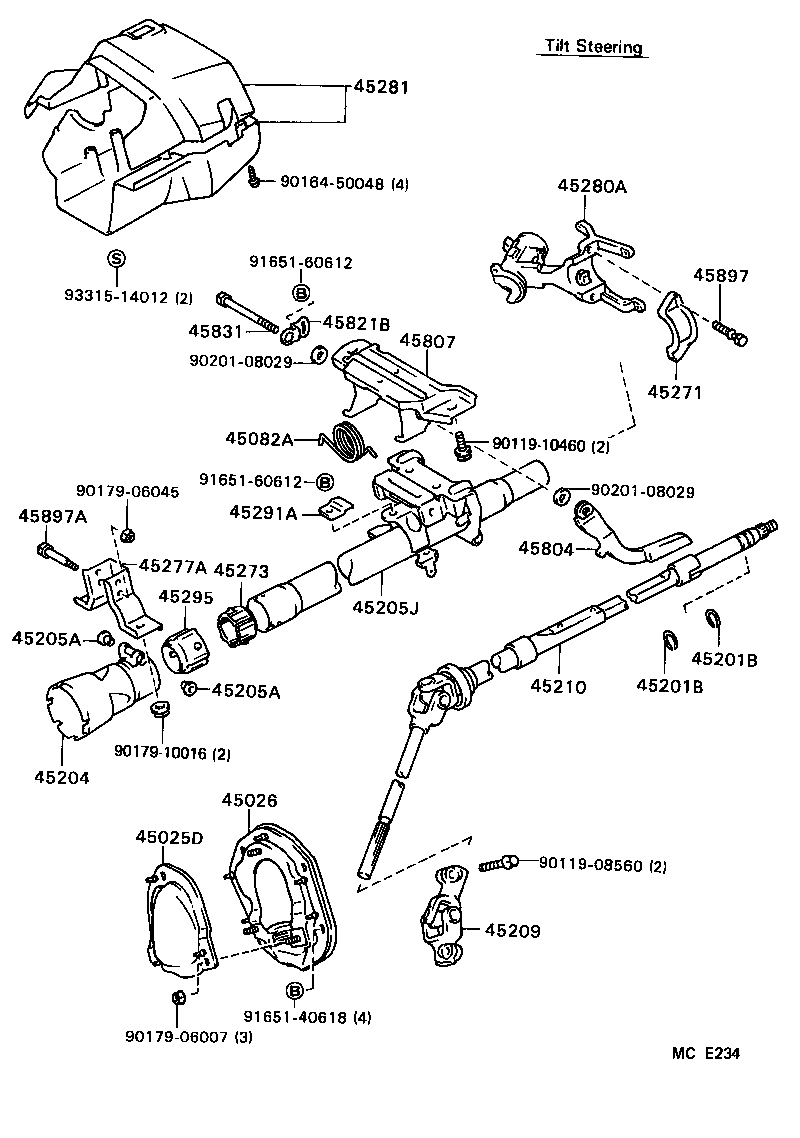

(8808-8908)

Click highlighted areas on diagram

TILT STEERING

Part #	Description	Period	Qty	Price
Common parts
90119-08560
90119-10460
90164-50048
90179-06007
90179-06045
90179-10016
90201-08029
91651-40618
91651-60612
93315-14012
