EL31L-ZHHRSA (1986)

Toyota Tercel

Production Aug 1986 - Aug 1988
Engine 3E
Transmission 3FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8608- )

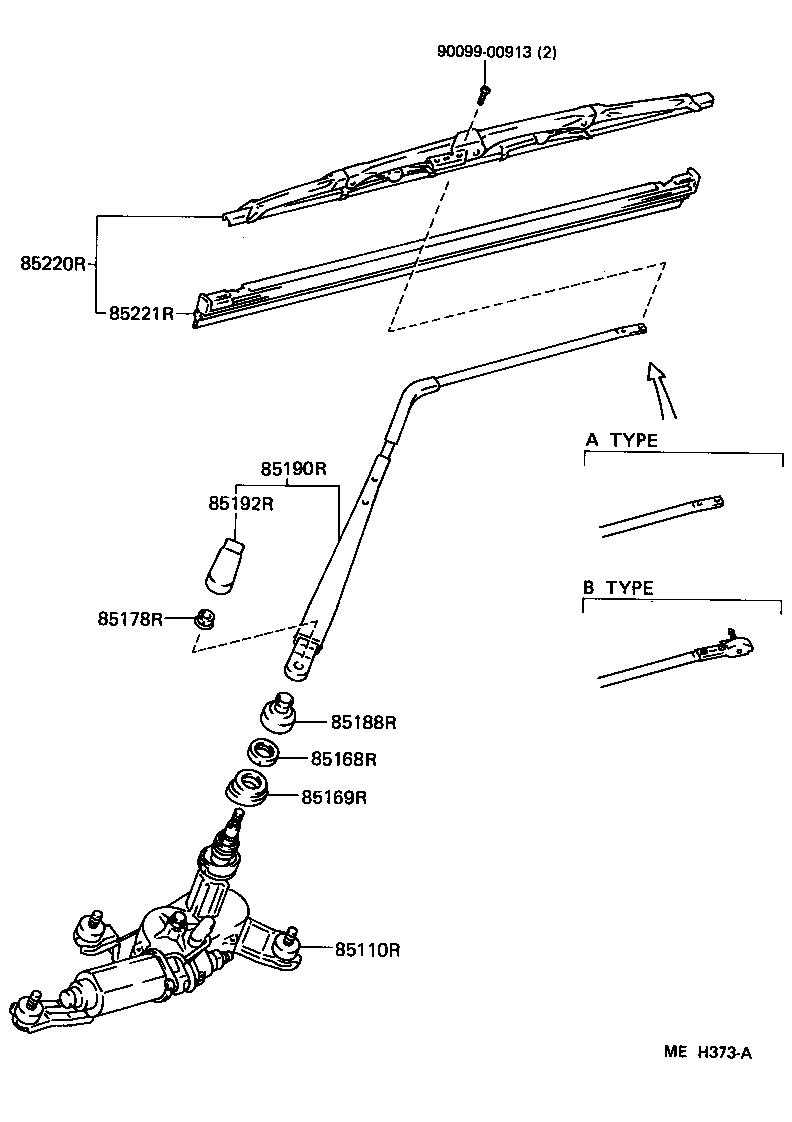

Click highlighted areas on diagram

diagram 85110R 85168R 85169R 85178R 85188R 85190R 85192R 85220R 85221R 9009900913
Part # Description Qty Price
85110R - MOTOR ASSY, REAR WIPER
85110-16290

EL31..5DS

 1
85168R - NUT, REAR WIPER LINK PIVOT, NO.1
90099-05157

EL31..5DS

 1
85169R - WASHER, REAR WIPER LINK PIVOT, NO.1
85179-16300

EL31..5DS

 1
85178R - NUT (FOR REAR WIPER ARM SETTING)
90179-06158

EL31..3DS,5DS

 1
85190R - ARM ASSY, REAR WIPER
85190-16200

EL31..5DS

 1
85192R - COVER, REAR WIPER ARM
85192-32010

EL31..3DS,5DS

 1
85220R - BLADE ASSY, REAR WIPER
85220-12610

EL31..5DS

 1
85221R - BLADE, REAR WIPER
85221-16090

EL31..5DS

 1
Common parts
90099-00913
