EL31L-ZHHRSA (1986)
Toyota Tercel
Production
Aug 1986
-
Aug 1988
Engine
3E
Transmission
3FC ATM
Displacement
2500cc
Power
168 HP (125 kW)
(8608- )

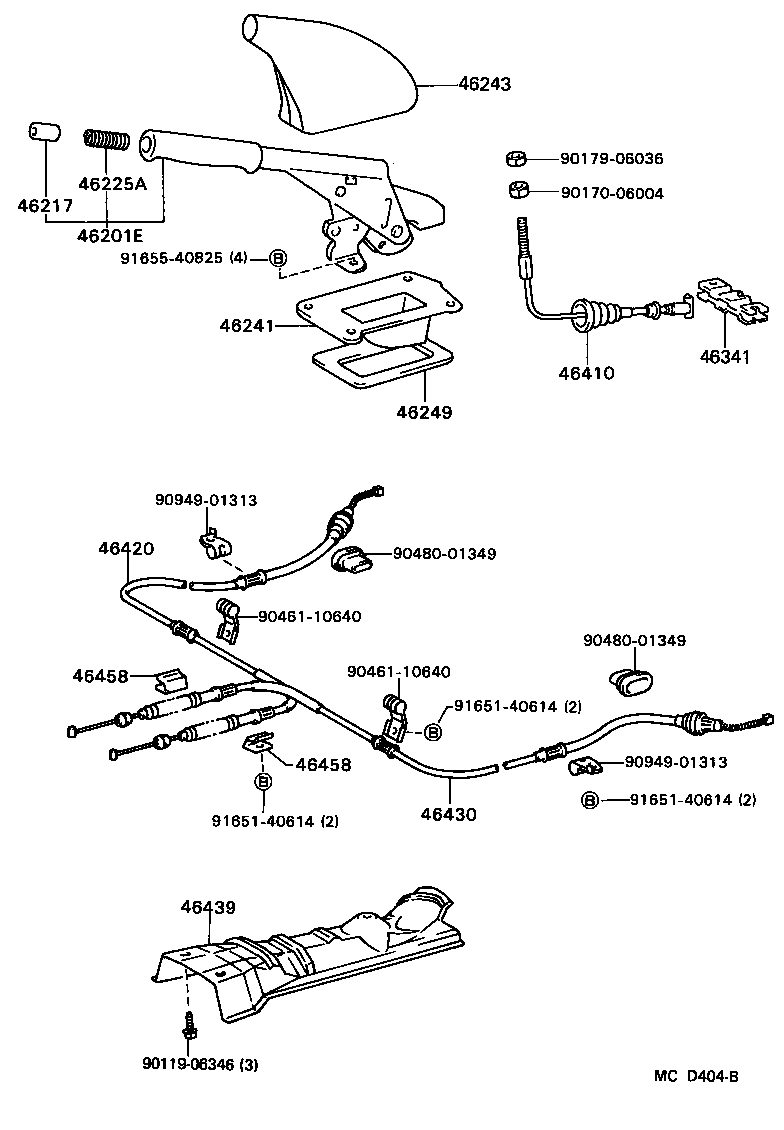

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 46201E - LEVER SUB-ASSY, PARKING BRAKE | ||||
| 46201-1007011 |
EL31 BLACK,NEW BLACK,TRIM2# |
1 | ||
| 46201-1007104 |
EL31..TER BLUE,BLUE,TRIM8# |
1 | ||
| 46201-1007005 |
EL31 BEIGE,DARK BEIGE,TRIM4# |
1 | ||
| 46201-1007014 |
EL31 BLUE,BLUE,TRIM8# |
1 | ||
| 46201-1007111 |
EL31 BLACK,NEW BLACK,TRIM2# |
1 | ||
| 46201-1007214 |
EL31..TER BLUE,BLUE,TRIM8# |
1 | ||
| 46201-1007205 |
EL31..TER BEIGE,DARK BEIGE,TRIM4# |
1 | ||
| 46201-1007105 |
EL31..TER BEIGE,DARK BEIGE,TRIM4# |
1 | ||
| 46201-1007211 |
EL31 BLACK,NEW BLACK,TRIM2# |
1 | ||
| 46217 - KNOB, PARKING BRAKE RELEASE ROD | ||||
| 46217-1002044 |
EL31..TER BLUE,BLUE,TRIM8# |
1 | ||
| 46217-1202004 |
EL31..TER BLUE,DEEP BLUE,TRIM8# |
1 | ||
| 46217-1002055 |
EL31..TER BEIGE,DARK BEIGE,TRIM4# |
1 | ||
| 46217-1202011 |
EL31 BLACK,BLACK,TRIM2# |
1 | ||
| 46217-1002011 |
EL31 BLACK,NEW BLACK,TRIM2# |
1 | ||
| 46217-1202005 |
EL31..TER BEIGE,BEIGE,TRIM4# |
1 | ||
| 46225A - SPRING, COMPRESSION(FOR PARKING BRAKE PAWL ROD) | ||||
| 90501-10745 |
EL31 |
1 | ||
| 46241 - BOOT, PARKING BRAKE LEVER | ||||
| 46241-20050 |
EL31 |
1 | ||
| 46249 - SHIELD, PARKING BRAKE HOLE | ||||
| 46249-20020 |
EL31 |
1 | ||
| 46341 - EQUALIZER, PARKING BRAKE | ||||
| 46341-16020 |
EL31 |
1 | ||
| 46410 - CABLE ASSY, PARKING BRAKE, NO.1 | ||||
| 46410-10050 |
EL31 |
1 | ||
| 46420 - CABLE ASSY, PARKING BRAKE, NO.2 | ||||
| 46420-16090 |
EL31 |
1 | ||
| 46430 - CABLE ASSY, PARKING BRAKE, NO.3 | ||||
| 46430-16090 |
EL31 |
1 | ||
| 46439 - INSULATOR, PARKING BRAKE CABLE HEAT | ||||
| 46439-16010 |
EL31 |
1 | ||
| 46458 - RETAINER, CABLE | ||||
| 46458-20020 |
EL31 |
2 | ||
| 46458 - RETAINER, CABLE | ||||
| 46458-20020 |
EL31 |
2 | ||
| Common parts | ||||
| 90119-06346 | ||||
| 90170-06004 | ||||
| 90179-06036 | ||||
| 90461-10640 | ||||
| 90480-01349 | ||||
| 90949-01313 | ||||
| 91651-40614 | ||||
| 91655-40825 | ||||
