EL31L-ZHHRSA (1988)
Toyota Tercel
(8808- )USA

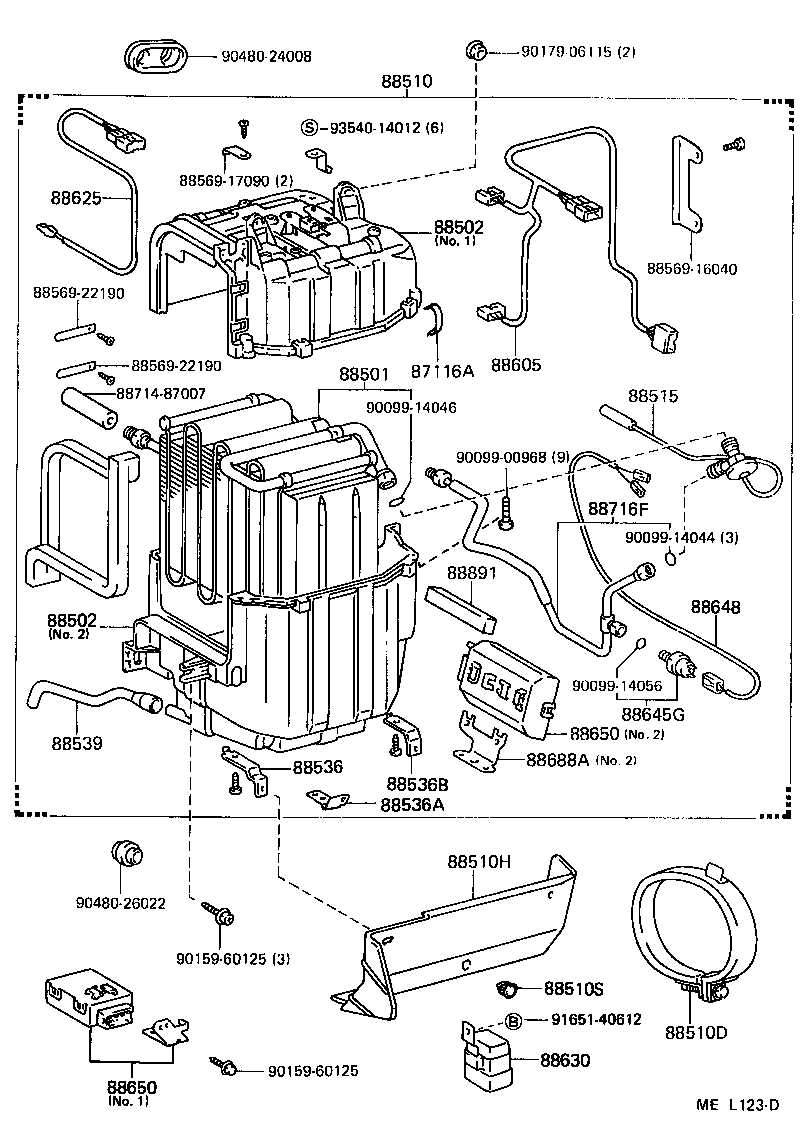

| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 87116A - SPRING, HOLDING (FOR COOLER UNIT CASE) | ||||
| 87116-14010 |
EL31..USA |
3 | ||
| 88501 - EVAPORATOR SUB-ASSY, COOLER, NO.1 | ||||
| 88501-16070 |
EL31..CND;EL31..5DS..USA;EL31..3DS..3FC..(DX,STD)..USA |
1 | ||
| 88501-16070 |
EL31..TER |
1 | ||
| 88502 - CASE SUB-ASSY, COOLING UNIT | ||||
| 88502-16101 |
EL31..TER..USA NO.2 |
1 | ||
| 88502-16101 |
EL31..5DS..USA;EL31..3DS..3FC..(DX,STD)..USA NO.2 |
1 | ||
| 88502-16091 |
EL31..TER..USA NO.1 |
1 | ||
| 88502-16091 |
EL31..5DS..USA;EL31..3DS..3FC..(DX,STD)..USA NO.1 |
1 | ||
| 88502 - CASE SUB-ASSY, COOLING UNIT | ||||
| 88502-16101 |
EL31..TER..USA NO.2 |
1 | ||
| 88502-16101 |
EL31..5DS..USA;EL31..3DS..3FC..(DX,STD)..USA NO.2 |
1 | ||
| 88502-16091 |
EL31..TER..USA NO.1 |
1 | ||
| 88502-16091 |
EL31..5DS..USA;EL31..3DS..3FC..(DX,STD)..USA NO.1 |
1 | ||
| 88510 - UNIT ASSY, COOLER | ||||
| 88510-16181 |
EL31..3FC..USA W(PS) |
1 | ||
| 88510-16191 |
EL31..3FC..USA |
1 | ||
| 88510D - CLAMP, COOLER UNIT | ||||
| 88569-16030 |
EL31..CND;EL31..5DS..USA;EL31..3DS..3FC..(DX,STD)..USA |
1 | ||
| 88569-16030 |
EL31..TER |
1 | ||
| 88510H - PLATE, COOLER UNIT, NO.1 | ||||
| 88899-1601101 |
EL31..TER NEW BLACK,TRIM2# |
1 | ||
| 88899-1601106 |
EL31..5DS..USA;EL31..(DX,STD)..CND;EL31..3DS..3FC..(DX,STD)..USA BROWN,TRIM4# |
1 | ||
| 88899-1601104 |
EL31..DX,STD BLUE,TRIM8# |
1 | ||
| 88899-1601106 |
EL31..DX,STD BROWN,TRIM4# |
1 | ||
| 88899-1601104 |
EL31..5DS..USA;EL31..(DX,STD)..CND;EL31..3DS..3FC..(DX,STD)..USA BLUE,TRIM8# |
1 | ||
| 88899-1601101 |
EL31..CND;EL31..5DS..USA;EL31..3DS..3FC..(DX,STD)..USA NEW BLACK,TRIM2# |
1 | ||
| 88510S - CLIP (FOR COOLER UNIT COVER) | ||||
| 90467-1001711 |
EL31..TER..USA NEW BLACK,TRIM2# |
3 | ||
| 90467-1001746 |
EL31..(DX,STD)..USA BROWN,TRIM4# |
3 | ||
| 90467-1001734 |
EL31..5DS..USA;EL31..3DS..3FC..(DX,STD)..USA BLUE,TRIM8# |
3 | ||
| 90467-1001734 |
EL31..(DX,STD)..USA BLUE,TRIM8# |
3 | ||
| 90467-1001746 |
EL31..5DS..USA;EL31..3DS..3FC..(DX,STD)..USA BROWN,TRIM4# |
3 | ||
| 90467-1001711 |
EL31..5DS..USA;EL31..3DS..3FC..(DX,STD)..USA NEW BLACK,TRIM2# |
3 | ||
| 88515 - VALVE, COOLER EXPANSION | ||||
| 88515-16040 |
EL31..CND;EL31..5DS..USA;EL31..3DS..3FC..(DX,STD)..USA |
1 | ||
| 88515-16040 |
EL31..TER |
1 | ||
| 88536 - BRACKET, COOLING UNIT, NO.1 | ||||
| 88688-16340 |
EL31..CND;EL31..5DS..USA;EL31..3DS..3FC..(DX,STD)..USA |
1 | ||
| 88688-16340 |
EL31..TER |
1 | ||
| 88536A - BRACKET, COOLING UNIT, NO.2 | ||||
| 88688-16360 |
EL31..TER |
1 | ||
| 88688-16360 |
EL31..CND;EL31..5DS..USA;EL31..3DS..3FC..(DX,STD)..USA |
1 | ||
| 88536B - BRACKET, COOLING UNIT, NO.3 | ||||
| 88688-16350 |
EL31..CND;EL31..5DS..USA;EL31..3DS..3FC..(DX,STD)..USA |
1 | ||
| 88688-16350 |
EL31..TER |
1 | ||
| 88539 - HOSE, COOLER UNIT DRAIN, NO.1 | ||||
| 88539-16030 |
EL31..CND;EL31..5DS..USA;EL31..3DS..3FC..(DX,STD)..USA |
1 | ||
| 88539-16030 |
EL31..TER |
1 | ||
| 88605 - HARNESS SUB-ASSY, COOLER WIRING, NO.1 | ||||
| 88605-16520 |
EL31..3FC W(POWER STEERING) |
1 | ||
| 88605-16520 |
EL31..2DS..3FC..CND;EL31..(3DS,5DS)..3FC..(DX,STD) W(POWER STEERING) |
1 | ||
| 88605-16530 |
EL31..3FC..CBR |
1 | ||
| 88625 - THERMISTOR, COOLER, NO.1 | ||||
| 88625-16080 |
EL31..CND;EL31..5DS..USA;EL31..3DS..3FC..(DX,STD)..USA |
1 | ||
| 88625-16080 |
EL31..TER |
1 | ||
| 88630 - RELAY ASSY, COOLER | ||||
| 88630-16080 |
EL31..TER..USA |
1 | ||
| 88645G - SWITCH, PRESSURE | ||||
| 88645-16020 |
EL31..CND;EL31..5DS..USA;EL31..3DS..3FC..(DX,STD)..USA |
1 | ||
| 88645-16020 |
EL31..TER |
1 | ||
| 88648 - WIRING, COOLER, NO.1 | ||||
| 88648-16120 |
EL31..CND;EL31..5DS..USA;EL31..3DS..3FC..(DX,STD)..USA |
1 | ||
| 88648-16120 |
EL31..TER |
1 | ||
| 88650 - AMPLIFIER ASSY, COOLER STABILIZER | ||||
| 88650-16330 |
EL31..3FC..USA NO.1 |
1 | ||
| 88650-16350 |
EL31..TER NO.2,W(POWER STEERING) |
1 | ||
| 88650-16330 |
EL31..(3DS,5DS)..3FC..(DX,STD)..USA NO.1 |
1 | ||
| 88650-16370 |
EL31..TER NO.2 |
1 | ||
| 88650 - AMPLIFIER ASSY, COOLER STABILIZER | ||||
| 88650-16330 |
EL31..3FC..USA NO.1 |
1 | ||
| 88650-16350 |
EL31..TER NO.2,W(POWER STEERING) |
1 | ||
| 88650-16330 |
EL31..(3DS,5DS)..3FC..(DX,STD)..USA NO.1 |
1 | ||
| 88650-16370 |
EL31..TER NO.2 |
1 | ||
| 88688A - BRACKET, COOLER STABILIZER AMPLIFIER | ||||
| 88688-16330 |
EL31..3FC..USA NO.2 |
1 | ||
| 88688-16330 |
EL31..(3DS,5DS)..3FC..(DX,STD)..USA NO.2 |
1 | ||
| 88716F - PIPE, COOLER REFRIGERANT LIQUID, F | ||||
| 88716-16280 |
EL31..TER |
1 | ||
| 88716-16280 |
EL31..CND;EL31..5DS..USA;EL31..3DS..3FC..(DX,STD)..USA |
1 | ||
| 88891 - PACKING (FOR COOLER) | ||||
| 88578-10090 |
EL31..TER |
1 | ||
| 88578-10090 |
EL31..CND;EL31..5DS..USA;EL31..3DS..3FC..(DX,STD)..USA |
1 | ||
| Common parts | ||||
| 88569-16040 | ||||
| 88569-17090 | ||||
| 88569-22190 | ||||
| 88714-87007 | ||||
| 90099-00968 | ||||
| 90099-14044 | ||||
| 90099-14046 | ||||
| 90099-14056 | ||||
| 90159-60125 | ||||
| 90179-06115 | ||||
| 90480-24008 | ||||
| 90480-26022 | ||||
| 91651-40612 | ||||
| 93540-14012 | ||||
