EL31L-ZHHRSA (1988)
Toyota Tercel

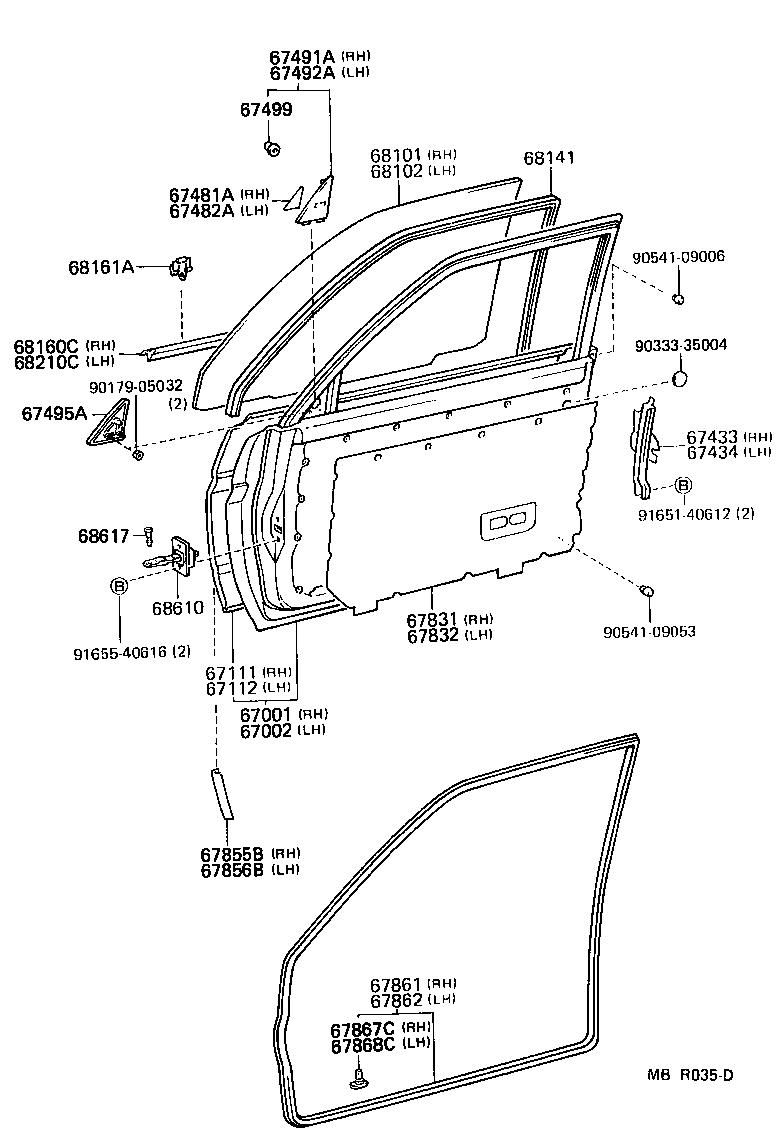

ILLUST NO. 1 OF 2(8808- )5DS
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 67001 - PANEL SUB-ASSY, FRONT DOOR, RH | ||||
| 67001-16270 |
EL31..5DS |
1 | ||
| 67002 - PANEL SUB-ASSY, FRONT DOOR, LH | ||||
| 67002-16230 |
EL31..5DS |
1 | ||
| 67111 - PANEL, FRONT DOOR, OUTER RH | ||||
| 67111-16180 |
EL31..5DS |
1 | ||
| 67112 - PANEL, FRONT DOOR, OUTER LH | ||||
| 67112-16160 |
EL31..5DS |
1 | ||
| 67433 - FRAME, FRONT DOOR WINDOW, REAR LOWER RH | ||||
| 67403-16070 |
EL31..5DS |
1 | ||
| 67434 - FRAME, FRONT DOOR WINDOW, REAR LOWER LH | ||||
| 67404-16070 |
EL31..5DS |
1 | ||
| 67481A - SEAL, FRONT DOOR FRONT LOWER FRAME, RH | ||||
| 67481-16170 |
EL31 |
1 | ||
| 67491A - GARNISH, FRONT DOOR LOWER FRAME BRACKET, RH | ||||
| 67491-16070 |
EL31..5DS |
1 | ||
| 67492A - GARNISH, FRONT DOOR LOWER FRAME BRACKET, LH | ||||
| 67492-16080 |
EL31..5DS..STD..USA W(OUTER REAR VIEW MIRROR) |
1 | ||
| 67492-16070 |
EL31..5DS |
1 | ||
| 67495A - COVER, FRONT DOOR FRONT LOWER FRAME, UPPER RH | ||||
| 67495-16060 |
EL31..5DS |
1 | ||
| 67499 - RETAINER, FRONT DOOR LOWER FRAME BRACKET GARNISH | ||||
| 67499-12030 |
EL31..5DS |
2 | ||
| 67831 - COVER, FRONT DOOR SERVICE HOLE, RH | ||||
| 67831-16140 |
EL31..5DS |
1 | ||
| 67832 - COVER, FRONT DOOR SERVICE HOLE, LH | ||||
| 67832-16110 |
EL31..5DS |
1 | ||
| 67861 - WEATHERSTRIP, FRONT DOOR, RH | ||||
| 67861-16220 |
EL31..5DS |
1 | ||
| 67862 - WEATHERSTRIP, FRONT DOOR, LH | ||||
| 67862-16220 |
EL31..5DS |
1 | ||
| 67867C - RETAINER, FRONT DOOR WEATHERSTRIP, RH | ||||
| 67868-30040 |
EL31..5DS |
17 | ||
| 67868C - RETAINER, FRONT DOOR WEATHERSTRIP, LH | ||||
| 67868-30040 |
EL31..5DS |
17 | ||
| 68101 - GLASS SUB-ASSY, FRONT DOOR, RH | ||||
| 68111-16160 |
EL31..5DS..STD *TEM,T=3.5 |
1 | ||
| 68102 - GLASS SUB-ASSY, FRONT DOOR, LH | ||||
| 68112-16160 |
EL31..5DS..STD *TEM,T=3.5 |
1 | ||
| 68141 - RUN, FRONT DOOR GLASS | ||||
| 68141-16160 |
EL31..5DS |
2 | ||
| 68160C - WEATHERSTRIP ASSY, FRONT DOOR GLASS, OUTER RH | ||||
| 68160-16080 |
EL31..5DS |
1 | ||
| 68161A - CLIP(FOR FRONT DOOR GLASS OUTER WEATHERSTRIP) | ||||
| 68211-16010 |
EL31..5DS |
12 | ||
| 68210C - WEATHERSTRIP ASSY, FRONT DOOR GLASS, OUTER LH | ||||
| 68210-16070 |
EL31..5DS |
1 | ||
| 68610 - CHECK ASSY, FRONT DOOR | ||||
| 68610-10020 |
EL31 |
2 | ||
| 68617 - PIN, FRONT DOOR CHECK | ||||
| 68617-90A00 |
EL31 |
2 | ||
| Common parts | ||||
| 90179-05032 | ||||
| 90333-35004 | ||||
| 90541-09006 | ||||
| 90541-09053 | ||||
| 91651-40612 | ||||
| 91655-40616 | ||||

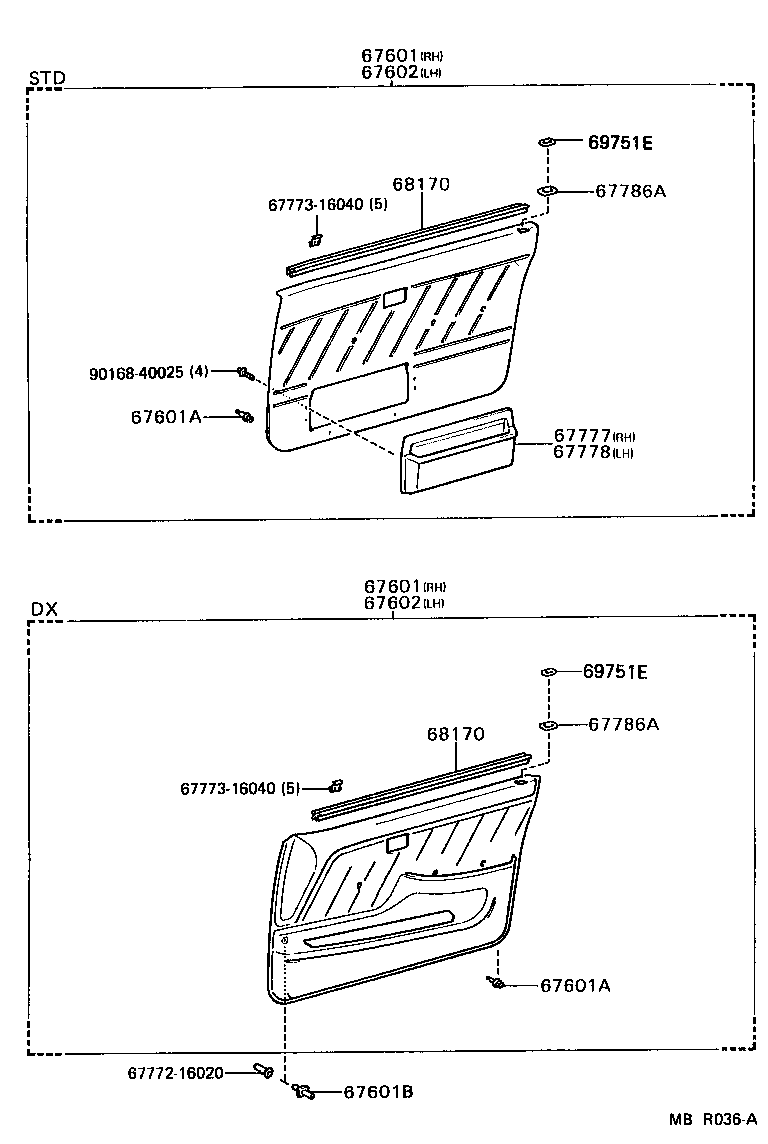

ILLUST NO. 2 OF 2(8808- )5DS
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 67601 - BOARD SUB-ASSY, FRONT DOOR TRIM, RH | ||||
| 67610-1667001 |
EL31..5DS..STD W(FULL FABRIC SEAT C0VER),BLACK,TRIM2# |
1 | ||
| 67610-1661011 |
EL31..5DS..STD BLACK,TRIM2# |
1 | ||
| 67610-1661006 |
EL31..5DS..STD BROWN,TRIM4# |
1 | ||
| 67610-1661014 |
EL31..5DS..STD BLUE,TRIM8# |
1 | ||
| 67610-1667006 |
EL31..5DS..STD W(FULL FABRIC SEAT C0VER),BROWN,TRIM4# |
1 | ||
| 67610-1667004 |
EL31..5DS..STD W(FULL FABRIC SEAT C0VER),BLUE,TRIM8# |
1 | ||
| 67601 - BOARD SUB-ASSY, FRONT DOOR TRIM, RH | ||||
| 67610-1667001 |
EL31..5DS..STD W(FULL FABRIC SEAT C0VER),BLACK,TRIM2# |
1 | ||
| 67610-1661011 |
EL31..5DS..STD BLACK,TRIM2# |
1 | ||
| 67610-1661006 |
EL31..5DS..STD BROWN,TRIM4# |
1 | ||
| 67610-1661014 |
EL31..5DS..STD BLUE,TRIM8# |
1 | ||
| 67610-1667006 |
EL31..5DS..STD W(FULL FABRIC SEAT C0VER),BROWN,TRIM4# |
1 | ||
| 67610-1667004 |
EL31..5DS..STD W(FULL FABRIC SEAT C0VER),BLUE,TRIM8# |
1 | ||
| 67601A - RETAINER(FOR FRONT DOOR TRIM BOARD) | ||||
| 67771-16080 |
EL31..5DS..STD |
30 | ||
| 67771-16080 |
EL31..5DS..STD W(FULL FABRIC SEAT C0VER) |
28 | ||
| 67601A - RETAINER(FOR FRONT DOOR TRIM BOARD) | ||||
| 67771-16080 |
EL31..5DS..STD |
30 | ||
| 67771-16080 |
EL31..5DS..STD W(FULL FABRIC SEAT C0VER) |
28 | ||
| 67602 - BOARD SUB-ASSY, FRONT DOOR TRIM, LH | ||||
| 67620-1649011 |
EL31..5DS..STD BLACK,TRIM2# |
1 | ||
| 67620-1655004 |
EL31..5DS..STD W(FULL FABRIC SEAT C0VER),BLUE,TRIM8# |
1 | ||
| 67620-1655001 |
EL31..5DS..STD W(FULL FABRIC SEAT C0VER),BLACK,TRIM2# |
1 | ||
| 67620-1649014 |
EL31..5DS..STD BLUE,TRIM8# |
1 | ||
| 67620-1649006 |
EL31..5DS..STD BROWN,TRIM4# |
1 | ||
| 67620-1655006 |
EL31..5DS..STD W(FULL FABRIC SEAT C0VER),BROWN,TRIM4# |
1 | ||
| 67602 - BOARD SUB-ASSY, FRONT DOOR TRIM, LH | ||||
| 67620-1649011 |
EL31..5DS..STD BLACK,TRIM2# |
1 | ||
| 67620-1655004 |
EL31..5DS..STD W(FULL FABRIC SEAT C0VER),BLUE,TRIM8# |
1 | ||
| 67620-1655001 |
EL31..5DS..STD W(FULL FABRIC SEAT C0VER),BLACK,TRIM2# |
1 | ||
| 67620-1649014 |
EL31..5DS..STD BLUE,TRIM8# |
1 | ||
| 67620-1649006 |
EL31..5DS..STD BROWN,TRIM4# |
1 | ||
| 67620-1655006 |
EL31..5DS..STD W(FULL FABRIC SEAT C0VER),BROWN,TRIM4# |
1 | ||
| 67777 - POCKET, FRONT DOOR TRIM, RH | ||||
| 67777-1203016 |
EL31..5DS..STD BROWN,TRIM4# |
1 | ||
| 67777-1203014 |
EL31..5DS..STD BLUE,TRIM8# |
1 | ||
| 67777-1203001 |
EL31..5DS..STD BLACK,TRIM2# |
1 | ||
| 67778 - POCKET, FRONT DOOR TRIM, LH | ||||
| 67777-1203001 |
EL31..5DS..STD BLACK,TRIM2# |
1 | ||
| 67777-1203016 |
EL31..5DS..STD BROWN,TRIM4# |
1 | ||
| 67777-1203014 |
EL31..5DS..STD BLUE,TRIM8# |
1 | ||
| 67786A - RETAINER, DOOR LOCKING BUTTON COLLAR(FOR FRONT DOOR) | ||||
| 67786-12010 |
EL31..5DS..STD |
2 | ||
| 67786-12010 |
EL31..5DS..STD W(FULL FABRIC SEAT C0VER) |
1 | ||
| 67786A - RETAINER, DOOR LOCKING BUTTON COLLAR(FOR FRONT DOOR) | ||||
| 67786-12010 |
EL31..5DS..STD |
2 | ||
| 67786-12010 |
EL31..5DS..STD W(FULL FABRIC SEAT C0VER) |
1 | ||
| 68170 - WEATHERSTRIP ASSY, FRONT DOOR GLASS, INNER | ||||
| 68172-16070 |
EL31..5DS LH |
1 | ||
| 68171-16070 |
EL31..5DS RH |
1 | ||
| 68170 - WEATHERSTRIP ASSY, FRONT DOOR GLASS, INNER | ||||
| 68172-16070 |
EL31..5DS LH |
1 | ||
| 68171-16070 |
EL31..5DS RH |
1 | ||
| 69751E - HOLDER, FRONT DOOR LOCK CONTROL KNOB | ||||
| 69751-1201014 |
EL31..5DS..STD W(FULL FABRIC SEAT C0VER),BLUE,TRIM8# |
1 | ||
| 69751-1201011 |
EL31..5DS..STD BLACK,TRIM2# |
2 | ||
| 69751-1201014 |
EL31..5DS..STD BLUE,TRIM8# |
2 | ||
| 69751-1201011 |
EL31..5DS..STD W(FULL FABRIC SEAT C0VER),BLACK,TRIM2# |
1 | ||
| 69751-1201026 |
EL31..5DS..STD BROWN,TRIM4# |
2 | ||
| 69751-1201026 |
EL31..5DS..STD W(FULL FABRIC SEAT C0VER),BROWN,TRIM4# |
1 | ||
| 69751E - HOLDER, FRONT DOOR LOCK CONTROL KNOB | ||||
| 69751-1201014 |
EL31..5DS..STD W(FULL FABRIC SEAT C0VER),BLUE,TRIM8# |
1 | ||
| 69751-1201011 |
EL31..5DS..STD BLACK,TRIM2# |
2 | ||
| 69751-1201014 |
EL31..5DS..STD BLUE,TRIM8# |
2 | ||
| 69751-1201011 |
EL31..5DS..STD W(FULL FABRIC SEAT C0VER),BLACK,TRIM2# |
1 | ||
| 69751-1201026 |
EL31..5DS..STD BROWN,TRIM4# |
2 | ||
| 69751-1201026 |
EL31..5DS..STD W(FULL FABRIC SEAT C0VER),BROWN,TRIM4# |
1 | ||
| Common parts | ||||
| 67772-16020 | ||||
| 67773-16040 | ||||
| 90168-40025 | ||||
