EL31L-ZHHRSA (1988)
Toyota Tercel
(8808- )5DS
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55545A - COVER, FUSE BOX OPENING | ||||
| 55545-1611004 |
EL31..DX,STD BLUE,TRIM8# |
1 | ||
| 55545-1611001 |
EL31 BLACK,TRIM2# |
1 | ||
| 55545-1611006 |
EL31..DX,STD BROWN,TRIM4# |
1 | ||
| 62111A - TRIM SUB-ASSY, COWL SIDE, RH | ||||
| 62111-1606004 |
EL31..DX,STD BLUE,TRIM8# |
1 | ||
| 62111-1606006 |
EL31..DX,STD BROWN,TRIM4# |
1 | ||
| 62111-1606001 |
EL31 BLACK,TRIM2# |
1 | ||
| 62112A - TRIM SUB-ASSY, COWL SIDE, LH | ||||
| 62112-1606006 |
EL31..DX,STD BROWN,TRIM4# |
1 | ||
| 62112-1606001 |
EL31 BLACK,TRIM2# |
1 | ||
| 62112-1606004 |
EL31..DX,STD BLUE,TRIM8# |
1 | ||
| 62117B - CLIP, NO.1(FOR COWL SIDE TRIM) | ||||
| 90467-0501501 |
EL31 BLACK,TRIM2#,4#,8# |
1 | ||
| 62117C - CLIP, NO.2(FOR COWL SIDE TRIM) | ||||
| 90467-0803101 |
EL31 BLACK,TRIM2#,4#,8# |
1 | ||
| 62211 - GARNISH, FRONT PILLAR, RH | ||||
| 62211-1604006 |
EL31..5DS BROWN,TRIM4# |
1 | ||
| 62211-1604001 |
EL31..5DS BLACK,TRIM2# |
1 | ||
| 62211-1604004 |
EL31..5DS BLUE,TRIM8# |
1 | ||
| 62212 - GARNISH, FRONT PILLAR, LH | ||||
| 62212-1604004 |
EL31..5DS BLUE,TRIM8# |
1 | ||
| 62212-1604001 |
EL31..5DS BLACK,TRIM2# |
1 | ||
| 62212-1604006 |
EL31..5DS BROWN,TRIM4# |
1 | ||
| 62313D - TRIM, FRONT DOOR OPENING, RH | ||||
| 62313-1607004 |
EL31..5DS BLUE,TRIM8# |
1 | ||
| 62313-1607001 |
EL31..5DS BLACK,TRIM2# |
1 | ||
| 62313-1607006 |
EL31..5DS BROWN,TRIM4# |
1 | ||
| 62314D - TRIM, FRONT DOOR OPENING, LH | ||||
| 62313-1607001 |
EL31..5DS BLACK,TRIM2# |
1 | ||
| 62313-1607004 |
EL31..5DS BLUE,TRIM8# |
1 | ||
| 62313-1607006 |
EL31..5DS BROWN,TRIM4# |
1 | ||
| 62333A - TRIM, REAR DOOR OPENING, RH | ||||
| 62333-1605004 |
EL31..5DS BLUE,TRIM8# |
1 | ||
| 62333-1605006 |
EL31..5DS BROWN,TRIM4# |
1 | ||
| 62333-1605001 |
EL31..5DS BLACK,TRIM2# |
1 | ||
| 62334A - TRIM, REAR DOOR OPENING, LH | ||||
| 62333-1605006 |
EL31..5DS BROWN,TRIM4# |
1 | ||
| 62333-1605001 |
EL31..5DS BLACK,TRIM2# |
1 | ||
| 62333-1605004 |
EL31..5DS BLUE,TRIM8# |
1 | ||
| 62411B - GARNISH, CENTER PILLAR, UPPER RH | ||||
| 62411-1611006 |
EL31..5DS BROWN,TRIM4# |
1 | ||
| 62411-1611004 |
EL31..5DS BLUE,TRIM8# |
1 | ||
| 62411-1611001 |
EL31..5DS BLACK,TRIM2# |
1 | ||
| 62412B - GARNISH, CENTER PILLAR, UPPER LH | ||||
| 62412-1611004 |
EL31..5DS BLUE,TRIM8# |
1 | ||
| 62412-1611001 |
EL31..5DS BLACK,TRIM2# |
1 | ||
| 62412-1611006 |
EL31..5DS BROWN,TRIM4# |
1 | ||
| 62413A - GARNISH, CENTER PILLAR, LOWER RH | ||||
| 62413-1602004 |
EL31..5DS BLUE,TRIM8# |
1 | ||
| 62413-1602006 |
EL31..5DS BROWN,TRIM4# |
1 | ||
| 62413-1602001 |
EL31..5DS BLACK,TRIM2# |
1 | ||
| 62414A - GARNISH, CENTER PILLAR, LOWER LH | ||||
| 62414-1602004 |
EL31..5DS BLUE,TRIM8# |
1 | ||
| 62414-1602006 |
EL31..5DS BROWN,TRIM4# |
1 | ||
| 62414-1602001 |
EL31..5DS BLACK,TRIM2# |
1 | ||
| 62431B - GARNISH, ROOF SIDE RAIL, NO.1 RH | ||||
| 62431-1601001 |
EL31..5DS BLACK,TRIM2# |
1 | ||
| 62431-1601006 |
EL31..5DS BROWN,TRIM4# |
1 | ||
| 62431-1601004 |
EL31..5DS BLUE,TRIM8# |
1 | ||
| 62432B - GARNISH, ROOF SIDE RAIL, NO.1 LH | ||||
| 62432-1601006 |
EL31..5DS BROWN,TRIM4# |
1 | ||
| 62432-1601004 |
EL31..5DS BLUE,TRIM8# |
1 | ||
| 62432-1601001 |
EL31..5DS BLACK,TRIM2# |
1 | ||
| 62471A - GARNISH, ROOF SIDE, INNER RH | ||||
| 62471-1619004 |
EL31..5DS BLUE,TRIM8# |
1 | ||
| 62471-1619001 |
EL31..5DS BLACK,TRIM2# |
1 | ||
| 62471-1619006 |
EL31..5DS BROWN,TRIM4# |
1 | ||
| 62472A - GARNISH, ROOF SIDE, INNER LH | ||||
| 62472-1619006 |
EL31..5DS BROWN,TRIM4# |
1 | ||
| 62472-1619004 |
EL31..5DS BLUE,TRIM8# |
1 | ||
| 62472-1619001 |
EL31..5DS BLACK,TRIM2# |
1 | ||
| 62485A - RETAINER, ROOF SIDE INNER GARNISH | ||||
| 62485-16020 |
EL31..2DS,5DS |
2 | ||
| 62485A - RETAINER, ROOF SIDE INNER GARNISH | ||||
| 62485-16020 |
EL31..2DS,5DS |
2 | ||
| 67913 - PLATE, FRONT DOOR SCUFF, RH | ||||
| 67913-1606006 |
EL31..5DS BROWN,TRIM4# |
1 | ||
| 67913-1606004 |
EL31..5DS BLUE,TRIM8# |
1 | ||
| 67913-1606001 |
EL31..5DS BLACK,TRIM2# |
1 | ||
| 67914 - PLATE, FRONT DOOR SCUFF, LH | ||||
| 67913-1606004 |
EL31..5DS BLUE,TRIM8# |
1 | ||
| 67913-1606001 |
EL31..5DS BLACK,TRIM2# |
1 | ||
| 67913-1606006 |
EL31..5DS BROWN,TRIM4# |
1 | ||
| 67917A - PLATE, REAR DOOR SCUFF, RH | ||||
| 67917-1603001 |
EL31..5DS BLACK,TRIM2# |
1 | ||
| 67917-1603006 |
EL31..5DS BROWN,TRIM4# |
1 | ||
| 67917-1603004 |
EL31..5DS BLUE,TRIM8# |
1 | ||
| 67918A - PLATE, REAR DOOR SCUFF, LH | ||||
| 67917-1603006 |
EL31..5DS BROWN,TRIM4# |
1 | ||
| 67917-1603004 |
EL31..5DS BLUE,TRIM8# |
1 | ||
| 67917-1603001 |
EL31..5DS BLACK,TRIM2# |
1 | ||
| Common parts | ||||
| 67771-14040 | ||||
| 90159-50103 | ||||
| 90159-60384 | ||||
| 90189-05018 | ||||
| 90467-05016 | ||||
| 90468-04119 | ||||
| 90468-05060 | ||||
| 93540-14512 | ||||
| 93560-54012 | ||||

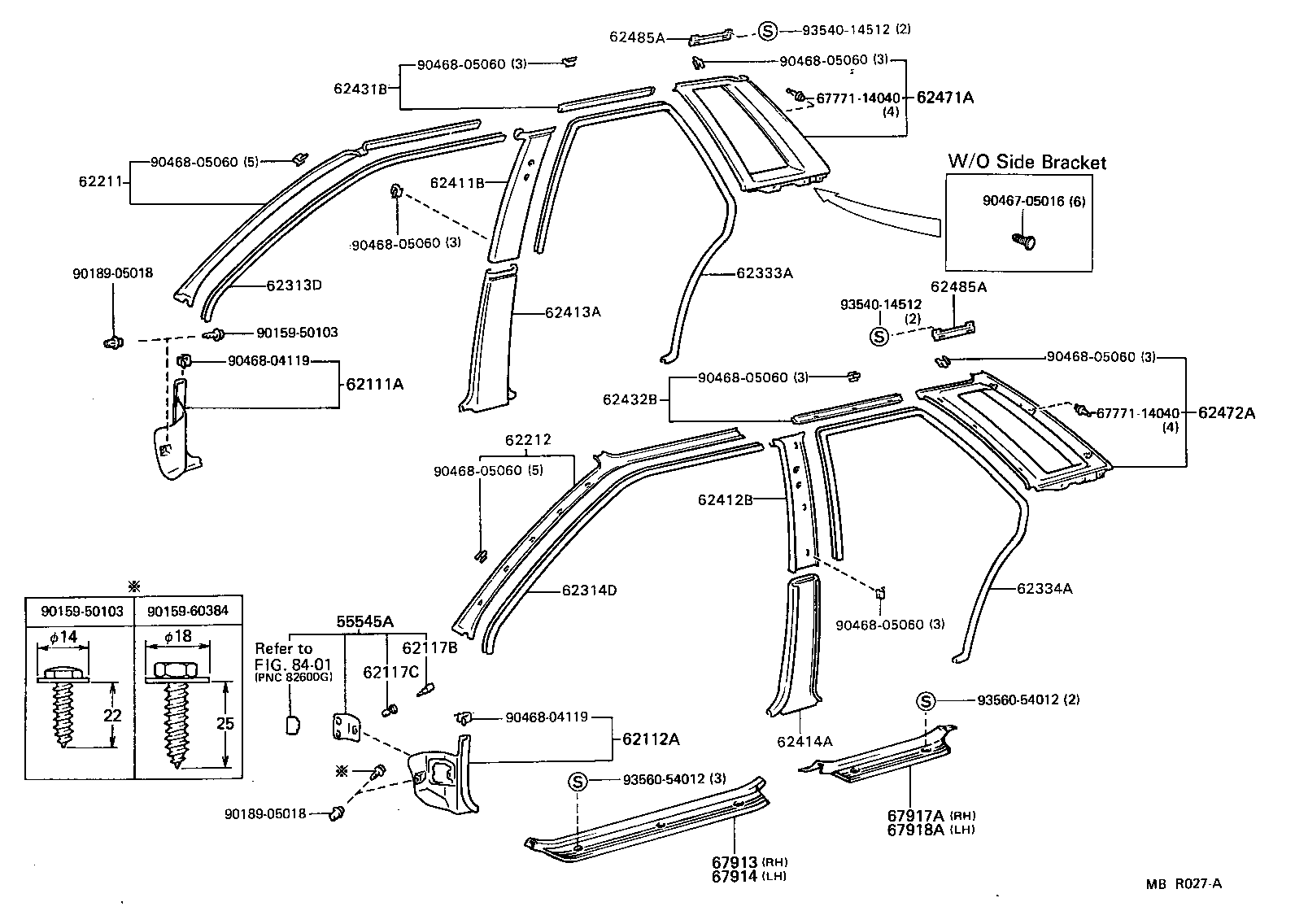

| Linked diagrams | ||||
| 8401 | ||||
