EL31L-ZHHRSA (1988)

Toyota Tercel

Production Aug 1988 - Aug 1989
Engine 3E
Transmission 3FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8808- )3DS,5DS

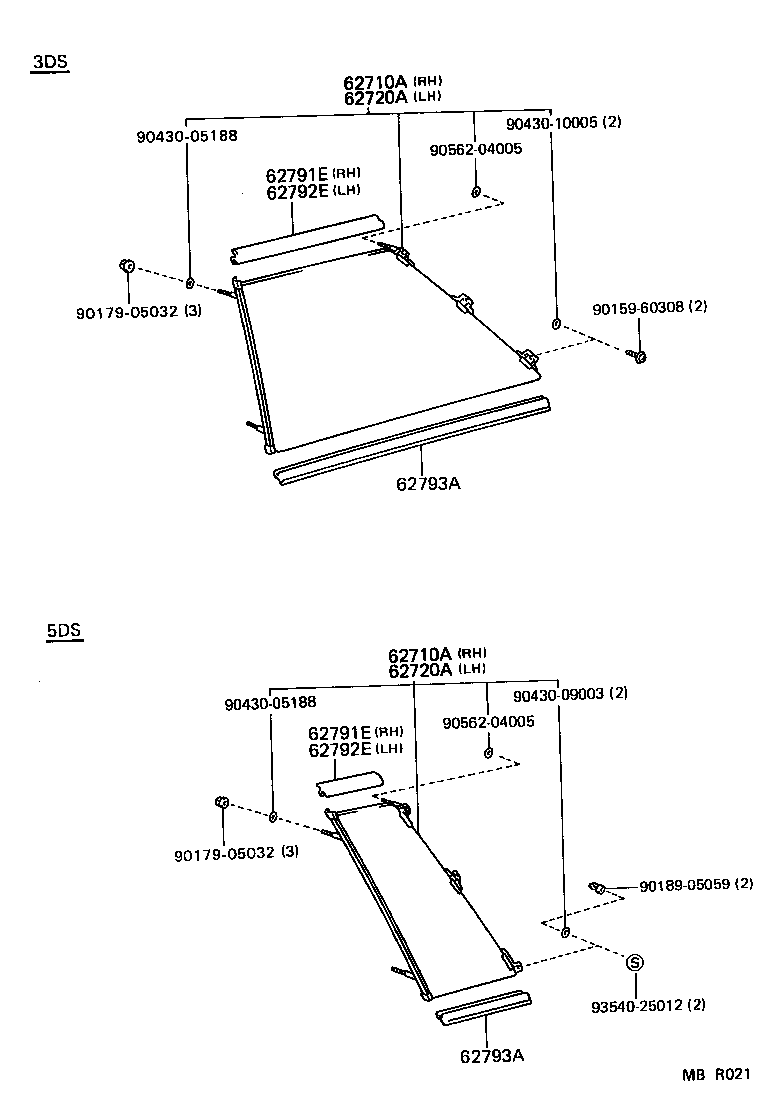

Click highlighted areas on diagram

diagram 62710A 62710A 62720A 62720A 62791E 62791E 62792E 62792E 62793A 62793A 9015960308 9017905032 9017905032 9018905059 9043005188 9043005188 9043009003 9043010005 9056204005 9056204005 9354025012
Part # Description Qty Price
62710A - WINDOW ASSY, QUARTER, RH
62710-16120

EL31..5DS..STD

*TEM,T=3.5

 1
62710A - WINDOW ASSY, QUARTER, RH
62710-16120

EL31..5DS..STD

*TEM,T=3.5

 1
62720A - WINDOW ASSY, QUARTER, LH
62720-16120

EL31..5DS..STD

*TEM,T=3.5

 1
62720A - WINDOW ASSY, QUARTER, LH
62720-16120

EL31..5DS..STD

*TEM,T=3.5

 1
62791E - MOULDING, QUARTER WINDOW, UPPER RH
62791-16020

EL31..5DS

 1
62791E - MOULDING, QUARTER WINDOW, UPPER RH
62791-16020

EL31..5DS

 1
62792E - MOULDING, QUARTER WINDOW, UPPER LH
62792-16010

EL31..5DS

 1
62792E - MOULDING, QUARTER WINDOW, UPPER LH
62792-16010

EL31..5DS

 1
62793A - MOULDING, QUARTER WINDOW, LOWER
62793-16020

EL31..5DS

 2
62793A - MOULDING, QUARTER WINDOW, LOWER
62793-16020

EL31..5DS

 2
Common parts
90159-60308
90179-05032
90189-05059
90430-05188
90430-09003
90430-10005
90562-04005
93540-25012
