EL31L-ZHHDSK (1986)
Toyota Tercel
Production
Aug 1986
-
Aug 1988
Engine
3E
Transmission
3FC ATM
Displacement
2500cc
Power
168 HP (125 kW)
(8608- )

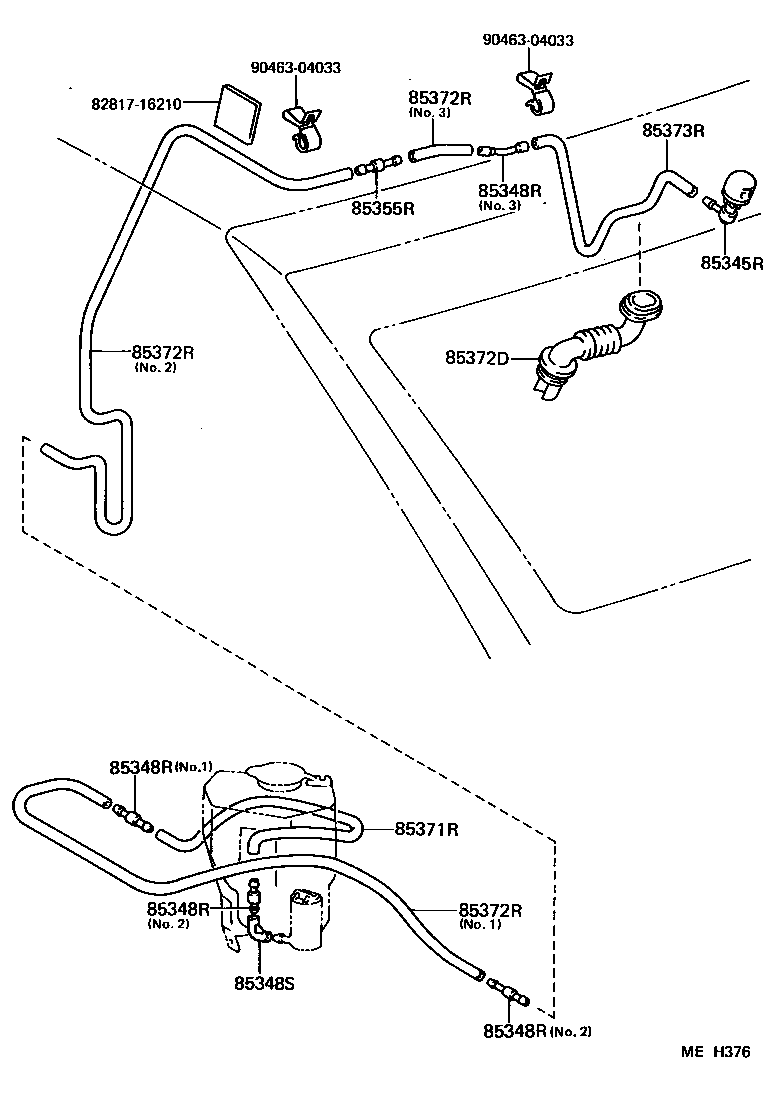

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 85345R - NOZZLE, REAR WASHER | ||||
| 85341-16120 |
EL31..5DS |
1 | ||
| 85348R - JOINT, REAR WASHER HOSE, NO.1 | ||||
| 85355-20080 |
EL31..3DS,5DS NO.3 |
1 | ||
| 85349-89122 |
EL31..3DS,5DS NO.1 & NO.2 |
3 | ||
| 85348R - JOINT, REAR WASHER HOSE, NO.1 | ||||
| 85355-20080 |
EL31..3DS,5DS NO.3 |
1 | ||
| 85349-89122 |
EL31..3DS,5DS NO.1 & NO.2 |
3 | ||
| 85348R - JOINT, REAR WASHER HOSE, NO.1 | ||||
| 85355-20080 |
EL31..3DS,5DS NO.3 |
1 | ||
| 85349-89122 |
EL31..3DS,5DS NO.1 & NO.2 |
3 | ||
| 85348R - JOINT, REAR WASHER HOSE, NO.1 | ||||
| 85355-20080 |
EL31..3DS,5DS NO.3 |
1 | ||
| 85349-89122 |
EL31..3DS,5DS NO.1 & NO.2 |
3 | ||
| 85348S - JOINT, REAR WASHER ELBOW, NO.1 | ||||
| 85355-14481 |
EL31..3DS,5DS |
1 | ||
| 85355-20070 |
EL31..3DS,5DS |
1 | ||
| 85355R - VALVE, REAR WASHER HOSE | ||||
| 85031-12250 |
EL31..3DS,5DS |
1 | ||
| 85371R - HOSE, REAR WASHER (FROM MOTOR TO JOINT) | ||||
| 90099-33299 |
EL31..3DS,5DS L=1000 |
1 | ||
| 85372D - GROMMET, REAR WASHER HOSE | ||||
| 85372-14020 |
EL31..3DS,5DS |
1 | ||
| 85372R - HOSE, REAR WASHER (FROM JOINT TO JOINT OR NOZZLE) | ||||
| 90446-07001 |
EL31..3DS,5DS L=1200,NO.1 |
1 | ||
| 90099-33080 |
EL31..3DS,5DS *H,L=60,NO.3 |
1 | ||
| 90099-33176 |
EL31..5DS L=2800,NO.2 |
1 | ||
| 85372R - HOSE, REAR WASHER (FROM JOINT TO JOINT OR NOZZLE) | ||||
| 90446-07001 |
EL31..3DS,5DS L=1200,NO.1 |
1 | ||
| 90099-33080 |
EL31..3DS,5DS *H,L=60,NO.3 |
1 | ||
| 90099-33176 |
EL31..5DS L=2800,NO.2 |
1 | ||
| 85372R - HOSE, REAR WASHER (FROM JOINT TO JOINT OR NOZZLE) | ||||
| 90446-07001 |
EL31..3DS,5DS L=1200,NO.1 |
1 | ||
| 90099-33080 |
EL31..3DS,5DS *H,L=60,NO.3 |
1 | ||
| 90099-33176 |
EL31..5DS L=2800,NO.2 |
1 | ||
| 85373R - HOSE, REAR WASHER (FROM JOINT TO NOZZLE) | ||||
| 90099-33080 |
EL31..3DS,5DS *H,L=330 |
1 | ||
| Common parts | ||||
| 82817-16210 | ||||
| 90463-04033 | ||||
