EL31L-ZHHDSK (1986)

Toyota Tercel

Production Aug 1986 - Aug 1988
Engine 3E
Transmission 3FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8608- )

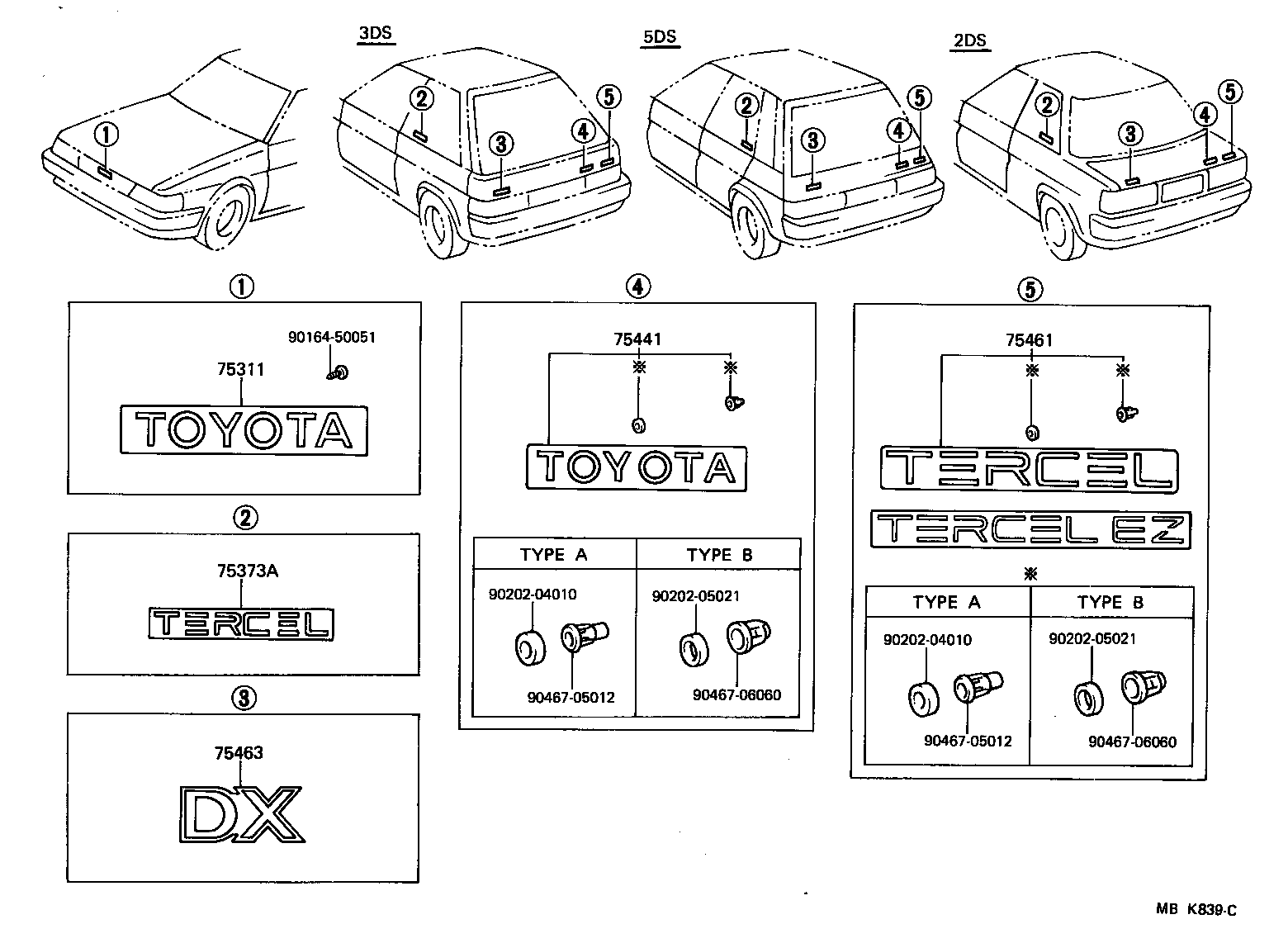

Click highlighted areas on diagram

diagram 75311 75373A 75441 75461 75463 9016450051 9020204010 9020204010 9020205021 9020205021 9046705012 9046705012 9046706060 9046706060
Part # Description Qty Price
75311 - EMBLEM, RADIATOR GRILLE (OR FRONT PANEL)
75311-16300

EL31

 1
75373A - PLATE, QUARTER WINDOW MARK
75373-16050

EL31

TERCEL

 2
75441 - PLATE, REAR NAME, NO.1
75441-16271

EL31

TOYOTA,TYPE B

 1
75441-16241

EL31

TOYOTA,TYPE A

 1
75441-16270

EL31

TYPE B

 1
75441-16240

EL31

TYPE A

 1
75461 - PLATE, REAR NAME, NO.2 (MODEL MARK)
75442-16480

EL31..5DS

TYPE A

 1
75442-16481

EL31..5DS

TERCEL,TYPE A

 1
75463 - PLATE, REAR NAME, NO.4 (GRADE MARK)
75444-16120

EL31..DX

DX

 1
Common parts
90164-50051
90202-04010
90202-05021
90467-05012
90467-06060
