EL31L-ZHHDSK (1986)
Toyota Tercel

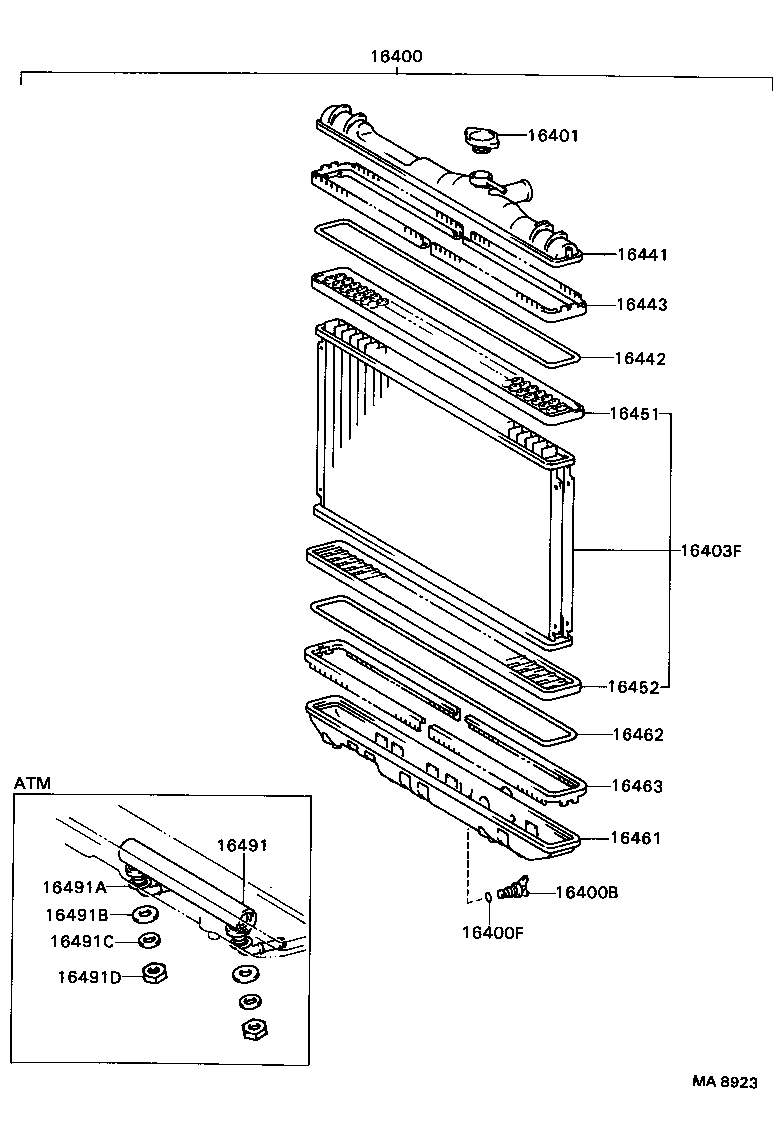

(8608- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 16400 - RADIATOR ASSY | ||||
| 16400-11120 |
3E..EL31..3FC |
1 | ||
| 16400-11270 |
3E..EL31..3FC |
1 | ||
| 16400B - PLUG, RADIATOR DRAIN COCK | ||||
| 23322-54010 |
3E..EL31 |
1 | ||
| 16400F - PACKING(FOR RADIATOR DRAIN COCK) | ||||
| 96711-19007 |
3E..EL31 |
1 | ||
| 16401 - CAP SUB-ASSY, RADIATOR | ||||
| 16401-63010 |
3E..EL31 |
1 | ||
| 16403F - CORE SUB-ASSY, RADIATOR | ||||
| 16403-11120 |
3E..EL31..3FC |
1 | ||
| 16403-11250 |
3E..EL31..3FC |
1 | ||
| 16441 - TANK, RADIATOR, UPPER | ||||
| 16441-11250 |
3E..EL31..3FC |
1 | ||
| 16441-11120 |
3E..EL31..3FC |
1 | ||
| 16442 - RING, O(FOR RADIATOR UPPER TANK) | ||||
| 16462-15120 |
3E..EL31..3FC |
1 | ||
| 16442-63030 |
3E..EL31..3FC |
1 | ||
| 16443 - PLATE, RADIATOR TANK, LOCK, UPPER | ||||
| 16463-15270 |
3E..EL31..3FC |
2 | ||
| 16443-15321 |
3E..EL31..3FC |
2 | ||
| 16451 - PLATE, RADIATOR CORE, UPPER | ||||
| 16451-63030 |
3E..EL31..3FC |
1 | ||
| 16452-11090 |
3E..EL31..3FC |
1 | ||
| 16452 - PLATE, RADIATOR CORE, LOWER | ||||
| 16452-11090 |
3E..EL31..3FC |
1 | ||
| 16452-63030 |
3E..EL31..3FC |
1 | ||
| 16461 - TANK, RADIATOR, LOWER | ||||
| 16461-11270 |
3E..EL31..3FC |
1 | ||
| 16461-11120 |
3E..EL31..3FC |
1 | ||
| 16462 - RING, O(FOR RADIATOR LOWER TANK) | ||||
| 16462-15120 |
3E..EL31 |
1 | ||
| 16462-63030 |
3E..EL31..3FC |
1 | ||
| 16463 - PLATE, RADIATOR TANK, LOCK, LOWER | ||||
| 16463-15270 |
3E..EL31 |
2 | ||
| 16463-15320 |
3E..EL31..3FC |
1 | ||
| 16491 - COOLER, OIL(FOR ATM) | ||||
| 16491-63040 |
3E..EL31..3FC |
1 | ||
| 16491-11270 |
3E..EL31..3FC |
1 | ||
| 16491A - RING, O(FOR ATM OIL COOLER) | ||||
| 16492-35080 |
3E..EL31..3FC |
2 | ||
| 16491B - WASHER, PLATE(FOR ATM OIL COOLER) | ||||
| 16493-15130 |
3E..EL31..3FC |
2 | ||
| 16491C - WASHER, SPRING(FOR ATM OIL COOLER) | ||||
| 16494-15130 |
3E..EL31..3FC |
2 | ||
| 16491D - NUT(FOR ATM OIL COOLER) | ||||
| 16496-15130 |
3E..EL31..3FC |
2 | ||

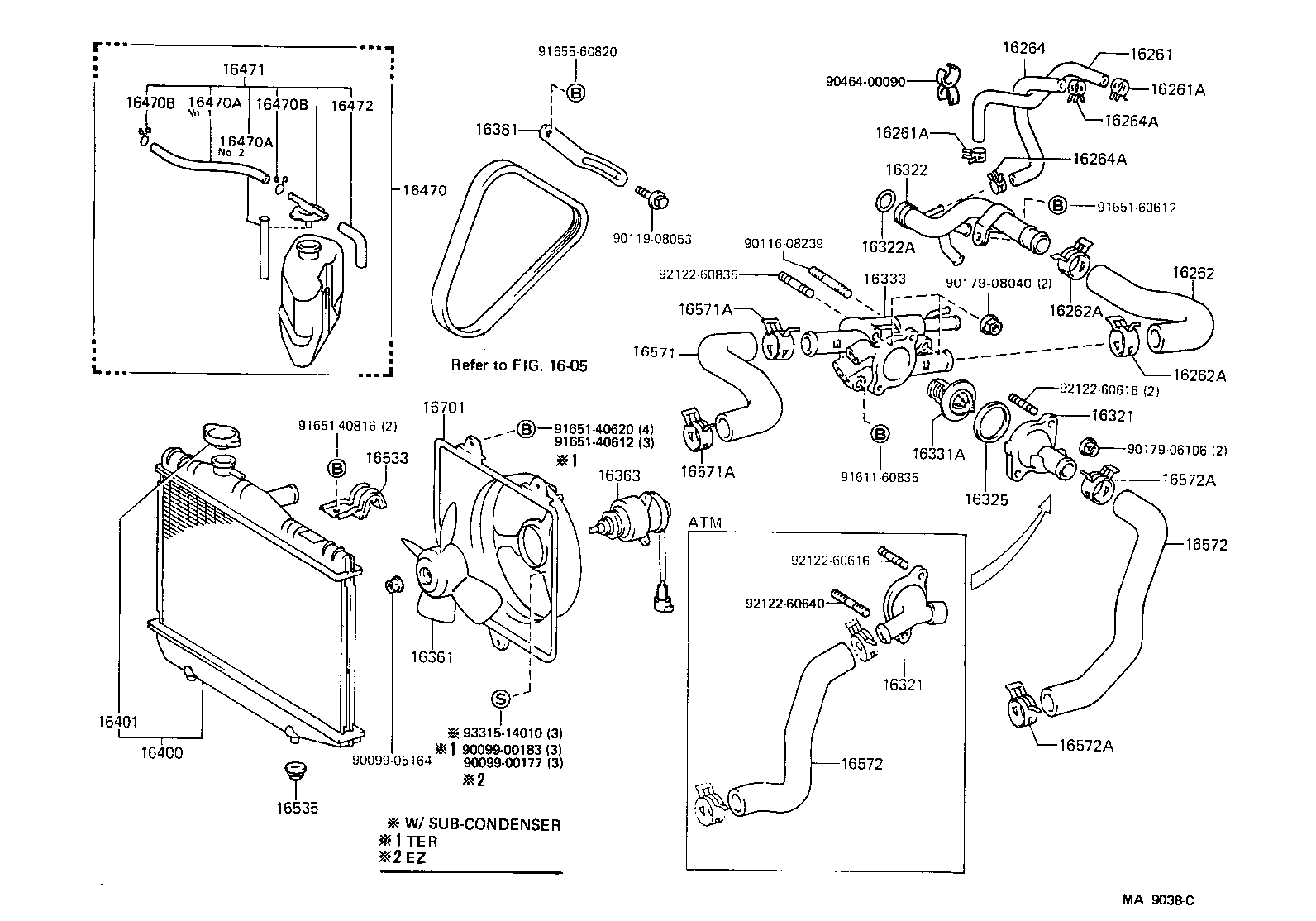

(8608- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 16261 - HOSE, WATER BY-PASS | ||||
| 16261-11040 |
3E..EL31 |
1 | ||
| 16261A - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE) | ||||
| 90467-11009 |
3E..EL31 |
2 | ||
| 90467-11049 |
3E..EL31 |
2 | ||
| 16261A - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE) | ||||
| 90467-11009 |
3E..EL31 |
2 | ||
| 90467-11049 |
3E..EL31 |
2 | ||
| 16262 - HOSE, WATER INLET | ||||
| 16262-10020 |
3E..EL31..3FC |
1 | ||
| 16262A - CLIP(FOR WATER INLET HOSE) | ||||
| 90467-34003 |
3E..EL31 |
2 | ||
| 16262A - CLIP(FOR WATER INLET HOSE) | ||||
| 90467-34003 |
3E..EL31 |
2 | ||
| 16264 - HOSE, WATER BY-PASS, NO.2 | ||||
| 99555-00270 |
3E..EL31 |
1 | ||
| 16264A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.2) | ||||
| 90467-11049 |
3E..EL31 |
2 | ||
| 90467-11009 |
3E..EL31 |
2 | ||
| 16264A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.2) | ||||
| 90467-11049 |
3E..EL31 |
2 | ||
| 90467-11009 |
3E..EL31 |
2 | ||
| 16321 - INLET, WATER | ||||
| 16321-11011 |
3E..EL31..3FC |
1 | ||
| 16321 - INLET, WATER | ||||
| 16321-11011 |
3E..EL31..3FC |
1 | ||
| 16322 - PIPE, WATER INLET | ||||
| 16322-11010 |
3E..EL31 |
1 | ||
| 16322A - RING, O(FOR WATER INLET) | ||||
| 96711-35028 |
3E..EL31 |
1 | ||
| 16325 - GASKET, WATER INLET HOUSING, NO.1 | ||||
| 16325-63010 |
3E..EL31 |
1 | ||
| 16331A - THERMOSTAT | ||||
| 90916-03046 |
3E..EL31 *WAX 82-95 |
1 | ||
| 16333 - HOUSING, WATER OUTLET | ||||
| 16303-11050 |
3E..EL31 |
1 | ||
| 16361 - FAN | ||||
| 16361-63020 |
3E..EL31 W/SUB-CONDENSER |
1 | ||
| 16361-63040 |
3E..EL31 |
1 | ||
| 16361-63020 |
3E..EL31..3FC |
1 | ||
| 16363 - MOTOR, COOLING FAN | ||||
| 16363-16020 |
3E..EL31 W/SUB-CONDENSER |
1 | ||
| 16363-10010 |
3E..EL31 |
1 | ||
| 16363-16020 |
3E..EL31..3FC |
1 | ||
| 16381 - BAR, FAN BELT ADJUSTING | ||||
| 16381-11030 |
3E..EL31..CND |
1 | ||
| 16400 - RADIATOR ASSY | ||||
| 16400-11120 |
3E..EL31..3FC |
1 | ||
| 16400-11270 |
3E..EL31..3FC |
1 | ||
| 16401 - CAP SUB-ASSY, RADIATOR | ||||
| 16401-63010 |
3E..EL31 |
1 | ||
| 16470 - TANK ASSY, RADIATOR RESERVE | ||||
| 16470-11010 |
3E..EL31 |
1 | ||
| 16470A - HOSE OR PIPE(FOR RADIATOR RESERVE TANK) | ||||
| 90445-12078 |
3E..EL31 *H,L=280,NO.1 |
1 | ||
| 90445-12078 |
3E..EL31 *H,L=260,NO.1 |
1 | ||
| 90099-33080 |
3E..EL31 *H,L=140,NO.2 |
1 | ||
| 16470A - HOSE OR PIPE(FOR RADIATOR RESERVE TANK) | ||||
| 90445-12078 |
3E..EL31 *H,L=280,NO.1 |
1 | ||
| 90445-12078 |
3E..EL31 *H,L=260,NO.1 |
1 | ||
| 90099-33080 |
3E..EL31 *H,L=140,NO.2 |
1 | ||
| 16470B - CLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE) | ||||
| 90467-11085 |
3E..EL31 |
2 | ||
| 16470B - CLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE) | ||||
| 90467-11085 |
3E..EL31 |
2 | ||
| 16471 - CAP SUB-ASSY, RESERVE TANK | ||||
| 16405-11010 |
3E..EL31 |
1 | ||
| 16472 - HOSE, BREATHER | ||||
| 85338-74040 |
3E..EL31 |
1 | ||
| 85338-10020 |
3E..EL31 |
1 | ||
| 16533 - SUPPORT, RADIATOR, UPPER | ||||
| 16505-11060 |
3E..EL31..3FC |
2 | ||
| 16505-11040 |
3E..EL31..3FC |
2 | ||
| 16505-11041 |
3E..EL31..3FC |
2 | ||
| 16535 - SUPPORT, RADIATOR, LOWER | ||||
| 16535-63030 |
3E..EL31 |
2 | ||
| 16571-11071 |
3E..EL31..3FC |
1 | ||
| 16571 - HOSE, RADIATOR, INLET | ||||
| 16571-11040 |
3E..EL31 |
1 | ||
| 16571A - CLAMP OR CLIP, HOSE(FOR RADIATOR INLET) | ||||
| 90467-31001 |
3E..EL31 |
2 | ||
| 16571A - CLAMP OR CLIP, HOSE(FOR RADIATOR INLET) | ||||
| 90467-31001 |
3E..EL31 |
2 | ||
| 16572 - HOSE, RADIATOR, OUTLET | ||||
| 16572-11080 |
3E..EL31..3FC |
1 | ||
| 16572-11160 |
3E..EL31..3FC |
1 | ||
| 16572 - HOSE, RADIATOR, OUTLET | ||||
| 16572-11080 |
3E..EL31..3FC |
1 | ||
| 16572-11160 |
3E..EL31..3FC |
1 | ||
| 16572A - CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1) | ||||
| 90467-31003 |
3E..EL31 |
2 | ||
| 16572A - CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1) | ||||
| 90467-31003 |
3E..EL31 |
2 | ||
| 16701 - SHROUD SUB-ASSY, FAN | ||||
| 16711-11060 |
3E..EL31 |
1 | ||
| 16711-11080 |
3E..EL31 W/SUB-CONDENSER |
1 | ||
| 16711-11130 |
3E..EL31..3FC |
1 | ||
| Common parts | ||||
| 90099-00177 | ||||
| 90099-00183 | ||||
| 90099-05164 | ||||
| 90116-08239 | ||||
| 90119-08053 | ||||
| 90179-06106 | ||||
| 90179-08040 | ||||
| 90464-00090 | ||||
| 91611-60835 | ||||
| 91651-40612 | ||||
| 91651-40620 | ||||
| 91651-40816 | ||||
| 91651-60612 | ||||
| 91655-60820 | ||||
| 92122-60616 | ||||
| 92122-60640 | ||||
| 92122-60835 | ||||
| 93315-14010 | ||||
| Linked diagrams | ||||
| 1605 | ||||
