EL31L-ZHHDSK (1988)
Toyota Tercel
Production
Aug 1988
-
Aug 1989
Engine
3E
Transmission
3FC ATM
Displacement
2500cc
Power
168 HP (125 kW)

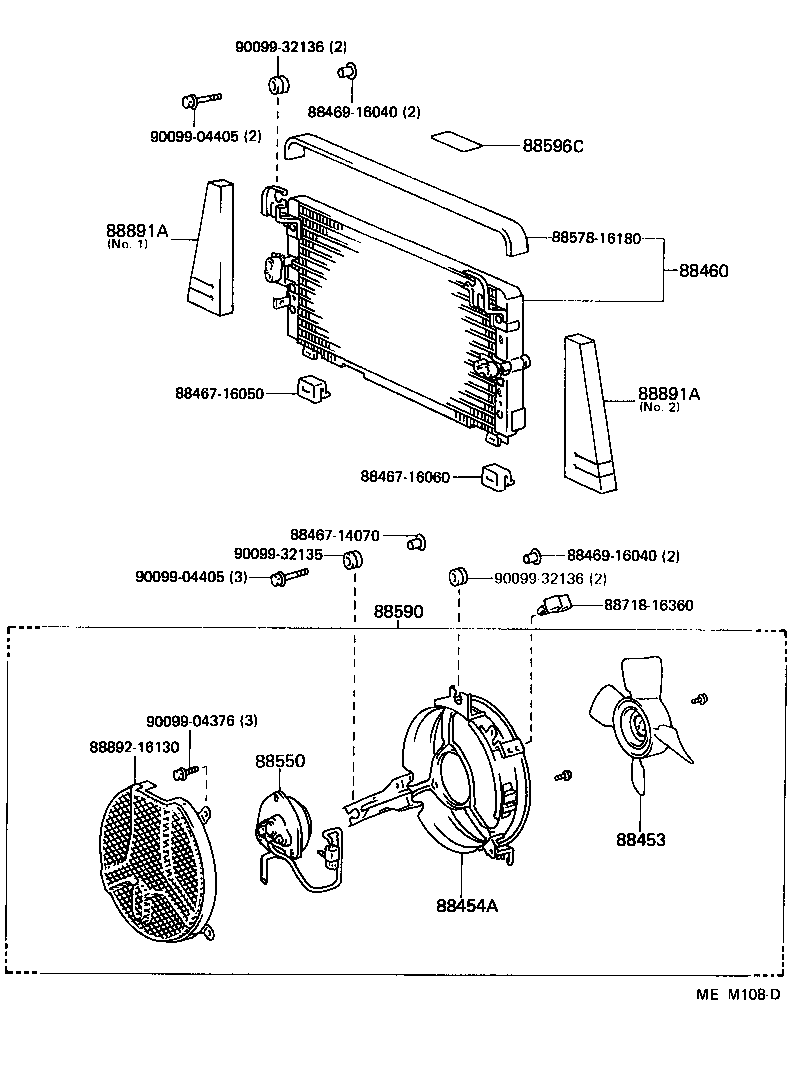

ILLUST NO. 1 OF 2(8808- )CND
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88453 - FAN, COOLING (FOR CONDENSER) | ||||
| 88453-12050 |
EL31..CND |
1 | ||
| 88454A - SHROUD, FAN | ||||
| 88454-16090 |
EL31..CND |
1 | ||
| 88460 - CONDENSER ASSY, COOLER | ||||
| 88460-16200 |
EL31..CND |
1 | ||
| 88550 - MOTOR ASSY, BLOWER (FOR CONDENSER) | ||||
| 88550-12120 |
EL31..CND |
1 | ||
| 88590 - BLOWER ASSY, W/SHROUD | ||||
| 88590-16020 |
EL31..CND |
1 | ||
| 88596C - PLATE, CAUTION, NO.2 | ||||
| 88723-12010 |
EL31..CND |
1 | ||
| 88891A - PACKING A (FOR COOLER) | ||||
| 88578-16170 |
EL31..CND NO.2 |
1 | ||
| 88578-16130 |
EL31..CND NO.1 |
1 | ||
| 88891A - PACKING A (FOR COOLER) | ||||
| 88578-16170 |
EL31..CND NO.2 |
1 | ||
| 88578-16130 |
EL31..CND NO.1 |
1 | ||
| Common parts | ||||
| 88467-14070 | ||||
| 88467-16050 | ||||
| 88467-16060 | ||||
| 88469-16040 | ||||
| 88578-16180 | ||||
| 88718-16360 | ||||
| 88892-16130 | ||||
| 90099-04376 | ||||
| 90099-04405 | ||||
| 90099-32135 | ||||
| 90099-32136 | ||||

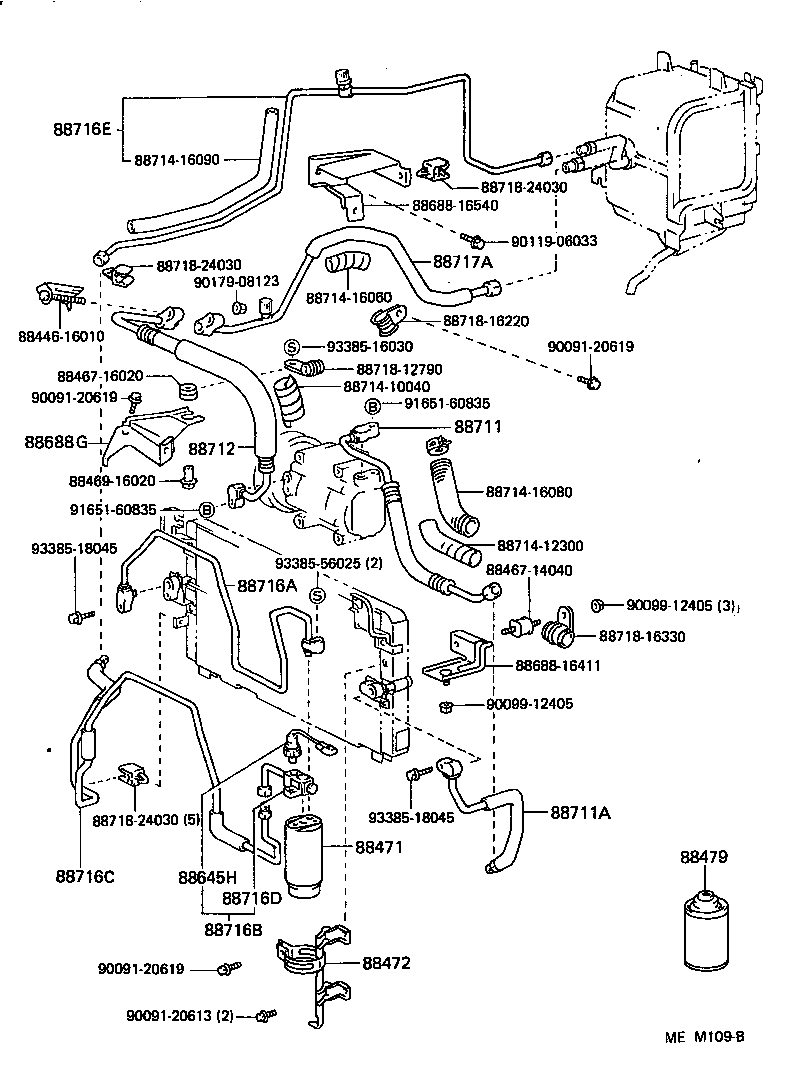

ILLUST NO. 2 OF 2(8808- )CND
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88471 - TANK, RECEIVER AIR CONDITIONER | ||||
| 88471-12020 |
EL31..CND |
1 | ||
| 88472 - BRACKET, RECEIVER TANK, NO.1 | ||||
| 88472-16090 |
EL31..CND |
1 | ||
| 88479 - FREON GAS, AIR CONDITIONER (DRUM, COOLER REFRIGERANT) | ||||
| 90986-02001 |
EL31..CND 400G |
2 | ||
| 88645H - SWITCH, PRESSURE NO.1 | ||||
| 88645-16050 |
EL31..CND |
1 | ||
| 88688G - BRACKET, COOLER REFRIGERANT PIPE | ||||
| 88688-16140 |
EL31..CND |
1 | ||
| 88711 - HOSE, COOLER REFRIGERANT DISCHARGE, NO.1 | ||||
| 88711-16100 |
EL31..CND |
1 | ||
| 88711A - HOSE, COOLER REFRIGERANT DISCHARGE, NO.2 | ||||
| 88715-16020 |
EL31..CND |
1 | ||
| 88712 - HOSE, COOLER REFRIGERANT SUCTION, NO.1 | ||||
| 88712-16120 |
EL31..CND |
1 | ||
| 88716A - PIPE, COOLER REFRIGERANT LIQUID, A | ||||
| 88716-16400 |
EL31..CND |
1 | ||
| 88716B - PIPE, COOLER REFRIGERANT LIQUID, B | ||||
| 88706-16040 |
EL31..CND |
1 | ||
| 88716C - PIPE, COOLER REFRIGERANT LIQUID, C | ||||
| 88716-16390 |
EL31..CND |
1 | ||
| 88716D - PIPE, COOLER REFRIGERANT LIQUID, D | ||||
| 88716-16490 |
EL31..CND |
1 | ||
| 88716E - PIPE, COOLER REFRIGERANT LIQUID, E | ||||
| 88716-16380 |
EL31..CND |
1 | ||
| 88717A - PIPE, COOLER REFRIGERANT SUCTION, A | ||||
| 88717-16070 |
EL31..CND |
1 | ||
| Common parts | ||||
| 88446-16010 | ||||
| 88467-14040 | ||||
| 88467-16020 | ||||
| 88469-16020 | ||||
| 88688-16411 | ||||
| 88688-16540 | ||||
| 88714-10040 | ||||
| 88714-12300 | ||||
| 88714-16060 | ||||
| 88714-16080 | ||||
| 88714-16090 | ||||
| 88718-12790 | ||||
| 88718-16220 | ||||
| 88718-16330 | ||||
| 88718-24030 | ||||
| 90091-20613 | ||||
| 90091-20619 | ||||
| 90099-12405 | ||||
| 90119-06033 | ||||
| 90179-08123 | ||||
| 91651-60835 | ||||
| 93385-16030 | ||||
| 93385-18045 | ||||
| 93385-56025 | ||||
