EL31L-ZHHDSK (1988)
Toyota Tercel
Production
Aug 1988
-
Aug 1989
Engine
3E
Transmission
3FC ATM
Displacement
2500cc
Power
168 HP (125 kW)

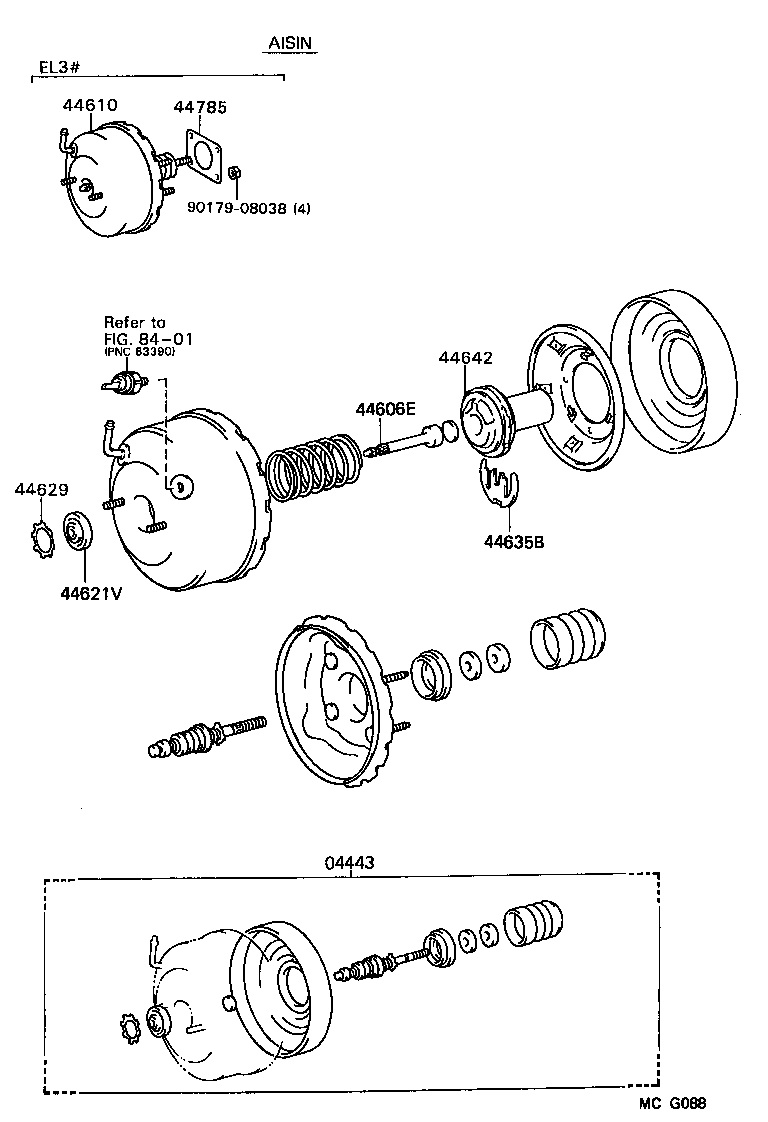

ILLUST NO. 1 OF 2(8808- )
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04443 - BOOSTER KIT, BRAKE | ||||
| 04443-16120 |
EL31..5DS..DX;EL31..5DS..STD..USA;EL31..(2DS,3DS)..CBR |
1 | ||
| 04443-16140 |
EL31..5DS..DX;EL31..5DS..STD..USA;EL31..(2DS,3DS)..CBR |
1 | ||
| 44606E - ROD SUB-ASSY, BRAKE BOOSTER PISTON | ||||
| 44606-12520 |
EL31 |
1 | ||
| 44610 - BOOSTER ASSY, BRAKE | ||||
| 44610-16160 |
EL31 |
1 | ||
| 44621V - SEAL, BOOSTER BODY | ||||
| 44621-28120 |
EL31 |
1 | ||
| 44629 - RING, CIRCULAR INTERNAL | ||||
| 44628-28120 |
EL31 |
1 | ||
| 44635B - KEY, VALVE STOPPER | ||||
| 44635-16160 |
EL31 |
1 | ||
| 44642 - PISTON, BRAKE BOOSTER | ||||
| 44642-16160 |
EL31 |
1 | ||
| 44785 - GASKET, BRAKE BOOSTER | ||||
| 44785-16010 |
EL31 |
1 | ||
| Common parts | ||||
| 90179-08038 | ||||
| Linked diagrams | ||||
| 8401 | ||||

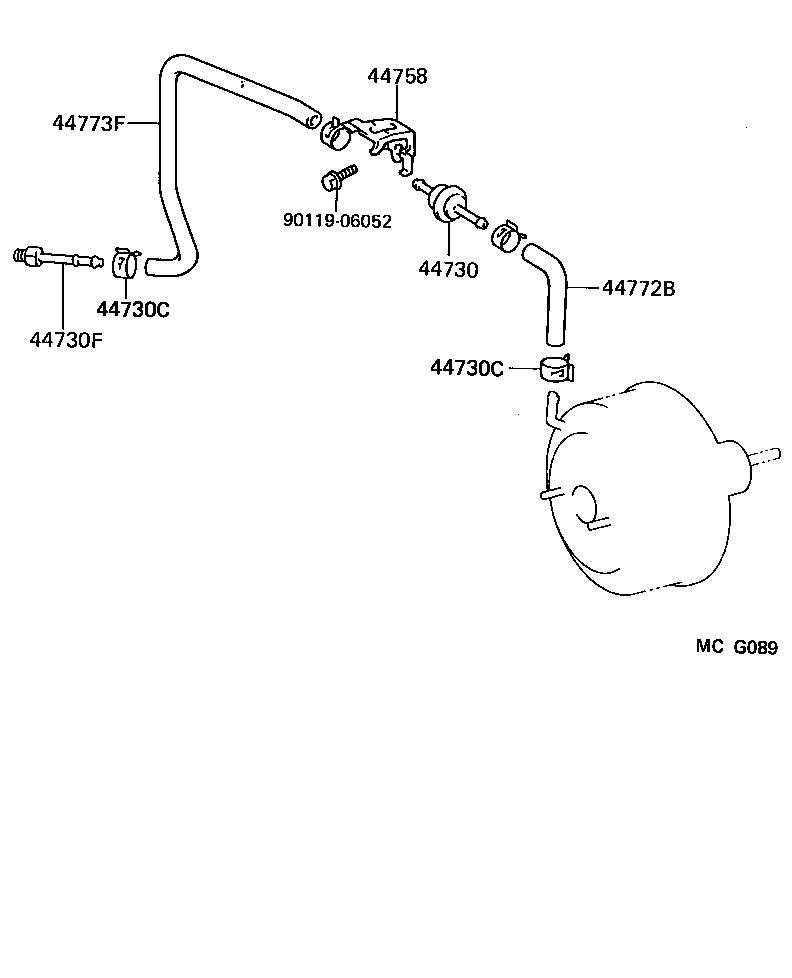

ILLUST NO. 2 OF 2(8808- )
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 44730 - VALVE ASSY, VACUUM CHECK(FOR BRAKE) | ||||
| 44730-10010 |
EL31 |
1 | ||
| 44730C - CLIP(FOR VACUUM HOSE) | ||||
| 90467-16002 |
EL31 |
3 | ||
| 44730C - CLIP(FOR VACUUM HOSE) | ||||
| 90467-16002 |
EL31 |
3 | ||
| 44730F - UNION, VACUUM HOSE(FOR MANIFOLD SIDE) | ||||
| 90404-51034 |
EL31..CBR |
1 | ||
| 44758 - BRACKET, VACUUM CHECK VALVE | ||||
| 44758-16050 |
EL31 |
1 | ||
| 44772B - HOSE, CHECK VALVE TO BRAKE BOOSTER | ||||
| 44772-16070 |
EL31 |
1 | ||
| 44773F - HOSE, UNION TO CHECK VALVE | ||||
| 44773-16051 |
EL31..CBR |
1 | ||
| Common parts | ||||
| 90119-06052 | ||||
