EL31L-ZHHDSK (1988)
Toyota Tercel
Production
Aug 1988
-
Aug 1989
Engine
3E
Transmission
3FC ATM
Displacement
2500cc
Power
168 HP (125 kW)
(8808- )3E

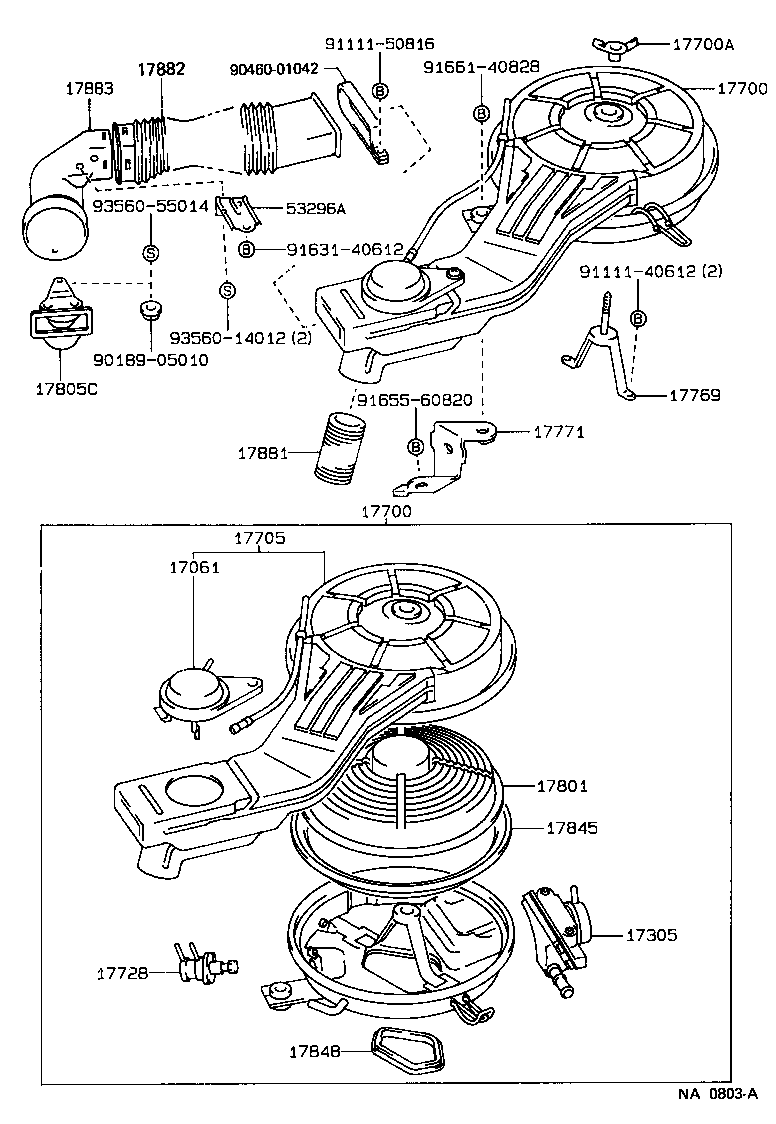

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 17061 - DIAPHRAGM SUB-ASSY | ||||
| 17061-11030 |
3E..EL31 |
1 | ||
| 17700 - CLEANER ASSY, AIR | ||||
| 17700-11510 |
3E..EL31 |
1 | ||
| 17700 - CLEANER ASSY, AIR | ||||
| 17700-11510 |
3E..EL31 |
1 | ||
| 17700A - NUT, WING(FOR AIR CLEANER) | ||||
| 90175-06009 |
3E..EL31 |
1 | ||
| 17705 - CAP SUB-ASSY, AIR CLEANER | ||||
| 17705-11340 |
3E..EL31 |
1 | ||
| 17728 - VALVE, THERMOSTATIC | ||||
| 17728-11030 |
3E..EL31 |
1 | ||
| 17769 - SUPPORT, AIR CLEANER | ||||
| 17769-11020 |
3E..EL31 |
1 | ||
| 17771 - BRACKET, AIR CLEANER INLET DUCT | ||||
| 17771-11010 |
3E..EL31 |
1 | ||
| 17801 - ELEMENT SUB-ASSY, AIR CLEANER FILTER | ||||
| 17801-10030 |
3E..EL31 |
1 | ||
| 17805C - PIPE SUB-ASSY, AIR CLEANER, NO.1 | ||||
| 17805-11050 |
3E..EL31 |
1 | ||
| 17845 - GASKET, AIR CLEANER CAP | ||||
| 17845-10020 |
3E..EL31 |
1 | ||
| 17848 - GASKET, AIR CLEANER TO CARBURETOR | ||||
| 17848-15010 |
3E..EL31 |
1 | ||
| 17881 - HOSE, AIR CLEANER, NO.1 | ||||
| 17881-11120 |
3E..EL31 |
1 | ||
| 17882 - HOSE, AIR CLEANER, NO.2 | ||||
| 17882-11030 |
3E..EL31 |
1 | ||
| 17883 - HOSE, AIR CLEANER, NO.3 | ||||
| 17881-11180 |
3E..EL31 |
1 | ||
| 53296A - RETAINER, COOL AIR INTAKE DUCT | ||||
| 53296-16050 |
EL31..CBR |
1 | ||
| Common parts | ||||
| 90189-05010 | ||||
| 90460-01042 | ||||
| 91111-40612 | ||||
| 91111-50816 | ||||
| 91631-40612 | ||||
| 91655-60820 | ||||
| 91661-40828 | ||||
| 93560-14012 | ||||
| 93560-55014 | ||||
