EL31L-ZHHDSA (1986)

Toyota Tercel

Production Aug 1986 - Aug 1988
Engine 3E
Transmission 3FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8608- )USA

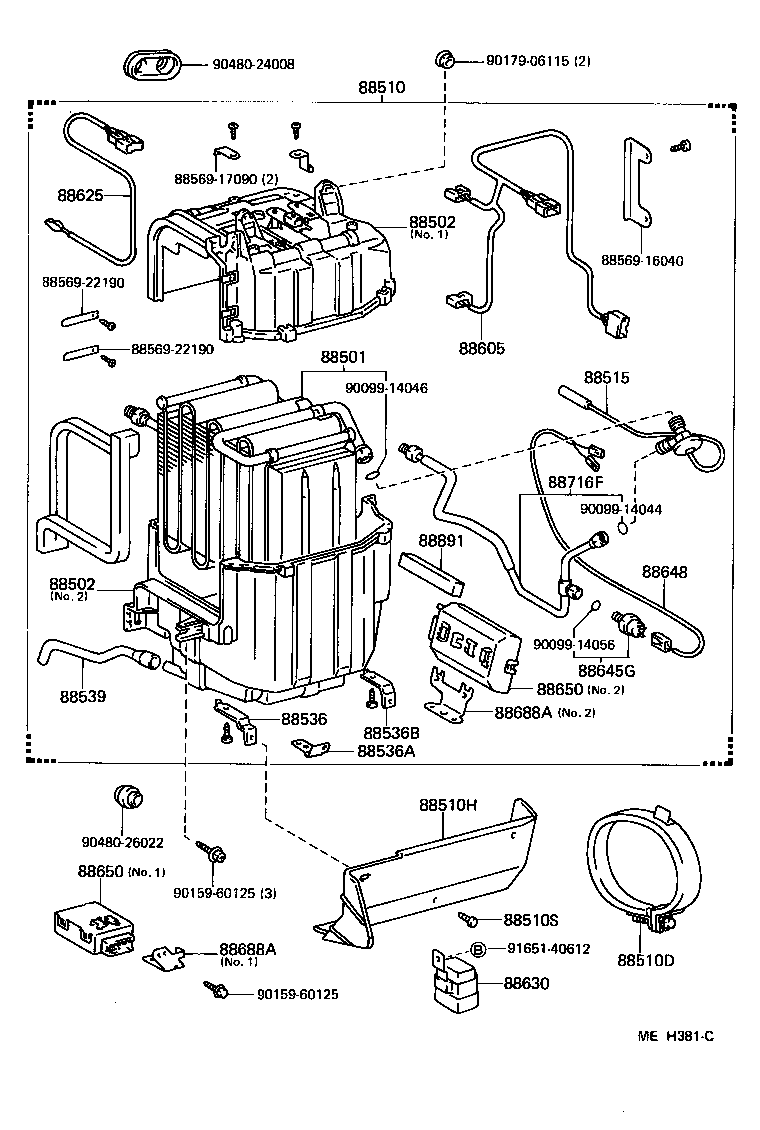

Click highlighted areas on diagram

diagram 88501 88502 88502 88510 88510D 88510H 88510S 88515 88536 88536A 88536B 88539 8856916040 8856917090 8856922190 8856922190 88605 88625 88630 88645G 88648 88650 88650 88688A 88688A 88716F 88891 9009914044 9009914046 9009914056 9015960125 9015960125 9017906115 9048024008 9048026022 9165140612
Part # Description Qty Price
88501 - EVAPORATOR SUB-ASSY, COOLER, NO.1
88501-16070

EL31..(3FC,5F)..USA

 1
88501-16070

EL31..TER..USA

 1
88502 - CASE SUB-ASSY, COOLING UNIT
88502-16091

EL31..(3FC,5F)..USA

NO.1

 1
88502-16091

EL31..TER..USA

NO.1

 1
88502-16101

EL31..TER..USA

NO.2

 1
88502-16101

EL31..(3FC,5F)..USA

NO.2

 1
88502-16100

EL31..(3FC,5F)..USA

NO.2

 1
88502-16090

EL31..(3FC,5F)..USA

NO.1

 1
88502 - CASE SUB-ASSY, COOLING UNIT
88502-16091

EL31..(3FC,5F)..USA

NO.1

 1
88502-16091

EL31..TER..USA

NO.1

 1
88502-16101

EL31..TER..USA

NO.2

 1
88502-16101

EL31..(3FC,5F)..USA

NO.2

 1
88502-16100

EL31..(3FC,5F)..USA

NO.2

 1
88502-16090

EL31..(3FC,5F)..USA

NO.1

 1
88510 - UNIT ASSY, COOLER
88510-16181

EL31..3FC..USA

W/PS

 1
88510-16180

EL31..3FC..USA

W/PS

 1
88510-16191

EL31..3FC..USA

 1
88510-16190

EL31..3FC..USA

 1
88510D - CLAMP, COOLER UNIT
88569-16030

EL31..(3FC,5F)..USA

 1
88569-16030

EL31..TER..USA

 1
88510H - PLATE, COOLER UNIT, NO.1
88899-1601001

EL31..(3FC,5F)..USA

BLACK,NEW BLACK,TRIM2#

 1
88899-1601004

EL31..(3FC,5F)..USA

BLUE,BLUE,TRIM8#

 1
88899-1601101

EL31..3FC..USA

BLACK,W/SUB CONDENSER,NEW BLACK,TRIM2#

 1
88899-1601005

EL31..(3FC,5F)..USA

BEIGE,DARK BEIGE,TRIM4#

 1
88899-1601001

EL31..USA

BLACK,NEW BLACK,TRIM2#

 1
88899-1601004

EL31..USA

BLUE,BLUE,TRIM8#

 1
88899-1601005

EL31..USA

BEIGE,DARK BEIGE,TRIM4#

 1
88899-1601104

EL31..TER..USA

BLUE,BLUE,TRIM8#

 1
88899-1601101

EL31..TER..USA

BLACK,NEW BLACK,TRIM2#

 1
88899-1601105

EL31..3FC..USA

BEIGE,W/SUB CONDENSER,DARK BEIGE,TRIM4#

 1
88899-1601104

EL31..3FC..USA

BLUE,W/SUB CONDENSER,BLUE,TRIM8#

 1
88899-1601105

EL31..TER..USA

BEIGE,DARK BEIGE,TRIM4#

 1
88510S - CLIP (FOR COOLER UNIT COVER)
90467-1001711

EL31..(3FC,5F)..USA

BLACK,BLACK,TRIM2#

 3
90467-1001711

EL31..TER..USA

BLACK,BLACK,TRIM2#

 3
90467-1001734

EL31..(3FC,5F)..USA

BLUE,BLUE,TRIM8#

 3
90467-1001735

EL31..(3FC,5F)..USA

BEIGE,DARK BEIGE,TRIM4#

 3
90467-1001734

EL31..TER..USA

BLUE,BLUE,TRIM8#

 3
90467-1001735

EL31..TER..USA

BEIGE,DARK BEIGE,TRIM4#

 3
88515 - VALVE, COOLER EXPANSION
88515-16040

EL31..(3FC,5F)..USA

 1
88515-16040

EL31..TER..USA

 1
88536 - BRACKET, COOLING UNIT, NO.1
88688-16340

EL31..(3FC,5F)..USA

 1
88688-16340

EL31..TER..USA

 1
88536A - BRACKET, COOLING UNIT, NO.2
88688-16360

EL31..(3FC,5F)..USA

 1
88688-16360

EL31..TER..USA

 1
88536B - BRACKET, COOLING UNIT, NO.3
88688-16350

EL31..TER..USA

 1
88688-16350

EL31..(3FC,5F)..USA

 1
88539 - HOSE, COOLER UNIT DRAIN, NO.1
88539-16030

EL31..TER..USA

 1
88539-16030

EL31..(3FC,5F)..USA

 1
88605 - HARNESS SUB-ASSY, COOLER WIRING, NO.1
88605-16520

EL31..3FC

W/PS

 1
88605-16530

EL31..3FC

 1
88625 - THERMISTOR, COOLER, NO.1
88625-16080

EL31..(3FC,5F)..USA

 1
88625-16080

EL31..TER..USA

 1
88630 - RELAY ASSY, COOLER
88630-16080

EL31..TER..USA

 1
88645G - SWITCH, PRESSURE
88645-16020

EL31..(3FC,5F)..USA

 1
88645-16020

EL31..TER..USA

 1
88645-16050

EL31..TER..USA

 1
88648 - WIRING, COOLER, NO.1
88648-16120

EL31..(3FC,5F)..USA

 1
88648-16120

EL31..TER..USA

 1
88650 - AMPLIFIER ASSY, COOLER STABILIZER
88650-16160

EL31..3FC

W/PS,NO.2

 1
88650-16350

EL31..3FC..USA

W/PS & SUB CONDENSER,NO.2

 1
88650-16170

EL31..3FC

W/O PS,NO.2

 1
88650-16370

EL31..3FC..USA

W/O PS & SUB CONDENSER,NO.2

 1
88650-16270

EL31..3FC

NO.1

 1
88650-16370

EL31..3FC

W/O PS,NO.2

 1
88650-16350

EL31..3FC

W/PS,NO.2

 1
88650-16380

EL31..3FC

NO.1

 1
88650 - AMPLIFIER ASSY, COOLER STABILIZER
88650-16160

EL31..3FC

W/PS,NO.2

 1
88650-16350

EL31..3FC..USA

W/PS & SUB CONDENSER,NO.2

 1
88650-16170

EL31..3FC

W/O PS,NO.2

 1
88650-16370

EL31..3FC..USA

W/O PS & SUB CONDENSER,NO.2

 1
88650-16270

EL31..3FC

NO.1

 1
88650-16370

EL31..3FC

W/O PS,NO.2

 1
88650-16350

EL31..3FC

W/PS,NO.2

 1
88650-16380

EL31..3FC

NO.1

 1
88688A - BRACKET, COOLER STABILIZER AMPLIFIER
88688-16270

EL31..(3FC,5F)..USA

NO.2

 1
88688-16330

EL31..(3FC,5F)..USA

W/PS,NO.2

 1
88688-16310

EL31..(3FC,5F)..USA

NO.1

 1
88688-16310

EL31..TER..USA

NO.1

 1
88688-16270

EL31..TER..USA

NO.2

 1
88688-16310

EL31..3FC..USA

NO.1

 1
88688-16330

EL31..TER..USA

W/PS,NO.2

 1
88688-16330

EL31..TER..USA

NO.2

 1
88688-16330

EL31..USA

W/PS & SUB CONDENSER,NO.2

 1
88688A - BRACKET, COOLER STABILIZER AMPLIFIER
88688-16270

EL31..(3FC,5F)..USA

NO.2

 1
88688-16330

EL31..(3FC,5F)..USA

W/PS,NO.2

 1
88688-16310

EL31..(3FC,5F)..USA

NO.1

 1
88688-16310

EL31..TER..USA

NO.1

 1
88688-16270

EL31..TER..USA

NO.2

 1
88688-16310

EL31..3FC..USA

NO.1

 1
88688-16330

EL31..TER..USA

W/PS,NO.2

 1
88688-16330

EL31..TER..USA

NO.2

 1
88688-16330

EL31..USA

W/PS & SUB CONDENSER,NO.2

 1
88716F - PIPE, COOLER REFRIGERANT LIQUID, F
88716-16280

EL31..TER..USA

 1
88716-16280

EL31..(3FC,5F)..USA

 1
88891 - PACKING (FOR COOLER)
88578-10090

EL31..(3FC,5F)..USA

 1
88578-10090

EL31..TER..USA

 1
